Kaleidescape

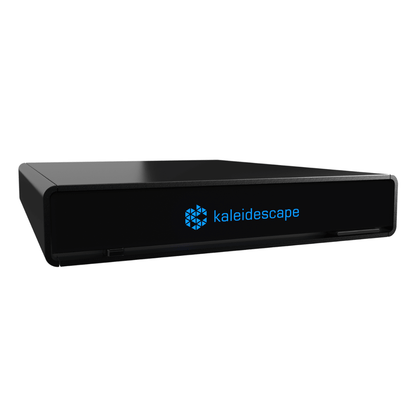

Kaleidescape Strato V Movie Player

Skip to product information
1 of 3

STRATO V

Regular price $5,695.00
Sale price $5,695.00 Regular price


Contact Us

Please call us at 1-905-270-3440 or simply fill out the form below for ordering & more info.


Product Overview

The next generation of movie player technology. Providing 4K Dolby Vision playback with lossless audio decode, Strato V works on its own or as a part of a larger Kaleidescape system.

  • Reference video for every 4K display. SDR, HDR10, and now Dolby Vision.
  • Lossless spatial audio. Clear dialog and immersive sound effects.
  • Standalone. Includes 960GB solid-state storage.
  • Scalable. Add a server for more movies on demand and more players for whole house entertainment.
  • Ultimate performance. New electronics and grounding topology for audiophiles.

Product Highlights

Visionary

Uncompromising picture quality. Strato V plays 4K movies in standard dynamic range, HDR10, and Dolby Vision with superb upscaling of HD and SD quality content to 4K resolution.

Lossless Audio

Strato movie players provide lossless audio, maximizing sound quality with a range of downstream components. Strato supports multichannel and spatial audio codecs including Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio.

Kaleidescape’s lossless audio makes your processor, amplifiers, and speakers sound the way the director intended. The dialogue is clearer, and every subtle sound and rumble draws you deeper into the story.

Standalone System

When standalone, Strato V stores approximately 10 reference 4K movies on an internal, solid-state drive. Featuring a new streamlined interface, Strato V is optimized for navigating a small movie library.

Strato V can download a Kaleidescape 4K movie in as little as 10 minutes over gigabit Ethernet. Downloads become a candidate for automatic deletion 48 hours after playback, making room for more movies. Purchased movies can be re-downloaded at any time.

Immense Scale

An investment that grows with you. Want room for more movies or players in additional rooms? Unlock the full Kaleidescape experience by grouping Strato V with Terra Prime movie servers. Any number of Strato V movie players can be grouped into a system, with up to four servers per system.

Grouping with a server activates the iconic Kaleidescape covers view and list menus for navigating large movie libraries. It also unlocks Kaleidescape’s parental control settings and proprietary child remote, for a customizable family-friendly experience.

Elevated Installation

Kaleidescape rack shelves and wall mount solutions are available for a custom install.

Specifications

Dimensions (W x H x D) — 7.87in x 1.52in x 10.0in (20.0cm x 3.9cm x 25.4cm)

Weight — 4.2lb (1.91kg)

Power

Max consumption — 13W

Typical — 4.9W

High power standby — 3.8W

Lower power standby — 0.5W

External power adapter — 100-240VAC to 12VDC @ 5A, 60W, isolated ground

Network — Gigabit Ethernet (1000 Base-T)

Other Connection — USB (for disc cataloging) / Chassis GND connections (x2)

Control

Front-panel IR receiver window

IR input — 1/8in mini plug

HDMI CEC

Kaleidescape control protocol over Ethernet — supported by Josh.ai, Crestron, AMX, Control4, Savant, the Kaleidescape apps, and other apps & control systems

Lutron RA3 and HomeWorks control over Ethernet

Environment

Operating — 41 to 95°F (5 to 35°C)

Storage — -4 to 140°F (-20 to 60°C)

Relative humidity — 20 to 80% (operation) 5 to 90% (storage)

Maximum operating altitude — 10,000ft (3,048m)

Heat output — 44 BTU/hr (13W) max

Airflow — 5 CFM (8.4 m3/hr) max

Fan Noise — Silent in most installs, 17dB(A) when downloading in hot environments

Ventilation

Minimum 1in (2.5cm) space at the front

Minimum 2in (5cm) space at the rear

Mounts (sold separately)

Rack — Rack shelf with faceplates is available for mounting 1 or 2 (centered or side-by-side) Strato V players in a 19in rack, 1U space

Wall — Wall mount available for mounting behind TV displays

Certifications

CSA 62368-1, IEC 62368-1, FCC CLASS B, CE, AU/NZ Regulatory Compliance Mark (RCM), RoHS Compliant

Video Output — HDMI 2.1 / HDCP 2.3 copy protection

Video Display Formats

Resolutions — 2160p60/50/30/25/24, 1080p60/50/24, 1080i60/50, 720p60/50, 576i, 576p, 480i, 480p

Chroma — 4:4:4 8-bit up to 2160p60, 4:4:4 10/12-bit up to 2160p30, 4:2:2 12-bit up to 2160p60, 4:2:0 8/10/12-bit at 2160p50/60 only

Color spaces — BT.2020, BT.709, BT.601

Aspect ratios — 1.78:1 and 2.35:1 (CinemaScape), automatic or user interface selectable

HDR — Dolby Vision (standard and low-latency) and HDR10 (SMPTE ST 2084, 2086)

Movie playback — up to 4K; UI in 2K

Audio Outputs

HDMI 2.1 — combined with video

Digital — Coaxial RCA and TOS-link connectors

Audio Formats (HDMI Connector)

Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, DTS-HD High Resolution Audio, Dolby Digital, DTS Digital Surround, Dolby MAT PCM, PCM (up to 7.1ch, 96kHz/24-bit)

Audio Formats (Coaxial RCA and TOS-link)

PCM (2ch, up to 96kHz/24-bit)

Storage

Standalone — Internal 960GB SSD (available storage for approximately 10 Kaleidescape high-bitrate 4K movies)

Grouped — Strato V can also access content stored on a Terra when connected and grouped via local network

Media Played

Kaleidescape movie store downloads: 4K Dolby Vision, 4K HDR10, 4K SDR, HD, and SD quality

Compare products

See how the Strato V compares to the Strato M, Strato E, and Strato C across storage, audio outputs, chassis quality, and standalone capability.

front panel of kaleidescape strato m movie player

Kaleidescape Strato M Movie Player

kaleidescape strato e movie player front panel

Kaleidescape Strato E Movie Player

kaleidescape strato c movie player front panel

Kaleidescape Strato C Movie Player

strato v movie player

Kaleidescape Strato V Movie Player

Price $2,895 $4,295 $4,295 $5,695
Standalone capable Yes Yes No — requires Terra server Yes
Max output resolution 1080p (2K) 4K (2160p60) 4K (2160p60) 4K (2160p60)
HDMI version 2.1 / HDCP 2.3 2.1 / HDCP 2.3 2.0b / HDCP 2.2 2.1 / HDCP 2.3
Dolby Vision Yes (output at 2K 4:2:2) Yes (standard and low-latency) No Yes (standard and low-latency)
HDR10 Yes Yes Yes Yes
Dolby Atmos / TrueHD bitstream Yes Yes Yes Yes
Dolby MAT 2.0 / Atmos 7.1.4 Yes Yes No Yes
Lossless decode to PCM Yes Yes No (lossy) Yes
Internal SSD 480GB (approx. 6 high-bitrate movies) 480GB (approx. 6 high-bitrate 4K movies) None — server dependent 960GB (approx. 10 high-bitrate 4K movies)
Coaxial RCA output No No Yes (PCM 2ch, up to 96kHz/24-bit) Yes (PCM 2ch, up to 96kHz/24-bit)
TOS-link optical output No No Yes (PCM 2ch, up to 96kHz/24-bit) Yes (PCM 2ch, up to 96kHz/24-bit)
Secondary HDMI audio output No No Yes (HDMI 1.4, audio only) No
HDMI CEC Yes Yes No Yes
IR extender input No No Yes Yes
Co-Star support No No Yes Yes
Chassis Compact black perforated steel Compact black perforated steel Silver anodized aluminum Black anodized aluminum
Dimensions (W x H x D) 6.4 x 1.1 x 6.4 in (16.3 x 3 x 16.3 cm) 6.4 x 1.1 x 6.4 in (16.3 x 3 x 16.3 cm) 7.87 x 1.52 x 10.0 in (20 x 3.9 x 25.4 cm) 7.87 x 1.52 x 10.0 in (20 x 3.9 x 25.4 cm)
Weight 1.6 lb (0.73 kg) 1.6 lb (0.73 kg) 4.2 lb (1.91 kg) 4.2 lb (1.91 kg)
Max power consumption 13W 13W 20W 13W
Fan Silent (no internal fan) Silent (no internal fan) No internal fan Silent in most installs; 17dB(A) when downloading in hot environments
Best for Secondary zones, 1080p displays, entry-level Kaleidescape systems Single-room 4K home theatre, scalable starter system Multi-room whole-home installations with Terra server Premium single-room 4K with separate audio zones
Chassis GND connections 2x

Frequently Asked Questions

What is the Kaleidescape Strato V?

The Kaleidescape Strato V is a premium 4K movie player delivering 4K Ultra HD video with full Dolby Vision and HDR10, lossless multichannel and spatial audio including Dolby Atmos and DTS:X, and 960GB of onboard SSD storage for standalone operation in a compact anodized aluminum chassis. The Strato V downloads full-bitrate 4K movies from the Kaleidescape Movie Store at bitrates exceeding both Ultra HD Blu-ray and 4K streaming with no buffering or quality variation during playback. The Kaleidescape Strato V is available at Trutone Electronics in Mississauga, Ontario.

What sets the Kaleidescape Strato V apart from the Strato E?

The Kaleidescape Strato V and Strato E produce identical 4K HDR video and identical lossless audio over their HDMI 2.1 connections with no perceivable difference in picture or sound quality. The Strato V differentiates itself in four areas: double the onboard storage at 960GB versus 480GB, the addition of coaxial RCA and optical TOS-link digital audio outputs for two-channel or secondary audio zones, a rear IR extender input, and a premium milled anodized aluminum chassis rather than the Strato E's perforated steel. The Strato V also supports Co-Star pairing with legacy Kaleidescape Premiere M-class players, which the Strato E does not.

What video quality does the Kaleidescape Strato V deliver?

The Kaleidescape Strato V outputs full 4K Ultra HD at up to 2160p60 with Dolby Vision in standard and low-latency modes and HDR10, supporting 4:4:4 8-bit up to 2160p60, 4:4:4 10/12-bit up to 2160p30, and 4:2:2 12-bit up to 2160p60. Movies from the Kaleidescape Movie Store average approximately 65 Mbps video throughput, higher than Ultra HD Blu-ray's 50 Mbps ceiling, with audio at approximately 6 Mbps equal to lossless Blu-ray disc audio. Kaleidescape's content is also unconstrained by file-size limits, allowing maximum quality extraction from each studio mezzanine file.

What audio formats and outputs does the Kaleidescape Strato V support?

The Kaleidescape Strato V supports Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, DTS-HD High Resolution Audio, Dolby Digital, DTS Digital Surround, Dolby MAT PCM, and PCM up to 7.1 channels at 96kHz/24-bit via HDMI 2.1. It also includes coaxial RCA and TOS-link optical outputs carrying PCM two-channel audio at up to 96kHz/24-bit. These secondary outputs allow the Strato V to simultaneously feed an AV processor for surround sound and a two-channel amplifier for a secondary listening area, a feature the Strato E does not offer.

How much content can the Kaleidescape Strato V store in standalone mode?

The Kaleidescape Strato V includes a 960GB SSD with storage for approximately 10 high-bitrate 4K movies, double the capacity of the Strato E and Strato M. After a downloaded movie has been watched it automatically becomes a deletion candidate 48 hours later, though purchased titles remain permanently in the owner's Kaleidescape account and can be re-downloaded at any time. In grouped mode the Strato V's internal SSD remains active and supplements server-based content.

Can the Kaleidescape Strato V function without a Terra server?

The Kaleidescape Strato V is fully capable of standalone operation with no Terra server required. In standalone mode it stores approximately 10 4K movies on its internal SSD with a streamlined interface and full access to the Kaleidescape Movie Store for purchasing and downloading content. When grouped with a Terra server over Gigabit Ethernet, the Strato V unlocks the full Kaleidescape experience including Covers view, List view, user collections, parental controls, and Co-Star pairing with legacy Premiere M-class players.

What have reviewers said about the Kaleidescape Strato V?

The Kaleidescape Strato V has received broadly enthusiastic coverage from home theatre publications. TechRadar described it as offering 4K Blu-ray video and audio quality without the discs. WifiHifi named it their product of the year in February 2025. eCoustics called it a movie lover's dream, noting quality that matches or exceeds the best physical media alongside simplicity of operation. Projector Reviews awarded it their top product award for standalone versatility and premium build quality.

How does the Kaleidescape Strato V fit the Strato lineup and who is it best for?

The Kaleidescape Strato V is the premium 4K player for buyers who want the best standalone 4K Kaleidescape experience, with meaningful advantages over the Strato E in storage depth, audio connectivity, and build quality. It suits dedicated home theatre rooms as a primary player, system builders who want more onboard storage before committing to a Terra server, and installations where a coaxial or optical audio output is needed alongside HDMI. Buyers who do not need extra storage or secondary audio outputs should consider whether the additional features justify the price difference over the Strato E, which performs identically in picture and sound. The Kaleidescape Strato V is available at Trutone Electronics in Mississauga, Ontario.
