Kaleidescape Strato E Movie Player

Skip to product information
1 of 3

STRATO E

Regular price $4,295.00
Sale price $4,295.00 Regular price


Contact Us

Please call us at 1-905-270-3440 or simply fill out the form below for ordering & more info.


Product Overview

Award-winning 4K movie player. Providing lossless audio and reference-quality 4K video output, Strato E works on its own or as part of a larger Kaleidescape system.
  • Reference video for every 4K display. SDR, HDR10, and Dolby Vision.
  • Lossless spatial audio. Clear dialog and immersive sound effects.
  • Standalone. Includes 480GB solid-state storage.
  • Scalable. Add a server for more movies on demand and more players for whole-house entertainment.

Visionary

Uncompromising picture quality. Strato E plays 4K movies in standard dynamic range, HDR10, and Dolby Vision with superb upscaling of HD and SD quality content to 4K resolution.

Lossless Audio

Strato movie players provide lossless audio, maximizing sound quality with a range of downstream components. Strato supports multichannel and spatial audio codecs including Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio.
Kaleidescape’s lossless audio makes your processor, amplifiers, and speakers sound the way the director intended. The dialogue is clearer, and every subtle sound and rumble draws you deeper into the story.

Downloaded, Not Streamed

Movie bitrates up to 100 Mbps. Kaleidescape movies are high bitrate and downloaded to local storage for uninterrupted, flawless playback. There is never buffering or degradation, unlike streaming services that are limited by internet infrastructure.Kaleidescape movies are also unconstrained by file size limits, enabling our content team to maximize the video quality transcoded from studio mezzanine files, unlike Blu-ray discs that have a maximum file size limit.

Standalone

Kaleidescape’s entry-level 4K movie player. When standalone, Strato E stores about a half-dozen high-bitrate movies on an internal, solid-state drive. Strato E features the same streamlined interface as Strato V and Strato M, optimized for navigating a small movie library.
Strato E can download a Kaleidescape movie in minutes over gigabit Ethernet. Downloads become a candidate for automatic deletion 48 hours after playback, making room for more movies. Purchased movies can be re-downloaded at any time.

Scalable

An investment that grows with you. Want room for more movies or players in additional rooms? Unlock the full Kaleidescape experience by grouping Strato with Terra Prime movie servers. Add Strato V or Strato E to primary viewing areas and Strato M to ancillary spaces, like kitchens or bedrooms. Any number of Strato movie players can be grouped into a system, with up to four servers per system.
Grouping with a server activates the iconic Kaleidescape covers view and list menus for navigating large movie libraries. It also unlocks Kaleidescape’s parental control settings and proprietary child remote, for a customizable family-friendly experience.

On the Go

Strato E’s mini form factor makes it easy to take a handful of your favorite movies wherever you go. Enjoy your Kaleidescape movies at home, on vacation, or bring movie night to your friends and family. Unlike streaming, once your movies are downloaded, you don’t need an internet connection to enjoy pristine playback.

Installation Made Easy

Strato E can easily be tucked behind a TV or placed on a shelf. For a more customized installation, official Kaleidescape rack shelves and wall mount solutions are available.

Specifications

Dimensions (W x H x D) — 6.4in x 1.1in x 6.4in (16.3cm x 3cm x 16.3cm)

Weight — 1.6lb (0.73kg)

Power

Max consumption — 13W

Typical — 4.3W

High power standby — 3.8W

Lower power standby — 0.5W

External power adapter — 100-240VAC to 12VDC @ 5A, 60W, isolated ground

Network — Gigabit Ethernet (1000 Base-T)

Other Connection — USB (for disc cataloging)

Control

Front-panel IR receiver

HDMI CEC

Kaleidescape control protocol over Ethernet — supported by Josh.ai, Crestron, AMX, Control4, Savant, the Kaleidescape apps, and other apps & control systems

Lutron RA3 and HomeWorks control over Ethernet

Environment

Operating — 41 to 95°F (5 to 35°C)

Storage — -4 to 140°F (-20 to 60°C)

Relative humidity — 20 to 80% (operation) 5 to 90% (storage)

Maximum operating altitude — 10,000ft (3,048m)

Heat output — 44 BTU/hr (13W) max

Airflow — none

Fan Noise — Silent (no internal fan)

Ventilation

Minimum 1in (2.5cm) space at the front

Minimum 2in (5cm) space at the rear

Mounts (sold separately)

Rack — Rack shelf with faceplates is available for mounting 1 or 2 (centered or side-by-side) Strato E players in a 19in rack, 1U space

Wall — Wall mount available for mounting behind TV displays

Certifications

CSA 62368-1, IEC 62368-1, FCC CLASS B, CE, AU/NZ Regulatory Compliance Mark (RCM), RoHS Compliant

Video Output — HDMI 2.1 / HDCP 2.3 copy protection

Video Display Formats

Resolutions — 2160p60/50/30/25/24, 1080p60/50/24, 1080i60/50, 720p60/50, 576i, 576p, 480i, 480p

Chroma — 4:4:4 8-bit up to 2160p60, 4:4:4 10/12-bit up to 2160p30, 4:2:2 12-bit up to 2160p60, 4:2:0 8/10/12-bit at 2160p50/60 only

Color spaces — BT.2020, BT.709, BT.601

Aspect ratios — 1.78:1 and 2.35:1 (CinemaScape), automatic or user interface selectable

HDR — Dolby Vision (standard and low-latency) and HDR10 (SMPTE ST 2084, 2086)

Movie playback — up to 4K; UI in 2K

Audio Outputs — HDMI 2.1 (combined with video)

Audio Formats (HDMI Connector)

Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, DTS-HD High Resolution Audio, Dolby Digital, DTS Digital Surround, Dolby MAT PCM, PCM (up to 7.1ch, 96kHz/24-bit)

Storage

Standalone — Internal 480GB SSD (available storage for approximately 6 Kaleidescape high-bitrate movies)

Grouped — Strato E can also access content stored on a Terra when connected and grouped via local network

Media Played

Kaleidescape movie store downloads: 4K Dolby Vision, 4K HDR10, 4K SDR, HD, and SD quality

Compare products

front panel of kaleidescape strato m movie player

Kaleidescape Strato M Movie Player

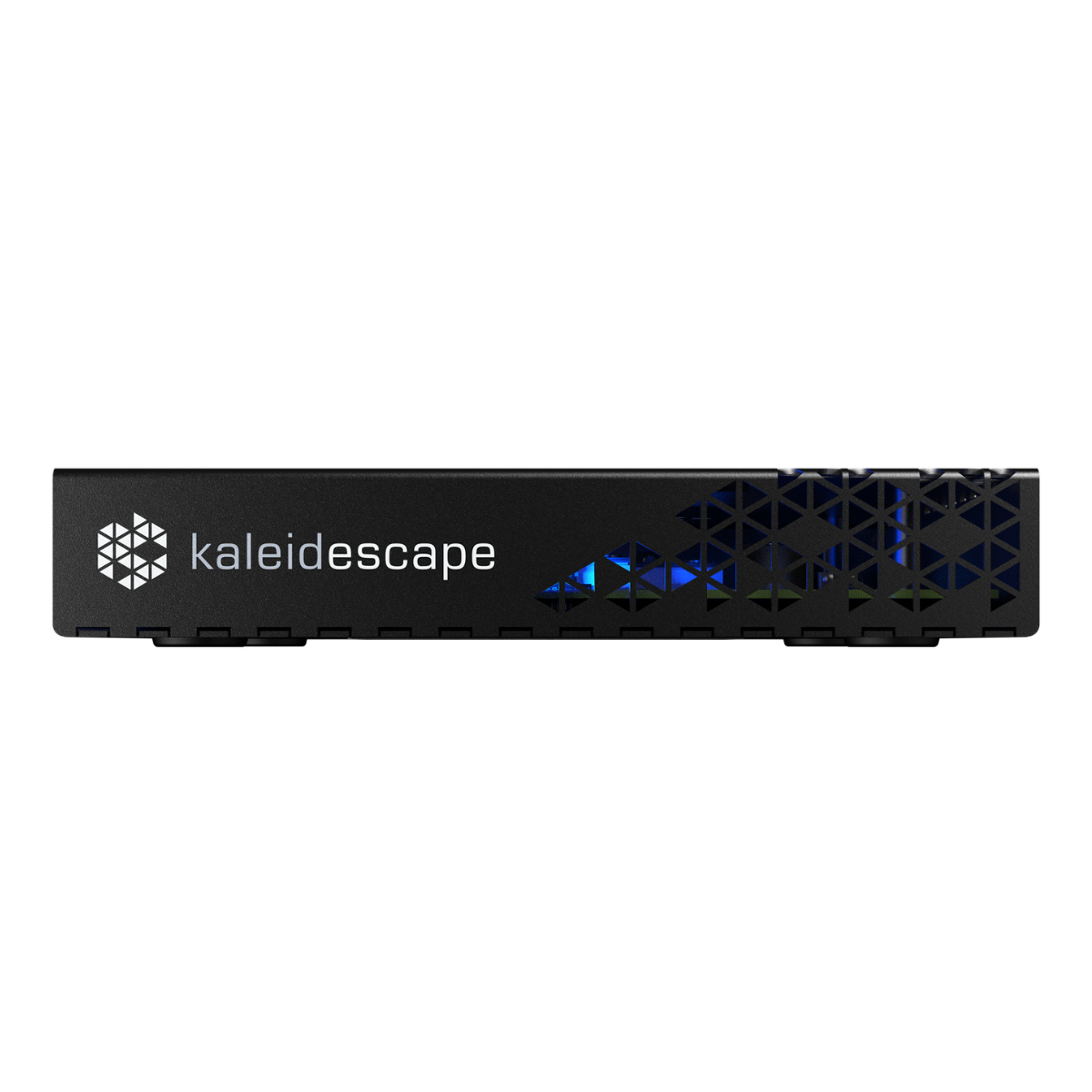

kaleidescape strato e movie player front panel

Kaleidescape Strato E Movie Player

Price $2,895 $4,295
Standalone capable Yes Yes
Max output resolution 1080p (2K) 4K (2160p60)
HDMI version 2.1 / HDCP 2.3 2.1 / HDCP 2.3
Dolby Vision Yes (output at 2K 4:2:2) Yes (standard and low-latency)
HDR10 Yes Yes
Dolby Atmos / TrueHD bitstream Yes Yes
Dolby MAT 2.0 / Atmos 7.1.4 Yes Yes
Lossless decode to PCM Yes Yes
Internal SSD 480GB (approx. 6 high-bitrate movies) 480GB (approx. 6 high-bitrate 4K movies)
Coaxial RCA output No No
TOS-link optical output No No
Secondary HDMI audio output No No
HDMI CEC Yes Yes
IR extender input No No
Co-Star support No No
Chassis Compact black perforated steel Compact black perforated steel
Dimensions (W x H x D) 6.4 x 1.1 x 6.4 in (16.3 x 3 x 16.3 cm) 6.4 x 1.1 x 6.4 in (16.3 x 3 x 16.3 cm)
Weight 1.6 lb (0.73 kg) 1.6 lb (0.73 kg)
Max power consumption 13W 13W
Fan Silent (no internal fan) Silent (no internal fan)
Best for Secondary zones, 1080p displays, entry-level Kaleidescape systems Single-room 4K home theatre, scalable starter system

Frequently Asked Questions

What is the Kaleidescape Strato E?

The Kaleidescape Strato E is an entry-level 4K movie player offering full 4K Ultra HD output with Dolby Vision and HDR10, lossless spatial audio including Dolby Atmos and DTS:X, and an internal 480GB SSD for standalone operation in a compact fanless enclosure. The Strato E downloads full-bitrate movie files from the Kaleidescape Movie Store at bitrates far exceeding both streaming services and Ultra HD Blu-ray, providing immediate buffer-free playback from local storage. The Kaleidescape Strato E is available at Trutone Electronics in Mississauga, Ontario.

How does the Kaleidescape Strato E differ from the Strato M and Strato V?

The Kaleidescape Strato E shares the same compact perforated steel chassis and 480GB SSD as the Strato M but adds native 4K output, making it the more capable player for any 4K display at close viewing distances. Compared to the Strato V, the Strato E delivers identical 4K HDR video and lossless audio performance over HDMI at a lower price, with half the onboard storage and without the Strato V's coaxial and optical audio outputs, IR extender input, anodized aluminum chassis, or Co-Star pairing capability. Multiple professional reviewers have confirmed the Strato E and Strato V are indistinguishable in actual picture and sound quality.

What video quality does the Kaleidescape Strato E deliver?

The Kaleidescape Strato E outputs full 4K Ultra HD at up to 2160p60 with Dolby Vision in standard and low-latency modes plus HDR10, processing chroma at 4:4:4 8-bit up to 2160p60 and 4:4:4 10/12-bit up to 2160p30. Video throughput averages approximately 65 Mbps, significantly higher than Ultra HD Blu-ray's 50 Mbps cap and dramatically above the approximately 8 Mbps that streaming services provide for 4K content. This difference is visible in more saturated colours, crisper fine detail, and more stable black levels.

What audio formats does the Kaleidescape Strato E support?

The Kaleidescape Strato E supports Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, DTS-HD High Resolution Audio, Dolby Digital, DTS Digital Surround, Dolby MAT PCM, and PCM up to 7.1 channels at 96kHz/24-bit via its HDMI 2.1 output. Audio throughput is approximately 6 Mbps — equal to Blu-ray disc lossless audio and approximately nine times higher than typical streaming audio bitrates. The Strato E does not include a separate coaxial or optical audio output; listeners who require S/PDIF for a secondary audio zone should consider the Strato V.

How does the Kaleidescape Strato E handle storage and what happens to downloaded movies?

The Kaleidescape Strato E includes a 480GB SSD capable of storing approximately six high-bitrate 4K movies in standalone mode. After viewing a downloaded movie, the file automatically becomes a deletion candidate 48 hours later, freeing storage for new content. Purchased titles remain in the owner's Kaleidescape account permanently and can be re-downloaded at any time.

Does the Kaleidescape Strato E need a Terra server?

The Kaleidescape Strato E works fully as a standalone player with no Terra server required, storing movies on its internal SSD and operating with a streamlined small-library interface. When grouped with a Terra Prime server over a local Gigabit Ethernet network, the Strato E gains access to Covers view, List view, user collections, parental controls, and a much larger movie library. The Strato E is compatible with other Strato players in a grouped system, allowing multiple players to share a single Terra server library across multiple rooms simultaneously.

What have reviewers said about the Kaleidescape Strato E?

The Kaleidescape Strato E has received strongly positive coverage from professional home theatre publications. HomeTheaterHifi.com awarded it their highest Secrets Recommended Gear 2026 Superior rating, concluding that in most cases a Kaleidescape player is the way to watch a movie in the highest possible quality because no other medium has as much bandwidth. TechRadar wrote after three weeks of use that they could not go back to 4K streaming services. The single consistent criticism across reviews is the 480GB storage capacity, which limits standalone mode to approximately six movies before management is required.

How does the Kaleidescape Strato E fit the broader Strato lineup and who is it best for?

The Kaleidescape Strato E is the entry point for buyers who want the full Kaleidescape 4K experience in a compact standalone-capable package without the larger storage, additional audio outputs, or premium chassis of the Strato V. It suits home theatre enthusiasts building their first Kaleidescape system with a single 4K display, buyers who plan to eventually add a Terra server, and system integrators specifying Kaleidescape into projects where reference-quality audio and video are the priority. Buyers who need coaxial or optical audio outputs, more than six movies in standalone storage, or Co-Star pairing should consider the Strato V instead.
