Arcam A5+ Integrated Amplifier

  • Black audio amplifier with 'Arcam' branding on a white background

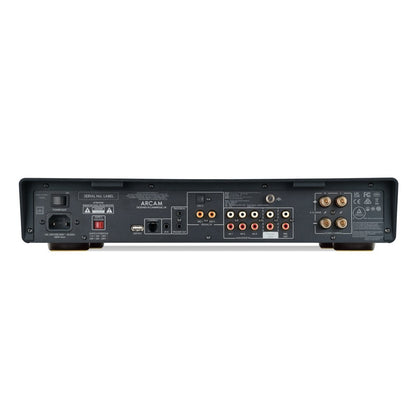

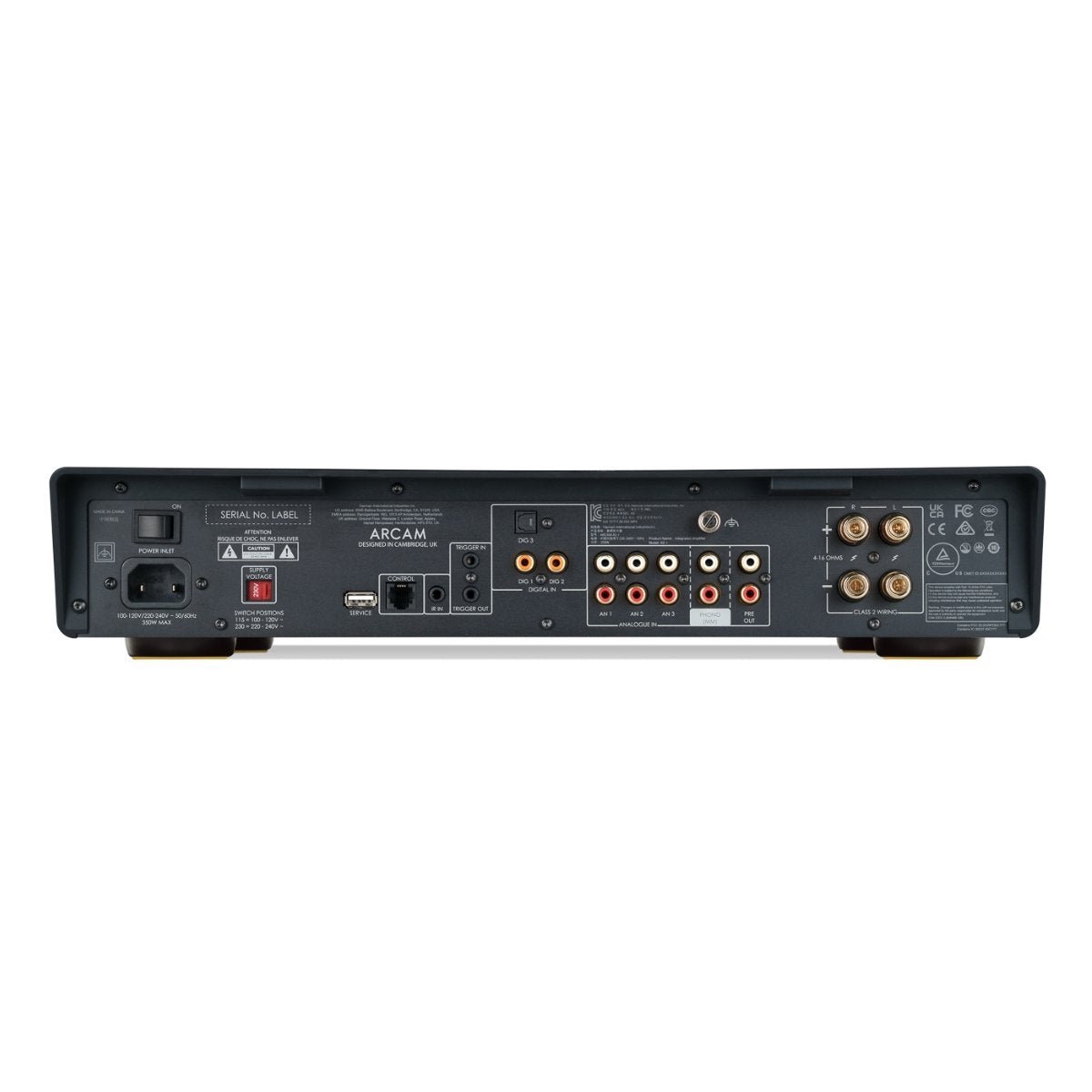

  • back view of arcam a5+ integrated amp
  • front view of arcam amp remote controller

A5+

$1,499.00
$1,499.00

Free Shipping

  • In Stock

For store pickups, please call for availability.

Product Overview

The "A" in ARCAM stands for amplification, where our expertise lies. The A5+ is the latest in nearly 50 years of amplifier design and manufacture, dating back to our first product in 1976 —the A&R Cambridge A60 amplifier. Since the launch of the award-winning ARCAM Radia A5, we haven't rested. Our engineering team pushed further to create the ARCAM A5+, an even better sounding and more versatile integrated amplifier.

The A5+ features an enhanced power supply design and cutting-edge wireless capabilities straight out of the box. Snapdragon Sound delivers uncompressed digital audio via Bluetooth, while Auracast enables multiple compatible headphones or speakers to share music wirelessly, with no pairing required.

With a wide array of digital and analogue inputs, including a meticulously tuned phono stage, the A5+ ensures impeccable sound quality for everything from vinyl to streaming.

Not sure which model is right for you? View our A5+, A15+, and A25+ comparison here.

Specifications

Continuous power output (0.5% THD), per channel
2 channels driven, 20Hz - 20kHz, 8Ω 50W
2 channels driven, 1kHz, 4Ω 75W
Harmonic distortion, 80% power, 8Ω at 1kHz 0.003%

Analogue Inputs
Number of inputs 3 (RCA pairs)
Signal/noise ratio (A-wtd, ref. 50W, 1V input) 106dB
Frequency response 20Hz—20kHz ± 0.2dB

Phono (MM) Input
Input impedance 47kΩ + 100pF
Frequency response (ref. RIAA curve) 20Hz—20kHz ± 1dB

Digital Inputs
Supported Sample Rates (kHz)
192, 176.4, 96, 88.2, 48, 44.1

Bit depths (bit) 24, 16
Frequency response (fi lter 1) 20Hz—20kHz ± 0.2dB
Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) 109dB

Headphone Output
Maximum output level (RMS) into 32Ω/300Ω 2.5V/5V
Load range 16Ω - 2kΩ

Wireless Specifications
Bluetooth Version - 5.4; A2DP Sink/Source, AVRCP, BLE, SBC, AAC, aptX, aptX HD and aptX Lossless, LE Audio, Auracast
Bluetooth Transmitter Frequency and Power - 2,400 MHz to 2,483.5 MHz: <20dBm

General
Mains voltage 100V or 110–120V or 220–240V, 50–60Hz
Power consumption (maximum) 350W
Power consumption (standby) <0.5W
Dimensions W x D (including speaker terminals) x H (including feet) 431 x 344 x 83mm
Weight (net) 8kg
Weight (packed) 11kg

Supplied accessories
Mains lead(s)
Remote control with 2 x AAA batteries
Quick Start Guide
Important Safety Instructions

Features

  • ARCAM Class AB Amplification - provides brilliant musicality
  • 2x 50W Power Output - powers loudspeakers with ease
  • Wireless audio with Snapdragon Sound and Auracast built-in - for the best sound with the most convenience
  • Wired or Wireless Headphones - connect your headphones for quiet listening with, or without wires
  • Fine-tuned phono stage - ensures your records sound as detailed and engaging as possible
  • Plastic Free Packaging - for easy disposal of natural materials

Frequently Asked Questions

How much power does the A5+ deliver to my speakers?

It produces around 2 × 50 W of power into 8 Ω speakers (and approximately 75 W into 4 Ω), sufficient to drive most bookshelf and stand-mount speakers with ease.

What kind of amplification does it use?

The A5+ uses Class AB amplification, known for combining musical detail with robust dynamic control — a traditional choice for high-quality hi-fi performance.

Does the A5+ support Bluetooth and wireless audio?

Yes. It features Bluetooth 5.4 with support for Snapdragon-Sound lossless streaming and the Auracast sharing protocol, letting you stream high-quality audio and even share to multiple compatible devices.

Can I connect a turntable to the A5+?

Yes. The A5+ includes a built in moving magnet phono stage, so you can connect a turntable directly without any external phono preamp.

Can I connect this amplifier to my TV?

Yes. The A5+ has digital optical and coaxial inputs that allow you to connect your TV directly for improved sound quality compared to built in TV speakers.

Does it have a headphone output?

Yes. There is a front mounted headphone jack for private listening.

Can I connect a CD player or a music streamer to the A5+?

Yes. You can connect both. Any CD player or streamer with optical, coaxial, or analog RCA outputs will work. The built in DAC supports up to 24 bit 192 kHz audio.

What are the advantages of Auracast on this amplifier?

Auracast lets you broadcast the audio to more than one compatible headphone or speaker at the same time. You do not need to pair each device manually.

Does the A5+ include auto standby or energy saving features?

Yes. It will automatically switch to standby if no signal is detected for a period of time. This helps reduce power use when the system is idle.

What comes in the box?

You will receive the Arcam A5+ amplifier, a power cord, a remote control, and quick start documentation.
