Product Overview
The EverSolo DMP-A8 Master Edition Gen 2 is the flagship model of the DMP-A8 Gen 2 series, integrating a high-fidelity music streamer, AKM DAC, fully balanced preamplifier, and top-loading CD transport in a single chassis — with the addition of an OCXO precision clock system with PLL technology, a 10 MHz external clock input, and a strengthened electrical isolation architecture not found on the standard DMP-A8 Gen 2. Like the standard Gen 2, it is built around the AK4499EXEQ + AK4191EQ dual-chip AKM DAC with AKM's Velvet Sound technology, OPA1612 op-amps, R-2R analog domain volume control, and a high-quality dual power supply, delivering the same measured XLR output performance of THD+N 0.000075%, SNR greater than 129dB, and crosstalk greater than 133dB.
The Master Edition's chassis measures 388 × 265 × 98.5mm — 10.5mm taller than the standard Gen 2 to accommodate the custom CD mechanism — and at 6kg is one of the more substantial units in the EverSolo lineup. Trutone Electronics in Mississauga, Ontario carries the EverSolo DMP-A8 Master Edition Gen 2 for listeners building higher-specification streaming, CD playback, and digital reference systems.
Features
DAC and Signal Path
- AKM AK4499EXEQ + AK4191EQ dual-chip DAC with Velvet Sound technology
- Fully balanced analog preamplifier with XLR and RCA outputs
- R-2R resistor ladder volume control in the analog domain
- Enhanced electrical isolation across key interfaces and internal signal paths
- Dual linear/digital power supply with OPA1612 operational amplifiers
Clock (Master Edition Exclusive)
- OCXO (Oven Controlled Crystal Oscillator) for minimized frequency drift
- PLL (Phase-Locked Loop) technology for reduced jitter across the digital audio chain
- 10MHz adaptive external clock input for master clock integration
CD Transport (Master Edition Exclusive)
- Custom top-loading CD system optimized for audio applications
- High-precision error correction for playback and ripping
- Automatic metadata, artwork, and duplicate detection on rip
Display

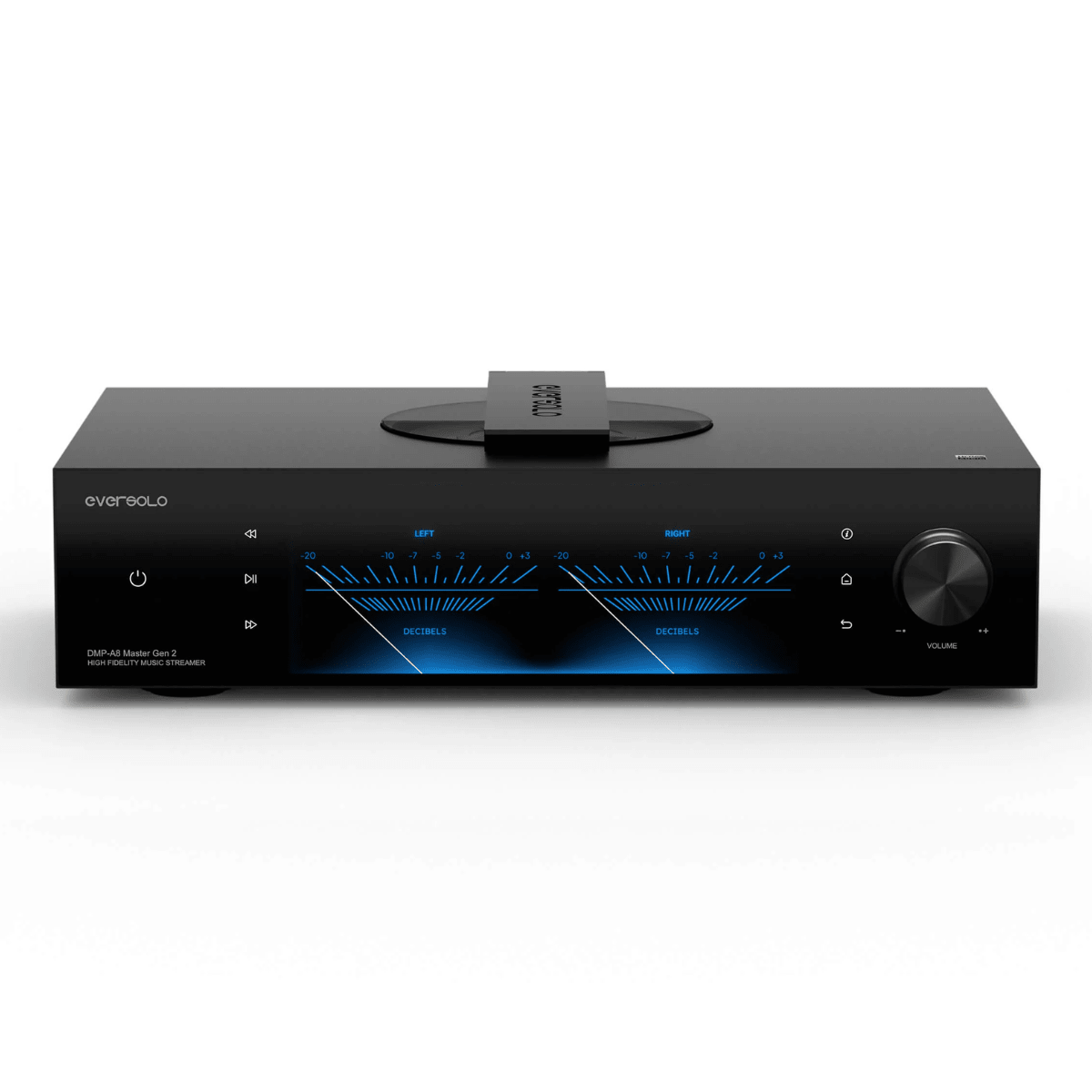

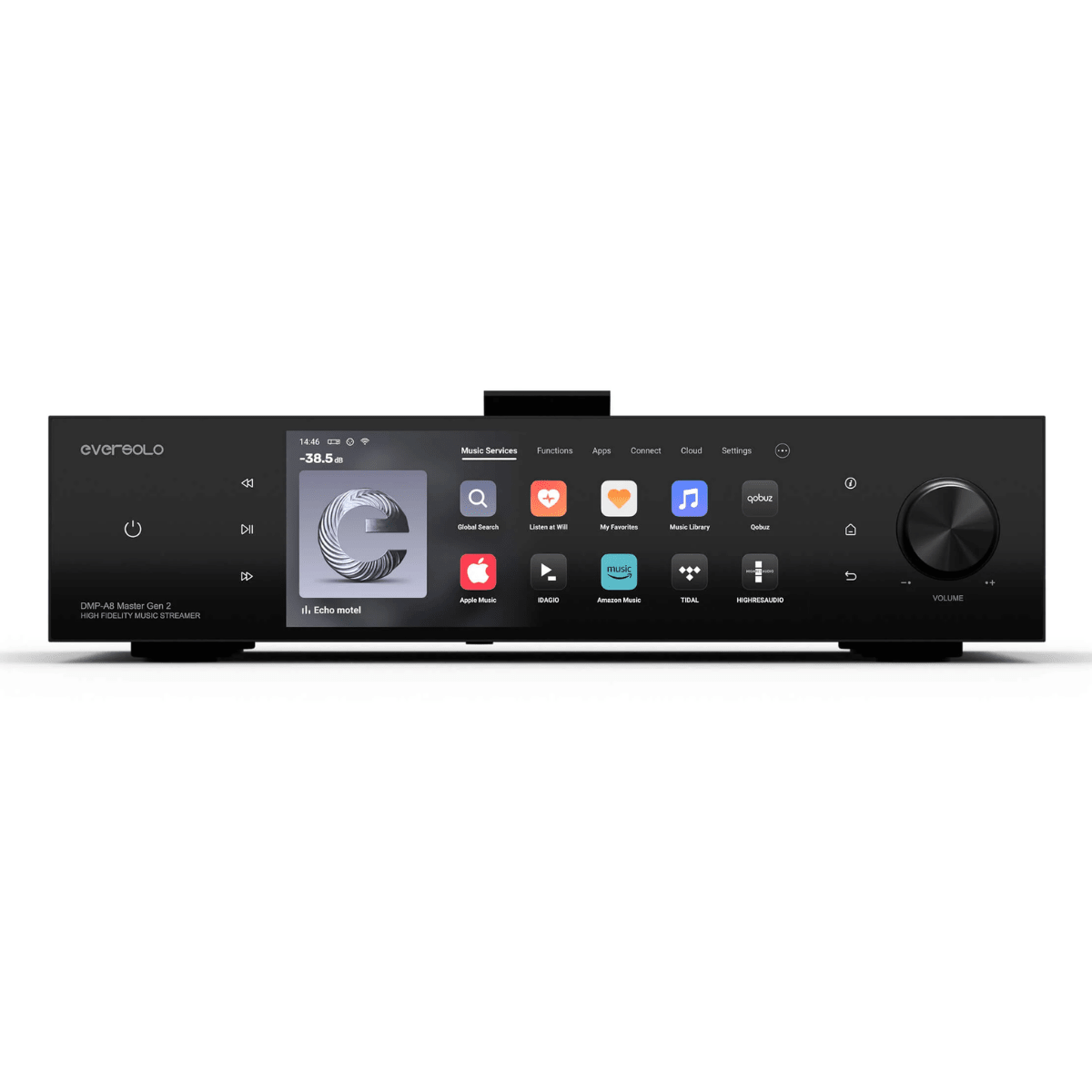

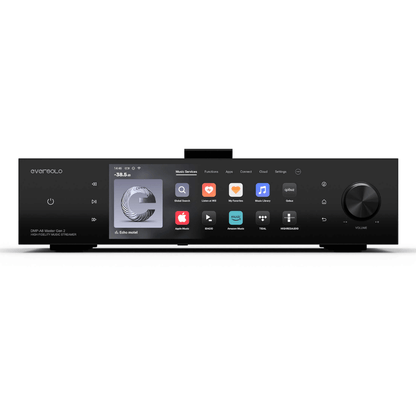

- 8.6-inch LCD touchscreen with VU meters, spectrum visualizations, and multiple display modes
- Multi-function rotary knob for volume, input, and function control
Processing and Storage
- 64-bit octa-core processor, 8GB DDR5 RAM, 64GB eMMC
- M.2 NVMe SSD slot up to 8TB (not included)
- Music library scanning up to 200,000 tracks

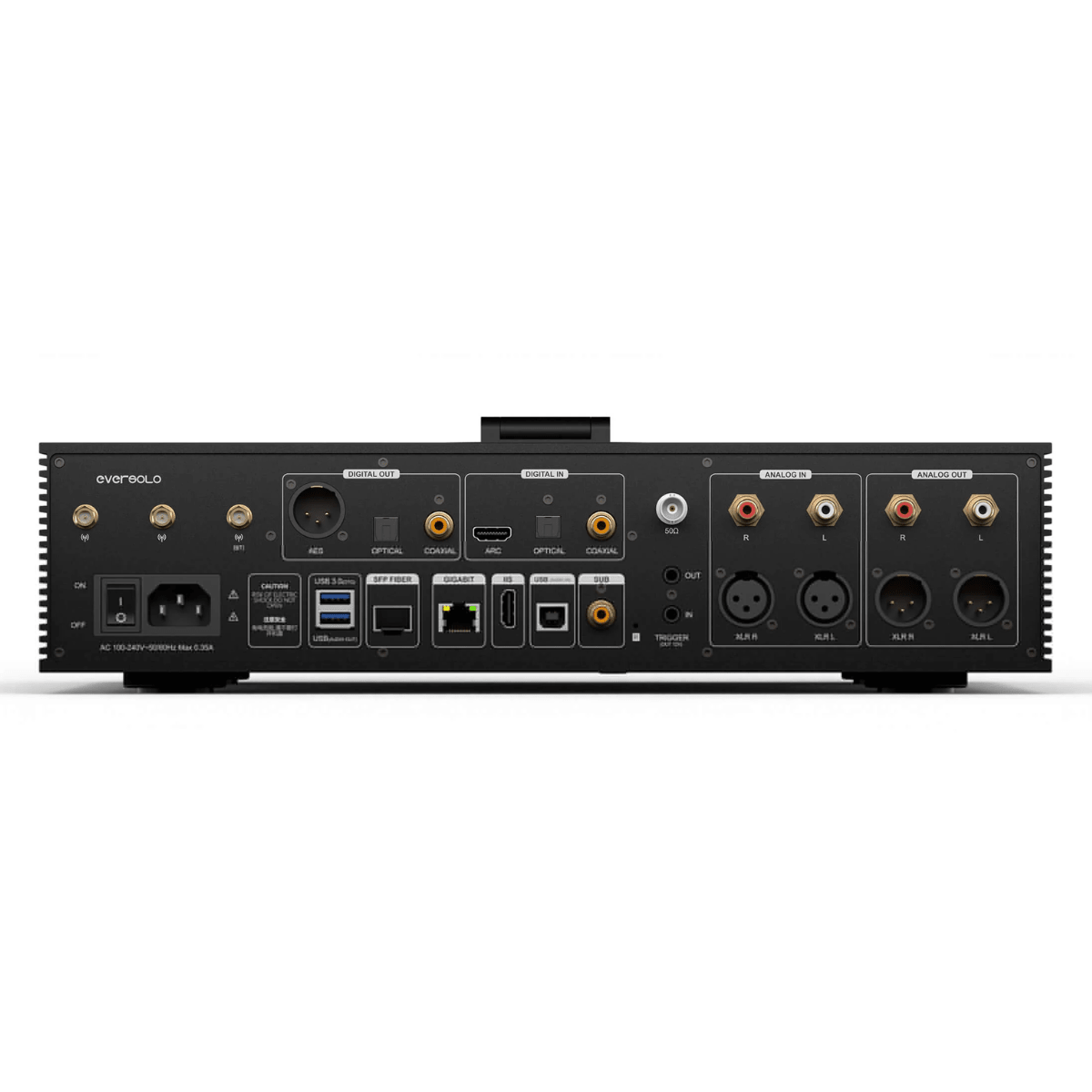

Networking
- SFP fiber optical network port (module not included)
- RJ-45 Gigabit Ethernet
- Dual-band Wi-Fi 6
- Bluetooth 5.4
- USB 3.0 x 2
Audio Outputs
- XLR balanced — 4.2V, THD+N 0.000075%, SNR >129dB
- RCA single-ended — 2.1V, THD+N 0.000086%, SNR >127dB
- USB audio — up to DSD512 / PCM 768kHz/32-bit (UAC-compliant DACs only)
- IIS — up to DSD512 / PCM 768kHz/32-bit, 8 configurable modes
- AES/EBU, Optical, Coaxial — up to PCM 192kHz/24-bit and DoP64
- Dedicated subwoofer output with adjustable crossover (40–500Hz)
Audio Inputs
- XLR balanced and RCA analog inputs with up to +10dB gain
- USB-B — up to DSD512 / PCM 768kHz/32-bit
- Optical/Coaxial — up to PCM 192kHz/24-bit and DSD64 DoP
- HDMI ARC — up to PCM 192kHz/24-bit
Streaming
- Native: TIDAL, Qobuz, Apple Music, Amazon Music, Deezer, HIGHRESAUDIO, and more
- Protocols: Spotify Connect Lossless, TIDAL Connect, Qobuz Connect, DLNA
DSP
- evotune Pro room correction with 20-band parametric EQ and FIR filter import
- Up to 16x audio upsampling
- Loudness control and dynamic range compression
Convenience
- Wake-on-LAN
- Dual-mode Bluetooth/IR remote (alloy casing)
Physical
- Dimensions: 388 x 265 x 98.5mm
- Weight: 6kg
- Power: AC 100–240V / 30W
Specifications
Compare products
See how the DMP-A8 Master Edition Gen 2 compares to the standard DMP-A8 Gen 2, the more accessible model in the same series without the CD transport and OCXO clock system.
Eversolo DMP-A8 Gen 2 High-Fidelity Music Streamer |
Eversolo DMP-A8 Master Gen 2 High-Fidelity Music Streamer |
|
|---|---|---|
| Price | $2,999 | $3,999 |
| System type | Streamer / DAC / Analog Preamplifier | Streamer / DAC / Analog Preamplifier / CD Player |
| Clock | Dual ultra-low phase-noise femtosecond crystal clocks | OCXO (Oven Controlled Crystal Oscillator) + PLL technology |
| External clock input | No | Yes — 10MHz adaptive |
| CD transport | No | Yes — custom top-loading mechanism |
| CD ripping | No | Yes — with high-precision error correction and duplicate detection |
| Electrical isolation | Standard | Enhanced — further isolates key interfaces and internal signal paths |
| DAC | AK4191EQ + AK4499EX (AKM Velvet Sound) | AK4499EXEQ + AK4191EQ (AKM Velvet Sound) |
| Volume control | EVC Volume Engine (analog domain) | R-2R resistor ladder (analog domain) |
| XLR output | 4.2V / THD+N 0.000075% / SNR >129dB | 4.2V / THD+N 0.000075% / SNR >129dB / Crosstalk >133dB |
| RCA output | 2.1V | 2.1V / THD+N 0.000086% / SNR >127dB / Crosstalk >131dB |
| Max resolution | DSD512 / PCM 768kHz/32-bit | DSD512 / PCM 768kHz/32-bit |
| Subwoofer output | Yes — adjustable crossover 40 to 500Hz | Yes — adjustable crossover 40 to 500Hz |
| Room correction | evotune Pro with 20-band PEQ and FIR filter import | evotune Pro with 20-band PEQ and FIR filter import |
| Upsampling | Up to 16x | Up to 16x |
| SFP fiber | Yes (module not included) | Yes (module not included) |
| Ethernet | RJ-45 Gigabit | RJ-45 Gigabit |
| Wi-Fi | Dual-band Wi-Fi 6 (2.4GHz + 5GHz) | Dual-band Wi-Fi 6 (2.4GHz + 5GHz) |
| Bluetooth | 5.4 | 5.4 (Qualcomm QCC3095) |
| SSD slot | M.2 NVMe PCIe 3.0 up to 8TB (not included) | M.2 NVMe PCIe 3.0 up to 8TB (not included) |
| RAM | 8GB DDR | 8GB DDR5 |
| Internal storage | 64GB eMMC | 64GB eMMC |
| Streaming services | TIDAL, Qobuz, Apple Music, Amazon Music, Deezer, HIGHRESAUDIO, and more | TIDAL, Qobuz, Apple Music, Amazon Music, Deezer, HIGHRESAUDIO, and more |
| Streaming protocols | Spotify Connect Lossless, TIDAL Connect, Qobuz Connect, DLNA | Spotify Connect Lossless, TIDAL Connect, Qobuz Connect, DLNA |
| Power | AC 100–240V / 50/60Hz | AC 100–240V / 50/60Hz / 30W |
