Technics

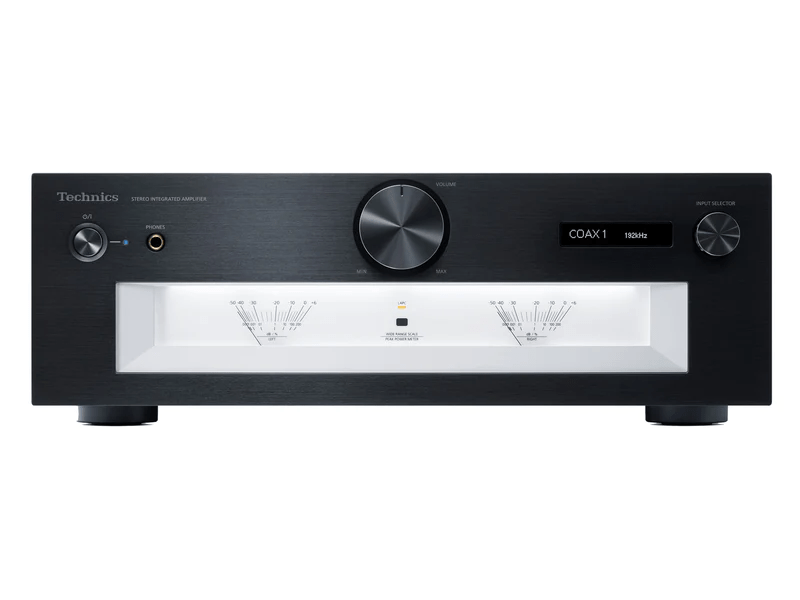

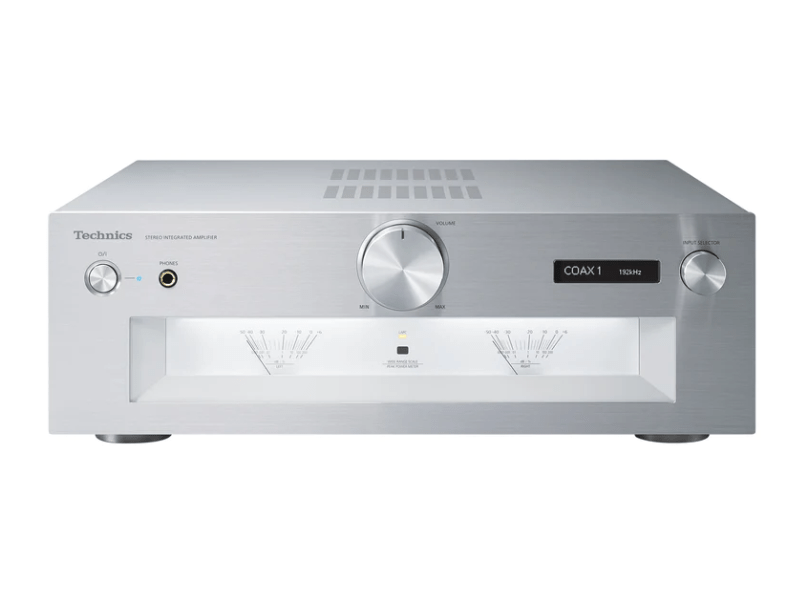

Technics SU-G700M2 Grand Class Integrated Amplifier

Technics

SU-G700M2K

$3,999.99
$3,999.99

Free Shipping

Color: Black
  • In Stock

For store pickups, please call for availability.

Technics SU-G700M2 Integrated Amplifier

A full digital amp capable of reproducing extremely pure and dynamic sound, the SU-G700M2 Stereo Integrated Amplifier has inherited Technics full-digital core amplifier technologies such as the JENO Engine (Jitter Elimination and Noise-Shaping Optimization) for highest signal precision free of jitter and distortion, and LAPC (Load Adaptive Phase Calibration) for optimum matching to any speaker.

The SU-G700M2 Stereo Integrated Amp has inherited the new domain of sound attained by the SU-R1000 Reference Class Amp. In addition to the full-digital JENO Engine with outstanding sound expressivity, the SU-G700M2 comes with a new power supply system that offers high-speed response and low noise. The three-section configuration is packed with noise and vibration prevention measures. The SU-G700M2 is complete with Phono MC input. It delivers extremely pure and dynamic sound regardless of whether the sound source is analog or digital.

  • Exquisite, Grand-Class Amplifier with full-digital core amplifier technologies
  • Natural, detailed sound with load adaptive phase calibration (LAPC)
  • Vintage and modern connections with low distortion and a wide frequency range
  • Gorgeous, sculptural body with sleek, hairline-brushed aluminum cabinet

Specifications

General

  • JENO Engine (Jitter Elimination and Noise-shaping Optimization)
  • LAPC (Load Adaptive Phase Calibration)
  • Advanced Speed Silent Power Supply
  • Three-section Configuration
  • Low-noise PHONO Input
  • Class AA Headphone Amplifier

Output Power

  • 70 W + 70 W (1 kHz, 0.5% THD, 8Ω, 20 kHz LPF)
  • 140 W + 140 W (1 kHz, 0.5% THD, 4Ω, 20 kHz LPF)
  • Load Impedance: 4Ω – 16Ω

Frequency Response

  • Phono (MM): 20 Hz – 20 kHz (RIAA deviation ±1 dB)
  • Phono (MC): 20 Hz – 20 kHz (RIAA deviation ±1 dB)
  • Line: 5 Hz – 80 kHz (-3 dB)
  • Digital: 5 Hz – 80 kHz (-3 dB)

Input Sensitivity / Impedance

  • Phono (MM): 2.5 mV / 47 kΩ
  • Phono (MC): 300 µV / 100 Ω
  • Line: 200 mV / 22 kΩ

Inputs & Outputs

  • Analogue Inputs: Line ×2 (LINE1, LINE2 / MAIN IN)
  • Phono Input: MM / MC ×1
  • Digital Inputs: Optical ×2, Coaxial ×2, USB-B ×1
  • Analogue Outputs: Line Out ×1, Pre Out ×1
  • Headphone Output: 6.3 mm stereo

USB Audio

  • USB 2.0 High-Speed, USB Audio Class 2.0 (Asynchronous)
  • PCM Support: 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 / 352.8 / 384 kHz (16 / 24 / 32-bit)
  • DSD Support: 2.8 MHz / 5.6 MHz / 11.2 MHz
  • DSD Control Mode: ASIO Native Mode, DoP Mode

Power

  • Power Supply: AC 120 V, 60 Hz
  • Power Consumption: 95 W

Dimensions & Weight

  • Dimensions (W × H × D): 430 × 148 × 428 mm
  • Dimensions (W × H × D): 16-15/16 × 5-13/16 × 16-27/32 inches
  • Weight: Approx. 12.7 kg (28 lbs)

Included Accessories

  • AC Cord
  • Remote Control
  • Batteries for Remote Control
  • Owner's Manual
