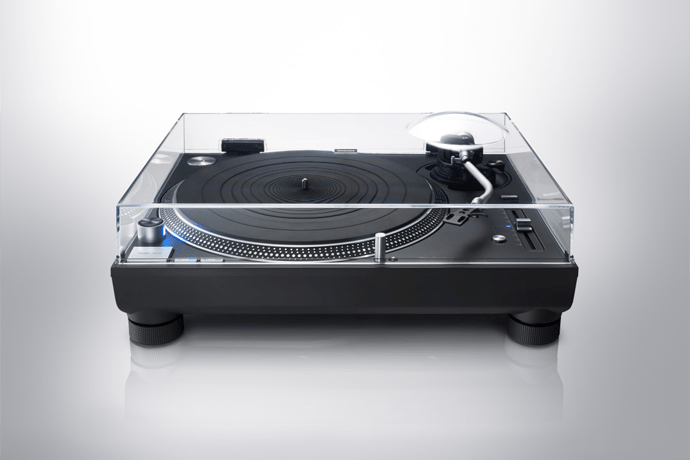

Technics SL-1210GR Direct Drive Turntable

Turntable section

Type: Direct Drive Manual Turntable

Turntable Speeds: 33-1/3, 45 and 78 r/min

Adjust Range: ±8 %, ±16 %

Starting Torque: 2.2 kg-cm

Build-up Characteristics: 0.7 s. from Standstill to 33-1/3 r/min

Wow And Flutter: 0.025 % W.R.M.S.

Rumble: 78 dB (IEC 98A weighted)

Turntable Platter: Aluminium diecast
Diameter: 332 mm
Weight: Approx. 2.5 kg (5.51 lb) (Including rubber sheet)

Tonearm Section

Type: Universal Static Balance

Effective Length: 230 mm (9-1/16")

Overhang: 15 mm (19/32")

Tracking Error Angle: Within 2° 32' (at the outer groove of 30 cm record)
Within 0° 32' (at the inner groove of 30 cm record)

Offset Angle: 22°

Arm-height Adjustment Range: 0 - 6 mm

Stylus Pressure Adjustment Range: 0 - 4 g (Direct Reading)

Head Shell Weight: Approx. 7.6 g

Applicable Cartridge Weight Range: (without auxiliary weight)
5.6 - 12.0 g
14.3 - 20.7 g (including head shell)
(with auxiliary weight)
10.0 - 16.4 g
18.7 - 25.1 g (including head shell)

Cartridge Mounting Dimension: JIS 12.7 mm (1/2") interval

Head Shell Terminal Lug: 1.2 mmφ 4-pin terminal lug

Terminals

Audio Output: PHONO (Pin Jack) x 1
EARTH TERMINAL x 1

General

Power Supply: AC 120 V, 60 Hz

Power Consumption: 11 W Approx.
0.2 W (Standby)

Dimensions (W x H x D): 453 x 173 x 372 mm
(17-27/32 × 6-13/16 × 14-21/32 inch)

Weight: Approx. 11.5 kg
(Approx. 25.35lbs)

Accessories: Turntable, Turntable sheet, Dust cover, EP record adaptor, Balance weight, Auxiliary weight, Head shell, Overhang gauge, Screw set for cartridge, PHONO cable, PHONO earth lead, AC power supply cord, Owner's Manual
