Rotel

Rotel Michi X5 Series 2 Integrated Amplifier

  • front view of rotel michi x5 series 2 integrated amp in black color

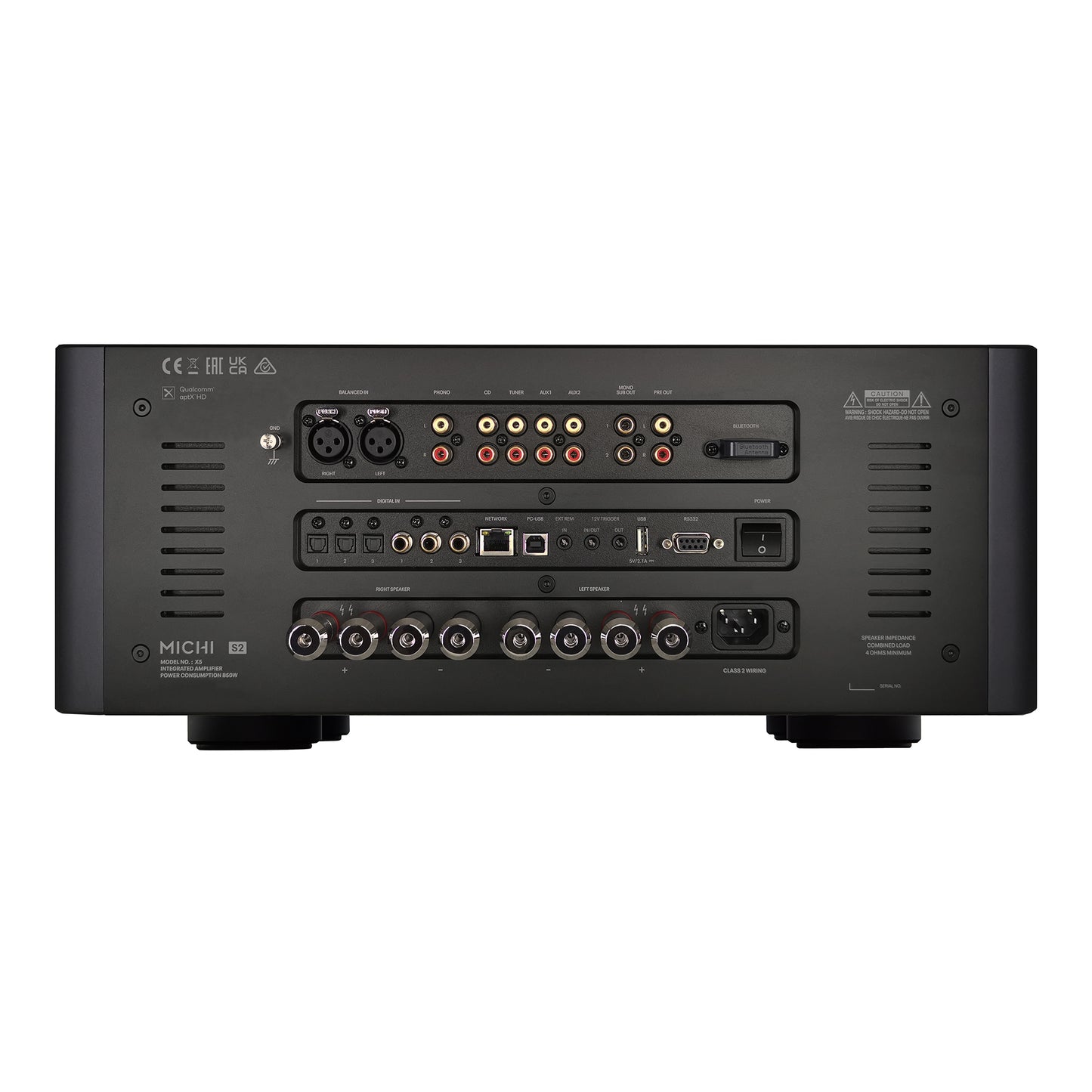

  • back panel of rotel michi x5 series 2 integrated amp

X5 S2

$9,999.00
$9,999.00

In-Store Only

Contact Us

Please call us at 1-905-270-3440 or simply fill out the form below for ordering & more info.

X5 Series 2

The Michi X5 Series 2 Integrated Amplifier combines 600 Watts of unwavering Class AB output power and an ESS SABRE 8-Channel Digital to Analog converter to deliver breathtaking precision and unparalleled control. Analog, Digital, XLR, aptX™ HD Bluetooth, PC-USB, Moving Magnet and Moving Coil Phono Stage sources are all supported.

Features

  • Class AB amplifier.
  • ESS SABRE ES9028PRO 8-Channel DAC (32-bit 768kHz) configured for STEREO.
  • PC-USB with DSD 4X decoding and MQA rendering.
  • Bluetooth with aptX HD and AAC.
  • Twin custom engineered toroidal transformers.
  • Dimmable front panel TFT high resolution display.
  • IP and RS232 2-way communication for control system integration.
  • Supports MQA and MQA Studio.
  • Certified Roon Tested.
  • Michi remote control included.

Product Description

he Michi X5 Series 2 Integrated Amplifier is authoritative and precise, capable of delivering a speaker-taming 600 watts of Class AB output power. The X5’s linear power supply is built around two massive in-house manufactured, shielded, low-noise toroidal transformers. Equipped with an ESS SABRE 8-Channel Digital to Analog converter, this amplifier renders ultra-revealing music with breathtaking accuracy.

A wide array of inputs ensures support of your favorite music sources including Analog RCA and XLR Balanced, Moving Magnet or Moving Coil Phono, aptX™ HD Wireless Bluetooth, Coaxial and Optical. The PC-input supports PCM (32-bit 384kHz) and Quad DSD (11.2MHz) with full MQA hardware decoding up to 24-bit 384kHz.

Whether you're a music lover, audiophile, professional sound engineer or all of the above, the Michi X5 Series 2 Integrated Amplifier has been passionately engineered for you. Meticulously manufactured to the highest standards of build quality, and featuring an understated, graceful industrial design, the Michi X5 Series 2 is sure to quickly become the centerpiece of your audio system.

Specifications

Amplifier Performance

  • Continuous Power Output: 600 W/ch (4 Ω), 350 W/ch (8 Ω)
  • Total Harmonic Distortion (THD): <0.009%
  • Intermodulation Distortion (60 Hz : 7 kHz, 4:1): <0.03%
  • Damping Factor (20 Hz – 20 kHz, 8 Ω): 350
  • Channel Separation: >65 dB

Frequency Response

  • Line Level Inputs: 10 Hz – 100 kHz (+0 dB, −0.6 dB)
  • Digital Inputs: 20 Hz – 20 kHz (±0.4 dB)
  • Phono Input: 20 Hz – 20 kHz (+0 dB, −0.2 dB)

Signal-to-Noise Ratio (IHF “A” Weighted)

  • Line Level Inputs: 102 dB
  • Digital Inputs: 102 dB
  • Phono Input: 80 dB

Tone Control

  • Bass / Treble: ±10 dB at 100 Hz / 10 kHz

Inputs & Outputs

  • Input Sensitivity (RCA): 380 mV
  • Input Sensitivity (XLR): 580 mV
  • Phono Input Sensitivity (MM): 5.7 mV
  • Phono Input Sensitivity (MC): 570 µV
  • Input Impedance (RCA / XLR): 100 kΩ
  • Digital Input Impedance: 75 Ω
  • Phono Input Impedance (MM / MC): 47 kΩ / 100 Ω
  • Input Overload (RCA / XLR): 12.5 V
  • Phono Input Overload (MM / MC): 197 mV / 19 mV
  • Pre-Out Level: 1 V
  • Output Impedance: 470 Ω

Digital Audio Support

  • Coaxial / Optical: SPDIF LPCM up to 24-bit / 192 kHz
  • PC-USB Audio Class 1: Up to 24-bit / 96 kHz
  • PC-USB Audio Class 2: Up to 32-bit / 384 kHz
  • DSD & DoP Support: Yes
  • MQA & MQA Studio: Supported
  • Roon Tested: Yes

Power & Physical

  • Power Requirements: 120 V, 60 Hz
  • Power Consumption: 850 W
  • Standby Power Consumption: <0.5 W
  • BTU Rating: 2194 BTU/h
  • Dimensions (W × H × D): 485 × 195 × 452 mm
  • Dimensions (W × H × D): 19 × 7 5/8 × 17 3/4 in
  • Front Panel Height: 177 mm (7 in)
  • Net Weight: 42 kg (92.6 lbs)
