Rotel

Rotel S14 Integrated Streaming Amplifier

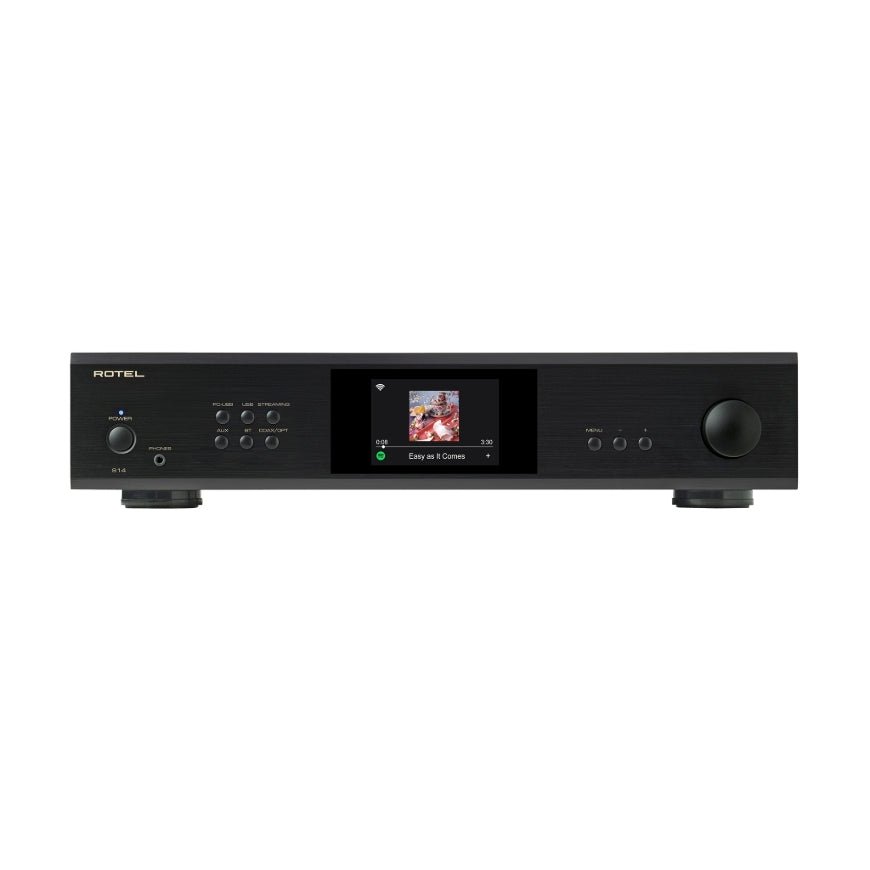

  • front view of rotel s14 integrated amp in black color

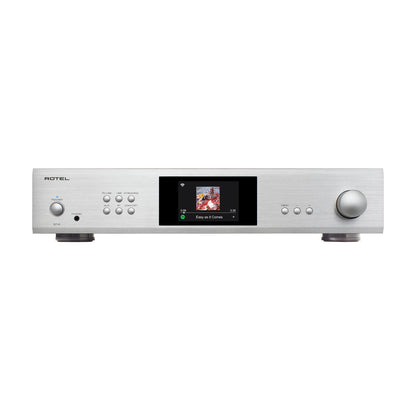

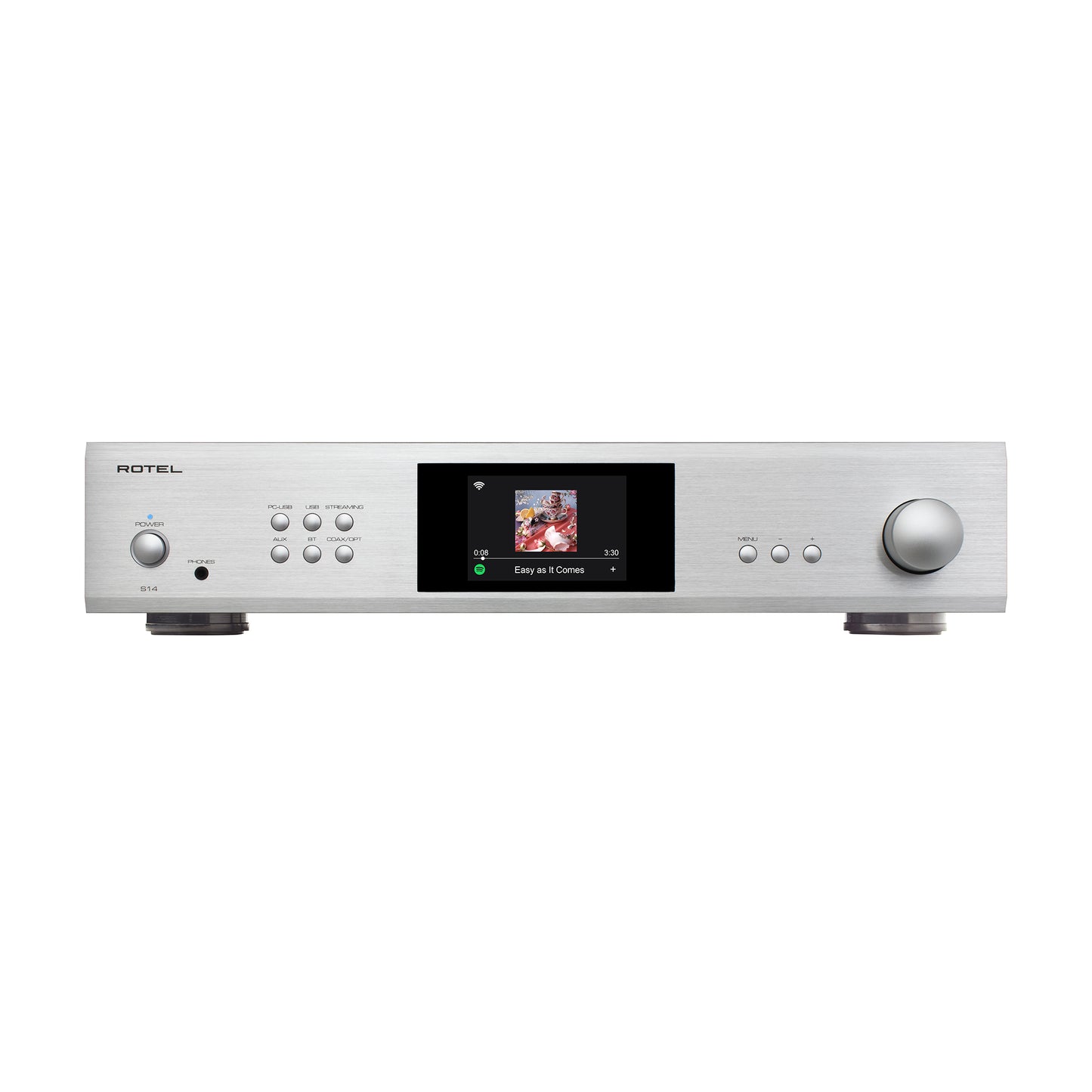

  • front view of silver rotel s14 integrated amp

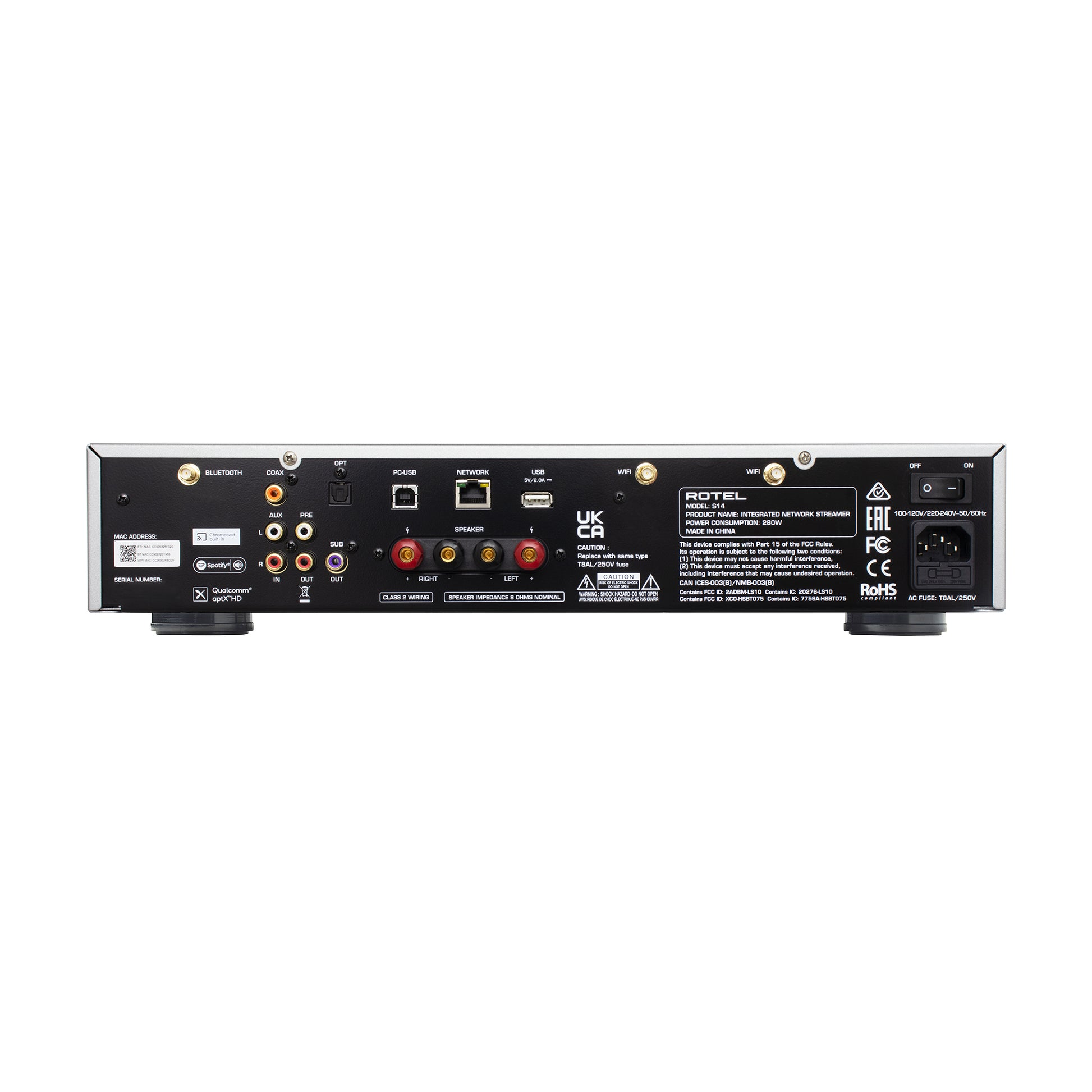

  • back panel of rotel s14 integrated amp

Rotel

S14 BLACK

$2,799.00
$2,799.00

Free Shipping

Color: Black
  • In Stock

For store pickups, please call for availability.

S14

The Rotel S14 Integrated Network Streamer is an all-in-one solution providing the ultimate in convenience to the near limitless catalog of music delivering 150 Watts of Class AB power. Album artwork on the front display, included remote, simple operation and intuitive setup ensures the S14 becomes the heart of your music system.

Key Features

  • Certified Roon Ready
  • Supports MQA and MQA Studio
  • 2 x 150 Watts of robust Class AB power, 4 Ohms
  • ESS premium 32-bit Digital to Analog Converter
  • Wireless aptX™ HD and AAC Bluetooth

Specifications

Amplifier Performance

  • Continuous Power Output: 80 W per channel (8Ω)
  • Maximum Power Output: 150 W per channel (4Ω)
  • Total Harmonic Distortion (THD): <0.04%
  • Intermodulation Distortion (60Hz:7kHz, 4:1): <0.03%
  • Damping Factor: 400

Frequency Response

  • Line Level Inputs: 10 Hz – 100 kHz (±0.5 dB)
  • Digital Inputs: 10 Hz – 90 kHz (±2.0 dB, max)

Signal-to-Noise Ratio (IHF A-Weighted)

  • Line Level Inputs: 100 dB
  • Digital Inputs: 98 dB

Inputs

  • Input Sensitivity (Line Level): 200 mV
  • Input Sensitivity (Digital): -20 dBFS
  • Input Impedance (Line Level): 47 kΩ
  • Input Impedance (Digital): 75 Ω
  • Input Overload (Line Level): 4.5 V

Digital Audio

  • Coaxial / Optical Digital Input: SPDIF LPCM (up to 24-bit / 192 kHz)
  • PC-USB: USB Audio Class 2.0 (up to 24-bit / 384 kHz)*
  • MQA and MQA Studio support (up to 24-bit / 384 kHz)
  • *Driver installation required

Tone Controls

  • Treble / Bass: ±10 dB at 100 Hz / 10 kHz

Power

  • Power Requirements: 120 V, 60 Hz
  • Power Consumption: 280 W
  • Standby Power Consumption: <0.5 W
  • BTU Rating (4Ω, 1/8th power): 733 BTU/h

Dimensions & Weight

  • Dimensions (W × H × D): 430 × 93 × 345 mm
  • Dimensions (W × H × D): 17 × 3 5/8 × 13 1/2 inches
  • Front Panel Height: 80 mm (3.15")
  • Net Weight: 9.15 kg (20.17 lbs)
