Rotel RMB-1506 6 Channel Power Amplifier

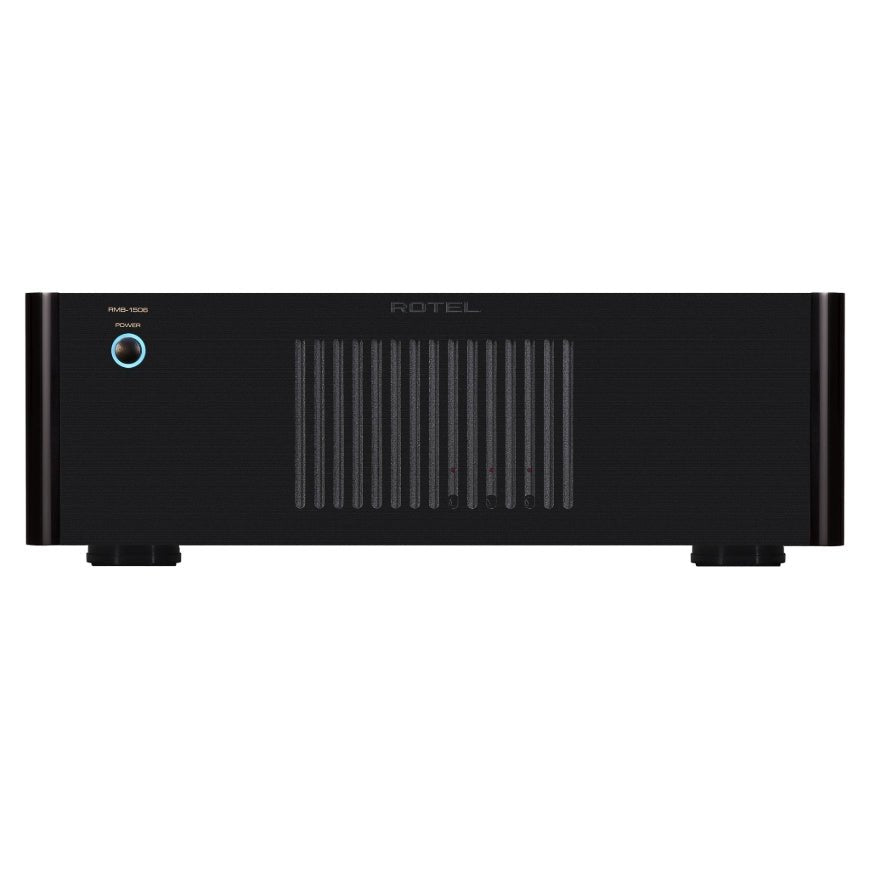

  • Black amplifier with 'Rotel' branding on a white background

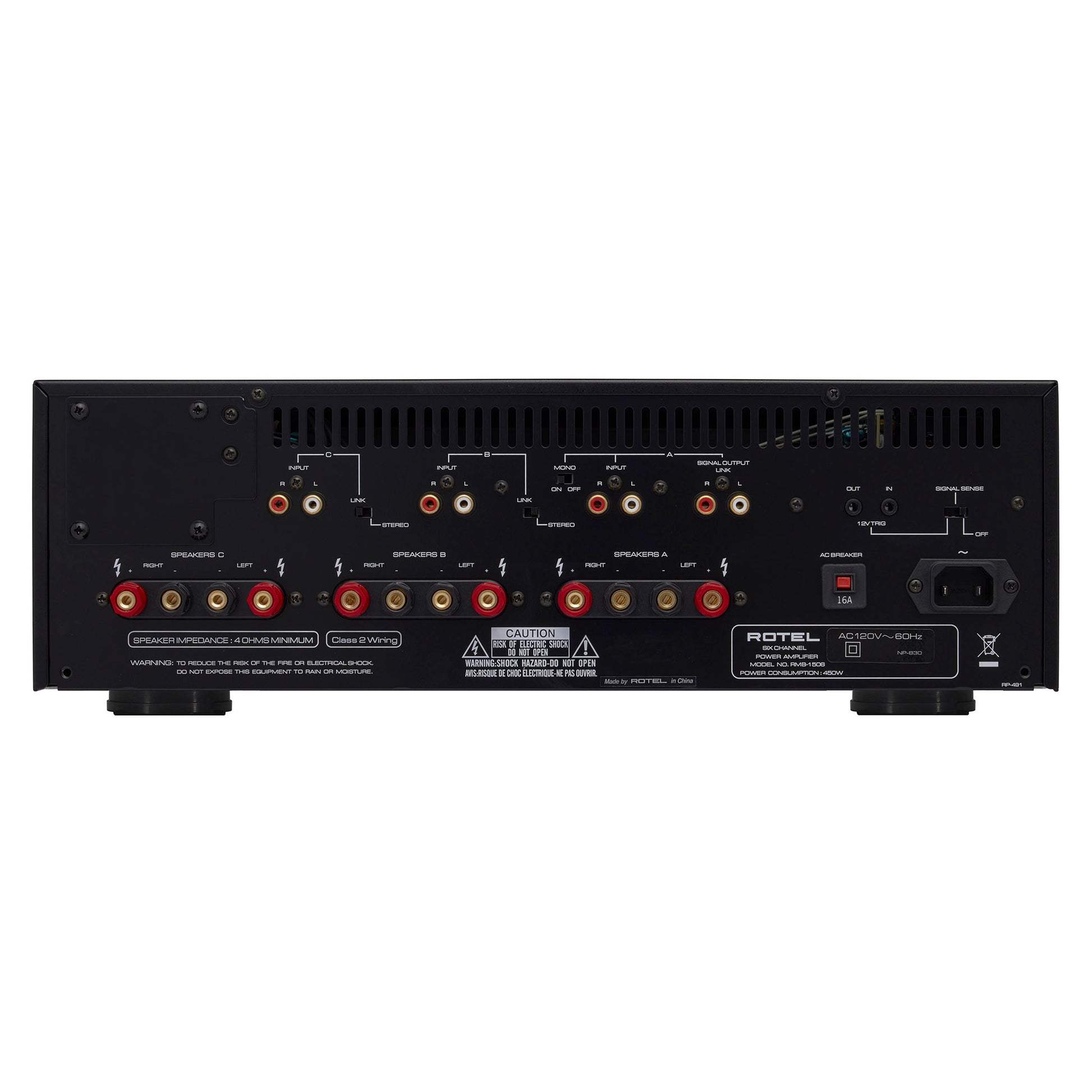

  • Back panel of a Rotel audio amplifier on a white background

Rotel

RMB-1506 BLK

$1,599.00
$1,599.00

Free Shipping

  • In Stock

(For store pickups, please call for availability.)

This amplifier is perfect for less elaborate multizone audio systems and can be mated with any of our surround receivers or our preamp/processor to add music throughout three additional living areas or “zones” of your home. You can also add another RMB-1506 for larger multizone applications that don’t need the power output of the RMB-1512. As with all Rotel multichannel amplifiers it includes all of the most wanted custom installation features.

Specifications

Power & Performance

  • Continuous Power Output (All channels driven, 8Ω):
    50W/Ch
  • Continuous Power Output (All channels driven, 4Ω):
    80W/Ch
  • Total Harmonic Distortion (20Hz–20kHz):
    <0.03%
  • Intermodulation Distortion (60Hz:7kHz, 4:1):
    <0.03%
  • Frequency Response:
    10Hz - 100kHz ±1dB
  • S/N Ratio (IHF "A" Weighted):
    115dB
  • Gain:
    26dB
  • Damping Factor:
    >200
  • Speaker Impedance:
    4Ω minimum

Power, Dimensions & Weight

  • Power Requirements:
    120V, 60Hz
  • Power Consumption:
    450W
  • Standby Power Consumption:
    2.6W
  • BTU Rating (4Ω, 1/8th power):
    1680 BTU/h
  • Dimensions (W × H × D):
    431 × 144 × 424mm (17" × 5.7" × 16.7")
  • Front Panel Height:
    3U / 132.6mm (5.25")
  • Net Weight:
    15.3kg (34lbs.)

Input Specs

  • Input Sensitivity:
    1V
  • Input Impedance:
    20kΩ
