Rotel Diamond Series RA-6000 Integrated Amplifier

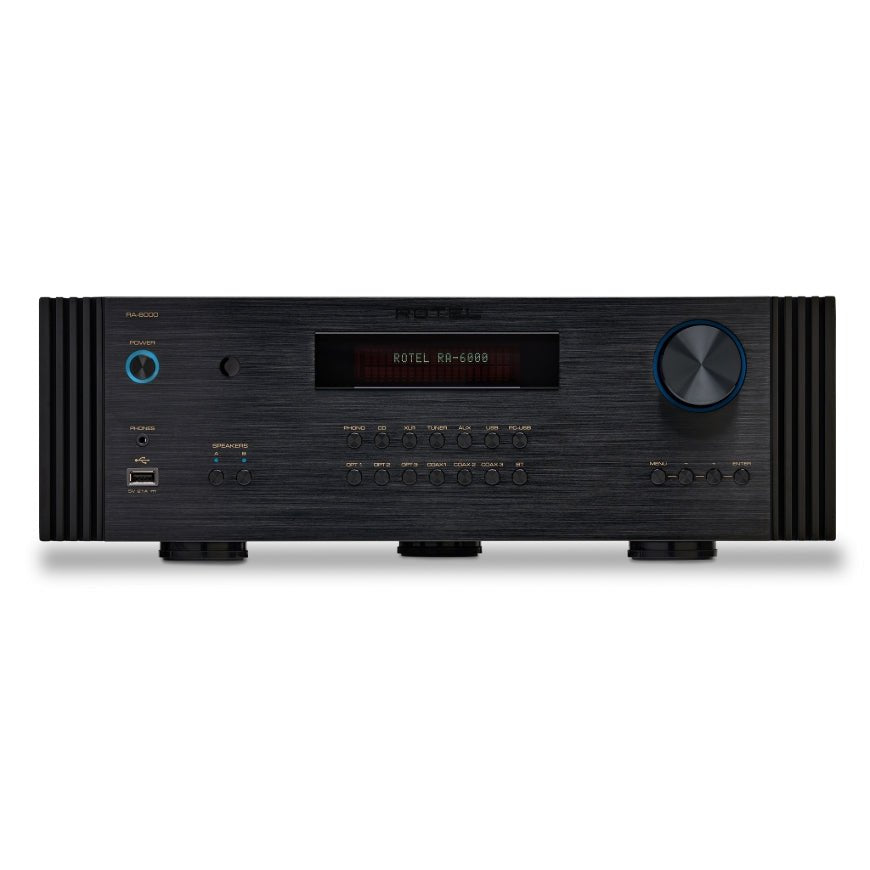

  • front view of rotel ra6000 diamond integrated amp

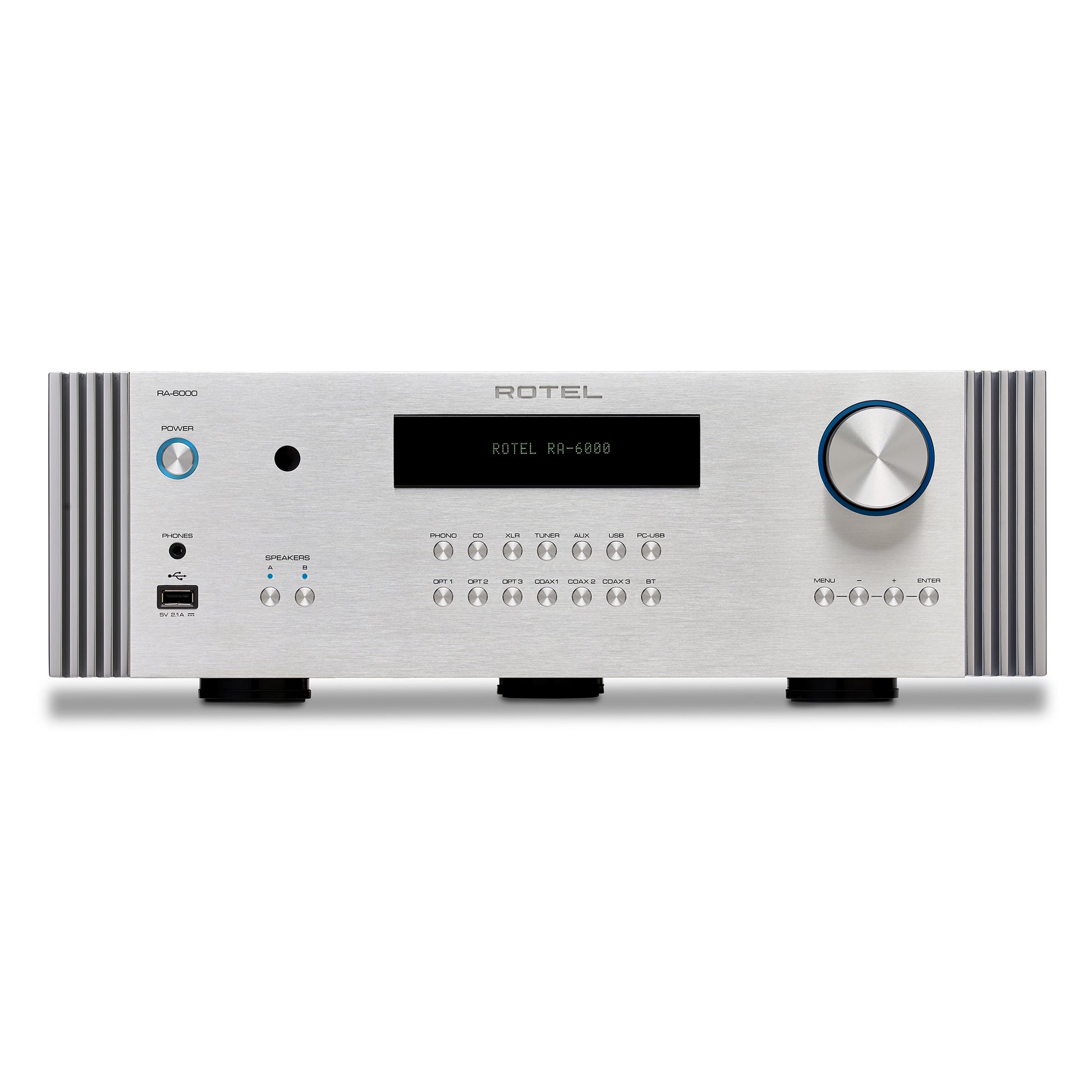

  • front view of rotel ra6000 diamond integrated amp in silver color

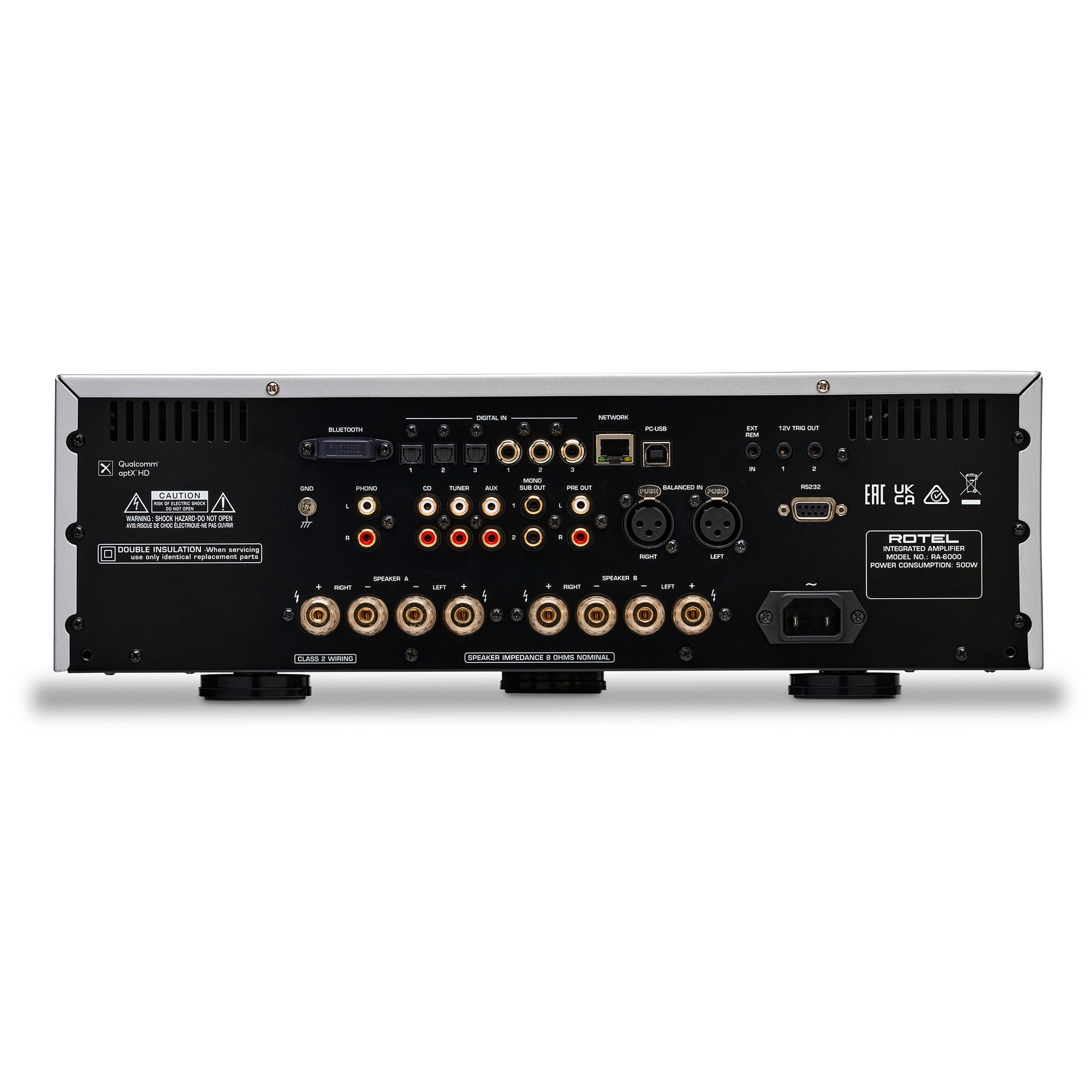

  • back panel of rotel ra6000 integrated amp

Rotel

RA6000B

$5,799.00
$5,799.00

Free Shipping

Color: Black
  • In Stock

(For store pickups, please call for availability.)

RA-6000 Integrated Amplifier

The Diamond Series RA-6000 Integrated Amplifier celebrates Rotel’s 60-Years of Japanese heritage. The RA-6000 supports a wide array of modern and legacy analog and digital sources delivering 350 watts of Class AB power into 4 ohms with exceptional acoustic detail and controlled rich, deep bass energy.

Digital inputs support 24-bit/192kHz audio streams. The asynchronous PC-USB input supports up to 32-bit/384kHz audio, decodes and renders MQA, and is fully certified Roon Tested. A Moving Magnet Phono stage is also included for vinyl fans.

Front panel controls, back-lit IR remote and 2-line display ensure intuitive operation.

Ethernet, RS232,12V trigger and external remote input simplify integration with control systems.

The RA-6000 is available in both black and silver colors.

Features

  • Certified Roon Tested
  • Supports MQA and MQA Studio
  • x 350 Watts of robust
  • Class AB power, 4 Ohms
  • Wireless aptX™ HD and
  • AAC Bluetooth
  • Texas Instruments
  • Premium 32-bit/384kHz
  • Digital to Analog Converter

Specifications

Amplifier Performance

  • Continuous Power Output: 200 W per channel (8Ω)
  • Maximum Power Output: 350 W per channel (4Ω)
  • Total Harmonic Distortion (THD): <0.0075%
  • Intermodulation Distortion (60Hz:7kHz, 4:1): <0.03%
  • Damping Factor: 600

Frequency Response

  • Line Level Inputs: 10 Hz – 100 kHz (±0.5 dB)
  • Digital Inputs: 10 Hz – 90 kHz (±2 dB)
  • Phono Input: 20 Hz – 20 kHz (±0.5 dB)

Signal-to-Noise Ratio (IHF A-Weighted)

  • Line Level Inputs: 103 dB
  • Digital Inputs: 102 dB
  • Phono Input: 80 dB

Tone Controls

  • Treble / Bass: ±10 dB at 10 kHz / 100 Hz

Inputs & Digital Support

  • Input Sensitivity (RCA): 340 mV
  • Input Sensitivity (XLR): 540 mV
  • Input Sensitivity (Digital): 0 dBFS
  • Input Sensitivity (Phono MM): 5.2 mV
  • Input Impedance (RCA): 5.6 kΩ
  • Input Impedance (XLR): 100 kΩ
  • Input Impedance (Digital): 75 Ω
  • Input Impedance (Phono MM): 47 kΩ
  • Input Overload (RCA): 3.5 V
  • Input Overload (XLR): 4.5 V
  • Input Overload (Phono): 52 mV
  • Coax/Optical Digital Input: LPCM up to 24-bit / 192 kHz
  • PC-USB: USB Audio Class 2.0 up to 32-bit / 384 kHz*
  • MQA and MQA Studio support (up to 24-bit / 384 kHz)
  • Roon Tested
  • *Driver installation required

Preamp Outputs

  • Preout Level: 1.9 V
  • Output Impedance: 100 Ω

Power

  • Power Requirements: 120 V, 60 Hz
  • Power Consumption: 500 W
  • Standby Power Consumption: <0.5 W
  • BTU (4Ω, 1/8th power): 1239 BTU/h

Dimensions & Weight

  • Dimensions (W × H × D): 431 × 144 × 425 mm
  • Dimensions (W × H × D): 17 × 5.7 × 16 inches
  • Front Panel Height: 3U / 132.6 mm (5.25")
  • Net Weight: 18.81 kg (41.47 lbs)
