Rotel Michi S5 Stereo Power Amplifier

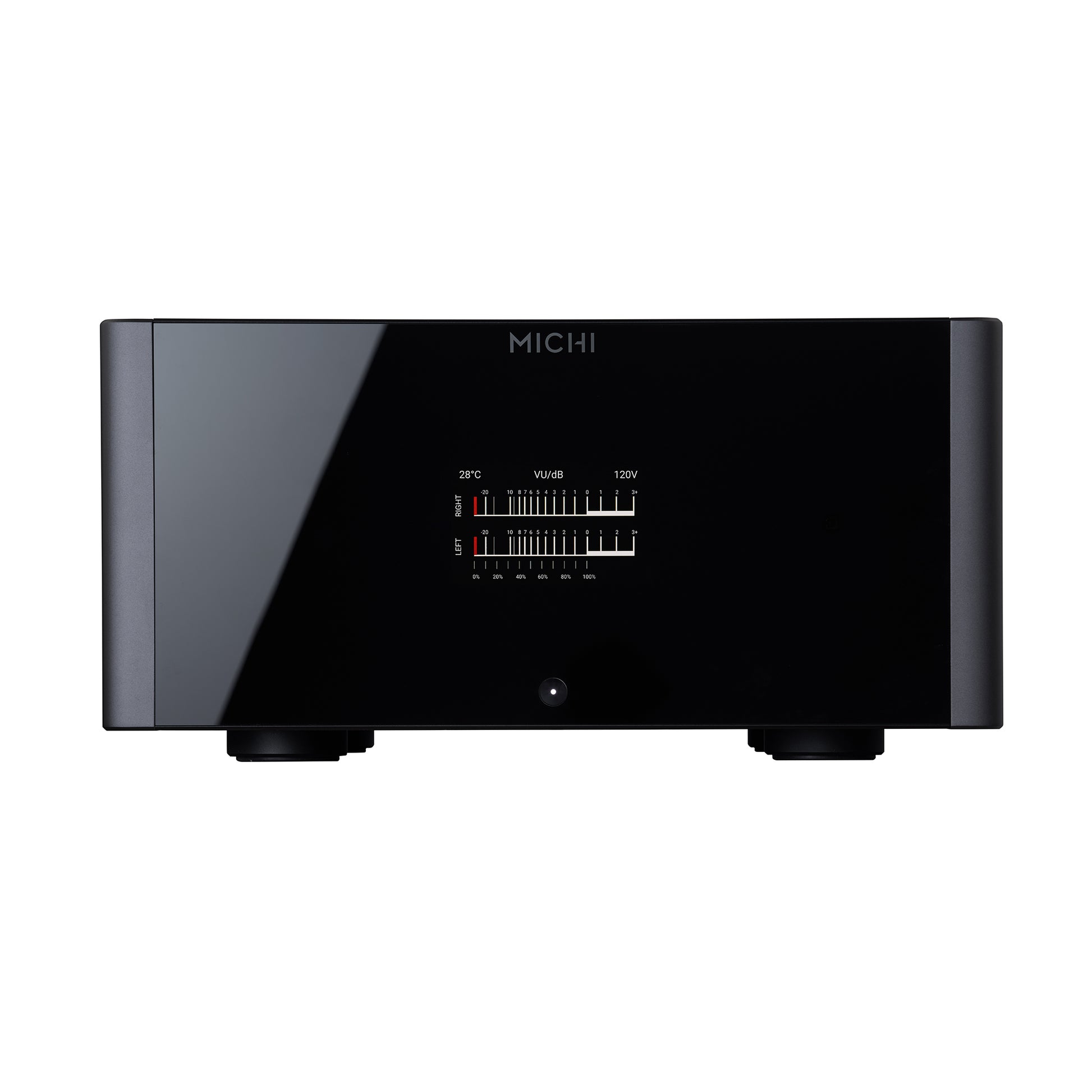

  • Black electronic device with 'MICHII' branding on a white background

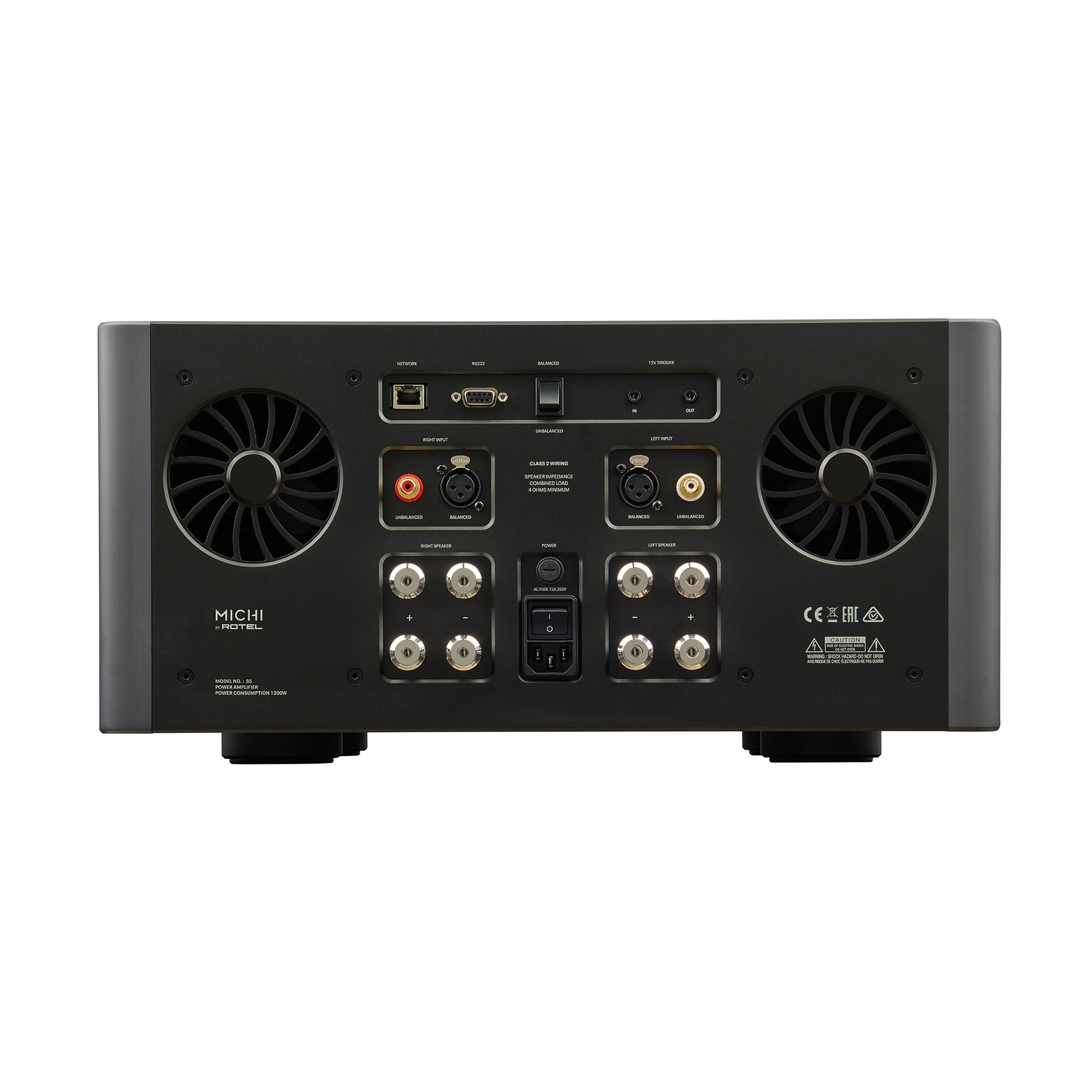

  • Back view of a black audio equipment unit with various ports and labels on a white background

MICHI S5

$9,999.00
$9,999.00

In-Store Only

Contact Us

Please call us at 1-905-270-3440 or simply fill out the form below for ordering & more info.

The Michi S5 Stereo Amplifier delivers 500 watts per channel into 8 ohms loads with best in class audio performance. The dual monoblock design includes twin, oversized, in-house manufactured toroidal transformers for exceptional bass energy while maintaining control and precision of the finest detail all packaged in an elegant design.

Specifications

P5 Preamplifier

Overview

  • Type: Solid state preamplifier with DAC and phono stage

Inputs

  • Digital Inputs: 3 x SPDIF coaxial, 3 x SPDIF optical (Toslink), USB
  • Analogue Inputs: 2 x balanced (XLR), 3 x single-ended (RCA)

Outputs

  • Analogue Outputs: 2 x balanced (XLR), 2 x single-ended (RCA)
  • Line Output: 1 x single-ended (RCA)
  • Pre Output: 1 x single-ended (RCA)
  • Subwoofer Outputs: 2 x single-ended (RCA)
  • Headphone Output: 6 mm jack

Audio Performance

  • Input Impedance: 47 kΩ (RCA), 100 kΩ (XLR)
  • Output Impedance: 470 Ω (RCA), 100 Ω (XLR)
  • THD (20 Hz - 20 kHz): <0.002%
  • Signal-to-Noise Ratio: 116 dB (Line), 100 dB (Digital), 80 dB (Phono)

Dimensions & Weight

  • Dimensions (H x W x D): 150 x 485 x 452 mm
  • Weight: 22.9 kg

S5 Power Amplifier

Overview

  • Type: Solid state stereo power amplifier

Inputs & Outputs

  • Analogue Inputs: 1 x balanced (XLR), 1 x single-ended (RCA)
  • Speaker Outputs: 2 pairs via 5-way binding posts

Amplifier Performance

  • Power Output: 500 W per channel @ 8 Ω
  • Power Output: 800 W per channel @ 4 Ω
  • Frequency Response: 20 Hz - 20 kHz (+0 dB, -0.15 dB)
  • Frequency Response: 10 Hz - 100 kHz (+0 dB, -0.4 dB)
  • Input Sensitivity: 2.6 V (RCA), 4.2 V (XLR)
  • THD: <0.008%
  • Signal-to-Noise Ratio: 120 dB (A-weighted)

Dimensions & Weight

  • Dimensions (H x W x D): 238 x 485 x 465 mm
  • Weight: 59.9 kg
