Rotel Diamond Series DT-6000 DAC Transport

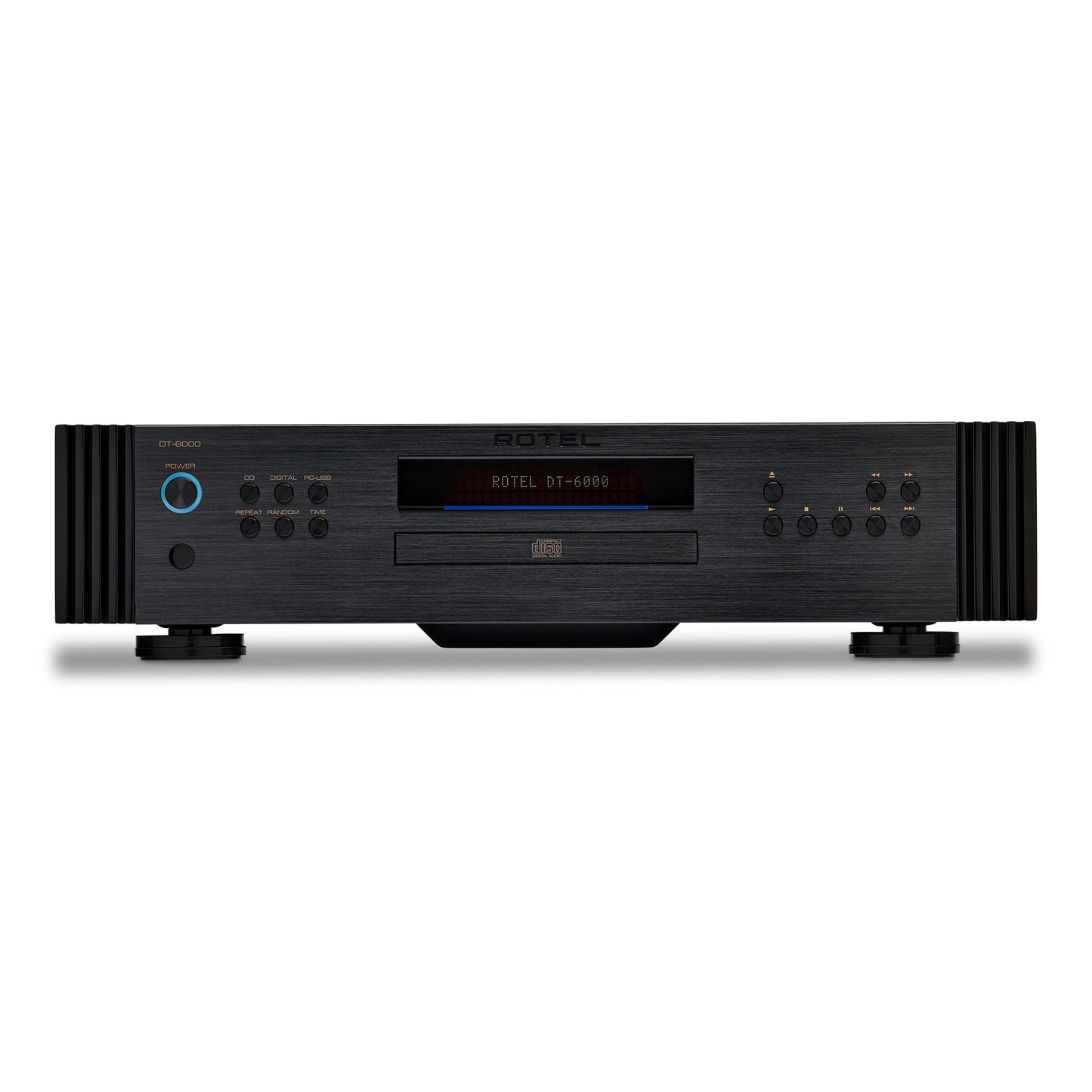

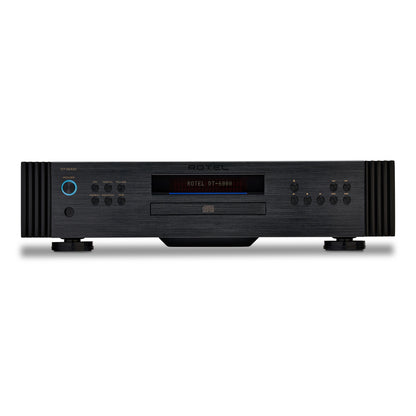

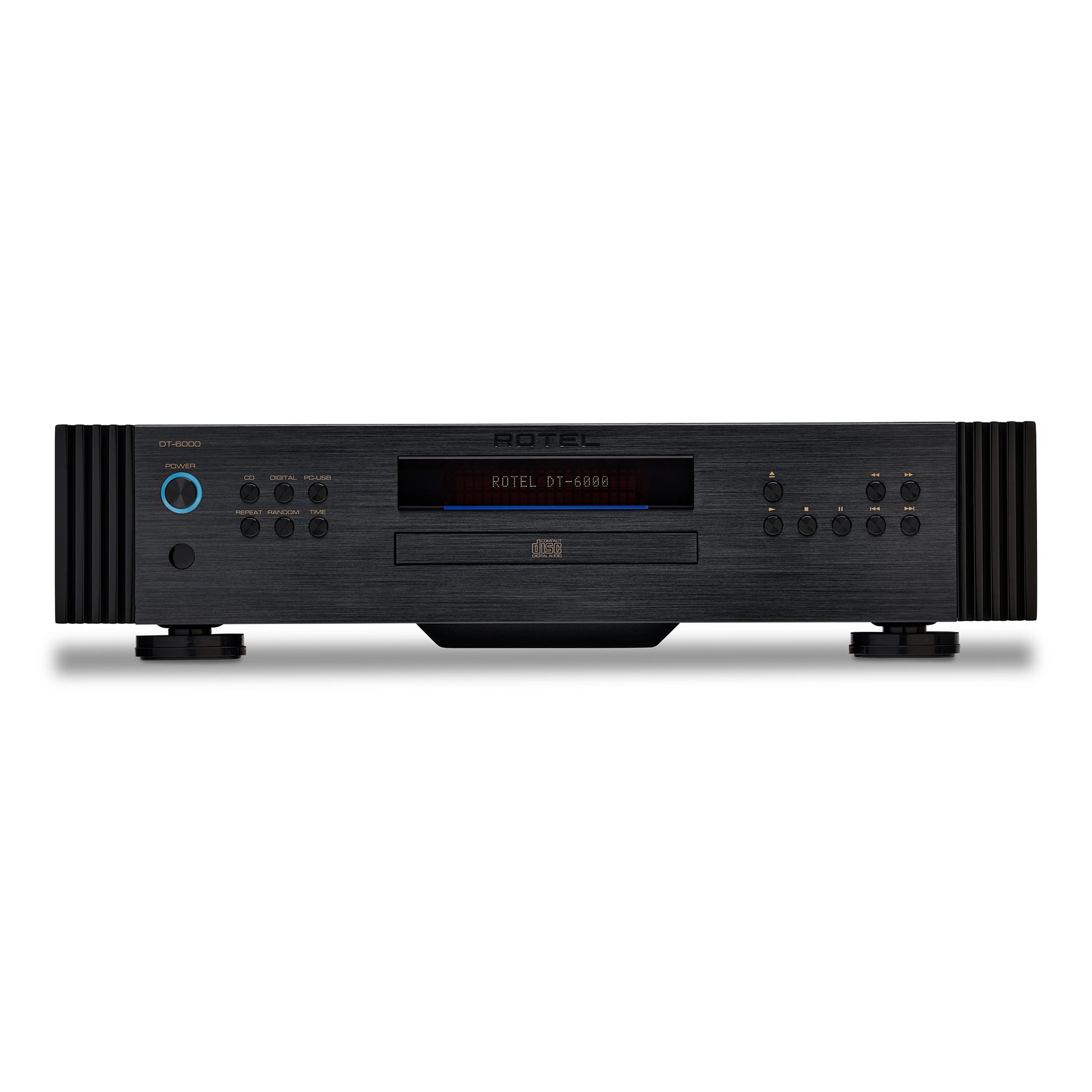

  • front view of rotel dt6000 transport in black

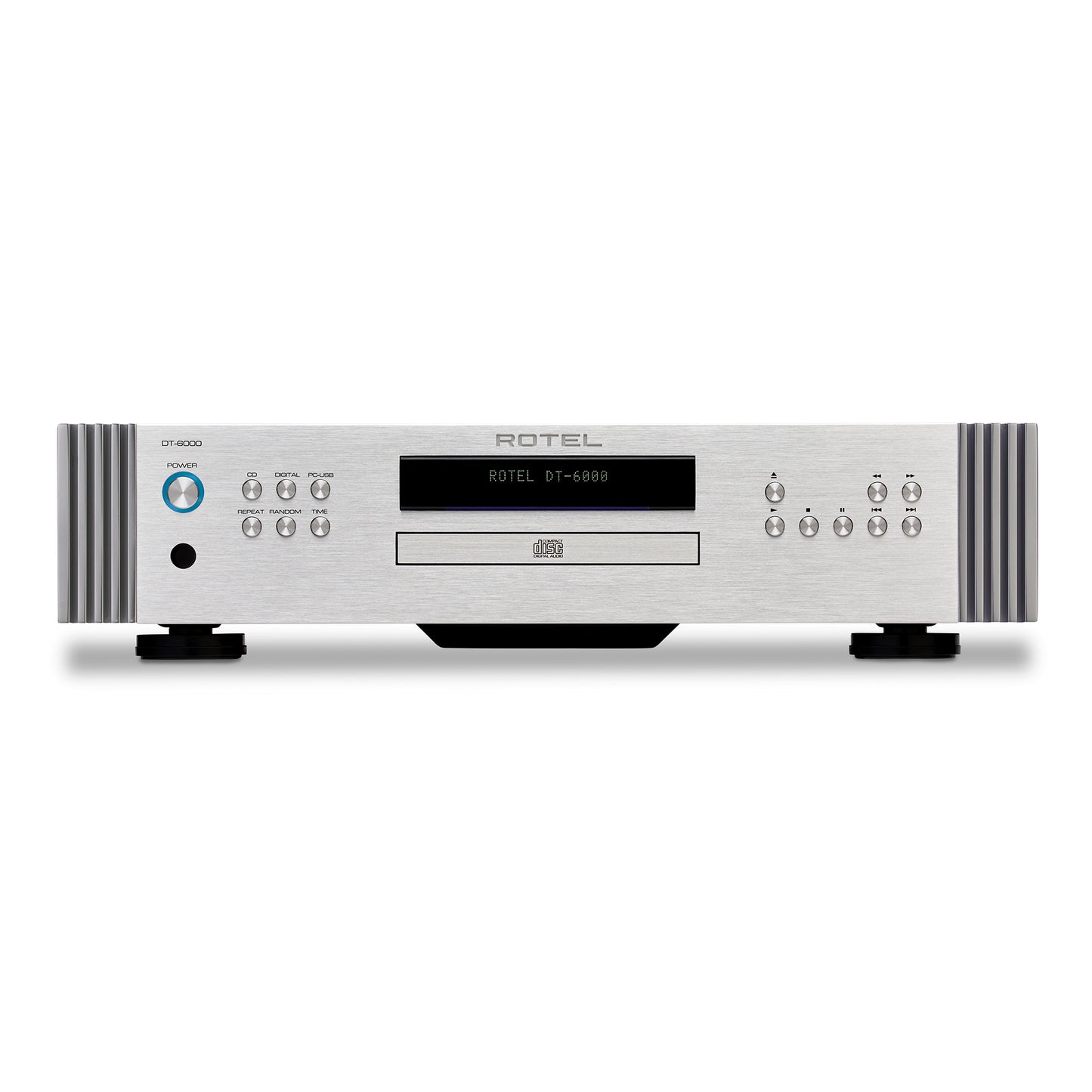

  • front view of dt6000 dac transport in silver color

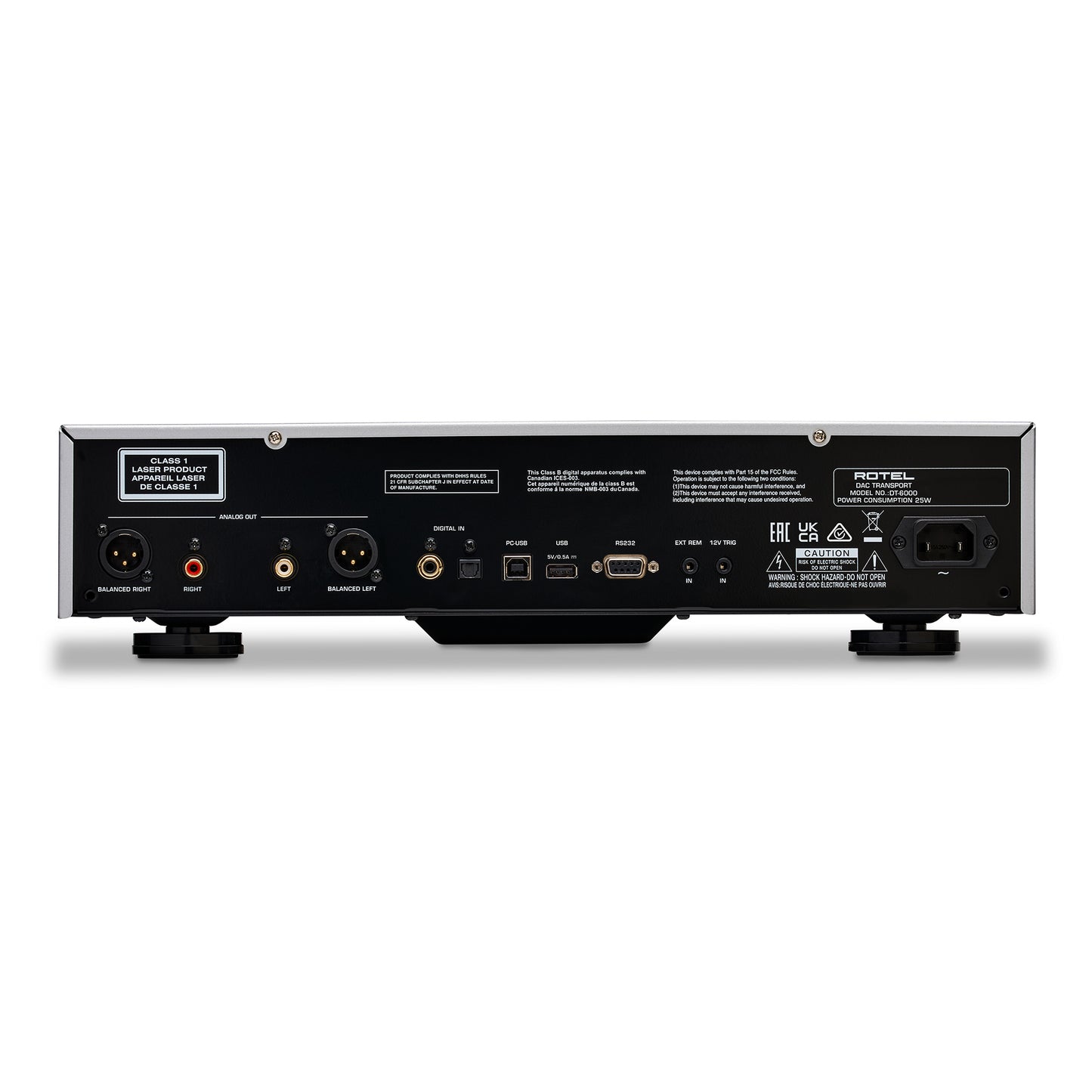

  • back panel of rotel dt6000 dac transport

Rotel

DT6000B

$2,999.00
$2,999.00

Free Shipping

Color: Black
  • In Stock

(For store pickups, please call for availability.)

Rotel DT-6000 DAC Transport

The Rotel DT-6000 DAC Transport celebrates 60-Years of performance synonymous with the brands Japanese heritage.

PC-USB, Optical, Coaxial, and included tray loading CD Player provide the ultimate flexibility for your favorite sources rendering the audio with unprecedented detail and immersive sound stage.

An 8-channel ESS Sabre ES9028PRO DAC dedicates 4 channels each to stereo outputs rendering unprecedented details with an ultra-low noise floor and immersive sound stage.

Dedicated power supplies feed critical circuits utilizing an in-house manufactured toroidal transformer with isolation techniques lowering residual noise and distortion.

The PC-USB input supports up to 32-bit/384kHz including MQA (24-bit/384kHz) and DSD (4X). Optical and Coaxial inputs are also included supporting 24-bit/192kHz streams.

The tray loading CD utilizes Rotel’s 30-years of multi-award winning CD player design experience extracting every nuance and detail from CD collections both large and small.

Front panel controls, a back-lit IR remote and 2-line display ensure intuitive operation of the unit.

RS232, 12V trigger and external remote input ensure integration with control systems.

The DT-6000 is available in silver and black colors.

Features

  • Certified Roon Tested
  • Supports MQA and MQA Studio
  • Smooth tray loading CD mechanism
  • Fully balanced differential XLR outputs
  • ESS premium
  • 32-bit 8-Channel
  • Digital to Analog Converter

Specifications

General

  • Dimensions (W × H × D): 431 × 104 × 320 mm (17" × 4" × 12.6")
  • Front Panel Height: 2U / 88.1 mm (3.5")
  • Net Weight: 8.11 kg (17.88 lb)
  • Power Requirements: 120V, 60Hz
  • Power Consumption: 25W
  • Standby Power Consumption: <0.5W

Audio Performance

  • THD (Optical/Coaxial): <0.0007%
  • THD (CD / PC-USB): <0.0012%
  • Frequency Response: 20 Hz – 20 kHz (+0 / -0.15 dB)
  • Frequency Response: 10 Hz – 70 kHz (+0 / -3 dB)
  • Signal-to-Noise Ratio: >115 dB (A-weighted)
  • Dynamic Range: >99 dB
  • Channel Balance: ±0.5 dB
  • Channel Separation: >115 dB @ 10 kHz
  • Intermodulation Distortion: <0.0012%

DAC & Outputs

  • DAC: ESS 32-bit / 768 kHz
  • Analog Output (RCA): 2.1 V
  • Analog Output (XLR): 4.3 V
  • Output Impedance (RCA): 10 Ω
  • Output Impedance (XLR): 20 Ω
  • Input Sensitivity: 0 dBFS / 75 Ω

Digital Input Support

  • Coaxial / Optical: LPCM up to 24-bit / 192 kHz
  • USB Audio Class 2.0: Up to 32-bit / 384 kHz
  • DSD Support: Native up to 11.2 MHz (DSD256)
  • DoP Support: Yes
  • MQA and MQA Studio: Up to 24-bit / 384 kHz
  • Roon Tested: Yes
