Rotel C8+ 8-Channel Power Amplifier

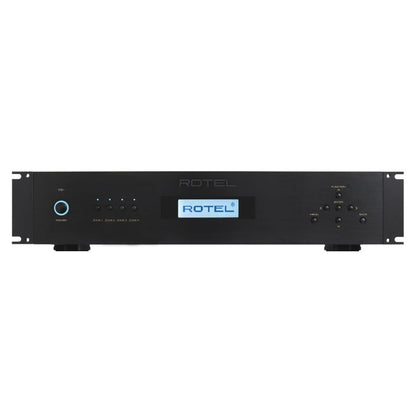

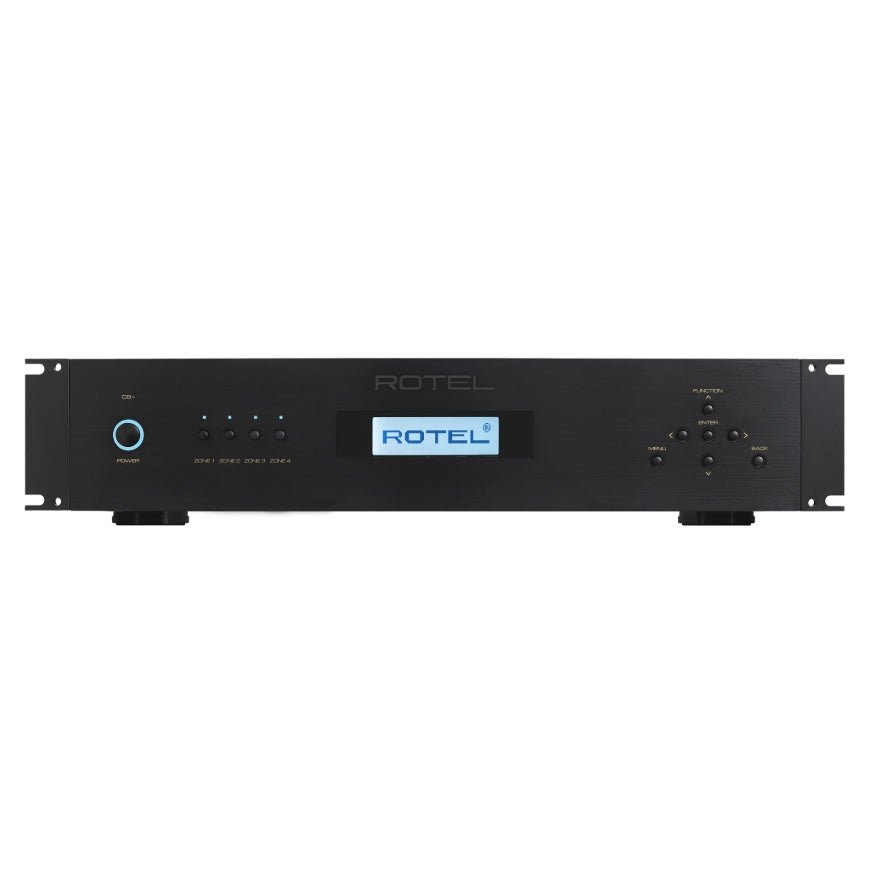

  • front view of rotel c8+ distribution amplifier
  • back panel of rotel c8 plus amplifier

Rotel

C8+

$3,999.00
$3,999.00

Free Shipping

  • In Stock

For store pickups, please call for availability.
C8+

Performance meets efficiency in Rotel’s C8+ Class AB Custom Installation Amplifier, driving 8-channels of premium audio at 150 Watts per channel, or bridged at 300 Watts into 4-ohm loads.

The C8+ includes 4 Analog and 4 Digital inputs matrixed to all Zones. Front panel display and controls provide source selection and independent volume, bass and treble settings. The custom 2U height requires no top or bottom clearance when rack mounting.

Features

  • 8 x 150 Watts of robust Class AB power, 4 Ohms
  • Custom engineered toroidal transformer
  • 12 volt trigger input
  • 4 individual 24-bit/192kHz Digital to Analogue Converters
  • Rack ears included

Performance meets efficiency in Rotel’s C8+ Class AB Custom Installation Amplifier, driving 8-channels of premium audio at 150 Watts per channel, or bridged at 300 Watts into 4-ohm speakers utilizing Rotel’s proprietary amplification technology.

The oversized in-house manufactured toroidal transformer drives thirty-two output devices for effortless, controlled bass energy.

For ultimate installation flexibility the C8+ includes 4 Analog, 4 Digital inputs matrixed to all Zones. Front panel display and controls provide source selection and independent volume, bass and treble settings.

Control system integration is available via IP and RS232 interfaces and 12-Volt trigger.

The custom 2U height requires no top or bottom clearance when rack mounting.

The C8+ is available in black only.

Specifications

Amplifier Performance

  • Continuous Power Output: 100 W per channel (8 channels driven, 8Ω)
  • Maximum Power Output: 150 W per channel (8 channels driven, 4Ω)
  • Total Harmonic Distortion (THD): <0.1%
  • Intermodulation Distortion (60Hz:7kHz, 4:1): <0.1%
  • Damping Factor (20 Hz – 20 kHz, 8Ω): 80

Frequency Response & Noise

  • Frequency Response (Line Level): 10 Hz – 100 kHz (±0.5 dB)
  • Frequency Response (Digital): 10 Hz – 20 kHz (±0.5 dB)
  • S/N Ratio (Line Level): 100 dB
  • S/N Ratio (Digital): 102 dB
  • Crosstalk / Separation: >50 dB

Inputs & DAC

  • Digital to Analog Converter: Texas Instruments
  • Input Sensitivity (Line Level): 0.43 V
  • Input Sensitivity (Digital): -13.5 dBFS
  • Input Impedance (Line Level): 31 kΩ
  • Input Impedance (Digital): 75 Ω
  • Input Overload (RCA): 2.8 V
  • Optical Digital Signals: SPDIF LPCM up to 192kHz / 24-bit

Tone Controls

  • Treble / Bass: ±10 dB at 10 kHz / 100 Hz

Power

  • Power Requirements: 120 V, 60 Hz
  • Power Consumption: 980 W
  • Standby Power (Normal): <0.5 W
  • Standby Power (Network): <2 W
  • BTU Rating (4Ω, 1/8th power): 2744 BTU/h

Dimensions & Weight

  • Dimensions (W × H × D): 430 × 97 × 414 mm
  • Dimensions (W × H × D): 17 × 3.9 × 16.3 inches
  • Front Panel Height: 2U / 88.1 mm (3.5")
  • Net Weight: 18.35 kg (40.79 lbs)
