Rotel

Rotel C8 8-Channel Power Amplifier

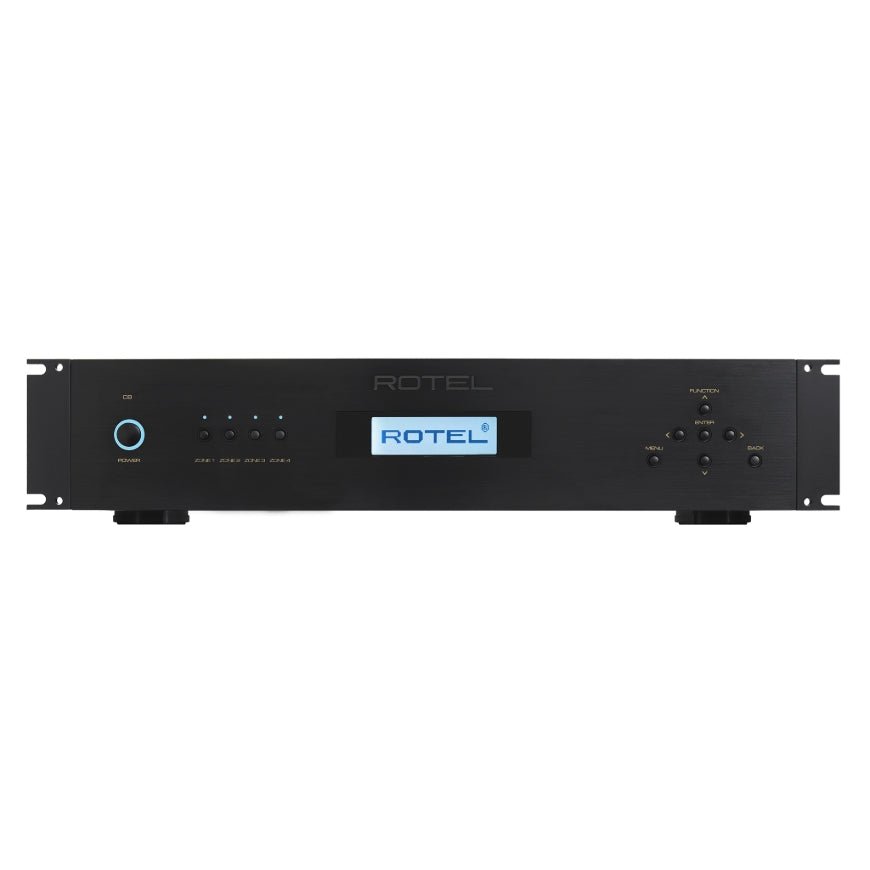

  • front view of rotel c8 amplifier in black color

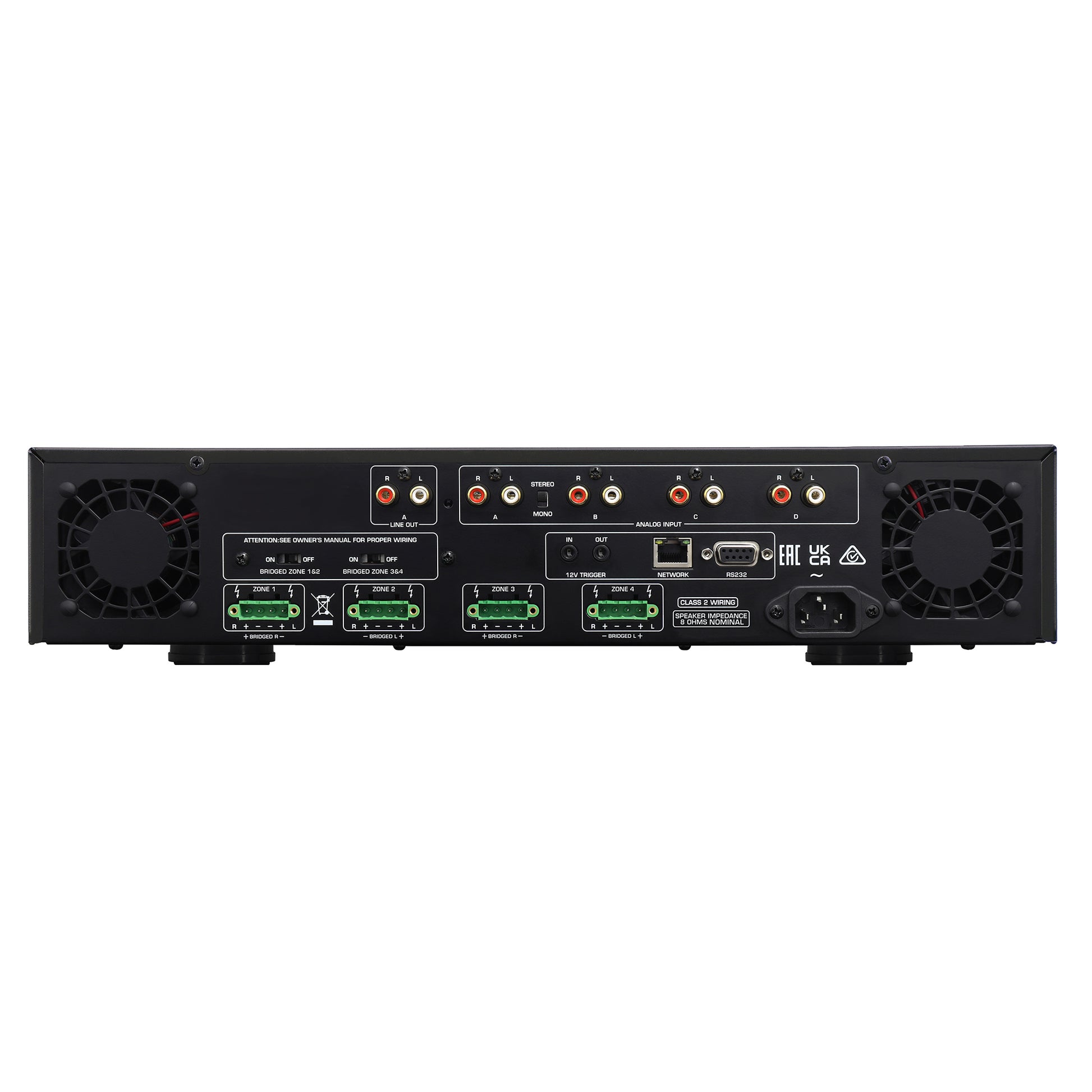

  • back panel of rotel c8 amplifier

Rotel

C8

$3,199.00
$3,199.00

Free Shipping

  • In Stock

For store pickups, please call for availability.

C8

Performance meets efficiency in Rotel’s C8 Class AB Custom Installation Amplifier, driving 8- channels of premium audio at 70 Watts per channel, or bridged at 140 Watts into 4-ohm loads.

The C8 includes 4 Analog inputs matrixed to all Zones. Front panel display and controls provide source and independent volume, bass and treble settings. The custom 2U height requires no top or bottom clearance when rack mounting.

Features

  • 8 x 70 Watts of robust Class AB power, 4 Ohms
  • Class AB amplifier design
  • Custom engineered toroidal transformer
  • 12 volt trigger input
  • Rack ears included

Performance meets efficiency in Rotel’s C8 Class AB Custom Installation Amplifier, driving 8- channels of premium audio at 70 Watts per channel, or bridged at 140 Watts into 4-ohm loads utilizing Rotel’s proprietary amplification technology.

The oversized in-house manufactured toroidal transformer drives sixteen output devices for effortless, controlled bass energy.

For ultimate installation flexibility the C8 includes 4 Analog inputs matrixed to all Zones. Front panel display and controls provide source and independent volume, bass and treble settings.

Control system integration is available via IP and RS232 interfaces and 12-Volt trigger.

The custom 2U height requires no top or bottom clearance when rack mounting.

The C8 is available in black only.

Specifications

Amplifier Performance

  • Continuous Power Output: 50 W per channel (8 channels driven, 8Ω)
  • Maximum Power Output: 70 W per channel (8 channels driven, 4Ω)
  • Total Harmonic Distortion (THD): <0.1%
  • Intermodulation Distortion (60Hz:7kHz, 4:1): <0.1%
  • Damping Factor (20 Hz – 20 kHz, 8Ω): 80

Frequency Response & Noise

  • Frequency Response (Line Level): 10 Hz – 100 kHz (±0.5 dB)
  • S/N Ratio (IHF “A” Weighted, Line Level): 100 dB
  • Crosstalk / Separation: >50 dB

Inputs

  • Input Sensitivity (Line Level): 0.3 V
  • Input Impedance (Line Level): 31 kΩ
  • Input Overload (RCA): 2.8 V

Tone Controls

  • Treble / Bass: ±10 dB at 10 kHz / 100 Hz

Power

  • Power Requirements: 120 V, 60 Hz
  • Power Consumption: 570 W
  • Standby Power: Normal <0.5 W
  • Standby Power: Network Standby <2 W
  • BTU Rating (4Ω, 1/8th power): 1537 BTU/h

Dimensions & Weight

  • Dimensions (W × H × D): 430 × 97 × 414 mm
  • Dimensions (W × H × D): 17 × 3.9 × 16.3 inches
  • Front Panel Height: 2U / 88.1 mm (3.5")
  • Net Weight: 16.7 kg (36.81 lbs)
