Rotel A14 MKII Integrated Amplifier

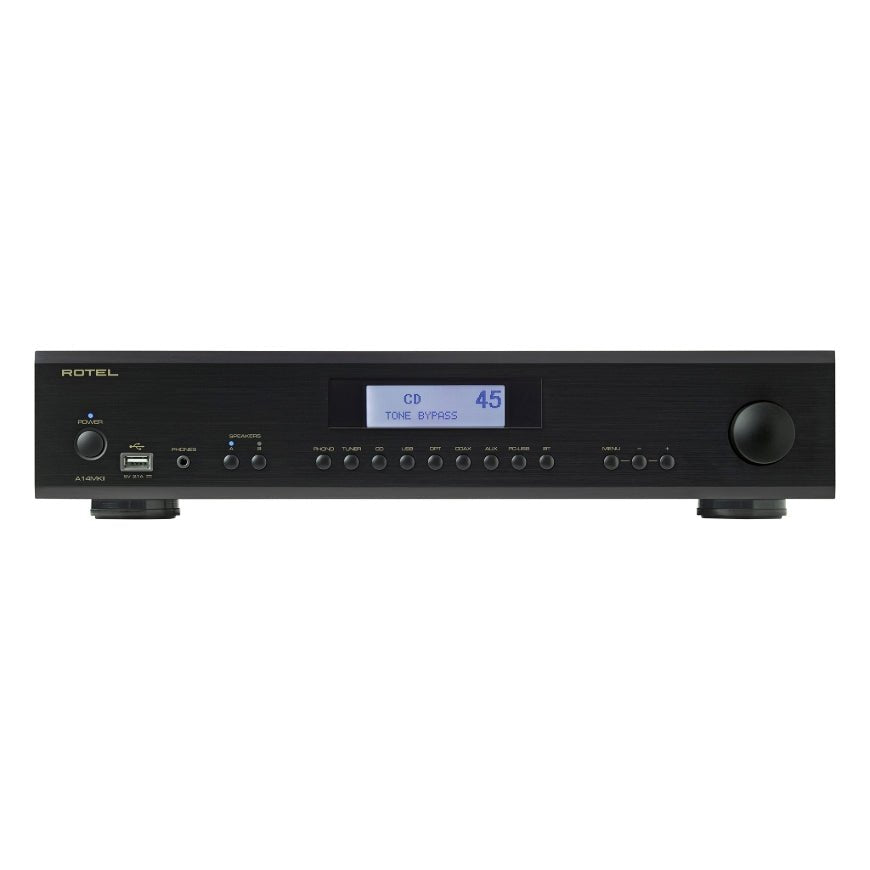

  • front view of rotel a14 mkii integrated amp in black color

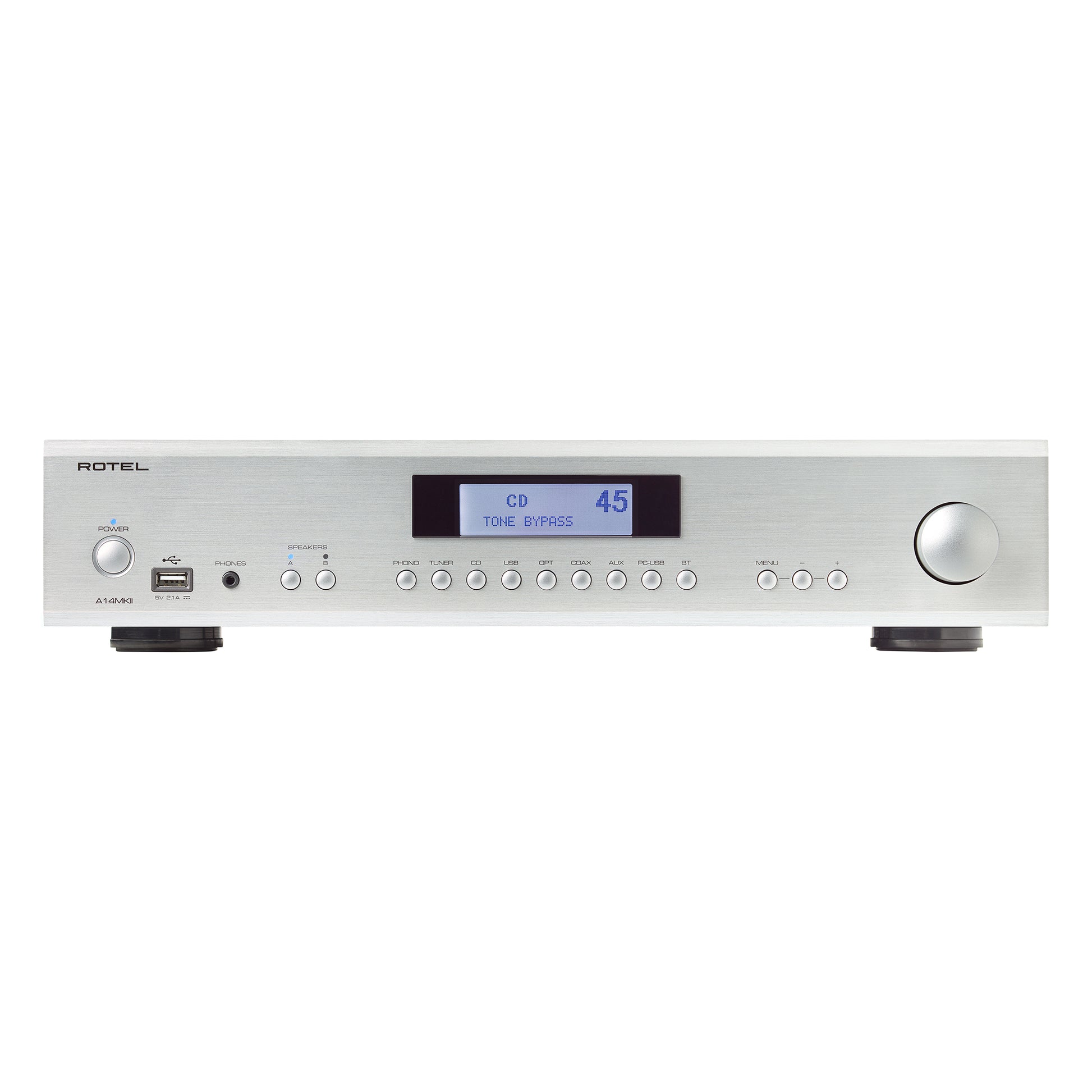

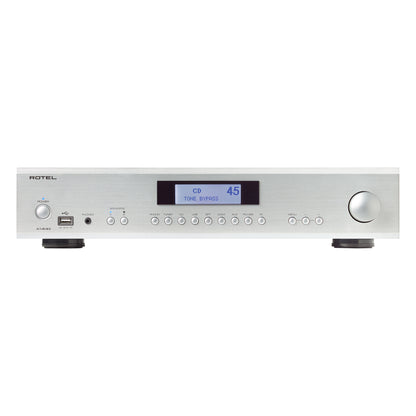

  • back panel of rotel a14 mkii integrated amp in silver color

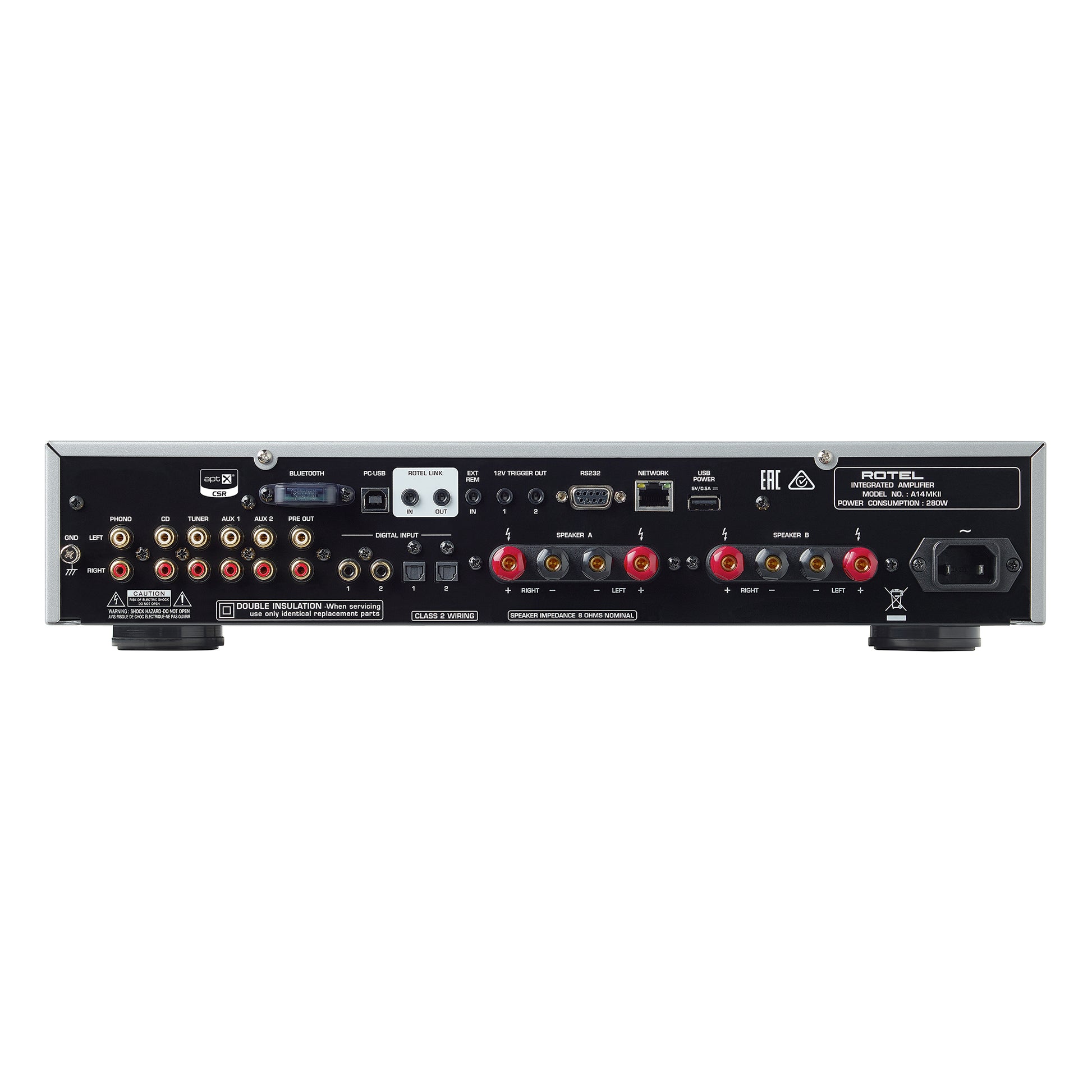

  • back panel of rotel a14 mkii integrated amp

Rotel

A14 MKII BLACK

$1,999.00
$1,999.00

Free Shipping

Color: Black
  • In Stock

For store pickups, please call for availability.

The A14 MKII Integrated Amplifier delivers 80 Watts per channel of Class AB amplification from your favorite sources including analog, digital, PC-USB with MQA, wireless aptXTM and AAC Bluetooth and Moving Magnet Phono stage. Critically tuned power supply, DAC and amplifier circuits ensure the A14MKII will deliver countless hours of entertainment.

The A14MKII is the flagship model in the 14 Series family of Rotel products delivering 80 Watts of Class AB amplification into 8 ohm speakers powered by Rotel’s in-house manufactured, oversized toroidal transformer and an array of 4 high efficiency slit-foil bulk storage capacitors delivering an effortless acoustic performance.

A fully redesigned Digital to Analog circuit topology utilizes a Texas Instruments 32-bit/384kHz DAC with exhaustive tuning and hand selection of all critical components delivering a fuller, richer and more balanced presentation of the music. Improvements to the power supply and amplifier gain stages further refine the audio whether you are listening to a big band orchestra or a solo vocalist.

Tone controls provide treble and bass adjustments in 1dB steps up to +/- 10dB personalizing your experience for all music genres, moods and settings with a BYPASS mode eliminating unwanted noise and distortion.

The A14MKII supports your favorite sources including analog, digital, PC-USB with MQA, high-quality wireless aptX™ and AAC Bluetooth streaming and even a Moving Magnet Phono stage for vinyl fans.

The A14MKII is certified Roon Tested delivering the best experience using Roon software so you can just enjoy the music. Control system integration is available utilizing Ethernet, RS232, 12V-Trigger and remote IR connections.

Dual 5-way speaker binding posts allow Zone 2 installations with relay-controlled selection of the A-B speaker outputs. The front panel graphic display includes a large volume indication and audio stream information.

The A14MKII is comfortable in any setting delivering countless hours of audio entertainment.

Features:

  • Certified Roon Tested
  • Supports MQA and MQA Studio
  • 2 x 150 Watts of robuts class AB power, 4 ohms
  • Moving magnet phono input for turntable connection turnbtale
  • Wireless aptX™ and AAC Bluetooth

Specifications

Amplifier

  • Power Output: 80W + 80W into 8Ω (20Hz–20kHz, 0.018% THD)
  • Amplifier Design: Class AB
  • Power Supply: Custom-designed toroidal transformer

DAC & Audio

  • DAC: Texas Instruments 32-bit / 384kHz
  • MQA & MQA Studio Support
  • Roon Ready (subscription required)
  • Bluetooth: Built-in with aptX support

Frequency Response

  • Line Inputs: 10Hz – 100kHz (±0.5dB)
  • Phono Input: 20Hz – 20kHz (±0.5dB)
  • Digital Inputs: 10Hz – 90kHz (±2dB)

Signal-to-Noise Ratio

  • Line Inputs: 100dB
  • Phono Input: 90dB
  • Digital Inputs: 103dB

Connections

  • Analog Inputs: 5 × RCA (including MM phono input)
  • Digital Inputs: 2 × Optical, 2 × Coaxial (up to 24-bit/192kHz)
  • USB Type-B: Computer input (up to 32-bit/384kHz)
  • USB Type-A (Front): iPod®, iPhone®, iPad® audio playback
  • USB Type-A (Rear): Device charging
  • RCA Preamp Output
  • Front Panel 3.5mm Headphone Output
  • A/B Speaker Outputs with binding posts

Control & Integration

  • Rotel Link Input / Output
  • 3.5mm IR Input
  • Dual 12V Trigger Outputs
  • RS-232 Control Port
  • Ethernet Port (updates & control integration)
  • Remote Control Included
  • Detachable Power Cord

General

  • Dimensions (W × H × D): 17" × 3-11/16" × 14-15/16"
  • Weight: 19.7 lbs
  • Warranty: 5 Years
