Rotel A12 MKII Integrated Amplifier

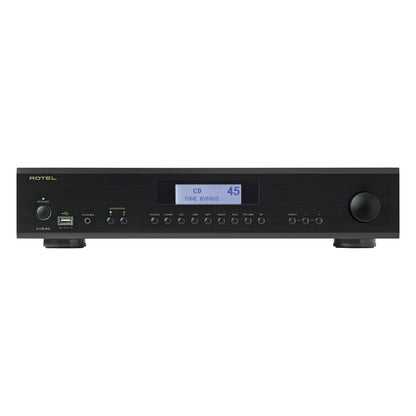

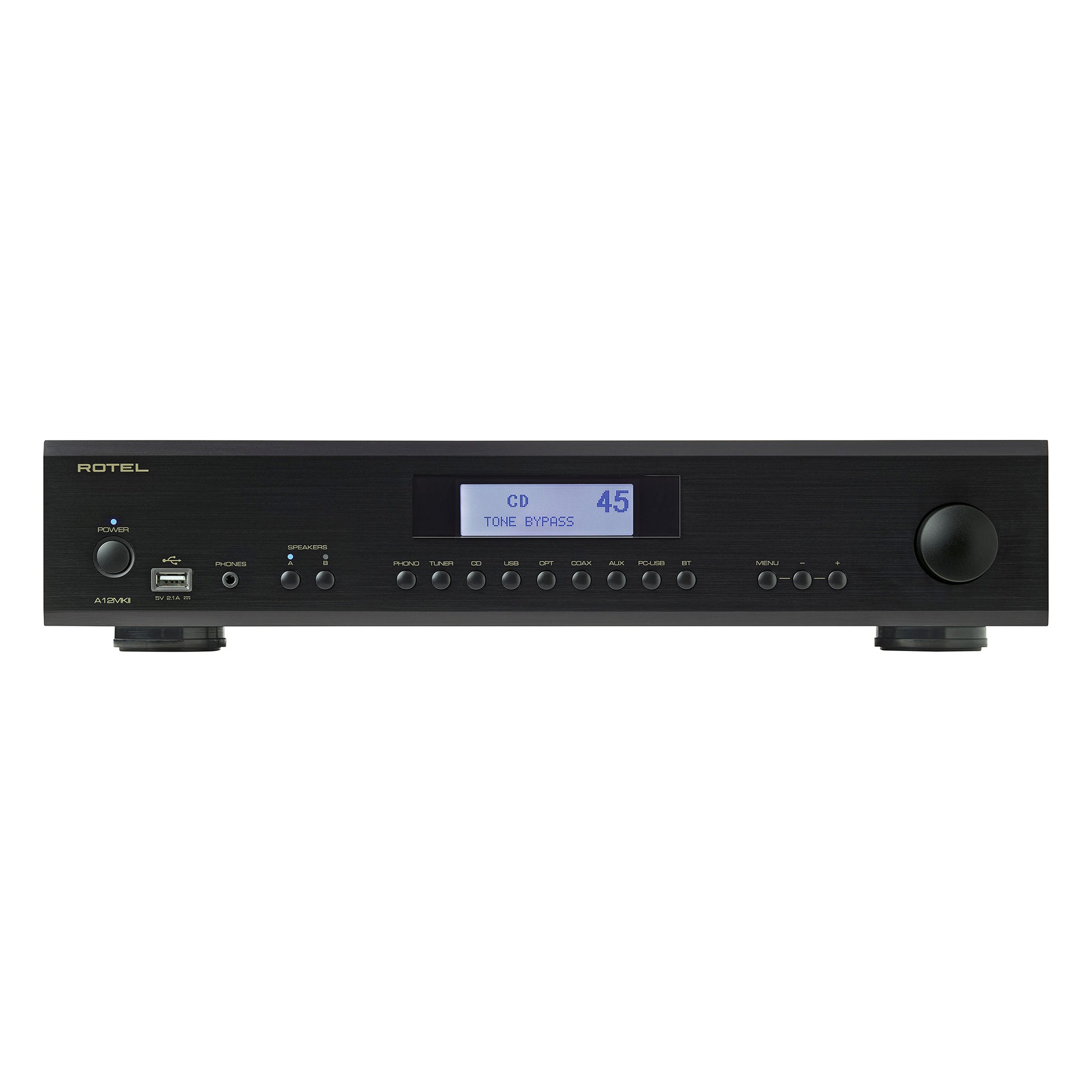

  • front view of rotel a12 mkii integrated amp in black color
  • front view of rotel a12 mkii integrated amp in silver color

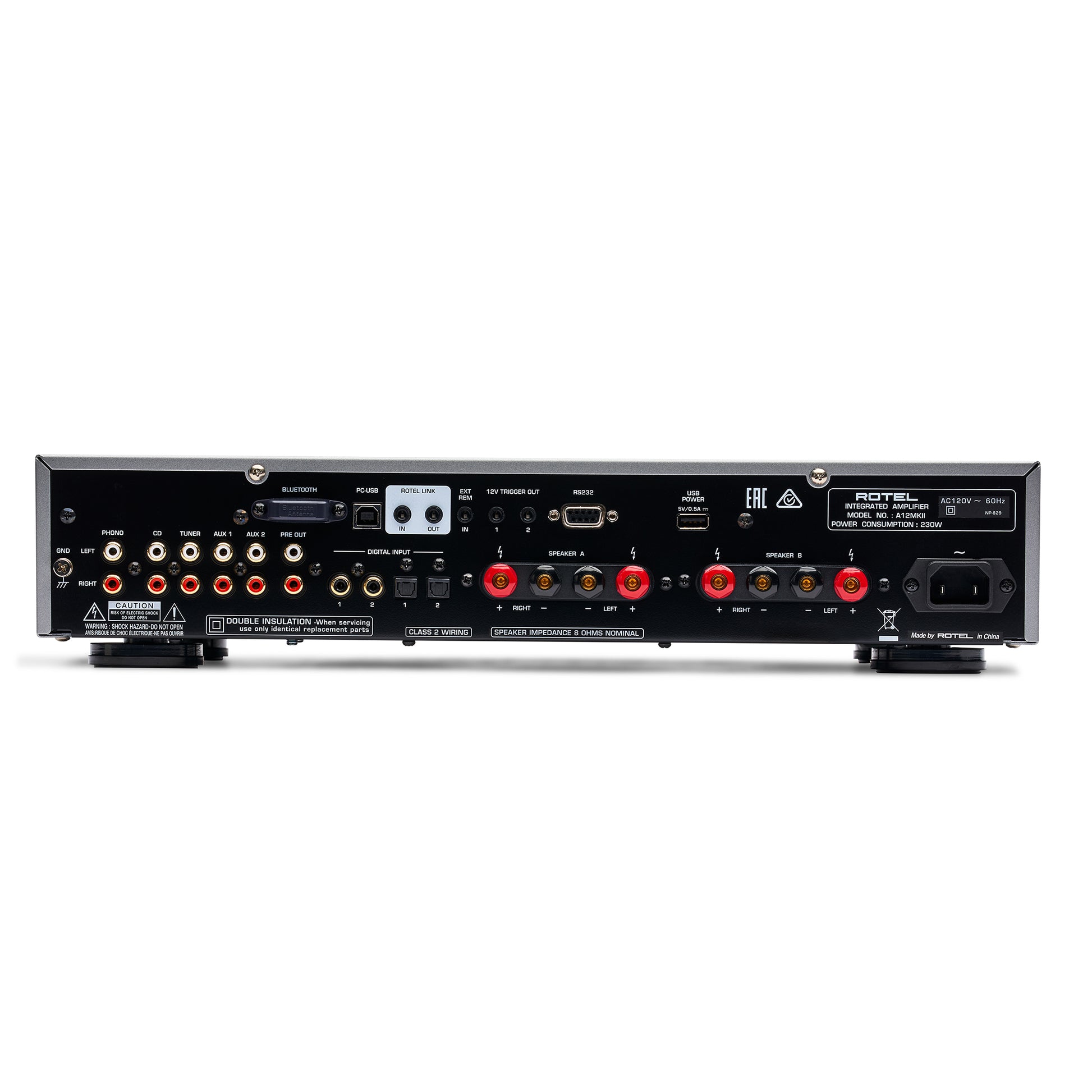

  • back panel of rotel a12 mkii integrated amp

Rotel

A12 MKII BLACK

$1,499.00
$1,499.00

Free Shipping

Color: Black
  • In Stock

(For store pickups, please call for availability.)

The A12MKII Integrated Amplifier stands well above its slim, sleek design profile designed and engineered for music lovers.

Powered by Rotel’s oversized in-house manufactured toroidal transformer the A12MKII delivers 60 Watts of clean, dynamic Class AB output power into 8 ohms.

A Moving Magnet Phono Stage, 4 RCA analog, 4 digital, PC-USB and high quality wireless aptXTM Bluetooth input ensures connection to your favorite sources.

The premium 32-bit Texas Instruments DAC extracts genuine and accurate details of the music with optimized circuits preserving the integrity of the audio stream.

Slim and powerful the A12MKII delivers on Rotel’s iconic brand heritage.

Key Points

  • 2 x 60 Watts of robust. Class AB power
  • Moving Magnet Phono Input for Turntable connection
  • Wireless aptX™ Bluetooth
  • Texas Instruments premium 32-bit/384kHz Digital to Analog Converter
  • Certified Roon Tested

Specifications

Amplifier Performance

  • Maximum Power Output: 120W per channel (4Ω)
  • Continuous Power Output: 60W per channel (8Ω)
  • Total Harmonic Distortion (THD): <0.018%
  • Intermodulation Distortion (60Hz:7kHz, 4:1): <0.03%
  • Damping Factor: 220

Frequency Response

  • Line Level Inputs: 10Hz – 100kHz (0 ±0.5dB)
  • Digital Inputs: 10Hz – 90kHz (0 ±2dB)
  • Phono Input: 20Hz – 20kHz (0 ±0.5dB)

Signal Performance

  • Signal-to-Noise Ratio (Line): 100dB
  • Signal-to-Noise Ratio (Digital): 103dB
  • Signal-to-Noise Ratio (Phono): 90dB

Inputs & Outputs

  • Input Sensitivity:

    Line Level: 230mV
    Digital: 0dBfs
    Phono (MM): 3.4mV

  • Input Impedance:

    Line Level: 24kΩ
    Digital: 75Ω
    Phono (MM): 47kΩ

  • Input Overload:

    Line Level: 4V
    Phono: 50mV

  • Pre-Out Level: 1.2V
  • Output Impedance: 470Ω
  • Tone Controls: ±10dB at 100Hz / 10kHz

Digital Audio

  • Digital Input: SPDIF LPCM (up to 24-bit/192kHz)
  • PC-USB:

    USB Audio Class 1 (up to 24-bit/96kHz)
    USB Audio Class 2 (up to 32-bit/384kHz)*

  • Roon Tested

General

  • Power Requirements: 120V, 60Hz
  • Power Consumption: 230W
  • Standby Power Consumption: <0.5W
  • BTU Rating (4Ω, 1/8th power): 632 BTU/h
  • Dimensions (W x H x D): 430 × 93 × 345mm (17" × 3.6" × 13.5")
  • Front Panel Height: 80mm (3.15")
  • Net Weight: 8.76kg (19.31lbs.)
