Rega

Rega Solis Reference Power Amplifier

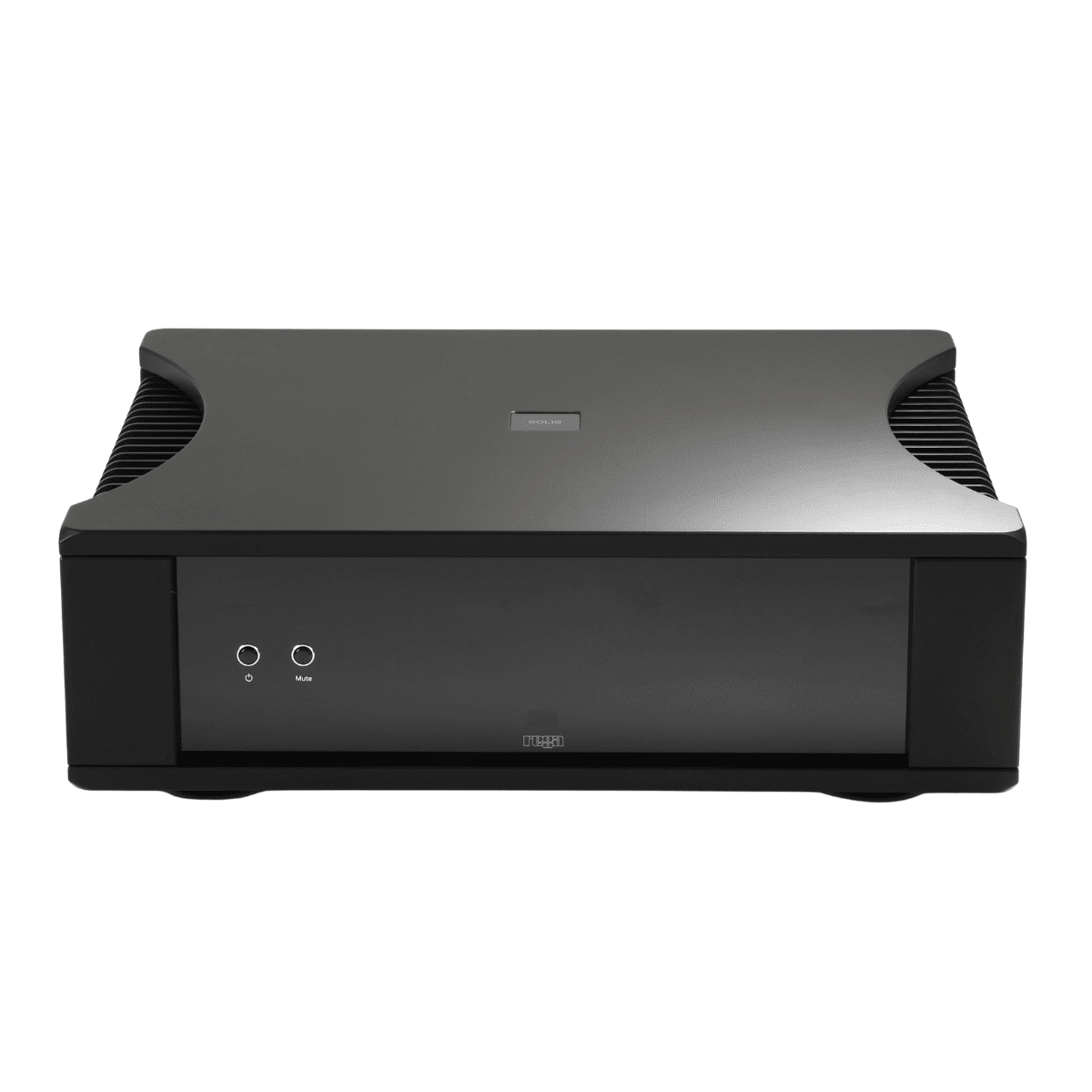

  • front panel of solis power amp

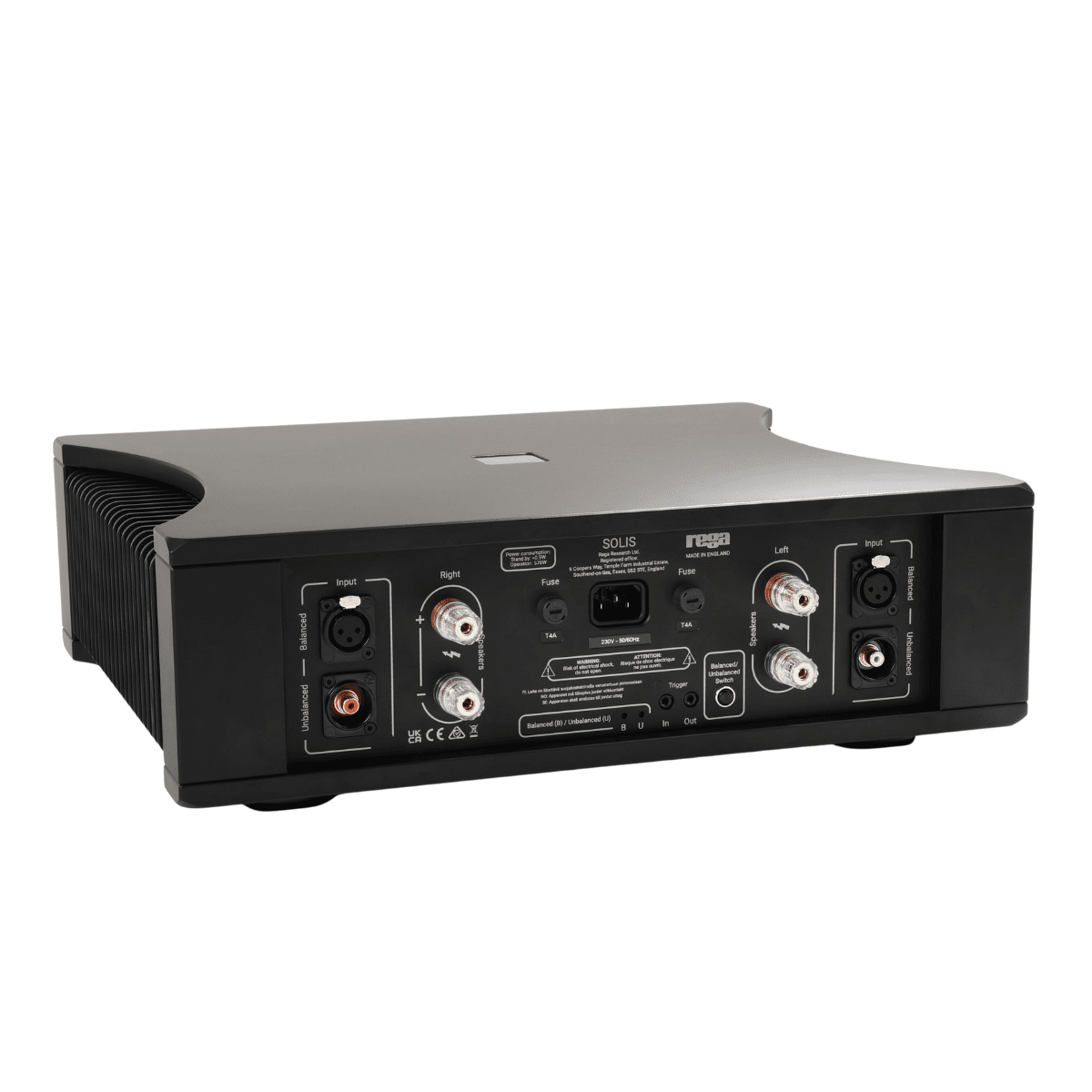

  • back view of rega solis power amp

SOLIS

$13,999.00
$13,999.00

In-Store Only

Contact Us

Please call us at 1-905-270-3440 or simply fill out the form below for ordering & more info.

Product Overview

Discover reference-level performance with the Solis stereo power amplifier. Designed and hand-built in England, it is engineered for listeners who demand exceptional sound quality, refined design, and uncompromising craftsmanship. Every component is carefully selected for its sonic excellence, ensuring your music is reproduced with remarkable clarity, precision, and detail across every format.

Designed to drive even the most demanding loudspeakers, the Solis is an ideal partner for the Mercury pre-amplifier. Its circuit has been refined over several years to deliver a highly engaging and accurate performance. Using separate chassis for the pre-amplifier and power amplifier allows sensitive low-voltage circuitry to remain isolated from high-current power stages, reducing interference and resulting in a cleaner, quieter signal path. The Solis is also fully compatible with the Rega Aethos stereo power amplifier.

For a short review of Rega Solis power amp, click here.

Specifications

Amplifier Specifications

  • Power Output: 168W RMS per channel into 8Ω / 305W RMS per channel into 4Ω (1kHz, 0.1% THD)
  • Power Amplifier Gain: 33.3dB
  • THD + Noise: Typically 0.015% at 1kHz, 100W into 8Ω (22Hz – 22.4kHz bandwidth)
  • Unbalanced Input Sensitivity / Impedance: 820mV at 35kΩ
  • Balanced Input Sensitivity / Impedance: 1.64V at 26kΩ
  • Frequency Response: 15Hz (-0.5dB) to 30kHz (-0.5dB) at 100W into 8Ω

Dimensions / Weight

  • Dimensions (W × H × D): 435 × 140 × 385 mm (17.1 × 5.5 × 15.2 in)
  • Net Weight: 24.8 kg (54.7 lbs)

Power

  • Power Supply: AC 230V / 220V / 115V / 100V nominal ±10%
  • Power Consumption: 500W at 1/8 rated power (42.5W into 4Ω)
  • Power Consumption (Standby): 0.4W
  • Fuse Ratings:T4 AL 250V – 230V 50Hz / 220V 60Hz, T6.3 AL 250V – 120V 60Hz / 100V 50/60Hz

Contents

  • Solis Power Amplifier: 1
  • Reference Mains Lead: 1
  • Trigger Cable: 2
  • Couple 3 Interconnect: 1

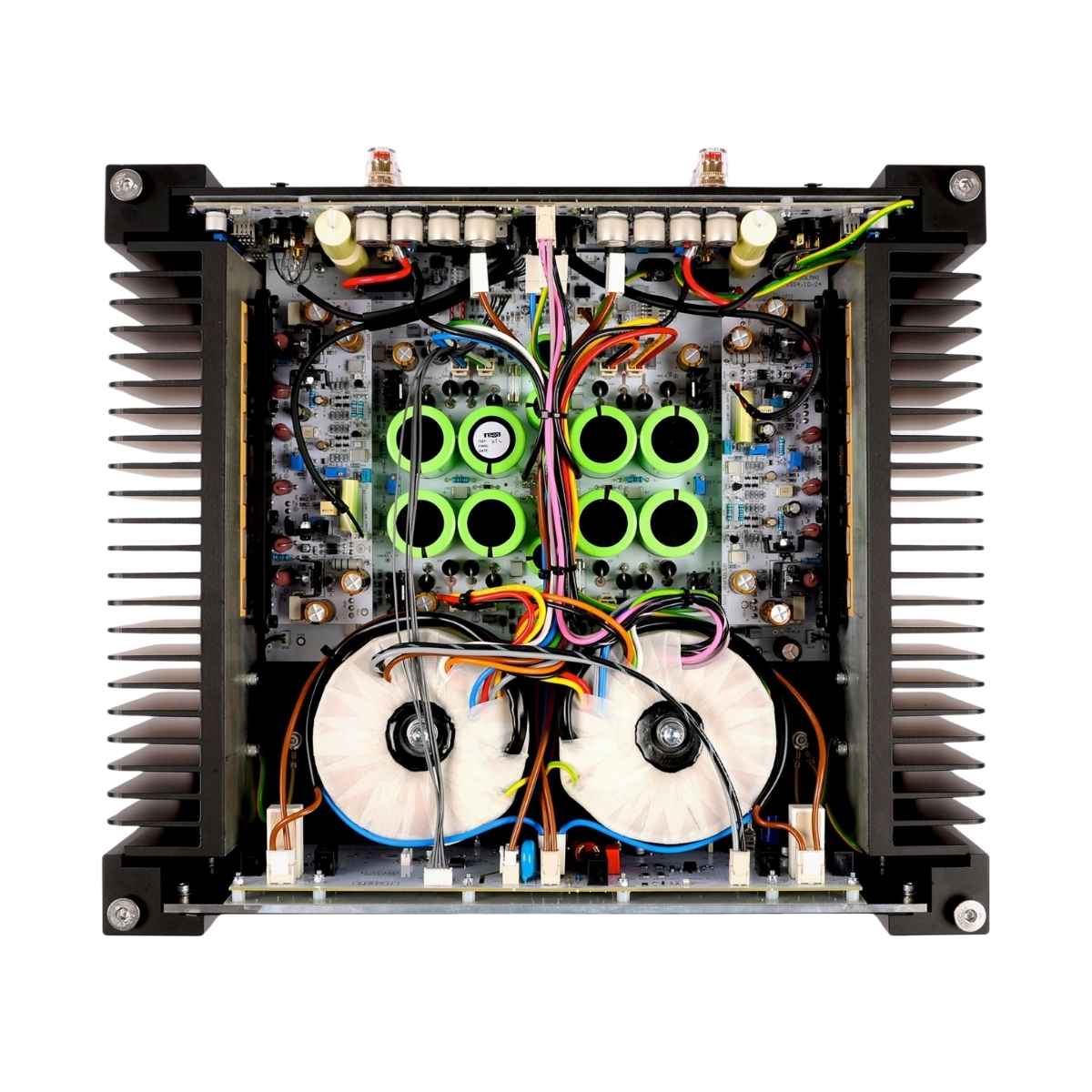

amplifier circuit of rega solis

Features

  • Fully symmetrical discrete circuitry in the signal path
  • Balanced and unbalanced inputs
  • 168W into 8Ω / 305W into 4Ω
  • Short circuit protection
  • Thermal cut-out and DC Protection
  • Standby mode (user selectable)
  • 12V trigger
  • Independent MUTE function
  • Compatible with Mercury pre-amplifier and Aethos stereo amplifier

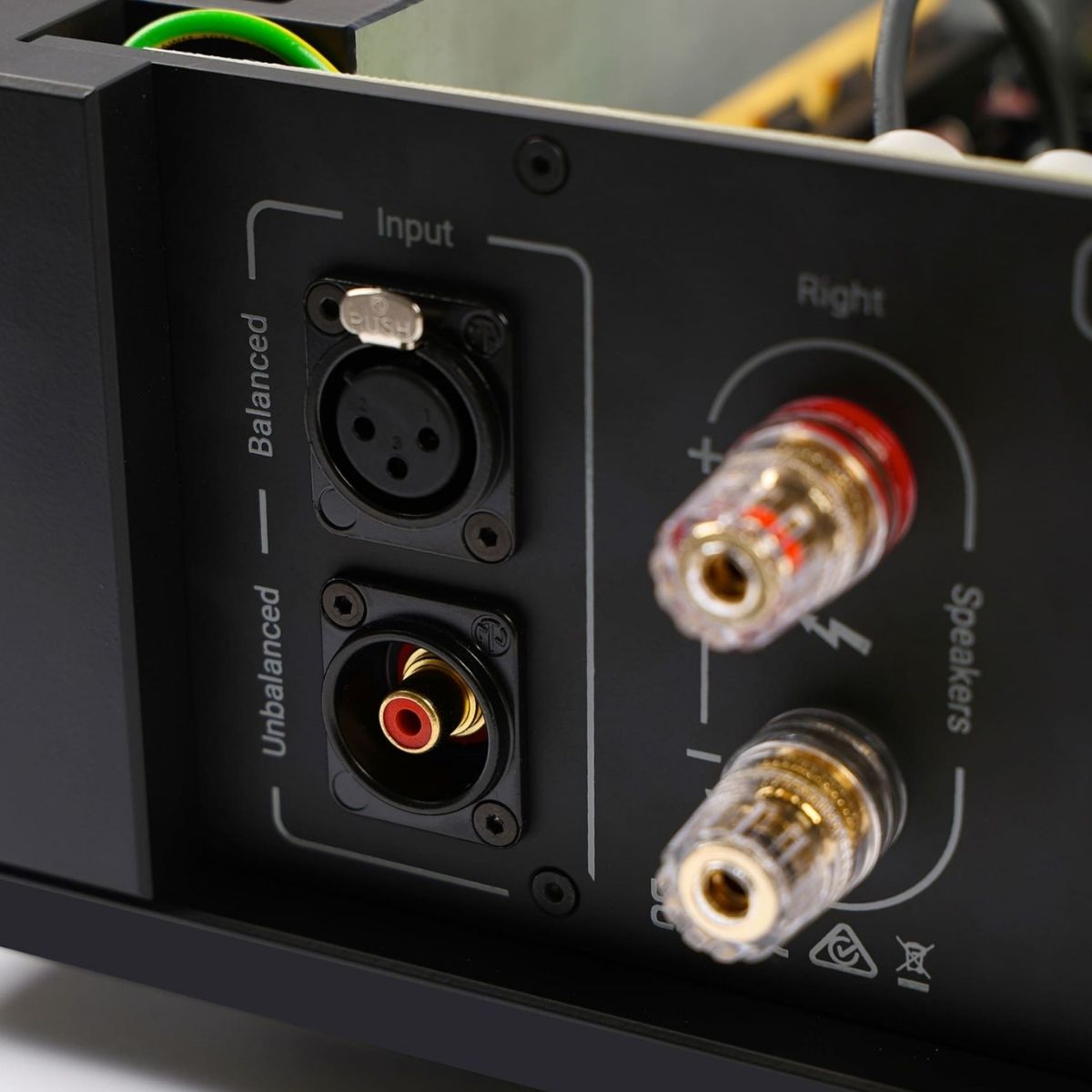

  • close up on back view of rega solis power amp

    Amplifier Circuit

    The Solis features a fully symmetrical circuit design with a low-distortion, high-linearity driver stage, allowing it to deliver powerful voltage swings and drive virtually any loudspeaker with minimal distortion. Its high-current triple output stage uses premium Sanken transistors for exceptional control, even with difficult loads. Carefully selected components, including Nichicon audio-grade capacitors and non-inductive resistors, ensure a tight, controlled soundstage with excellent low-frequency authority and refined high-frequency performance.

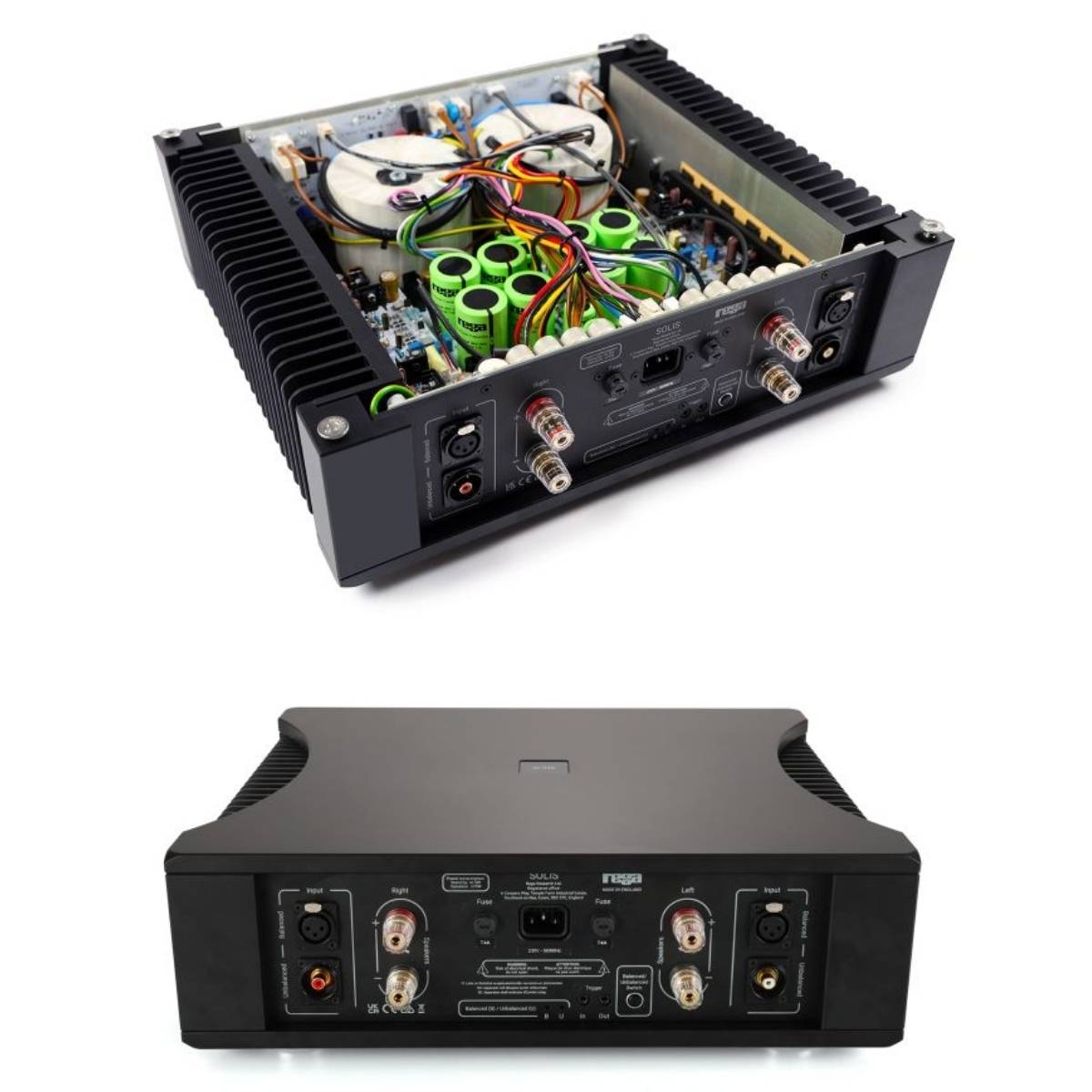

  • back view and inside of rega solis power amp

    Power Supply

    The Solis is powered by dual custom 330VA toroidal transformers with high-grade core material to reduce mechanical noise and ensure stable operation under demanding mains conditions. With 40,000µF of smoothing capacitance per channel and fast recovery rectifier diodes, it delivers exceptional current capability, effectively doubling power into 4Ω loads. A regulated, low-noise symmetrical power supply feeds the input and driver stages, ensuring outstanding sonic purity and stability.

  • close up on back view of rega solis power amp

    Protection

    The Solis features comprehensive protection circuitry monitoring both speaker DC levels and amplifier temperature for safe operation. A microcontroller-based slow-start and supervisory system minimizes inrush current, manages standby functions, and ensures compliance with Eco requirements. These control and protection circuits use a dedicated power supply isolated from the audio path to preserve signal purity.
side view of rega solis power amp

Signal Path

ICEL polypropylene capacitors, HTR non-inductive resistors and relays are used in the signal path.

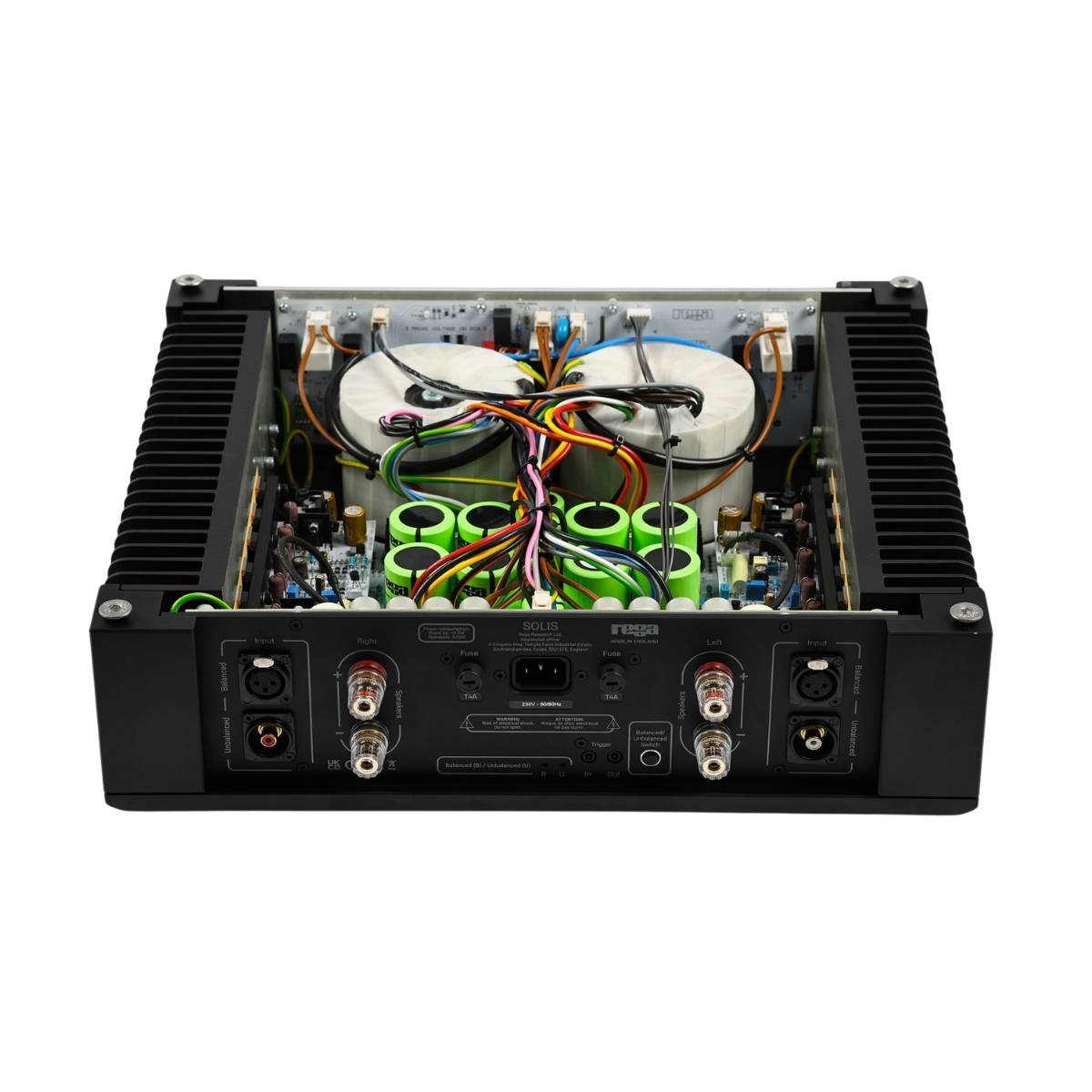

back view and inside of rega solis power amp

Balanced / Unbalanced

For domestic Hi-Fi use, Rega recommends unbalanced connections for optimal sound quality, as the core circuitry of both Mercury and Solis is unbalanced by design. While balanced XLR connections are included and perform to a high standard, they require additional circuitry that can introduce slight noise or distortion.

Balanced connections are primarily intended for professional environments with long cable runs where noise rejection is necessary. In most home systems, this added complexity offers no inherent sound quality advantage over unbalanced connections.

Frequently Asked Questions

What is the Rega Solis Power Amplifier?

The Solis is a high-performance stereo power amplifier designed to deliver reference-level power and precision for demanding hi-fi systems.

How much power does the Solis output?

It delivers 168 W RMS per channel into 8 Ω and 305 W RMS per channel into 4 Ω, giving ample drive for a wide range of speakers.

What inputs does the Solis offer?

The amplifier includes both balanced (XLR) and unbalanced (RCA) inputs for flexible connection to pre-amplifiers and sources.

What kind of circuit topology does the Solis use?

It uses a fully symmetrical discrete circuit design throughout to ensure low distortion and high fidelity.

Is the Solis compatible with other Rega components?

Yes — it’s engineered to work seamlessly with the Rega Mercury pre-amplifier and also complements the Rega Aethos power amplifier in larger systems.

What protection features does the Solis include?

It has advanced protection circuits including short circuit, thermal cut-out, DC protection, and soft start standby, helping safeguard the amplifier and connected speakers.

Does the Solis have standby and trigger support?

Yes, it includes a user-selectable standby mode, 12 V trigger input, and an independent MUTE function.

What is the frequency response of the Solis?

It offers a wide frequency response, typically from 15 Hz to 30 kHz (-0.5 dB), ensuring full-range performance.

Collapsible rowWhat are the physical dimensions and weight?

The Solis measures approximately 435 × 140 × 385 mm and weighs about 24.8 kg, reflecting its robust build.

How much power does the Solis consume?

Typical consumption is about 500 W at 1/8 rated power, with 0.4 W in standby when no signal is present.
