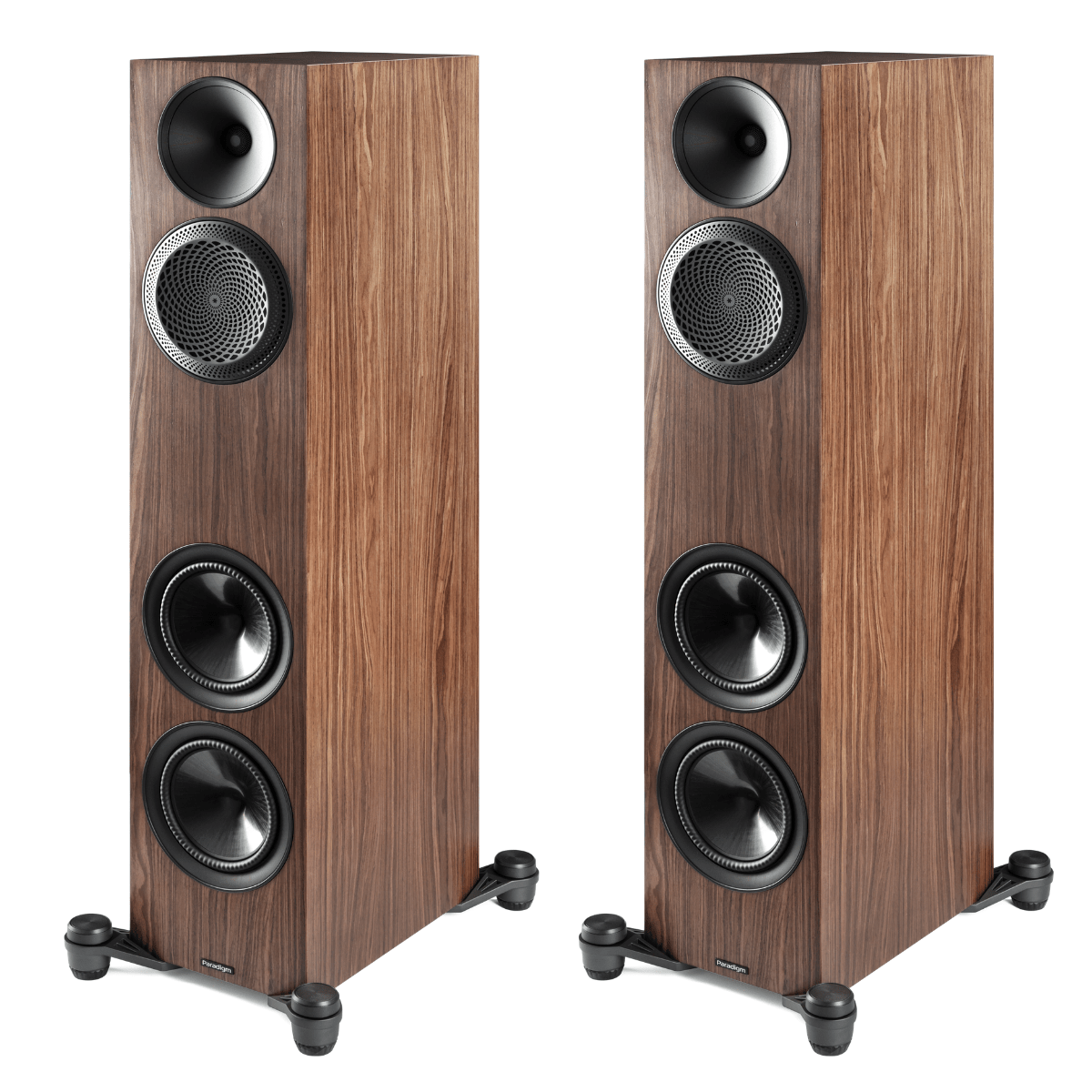

Design
4-driver, 3-way ported floorstanding speaker with AL-MAC, AL-MAG, Carbon-X, OSW™, and PPA™
Crossover
2nd Order Electro-acoustic at 1.3kHz (tweeter/midrange)
2nd Order Electro-acoustic at 500Hz (midrange/woofer)
High-Frequency Driver

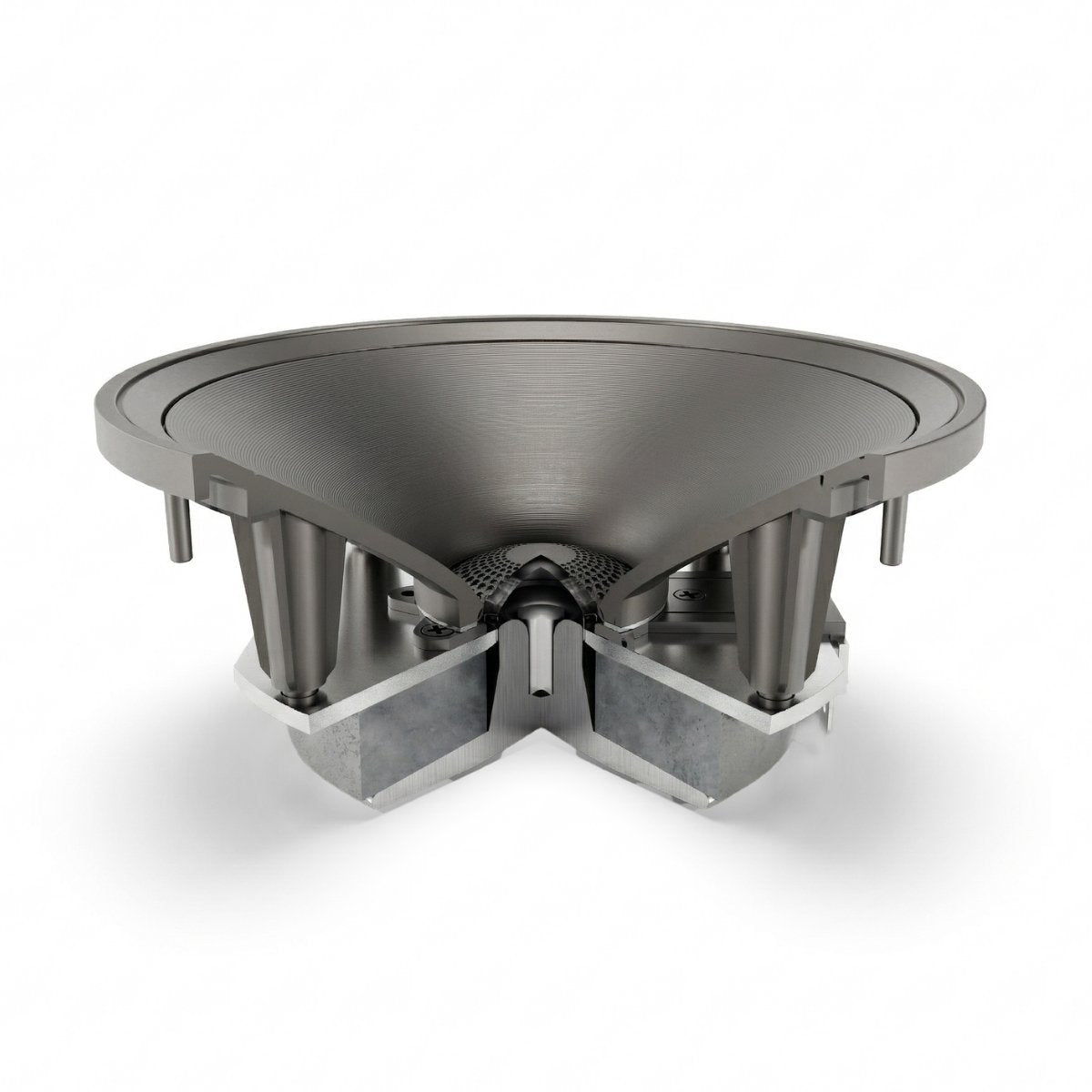

1” (25mm) AL-MAC™ Ceramic Dome with Oblate Spheroid Waveguide (OSW™) and Perforated Phase-Aligning (PPA™) Tweeter Lens, ferro-fluid damped / cooled

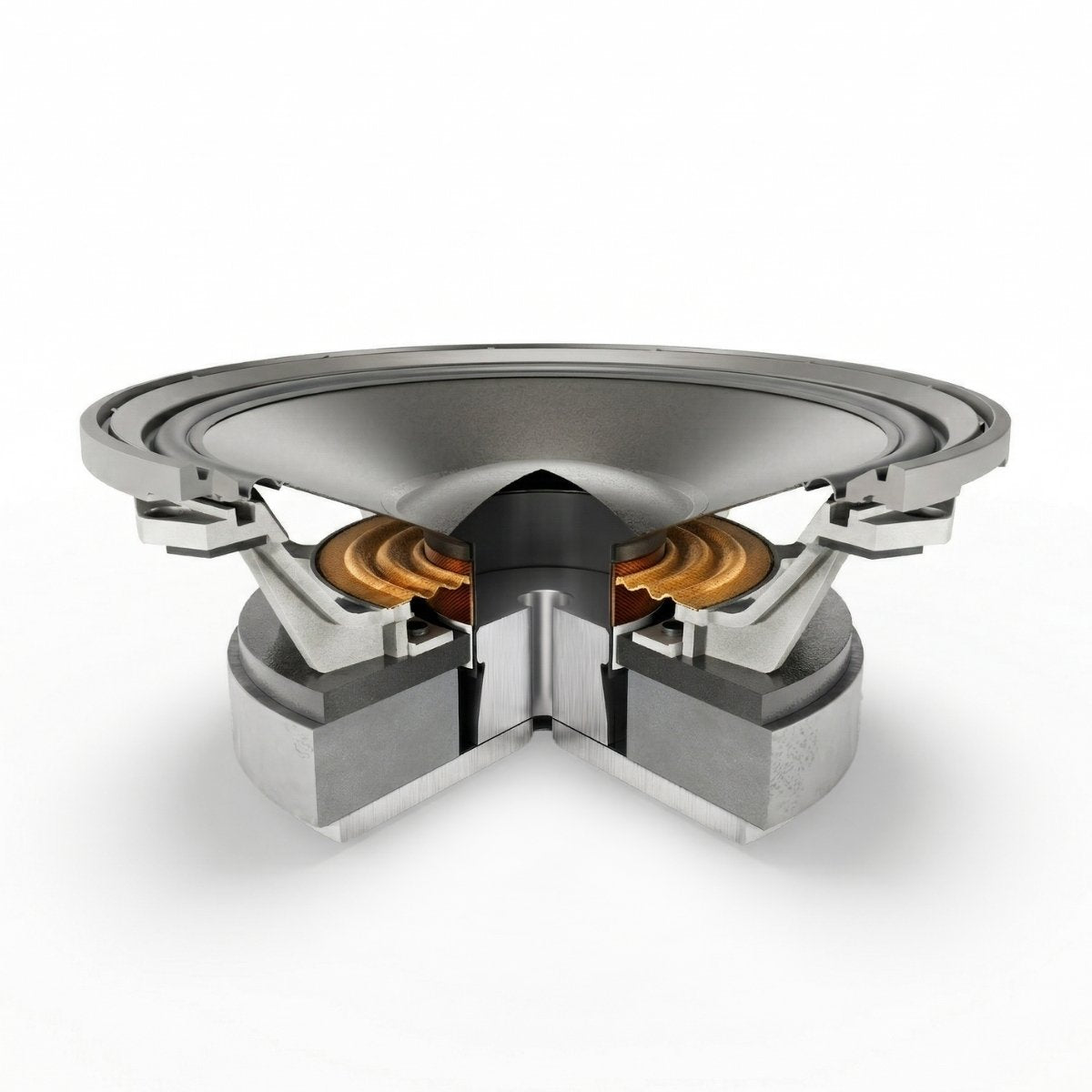

Mid Frequency Driver
6” (152mm) AL-MAG™ Cone with Perforated Phase-Aligning (PPA™) Lens, and a 2” high-temp multi-layered voice coil with ventilated Apical™ former

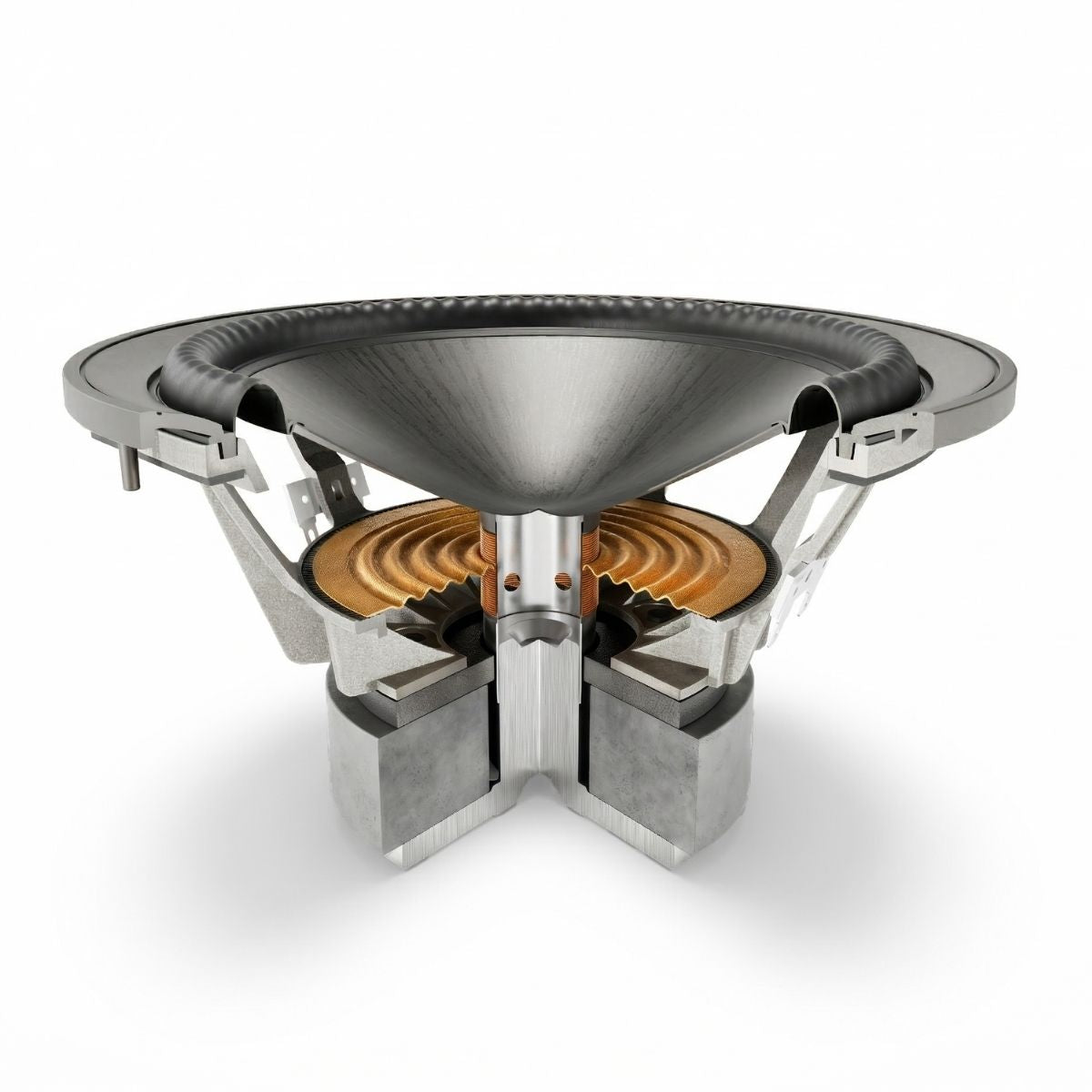

Bass Frequency Driver
Two 6” (152mm) Ultra-High-Excursion CARBON-X™ Unibody Cone, Gen3 Active Ridge Technology (ART™) with Vertical Mounting System, and a 1” high-temp multi-layered voice coil with ventilated Apical™ former
Frequency Response (On-Axis)
±3dB from 55Hz – 23kHz
Frequency Response (30° Off-Axis)
±3dB from 55Hz – 20kHz
Low Frequency Extension
27Hz (DIN)
Sensitivity (Room / Anechoic)
92dB / 89dB
Recommended Amplifier Power
15 – 220 Watts
Maximum Input Power
180 Watts
Impedance
Compatible with 8 ohms
Weight
57.3 lbs (26 kg) each
Dimensions (H x W x D)
39.6” x 12.5” x 17”
(100.6 x 31.8 x 43.2 cm)

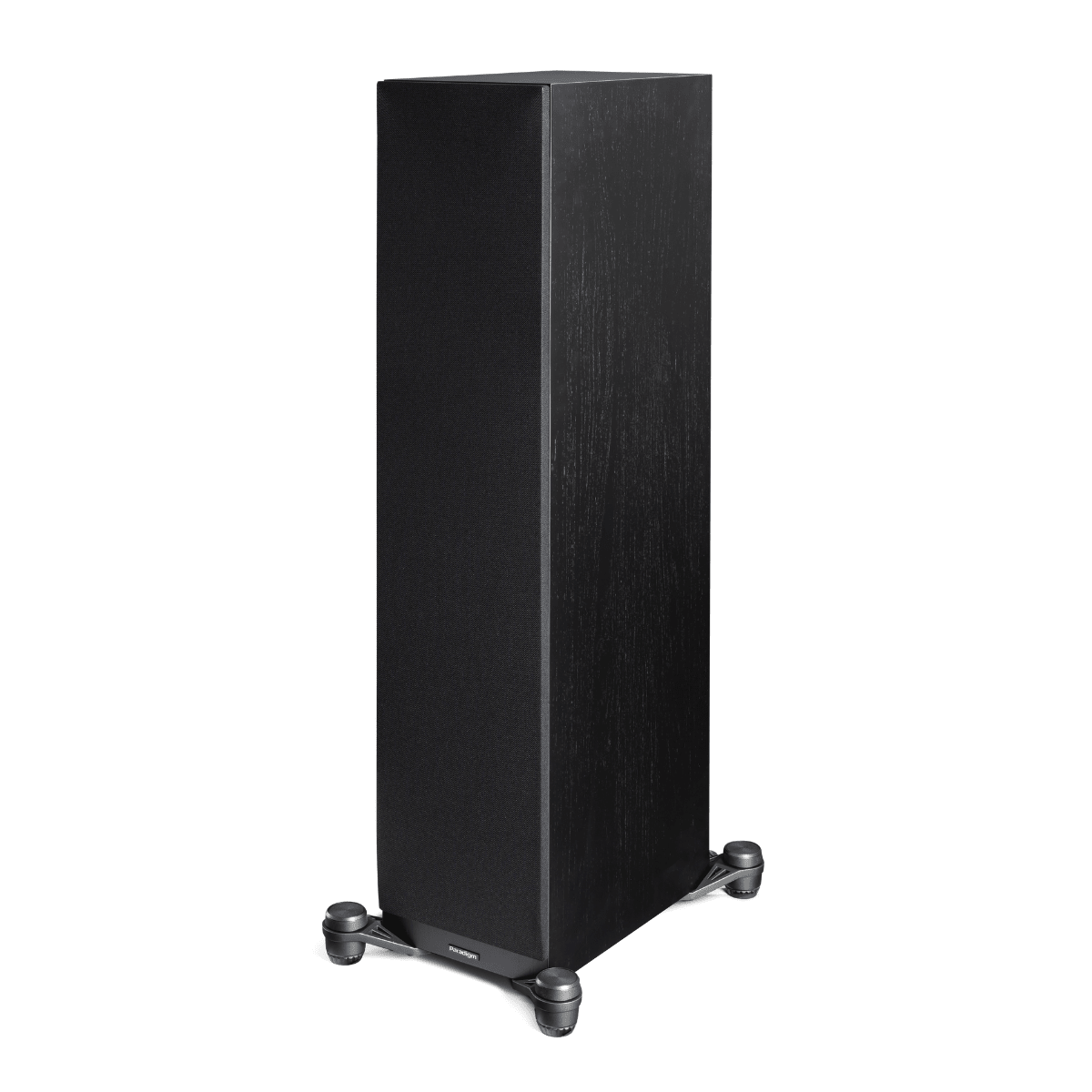

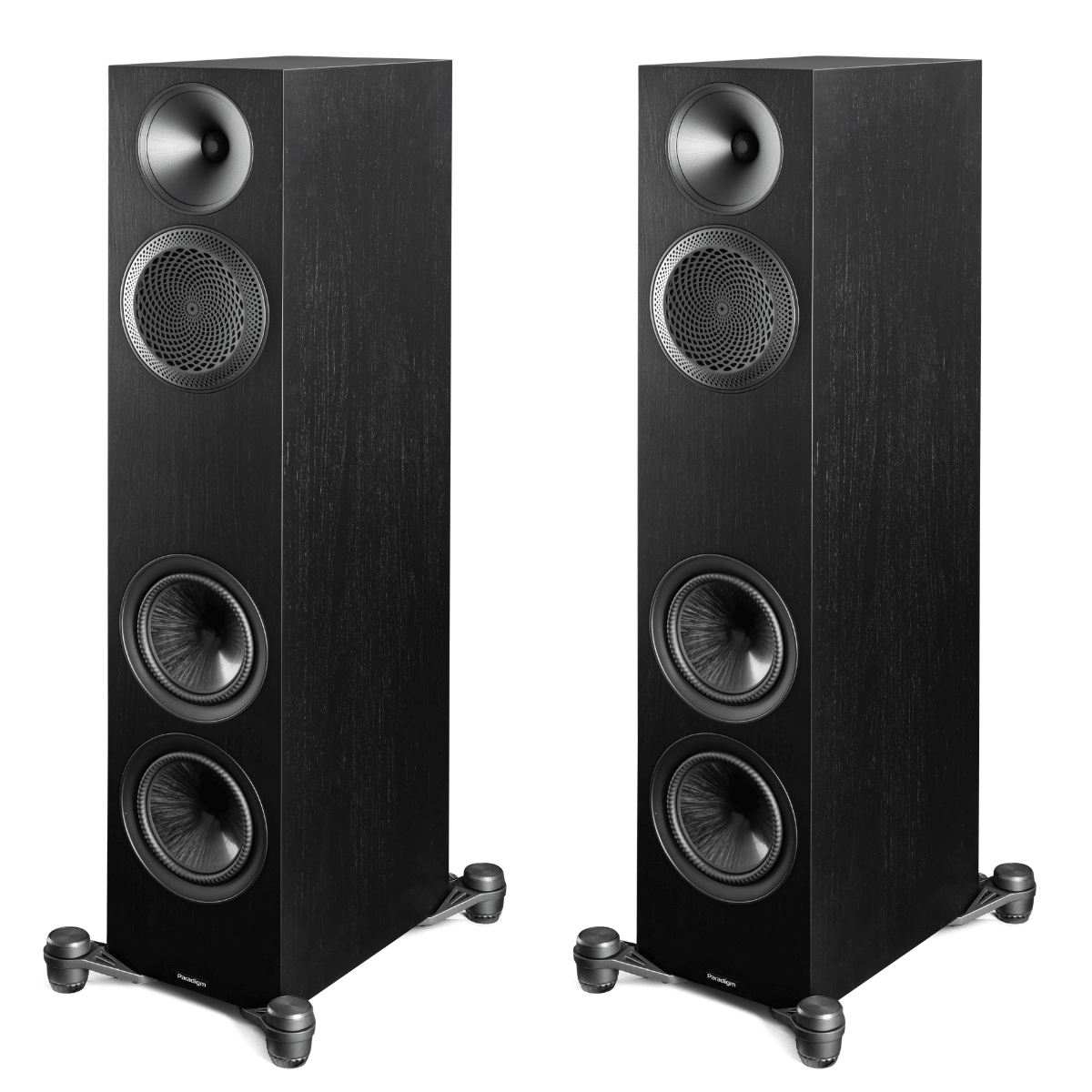

Finish Options
Piano Black, Black Walnut, Walnut
