Design
2-driver, 2-way ported bookshelf with AL-MAC™, AL-MAG™, OSW™, and PPA™
Crossover
2nd Order Electro-acoustic at 1.1kHz (tweeter/midwoofer)
High-Frequency Driver
1” (25mm) AL-MAC™ Ceramic Dome with Oblate Spheroid Waveguide (OSW™) and Perforated Phase-Aligning (PPA™) Tweeter Lens, ferro-fluid damped / cooled
Mid/Bass Driver
6” (152mm) Ultra-High-Excursion AL-MAG™ Cone with Perforated Phase-Aligning (PPA™) Lens, Gen3 Active Ridge Technology (ART™) with Vertical Mounting System, and a 1” high-temp multi-layered voice coil with ventilated Apical™ former
Frequency Response (On-Axis)
±3dB from 58Hz – 23kHz
Frequency Response (30° Off-Axis)
±3dB from 58Hz – 20kHz
Low Frequency Extension
36Hz (DIN)
Sensitivity (Room / Anechoic)
91dB / 88dB
Recommended Amplifier Power
15 – 130 Watts
Maximum Input Power
80 Watts
Impedance
Compatible with 8 ohms
Weight
20.1 lbs (9.1 kg) each
Dimensions (H x W x D)
14.6” x 8.3” x 12.9”
(37.1 x 21.1 x 32.8 cm)

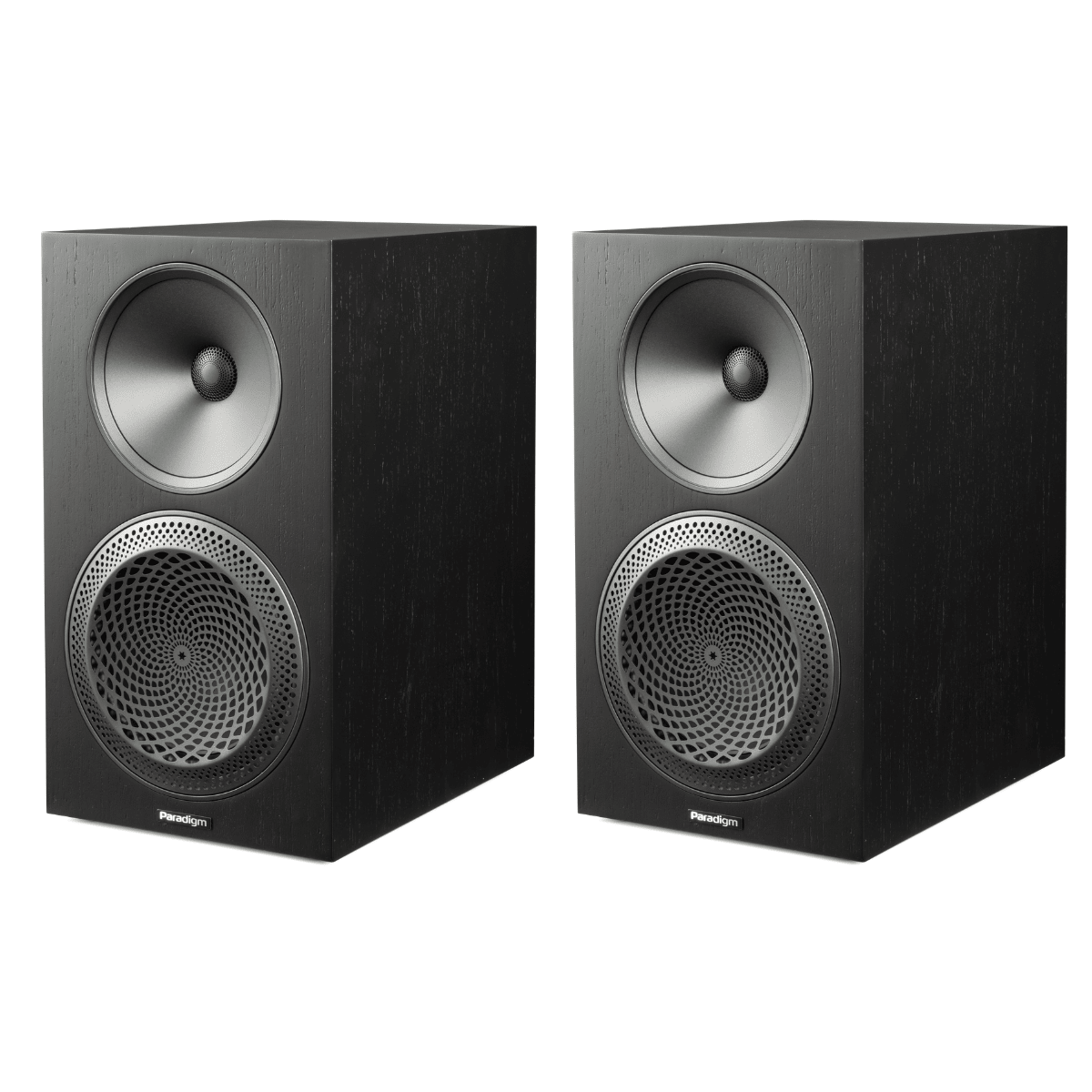

Finishes
Piano Black, Black Walnut, Walnut
