Design

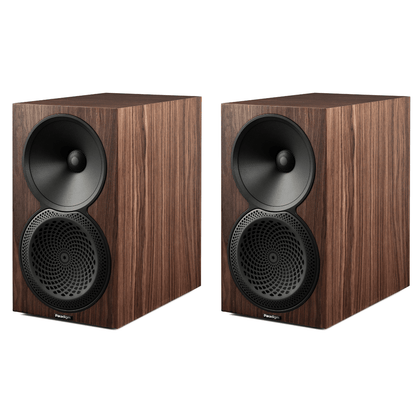

2-driver, 2-way ported bookshelf with AL-MAC, AL-MAG,
OSW™, and PPA™
Crossover
2nd Order Electro-acoustic
at 1.2kHz (tweeter/midwoofer))
High-Frequency Driver
1” (25mm) AL-MAC™
Ceramic Dome with Oblate
Spheroid Waveguide (OSW™)
and Perforated Phase-Aligning
(PPA™) Tweeter Lens,
ferro-fluid damped / cooled
Mid/Bass Frequency Driver
5.5” (140mm) Ultra-High-Excursion AL-MAG™ Cone with
Perforated Phase-Aligning
(PPA™) Lens, Gen3 Active Ridge
Technology (ART™) with Vertical
Mounting System, and a 1” hightemp multi-layered voice coil with
ventilated Apical™ former
Frequency Response on Axis
±3dB from 62Hz - 23kHz
Frequency Response 30° Off Axis
±3dB from 62Hz - 20kHz
Low Frequency Extension
39 Hz (DIN)
Sensitivity Room / Anechoic
90dB / 87dB
Suitable Amplifier Power Range
15 - 130 Watts
Maximum Input Power
70 Watts
Impedance
Compatible with 8 ohms
Weight
16.3 lbs (7.4 kg) each
Dimensions (h x w x d) *
12” x 7” x 12.1”
(30.5 cm x 17.8 cm x 30.7 cm)
