Ortofon 2M Bronze Moving Magnet Cartridge

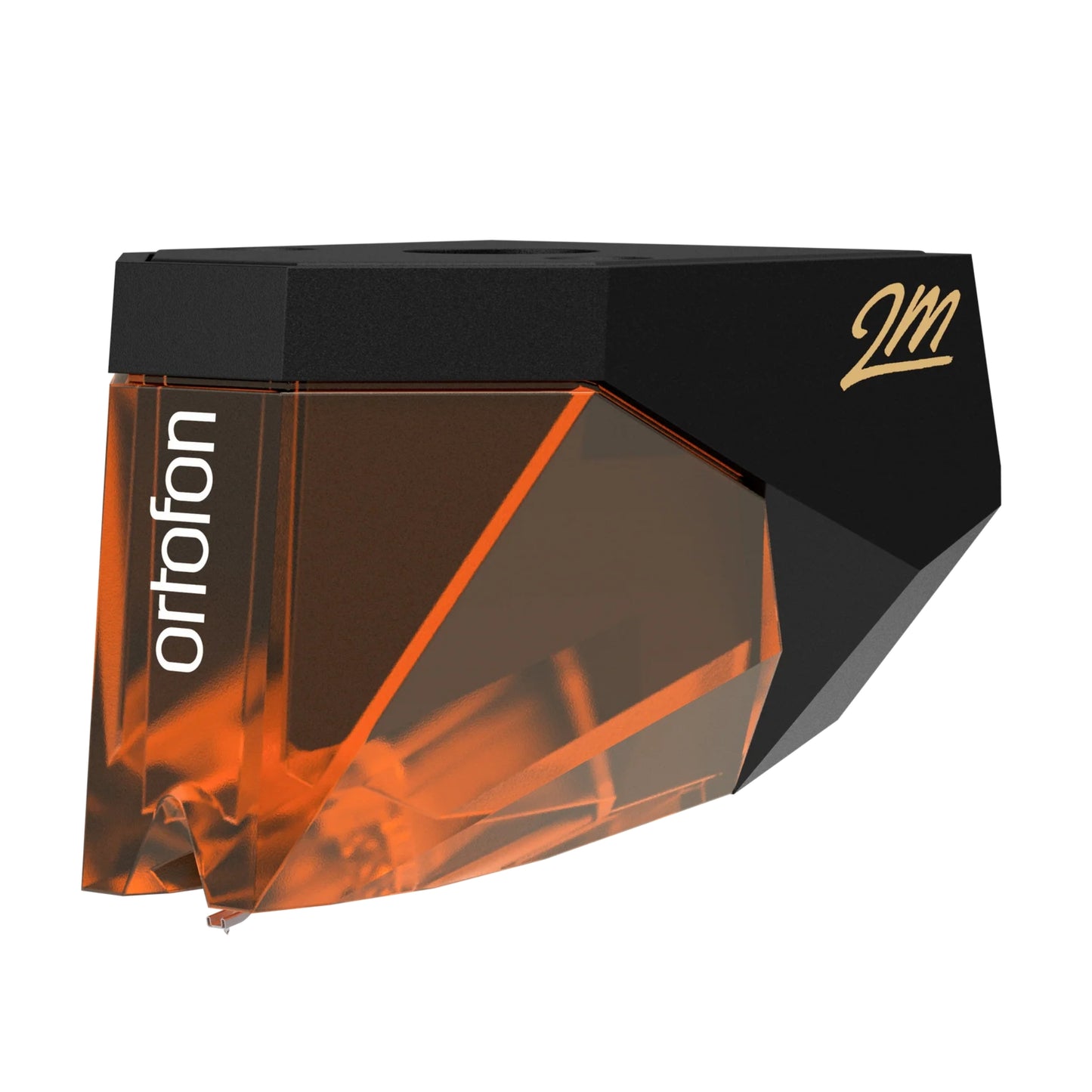

  • side view of ortofon 2m bronze moving magnet cartridge

Ortofon

2M BRONZE

$622.00
$622.00

Free Shipping

  • In Stock

(For store pickups, please call for availability.)

The 2M Series' engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:

  • 2M Red, 2M Blue and 2M Silver
  • 2M Bronze and 2M Black
  • 2M Mono and 2M 78

REGA brand cartridges’ height from stylus tip to the top cartridge mounting surface is lower than standard. Therefore you would need spacers to ensure the correct set-up of the Ortofon cartridge.

Specifications

Performance

  • Output Voltage (1 kHz, 5 cm/sec): 5 mV
  • Frequency Response: 20 Hz – 20 kHz (+2 / -0 dB)
  • Channel Balance (1 kHz): 1 dB
  • Channel Separation: 26 dB (1 kHz), 15 dB (15 kHz)
  • Tracking Ability (315 Hz): 80 µm
  • Dynamic Compliance (Lateral): 22 µm/mN

Stylus & Tracking

  • Stylus Type: Nude Fine Line
  • Stylus Tip Radius: r/R 8/40 µm
  • Tracking Force Range: 1.4 – 1.7 g
  • Recommended Tracking Force: 1.5 g
  • Tracking Angle: 20°

Electrical Specifications

  • Internal Impedance (DC Resistance): 1.2 kΩ
  • Internal Inductance: 630 mH
  • Recommended Load Resistance: 47 kΩ
  • Recommended Load Capacitance: 150 – 300 pF

Physical Specifications

  • Cartridge Colour: Black / Bronze
  • Cartridge Weight: 7.2 g
  • 2M PnP MkII (with headshell) Weight: 20 g
  • 2M PnP MkII Length: 52 mm
