Naim NAIT XS 3 Analog Slim Chassis Integrated Amplifier

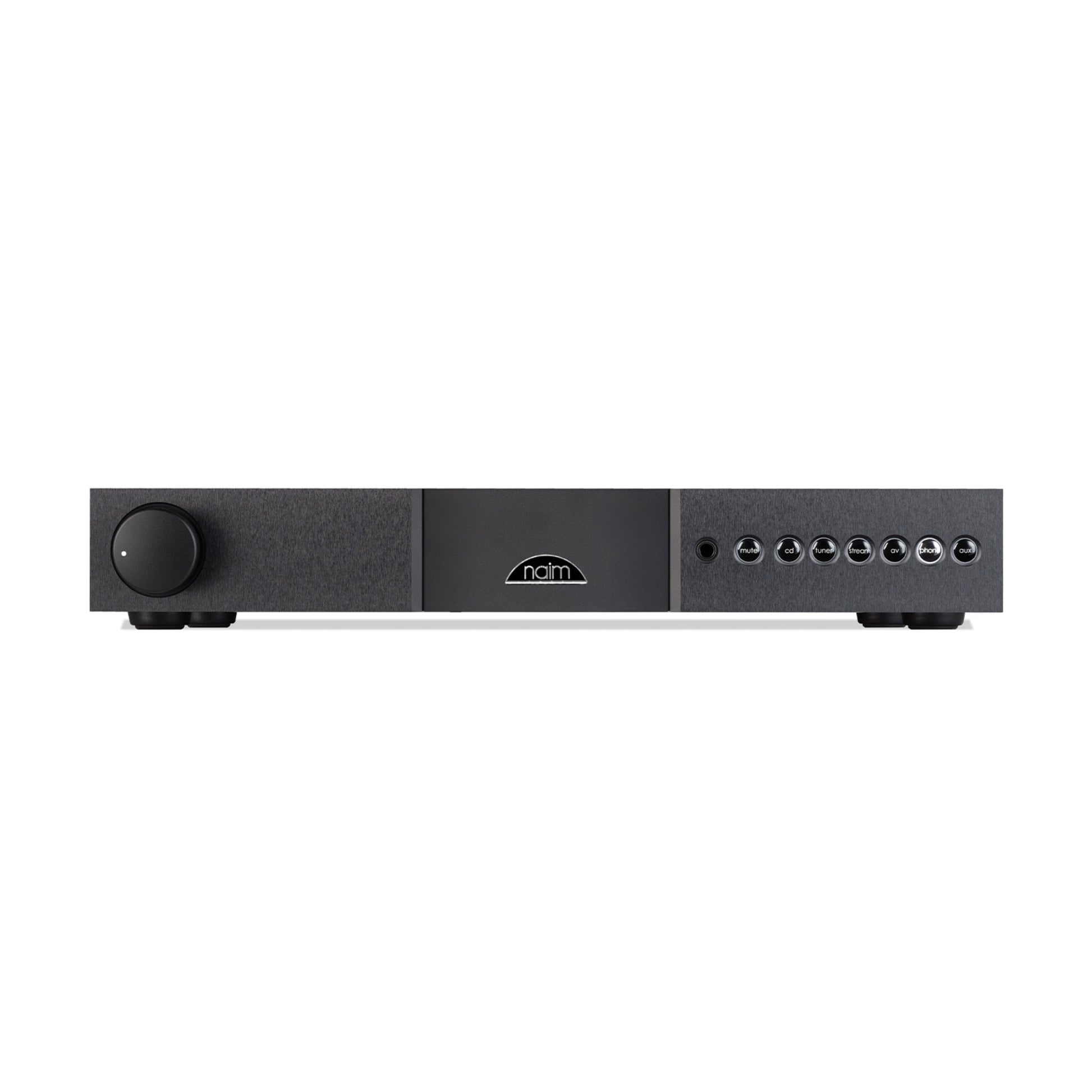

  • front view of nait xs3 integrated amp in black color

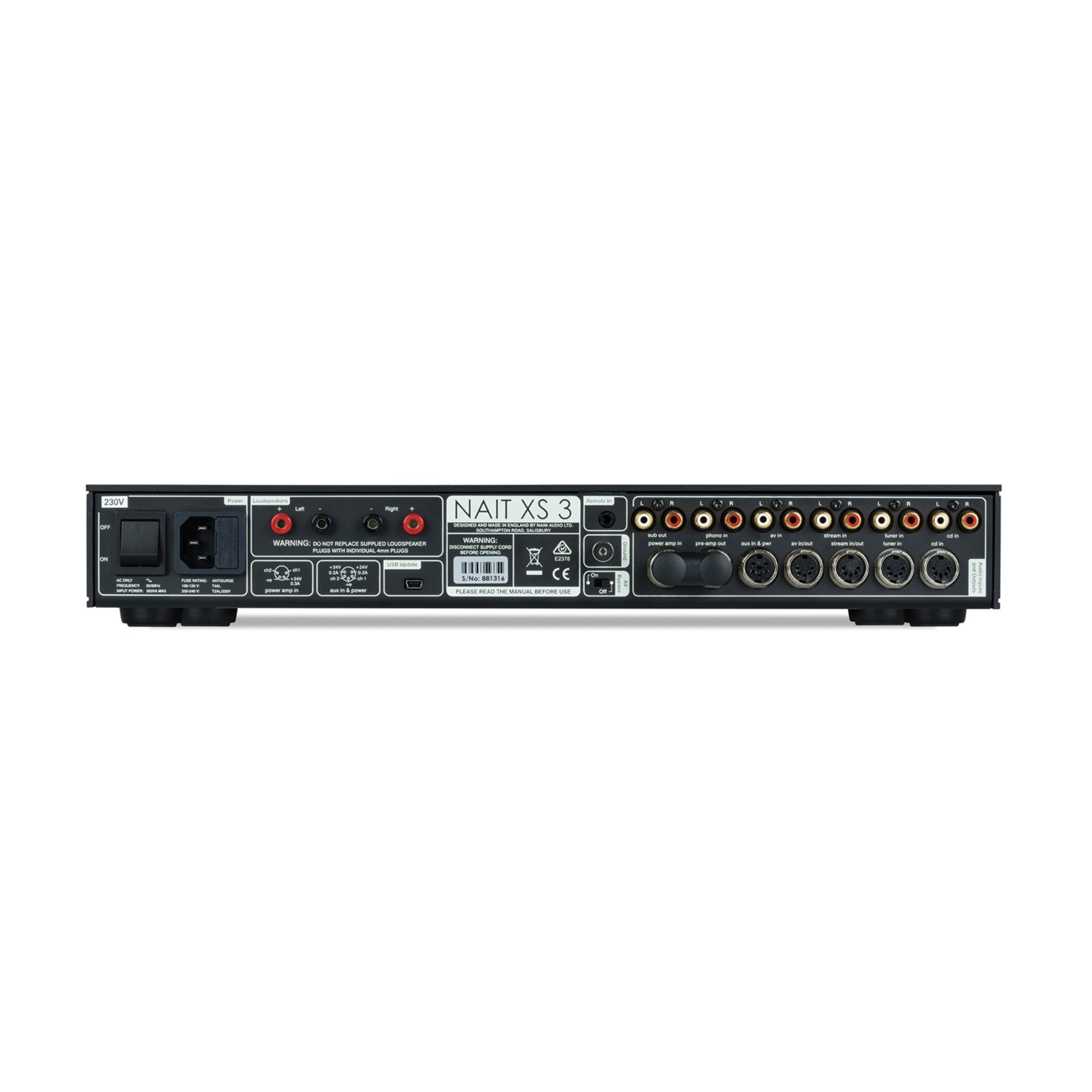

  • back view of naim nait xs3 integrated amp

Naim

NAIT XS 3

$5,199.00
$5,199.00

Free Shipping

  • In Stock

(For store pickups, please call for availability.)

In the six years since the last NAIT integrated amplifiers were released, our research and development team have worked on a range of amplifier improvements.

The result is upgraded power amplifier sections for NAIT XS 3, delivering greater pace and intimacy to their musical delivery – whether it's driving a pair of loudspeakers or your favourite pair of headphones.

The NAIT XS 3 has received significant performance upgrades, including a built-in phono stage, making it a perfect partner for turntables, as well as for streamers, CD players, or any other music source people want to enjoy with the signature Naim sound.

The NAIT XS 3 offers much of the performance of our reference quality SUPERNAIT 3 in a simpler, slimmer package combining a 70W power amplifier with five analogue inputs plus a phono stage. Its high-performance preamplifier stage is as transparent as you would expect from a Naim Audio amplifier, and it also shares the single-ended class-A headphone output of its larger sibling.

The NAIT XS 3 can be upgraded with our external power supplies, power amplifiers and even cabling upgrades to get the best from all sources.

Specifications

Product Type

  • Integrated Amplifier

Analogue Inputs

  • 4 x RCA pairs or 5-pin DIN (CD, Tuner, Stream, AV)
  • 1 x 5-pin DIN (Aux / Power Phono +24V)
  • 1 x MM Phono (47kΩ, 5mV)
  • Line Level Input (RCA/DIN): 47kΩ impedance
  • Input Sensitivity: 130mV
  • Typical Line Level Input: 2.0V

Analogue Outputs

  • 2 x 5-pin DIN Fixed Line Level (AV, Stream)
  • Output Level: 130mV, 600Ω
  • 1 x RCA Variable Line Level (Sub)
  • Output Level: 775mV, <50Ω
  • 1 x 5-pin DIN Variable Line Level (Preamp)
  • Output Level: 775mV, <50Ω
  • 1 x 6.35mm Headphone Output

Amplifier Performance

  • Power Output: 70W into 8Ω @ 0.1% THD+N

Control & Connectivity

  • Remote Control Included
  • NARCOM-5 Infra-Red (RC5) Remote
  • 3.5mm Rear Panel Remote Control Jack
  • Front Panel Controls (Volume and Buttons)
  • USB Mini-B (Updates)

Power

  • Power Consumption (Off Mode): <0.3W
  • Power Consumption (Quiescent): 14W
  • Power Consumption (Normal Use): 140W
  • Mains Power Supply: 115V or 230V, 50/60Hz

Dimensions & Weight

  • Width: 43.2 cm
  • Height: 7 cm
  • Depth: 30.1 cm
  • Weight: 8.5 kg
