NAD M33 BluOS Streaming DAC Amplifier - Demo Unit

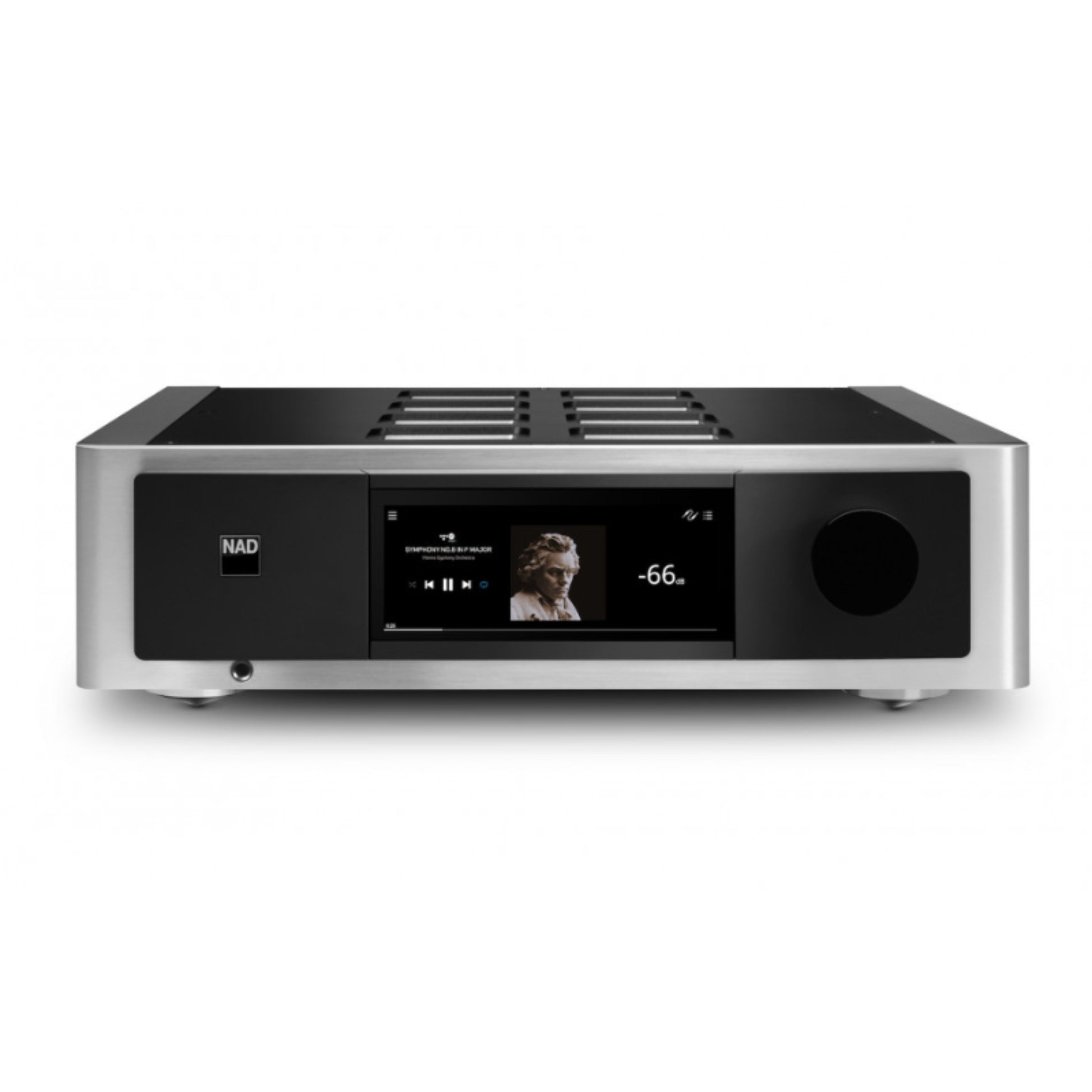

  • front view of nad m33 streaming amp

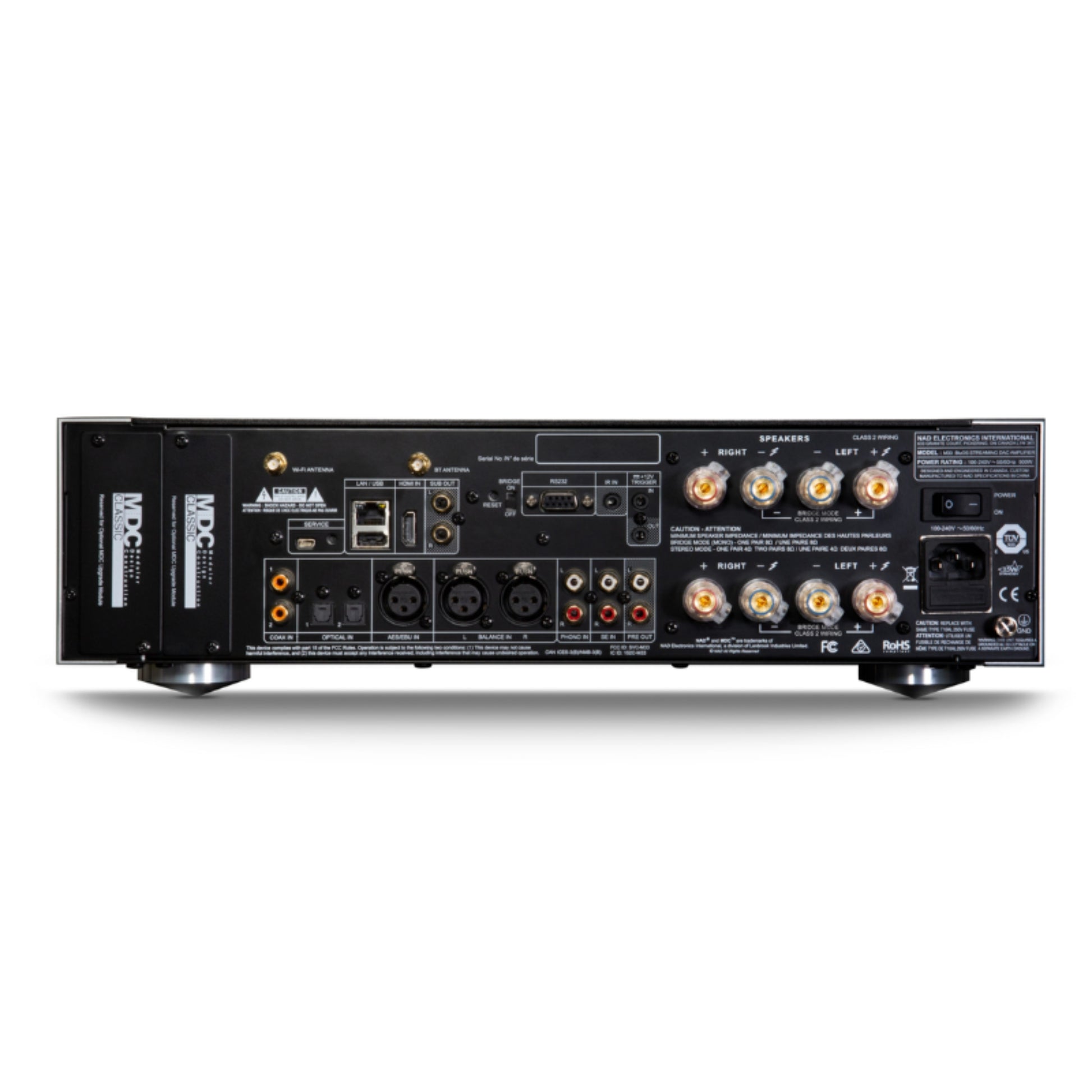

  • back panel of nad m33 bluos streaming amp

NAD

M33

$5,249.00
$5,249.00 $6,999.00

Free Shipping

  • In Stock

For store pickups, please call for availability.

This display unit is in mint condition. It comes with the full manufacturer warranty, original accessories and packaging.

M33 BluOS® Streaming DAC Amplifier

In its simplest form, the M33 BluOS™ enabled DAC/amplifier is an ultra-high-performance streaming amplifier with superb audiophile sound. As a BluOS enabled component, the M33 can be combined with other players in a BluOS ecosystem of wirelessly networked music players throughout the home for an outstanding whole-home audio system. With the employment of the new Purifi Eigentakt™ Hybrid Digital amplifier technology, the M33 follows NAD’s long-standing tradition in identifying and developing cutting-edge amplification technology. With a minimum of 200W per channel on tap, the result is lifelike performance, exemplified by ultra-low distortion and noise.

Key Features

  • BluOS Streaming DAC Amplifier
  • HybridDigital Purifi Eigentakt™ Amplifier Technology
  • Continuous Power: 200W into 8/4 Ohms
  • 32-BIT/384kHz ESS Sabre DAC
  • Dirac Live Room LE Correction*
  • Colour LCD touch display
  • BluOS multi-room Integration
  • 2 x MDC Slots for Future Expansion
  • Wireless control with AirPlay 2 and aptX HD Bluetooth Integration
  • Comprehensive digital and analog connectivity including HDMI eARC
  • Integrates seamlessly with leading smarthome control systems
  • MDC (Modular Design Construction) offers ability to upgrade to future digital formats as they become available. Two MDC slots provided.
  • CI friendly- RS232 Serial Control Port. Trigger In/Out.
  • IR In with learning function

Specifications

Amplifier Performance

  • Rated Output Power: >200 W @ 8 Ω, >380 W @ 4 Ω (20 Hz–20 kHz, rated THD, both channels driven)
  • Bridge Mode Output Power: >700 W @ 8 Ω (20 Hz–20 kHz, rated THD)
  • Clipping Power: >210 W (1 kHz, 0.1% THD, 8 Ω)
  • IHF Dynamic Power: 260 W (8 Ω), 520 W (4 Ω)
  • Peak Output Current: ≥25 A (1 Ω, 1 ms)
  • Damping Factor: >800 (8 Ω, 20 Hz–6.5 kHz)
  • Frequency Response: ±0.2 dB (20 Hz–20 kHz), −3 dB @ 60 kHz

Signal-to-Noise (Power Amp)

  • Signal-to-Noise Ratio: 98 dB (A-weighted, ref. 1 W @ 8 Ω)
  • Signal-to-Noise Ratio: >120 dB (A-weighted, ref. 200 W @ 8 Ω)
  • Input Sensitivity (Power Amp): 865 mV (ref. 200 W @ 8 Ω, volume max)

Line In (Analog)

  • Input Impedance: 47 kΩ / 180 pF
  • Input Sensitivity: 280 mV (ref. 500 mV out, volume max)
  • Maximum Input Level (20 Hz–20 kHz): 2 Vrms / 8 Vrms (low sensitivity mode)
  • Tone Controls: Bass ±10 dB @ 100 Hz, Treble ±10 dB @ 10 kHz
  • Maximum Output Signal: 4 Vrms (0.1% THD)

Pre-Out & Sub-Out

  • Pre-Out Max Output Level: 3.9 Vrms (0.1% THD)
  • Pre-Out Signal-to-Noise: >120 dB (A-weighted, ref. 2 V out)
  • Pre-Out Output Impedance: 100 Ω
  • Sub-Out Max Output Level: 1.1 Vrms (0.1% THD @ 100 Hz)
  • Sub-Out Signal-to-Noise: >102 dB (20 Hz–20 kHz, ref. 1 V out)
  • Sub-Out THD+N: 92 dB

Phono Performance

  • Phono SNR (A-weighted, ref. 2 V pre-out): MC >76 dB
  • Phono THD+N (ref. 2 V pre-out @ 1 kHz): MM <0.003%
  • Phono THD+N (ref. 2 V pre-out @ 1 kHz): MC 100 mW @ 32 Ω

Streaming Audio & Formats

  • Supported Audio Formats: MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS
  • High-Resolution Formats: FLAC, MQA, WAV, AIFF
  • Sampling Rates: Up to 192 kHz
  • Bit Depths: 16–24
  • Network File Share Protocol: SMB

Connectivity

  • Ethernet: Gigabit RJ45
  • Wi-Fi: Wi-Fi 5
  • USB: 1 × Type-A (FAT32 or NTFS, USB memory + supported peripherals)
  • Bluetooth: aptX HD (Bluetooth 5.0)
  • Bluetooth Modes: Two-way (receive + headphone mode)

Control & Interface

  • Front Panel: 7-inch full-colour touch screen
  • Remote Control: HTRM 2
  • Mobile App: BluOS Controller (iOS, Android, Kindle Fire, Windows, macOS)
  • Desktop OS Support (Network Shares): Windows XP/2000/Vista/7/8 and newer, macOS (supported versions)

Power, Size & Weight

  • Auto Standby: On, <0.5 W
  • Idle Power: <40 W
  • Dimensions (W × H × D): 435 × 133 × 396 mm
  • Dimensions (W × H × D): 17 1/8 × 5 1/4 × 15 5/8 in
  • Net Weight: 9.7 kg (21.4 lbs)
  • Shipping Weight: 18.4 kg (40.6 lbs)

Quick Tags

  • Amplifier Channels: 2
  • Amplifier + DAC: Yes
  • Bluetooth: Yes
  • Color: Silver
  • Watts Per Channel: 151–250 W
  • RMS Power: 201–400 W
