NAD D3045 Hybrid Digital Amplifier

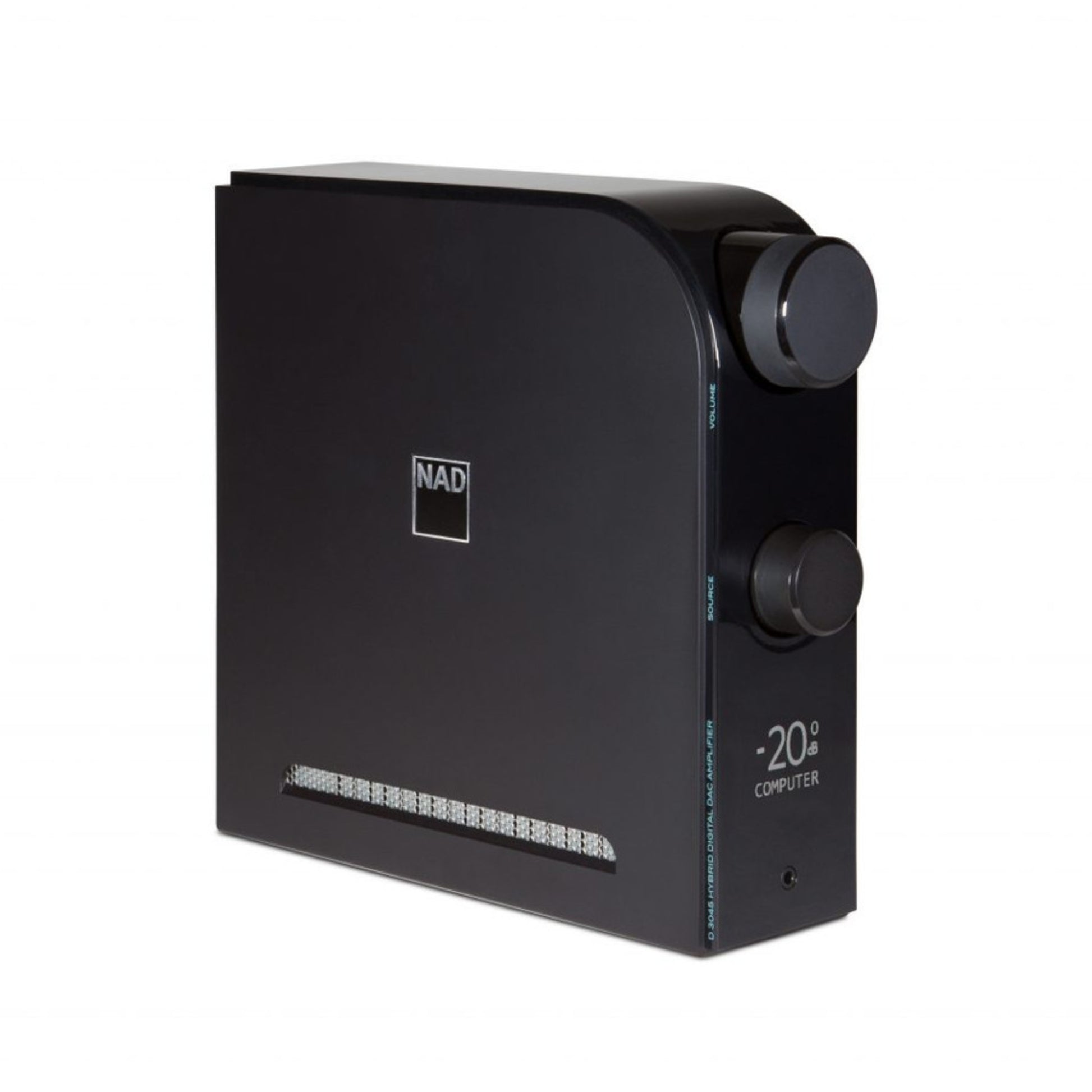

  • front panel of nad d3045 digital amp

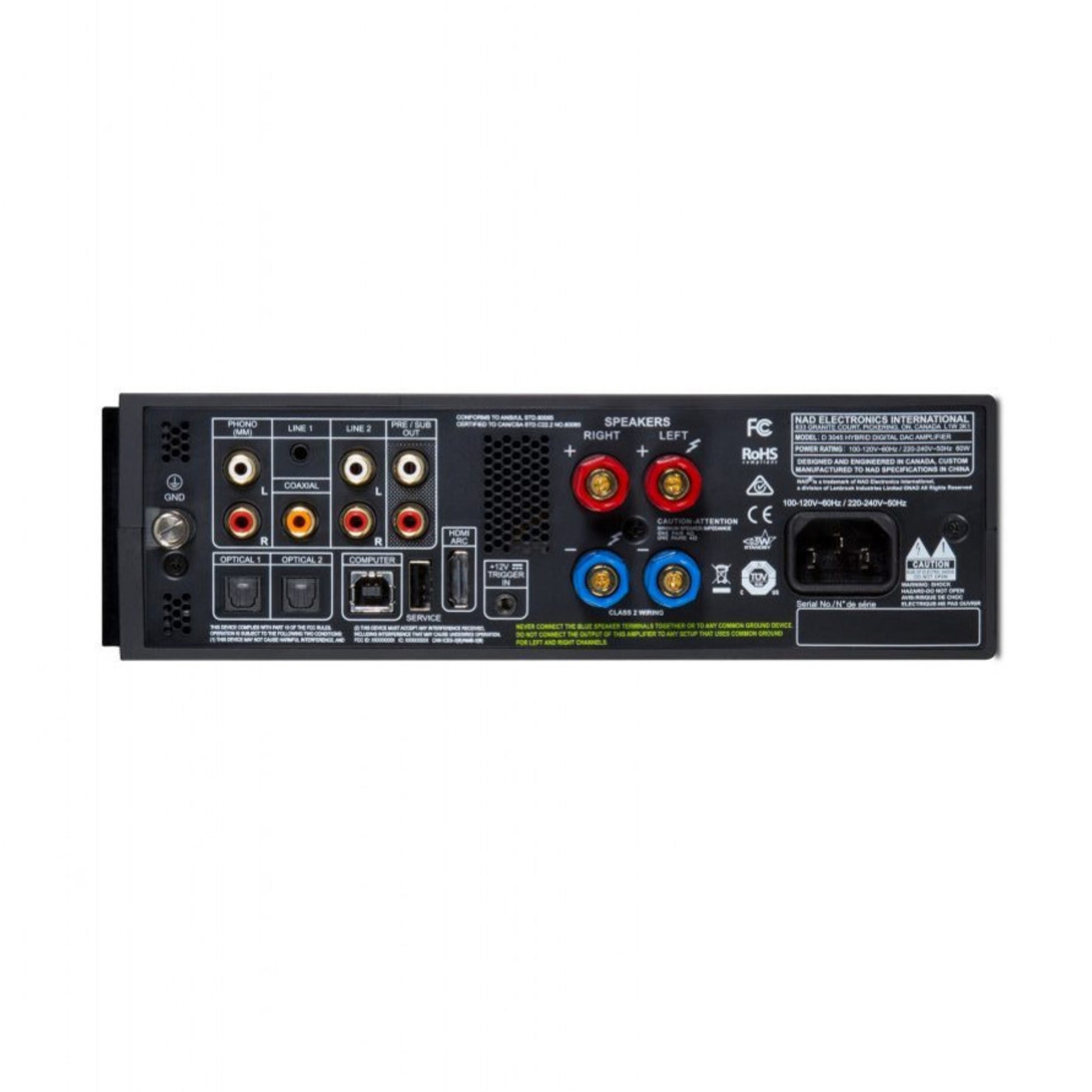

  • back view of nad d3045 digital amp

NAD

D3045

$1,099.00
$1,099.00

Free Shipping

  • In Stock

(For store pickups, please call for availability.)

The NAD D 3045 is everything a modern amplifier should be; compact, energy efficient, powerful, silent, High Resolution capable, and packed with cutting edge features like DSD and MQA playback. Love vinyl? The D3045 features a super accurate, wide dynamic range, Moving Magnet phono preamp. Can be used either vertically or horizontally.

  • 2 x 60W Hybrid Digital Amplifier
  • MM Phono and Line Input
  • Two-Way Bluetooth powered by Qualcomm aptX HD audio
  • Asynchronous USB 24/192 Input supporting MQA and DSD
  • HDMI Audio Return Channel
  • Coax and Optical Input
  • Preamp Out
  • Subwoofer Out
  • Headphone Amp
  • IR Remote

Specifications

Preamplifier Section

Line Input / Pre Out

  • THD (20Hz – 20kHz): <0.003% at 2V out
  • Signal-to-Noise Ratio: >100dB (IHF, A-weighted, ref. 500mV out, unity gain)
  • Channel Separation: >85dB (1kHz), >80dB (10kHz)
  • Input Impedance (R and C): 47kΩ + 220pF
  • Maximum Input Signal: >5.5Vrms (ref. 0.1% THD)
  • Output Impedance: 400 Ohms
  • Input Sensitivity: 82mV (ref. 500mV out, Volume maximum)
  • Frequency Response: ±0.2dB (20Hz - 20kHz)
  • Maximum Voltage Output (IHF load): >4V (ref. 0.1% THD)

Phono Input / Pre Out

  • THD (20Hz – 20kHz): <0.015% at 2V out
  • Signal-to-Noise Ratio: >82dB (200 Ohm source, A-weighted, ref. 500mV out)
  • Signal-to-Noise Ratio (MM cartridge): >76dB (IHF; A-weighted, ref. 500mV out)
  • Input Sensitivity: 1.35mV (ref. 500mV out, Volume maximum)
  • Maximum Input Signal at 1kHz: >90mVrms (ref. 0.1% THD)
  • Frequency Response: ±0.3dB (20Hz - 20kHz)
  • RIAA Note: Response consistent with pre-emphasis rolled off at 50kHz by a second order filter, as used in Neumann cutting lathes.

Line Input / Headphone Out

  • THD (20Hz – 20kHz): <0.003% at 120mW
  • Signal-to-Noise Ratio: >90dB (32 Ohm load; A-weighted, ref. 500mV out, unity gain)
  • Frequency Response: ±0.3dB (20Hz - 20kHz)
  • Output Impedance: 2 Ohms
  • Maximum Headphone Output (32 Ohm load): <8V (ref. 0.1% THD)

General Specifications

Line Input / Speaker Out

  • Continuous Output Power: 60W into 4 and 8 Ohms (20Hz–20kHz at 0.03% THD, both channels driven)
  • THD (20Hz – 20kHz): <0.005% (at 1W, 4 and 8 Ohms)
  • Signal-to-Noise Ratio: >98dB (A-weighted, 500mV input, ref. 2.828V out in 4 Ohms)
  • Clipping Power: >80W (at 1kHz, 4 Ohms, 0.1% THD)
  • IHF Dynamic Power: 80W (8 Ohms), 150W (4 Ohms), 200W (2 Ohms)
  • Peak Output Current: >18A (in 1 Ohm, 1ms)
  • Damping Factor: >300 (ref. 8 Ohms, 20Hz to 6.5kHz)
  • Frequency Response: ±0.3dB (20Hz - 20kHz)
  • Channel Separation: >75dB (1kHz), >70dB (10kHz)
  • Input Sensitivity: 260mV (for 30W in 4 Ohms)
  • Supported Digital Resolution: Up to 24-bit/192kHz (digital source), up to 24-bit/384kHz (computer source)
  • Standby Power: <0.5W

Dimensions and Weight

  • Gross Dimensions (W x H x D): 70 x 235 x 265 mm (2 13/16 x 9 5/16 x 10 7/16 inches)
  • Net Weight: 3.6kg (7.9lb)
  • Shipping Weight: 2.6kg (5.7lb)
