Marantz

Marantz Model 30 Master Tuned Integrated Amplifier

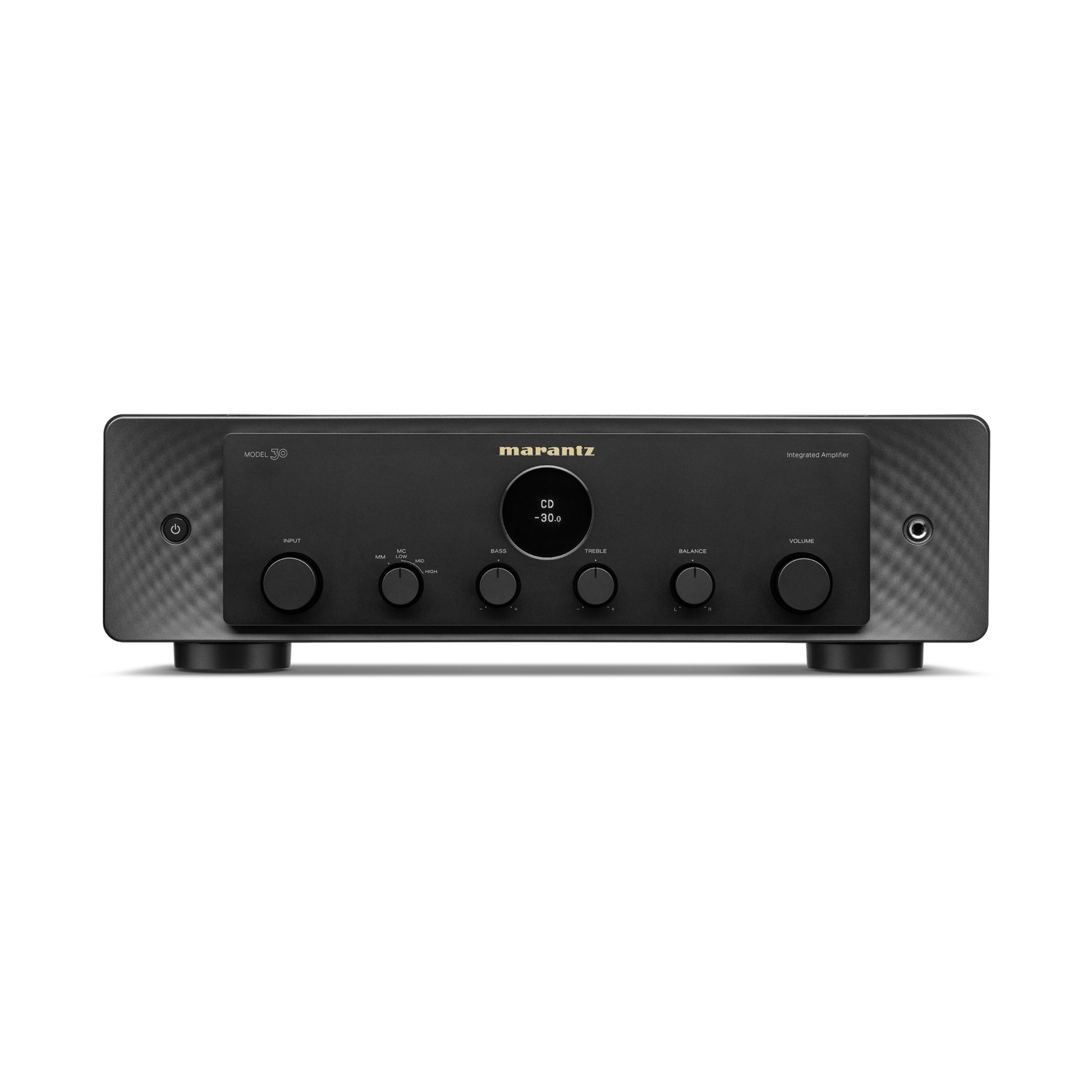

  • front view of marantz model 30 amplifier in black

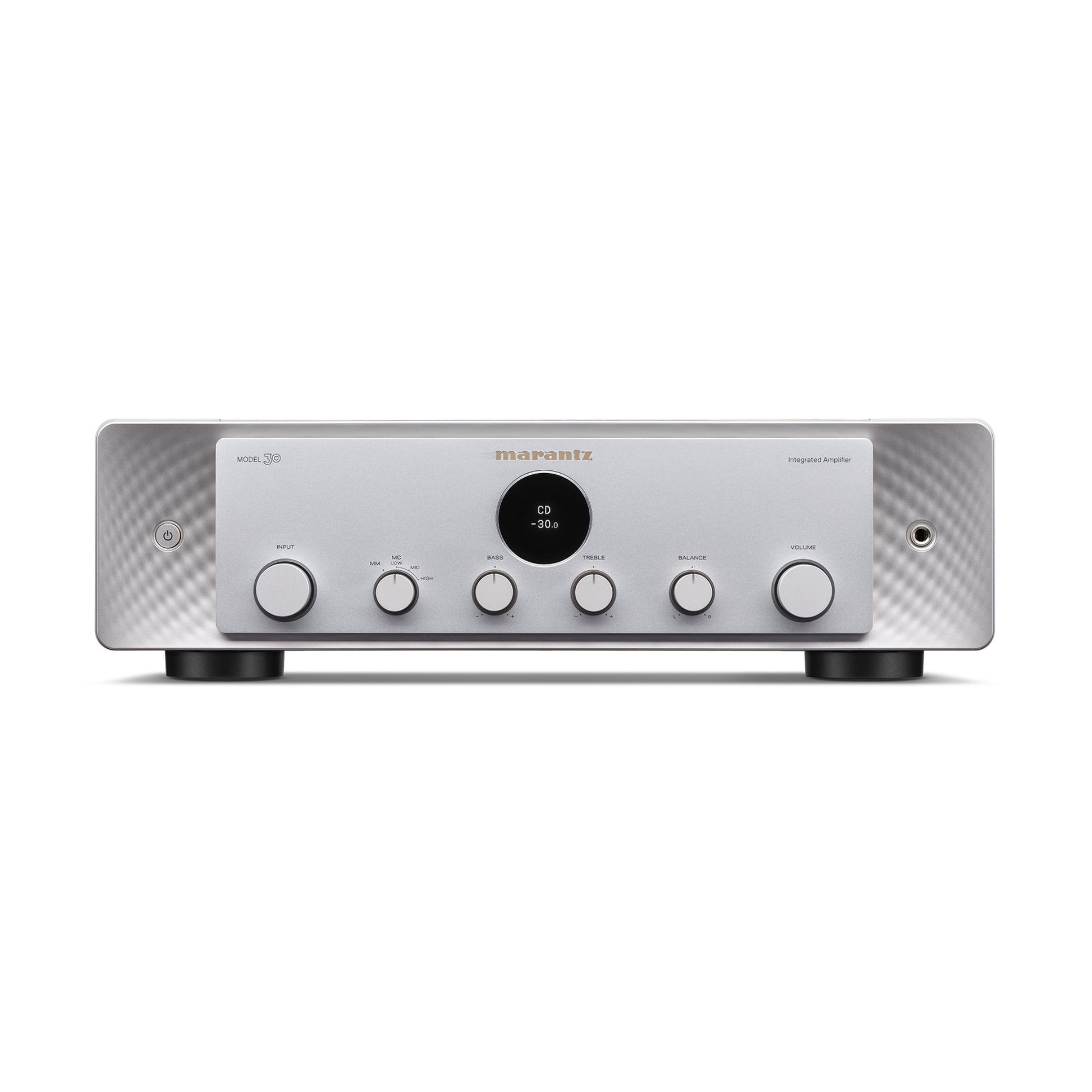

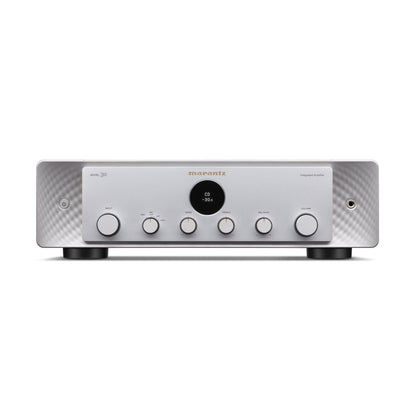

  • front view of marantz model 30 amplifier in silver

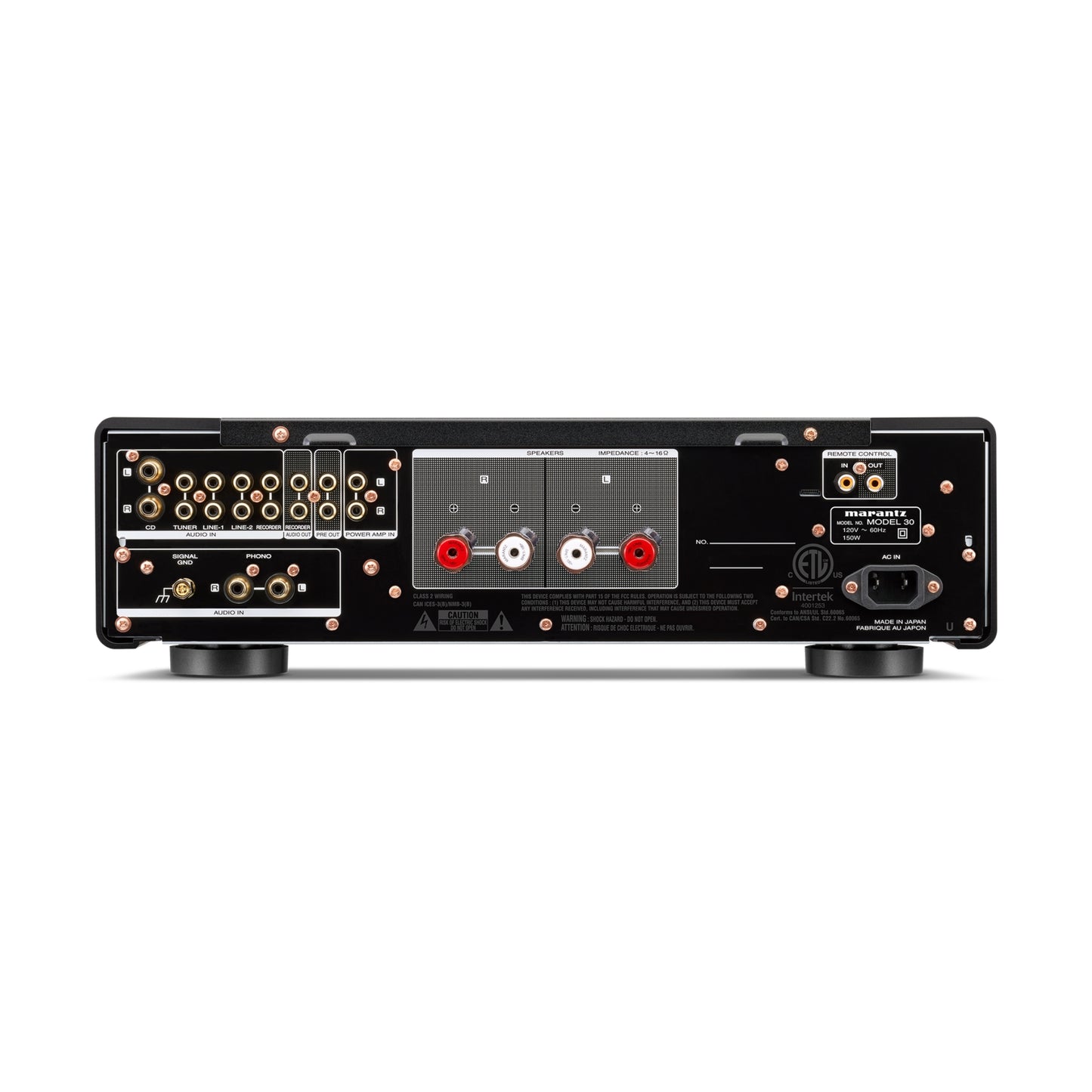

  • back view of marantz model 30 amplifier

Marantz

MODEL 30 BLACK

$4,300.00
$4,300.00

Free Shipping

Color: Black
  • In Stock

(For store pickups, please call for availability.)

Model 30 Master Tuned Integrated Amplifier

Get the most musical sound possible from this Master-tuned integrated amplifier. Its custom-designed HDAM delivers exquisite detail and unforgettable musicality from any style of music.

  • Designed To Last: You see and feel it in the build quality and you hear it every time. No matter your musical passions, your music always sounds better with MODEL 30.
  • Tuned With Passion: Hundreds of hours of thoughtful Sound Master tuning ensure the exquisite detail and musicality Marantz always delivers.
  • Fully Discrete And Accurate Detailing: Marantz HDAM-SA3 technology is comprised of dozens of independent parts, each hand-selected for pure, detailed Marantz sound.
  • Extraordinary Sensitivity: Designed to replicate the sensitivity and feel of a vintage analog amplifier even when simply adjusting the volume.

Specifications

Amplifier & Performance

  • Rated Output Power: 100 W + 100 W @ 8 Ω
  • Rated Output Power: 200 W + 200 W @ 4 Ω
  • Amplifier Circuit: Switching Amplifier (Hypex NC500 / SMPS600, single)
  • Power Transformer: Toroidal (with case)
  • Frequency Response: 5 Hz – 50 kHz
  • Total Harmonic Distortion: 0.005% (1 kHz, 8 Ω)
  • Damping Factor: 500

Input Sensitivity & Noise

  • Phono Input (MM): 2.3 mV / 39 kΩ
  • Phono Input (MC): 250 µV
  • CD / Line / Recorder Input: 220 mV / 13 kΩ
  • Power Amplifier Input: 1.1 V / 13 kΩ
  • Signal-to-Noise Ratio (Phono MM): 88 dB
  • Signal-to-Noise Ratio (Phono MC): 75 dB
  • Signal-to-Noise Ratio (CD): 107 dB

Tone & Volume Control

  • Volume Control: Electric
  • Bass Control: Yes
  • Treble Control: Yes
  • Mid Control: No
  • Balance Control: Yes
  • Source Direct: Yes
  • Pure Direct / Purest Mode: No
  • Loudness Control: No

Inputs, Outputs & Connectivity

  • Phono Input: Yes (MM / MC)
  • External Pre Input (Power Amp Direct): Yes
  • Pre-Out: Yes
  • Audio Inputs / Outputs: 6 In / 1 Out
  • Supported Inputs: Phono, CD, Tuner, Line 1, Line 2, Recorder
  • Balanced XLR Input: No
  • Optical / Coaxial Digital Inputs: No
  • USB-A / USB-B: No
  • HDMI: No
  • DAC: No
  • Speaker Terminals: Marantz Original SPKT-100+
  • Dual Speaker Outputs: No
  • Remote Control Bus Terminal: Yes (Cinch)

Network & Streaming

  • Network Engine: No
  • Computer Audio Streaming: No
  • Internet Radio: No
  • AirPlay 2 / Google Cast: No
  • Cloud Music Services: No
  • Wi-Fi / Ethernet: No
  • Gapless Playback: No

User Interface & Control

  • Display: OLED (Porthole design)
  • System Remote Control: Yes
  • App Control via Network Player: Yes
  • RS232 / Trigger 12 V / IR Flasher: No

General & Physical

  • Dimensions (W × H × D): 443 × 130 × 432 mm
  • Net Weight: 14.8 kg
  • Packaging Dimensions: 534 × 255 × 522 mm
  • Packaging Weight: 17.6 kg
  • Power Consumption: 130 W
  • Standby Power Consumption: 0.2 W
  • AC Inlet: Yes
  • AC Outlet: No

Design & Finish

  • Available Colors: Silver-Gold, Black
  • Front Panel: Aluminum
  • Side Covers: Aluminum
  • Top Cover: Steel
  • Chassis Material: SECC (Triple-layer)
  • Edge Lighting: Yes (Dimmable)
  • Volume Knob & Input Selector: Aluminum
  • Side Screws: Copper-plated
