Marantz Cinema 60 S2 | 7.2-Channel AV Receiver with Dolby Atmos

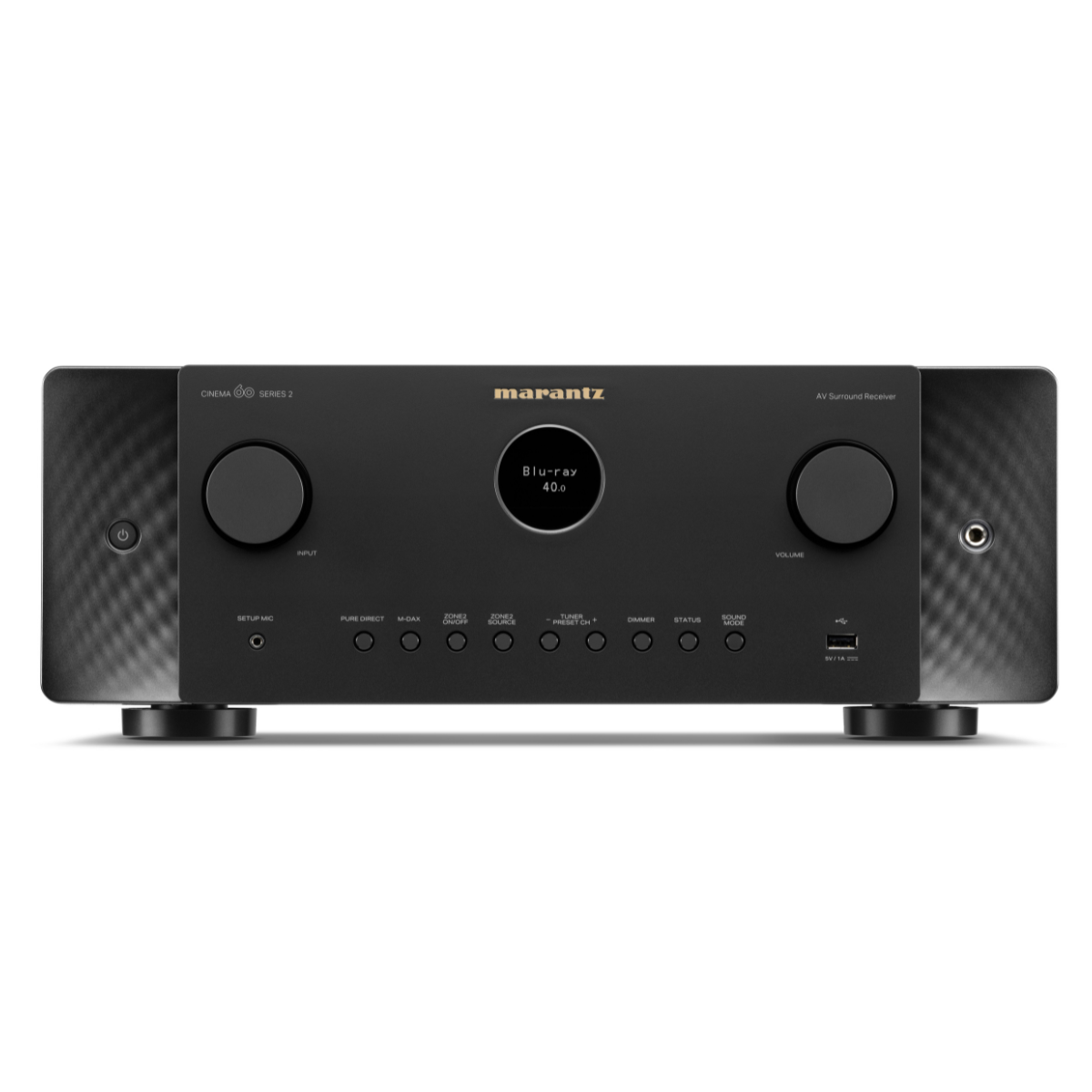

  • Marantz Cinema 60 Series 2 AV receiver front view in black

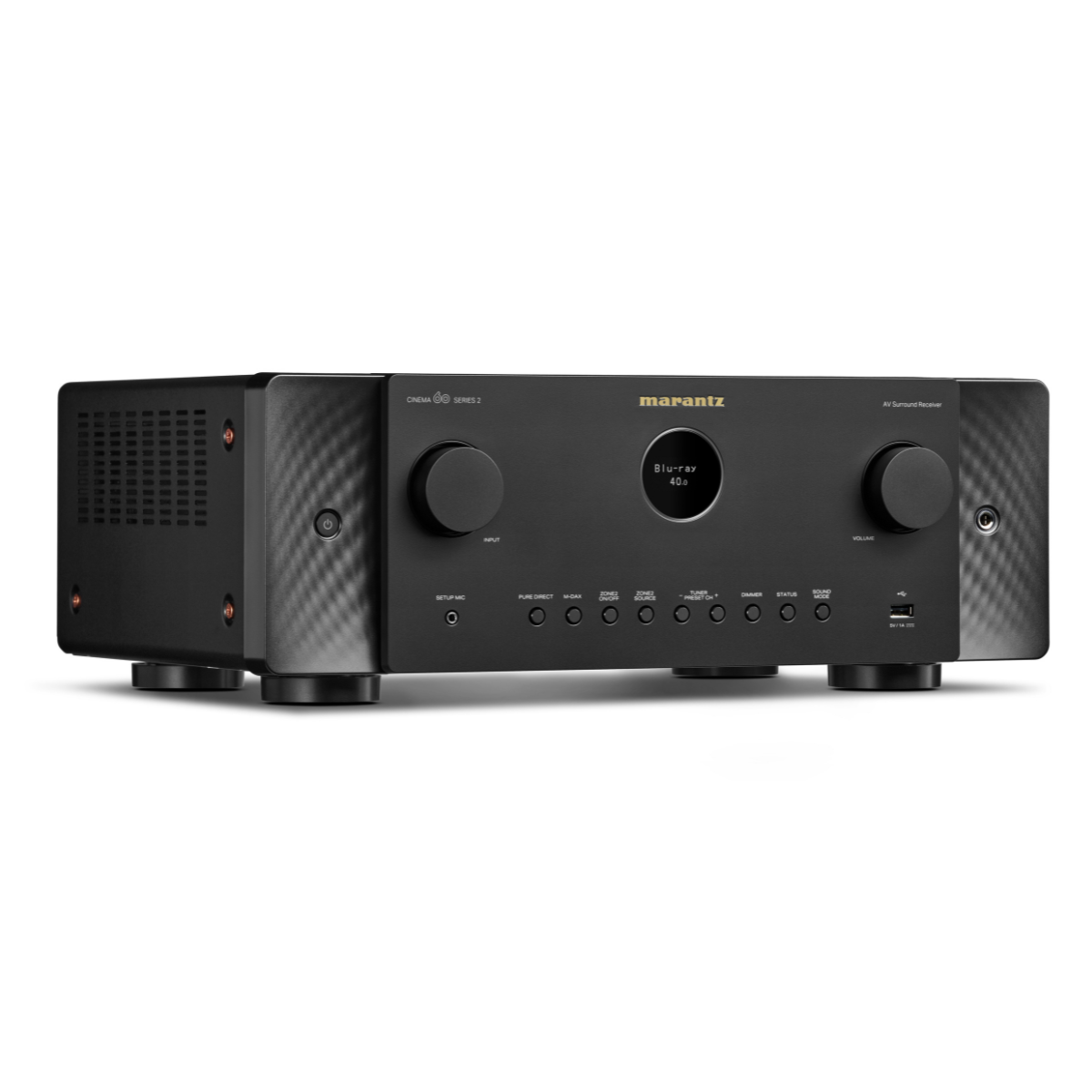

  • Marantz Cinema 60 Series 2 7-channel AV receiver angled front view

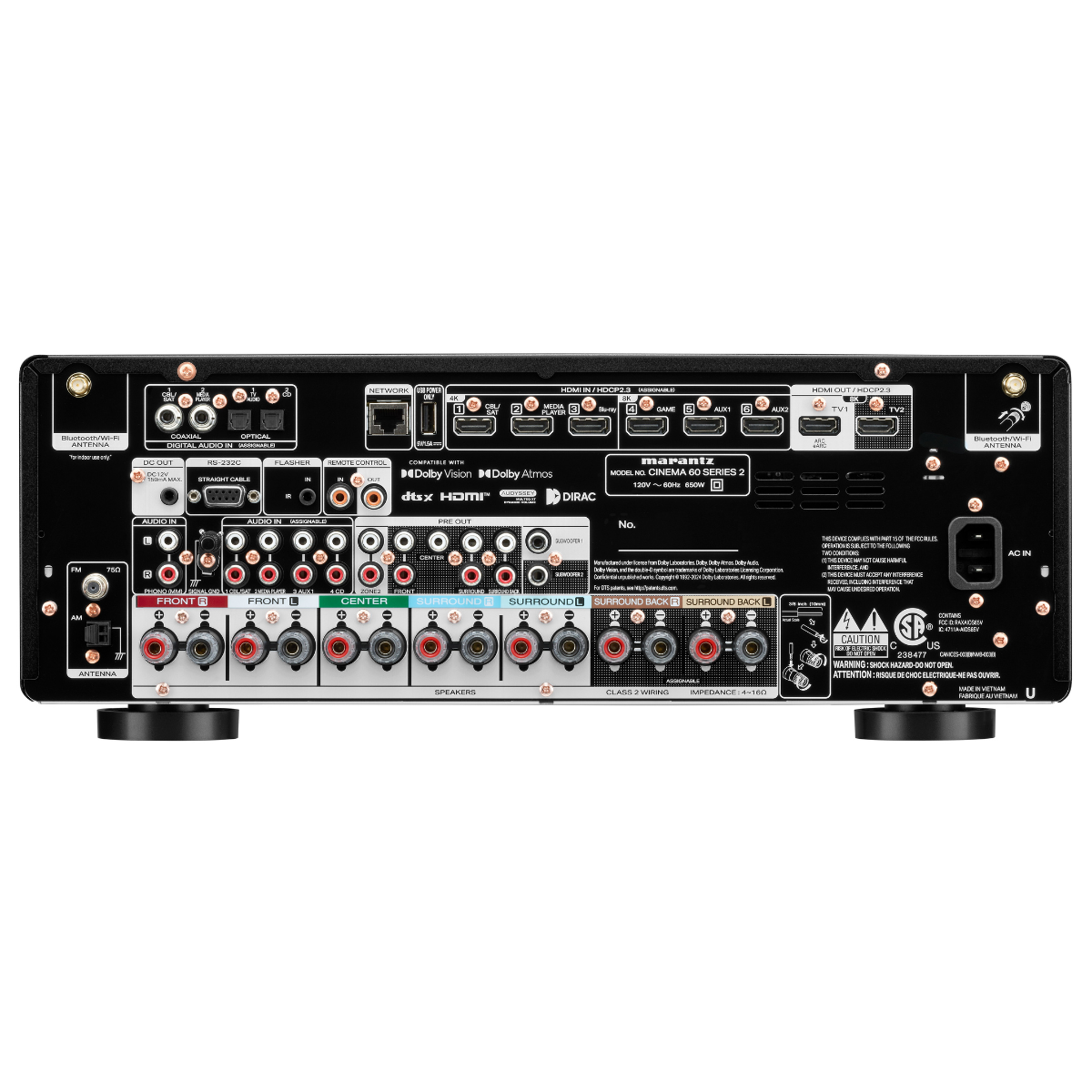

  • Marantz Cinema 60 Series 2 AV receiver rear panel showing HDMI, pre-outs and speaker connections

CINEMA 60 S2

$2,500.00
$2,500.00

Free Shipping

  • In Stock

(For store pickups, please call for availability.)

Product Overview

From explosive sound effects and crystal-clear dialogue to captivating scores, CINEMA 60 SERIES 2 elevates everything you love about movies, all in a timeless, feature-rich design. Built on decades of engineering expertise and a passion for exceptional sound, this powerful 7-channel AV receiver delivers breathtaking home theater experiences. Immersive surround sound is powered by an upgraded 32-bit 8-channel DAC and Dolby Atmos integration, while advanced connectivity includes 7 HDMI ports, eARC and support for two screens. CINEMA 60 SERIES 2 is engineered to bring your movies, music and games to life with the impact and clarity of signature Marantz sound.

Specifications

Multichannel Surround

DTS-HD / DTS:X / DTS:X Pro: Yes / Yes / No

DTS Neo:6 / DTS Neural:X: No / Yes

DTS Virtual:X: Yes

IMAX Enhanced: No

Dolby TrueHD / Dolby Atmos: Yes / Yes

Dolby Atmos Height Virtualization: Yes

Dolby Atmos Music: Yes

Dolby Pro Logic II / Dolby Surround: No / Yes

Multichannel Stereo: Yes

Maximum Processing (Preamp) Channels: 7.1

Sound Enhancements

Discrete Power Amplifier: Yes

Copper-Plated Chassis: No

Power Transformer: EI

Pure Direct: Yes

Current Feedback Topology: Yes

Hyper Dynamic Amplifier Modules (HDAM): Yes, SA2

Audyssey: MultEQ XT

Audyssey Dynamic EQ / Dynamic Volume: Yes / Yes

Subwoofer Mode, Standard / Directional: Yes / No

Dirac Live Upgradeable: Yes

Compressed Audio Enhancer: MDAX2

Network & Streaming

HEOS Multi-Room & Streaming: Yes

Bluetooth Headphone Re-Transmit: Yes

Bluetooth Transmitter Volume Control: Yes

Network Audio Sharing: Yes

Lossy Audio Formats: MP3, WMA, AAC

Lossless Audio Formats: FLAC up to 192 kHz/24-bit, WAV up to 192 kHz/24-bit, ALAC up to 192 kHz/24-bit

DSD Audio Streaming: 2.8 MHz / 5.6 MHz

Gapless Playback: FLAC, WAV, ALAC, DSD

AirPlay: AirPlay 2

Internet Radio: TuneIn

Spotify Connect: Yes

TIDAL Connect: Yes

Qobuz Connect: Yes

Pandora / SiriusXM: Yes / Yes

Other Streaming Services: Amazon Music, Amazon Music HD, TIDAL, Deezer, iHeartRadio, SoundCloud, Mood Mix

Roon Ready: Yes

Smartphone Apps: Marantz AVR Remote, HEOS

Tablet Compatibility: Android, iOS, Amazon Kindle

Wi-Fi / Bluetooth / Ethernet: Yes / Yes / Yes

HDMI & Video

HDMI Inputs: 6 rear / 0 front

HDMI Outputs: 2 Main / 0 Zone

HDCP 2.3: Yes

HDMI Scaling: 1080p/4K to 8K

8K/60Hz Support: Yes

4K/120Hz Support: Yes

8K/60Hz & 4K/120Hz Pass-Through: 3 inputs / 2 outputs, up to 40 Gbps

eARC / ARC: Yes / Yes

HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR: Yes / Yes / Yes / Yes / Yes

ALLM: Yes

Variable Refresh Rate (VRR): Yes

Quick Frame Transport (QFT): Yes

Quick Media Switching (QMS): No

AMD FreeSync: Yes, HDMI inputs 4-6

3D Signal Pass-Through: Yes

HDMI Pass-Through in Standby: Yes

Picture Adjust / Noise Reduction: No / No

HDMI-CEC: Yes

DSD Audio via HDMI: No

Auto LipSync: Yes

Multi-Room & Custom Integration

HEOS Multi-Room Integrated: Yes

HEOS Link Compatibility, IR / IP: Yes / Yes

Multi-Room Zones: 2

Zone Audio Sources: HDMI: No / Optical & Coaxial: Yes, 2-channel / Network & USB: Yes / Analog: Yes

Zone Speaker Output: Yes

Zone Pre-Out: Yes

Zone HDMI Output: No

IP Control: Yes

RS-232 Control: No

Web Control: Yes

App Control: Yes

IR Flasher Input: Yes

Marantz Remote Bus: Yes

DC Trigger Output: 1

HDMI Diagnostics: Yes

Inputs & Outputs

HDMI In / Out: 6 / 2

Multi-Room Video Out, Video / HDMI: No / No

Analog Inputs / Outputs: 4 / 0

Phono Input: Yes, MM

Optical / Coaxial Digital Inputs: 2 / 2

Multi-Room Analog / Digital Output: 1 / 0

Multichannel Pre-Out: 7.2-channel

Subwoofer Outputs: 2

Speaker Terminal Type: Regular screw terminals

Number of Speaker Terminals: 7

Speaker A/B: Assignable

Bi-Amp Drive: Assignable

Multi-Room Speaker Terminals: Assignable

Front Audio / Composite / Optical / HDMI / USB: No / No / No / No / Yes

USB Audio: Yes

Made for iPod / iPhone: No / No

Rear USB Power Supply: Yes

AM/FM Tuner: Yes

Amplifier

Number of Power Amplifiers: 7

Power Output, 8 Ohms: 100 W per channel
20 Hz - 20 kHz, 0.08% THD, 2 channels driven

Power Output, 6 Ohms: 140 W per channel
1 kHz, 0.7% THD, 2 channels driven

Setup & Control

Automatic Speaker Setup: Audyssey MultEQ XT

Dirac Live: Upgradeable

Front Display: Porthole OLED

On-Screen Interface: Modern HD GUI

ISF Certification: No

GUI Languages: 3

Setup Assistant / Smart Select: Yes / Yes

Network / USB Firmware Updates: Yes / Yes

Variable Crossover: Yes

Optimized Bass Redirection: Yes

Bass Sync: No

ECO Mode: Yes

Auto Power Off: Yes

Sleep Timer: Yes

General

Metal Front Panel: No

System Remote Control: RC054SR

Power Consumption: 650 W

No-Sound Power Consumption: 45 W ECO On / 75 W ECO Off

Standby Power Consumption: 0.2 W

CEC Standby Consumption: 0.5 W

Network Standby Consumption: Less than 2.0 W

Dimensions with Antenna Horizontal (W × D × H): 17.4 × 13.9 × 6.5 in.

Dimensions with Antenna Vertical (W × D × H): 17.4 × 13.9 × 9.3 in.

Dimensions without Antenna (W × D × H): 17.4 × 13.5 × 6.5 in.

Weight: 24 lbs.

What's in the Box

Main unit, remote control, batteries, AM/FM antennas, wire labels, Quick Start Guide, Audyssey calibration microphone, cardboard microphone stand, two external detachable antennas, and AC power cord.

Features

  • 7.2-channel AV receiver
  • Dolby Atmos immersive audio
  • HDMI eARC connectivity
  • 100W per channel amplification
  • Timeless Marantz design
  • Built for movies, music and gaming
  • Powered by HEOS™

Frequently Asked Questions

What is the Marantz Cinema 60 Series 2?

The Marantz Cinema 60 Series 2 is a 7-channel AV receiver delivering 100W per channel. It features Dolby Atmos, DTS, HEOS streaming, 8K HDMI, HDAM-SA2 amplification, and optional Dirac Live Room Correction.The Marantz Cinema 60 Series 2 is available at Trutone Electronics in Mississauga, Ontario.

What is new on the Cinema 60 Series 2 compared to the original Cinema 60?

The Cinema 60 Series 2 adds a 32-bit Cirrus Logic 8-channel DAC, optional Dirac Live Room Correction, 1440p HDMI passthrough, AMD FreeSync support, and updated Web Control 2.0.

Does the Cinema 60 Series 2 support Dirac Live?

Yes. The Cinema 60 Series 2 is upgradeable to Dirac Live Room Correction. Dirac Live Bass Control and Active Room Treatment are not supported.

How does the Cinema 60 Series 2 compare to the Cinema 50 Series 2 for room correction?

The Cinema 60 Series 2 includes Audyssey MultEQ XT and optional Dirac Live Room Correction. The Cinema 50 Series 2 steps up to Audyssey MultEQ XT32 and supports Dirac Live Room Correction, Bass Control, and Active Room Treatment.

What audio formats does the Cinema 60 Series 2 support?

It supports Dolby Atmos, Dolby TrueHD, Dolby Atmos Height Virtualization, DTS, DTS-HD Master Audio, DTS Neural, and DTS Virtual.

How many HDMI inputs and outputs does the Cinema 60 Series 2 have?

It has six HDMI inputs and two HDMI outputs. Three inputs support 8K/60Hz and 4K/120Hz passthrough at up to 40 Gbps, with eARC also supported.

Does the Cinema 60 Series 2 use Marantz HDAM amplifier technology?

Yes. The Cinema 60 Series 2 uses Marantz HDAM-SA2 modules with Current Feedback Topology and discrete Class A/B amplification. It delivers 100W per channel into 8 ohms with two channels driven.

How does the Cinema 60 Series 2 compare to the Cinema 50 and Cinema 70s Series 2?

The Cinema 60 Series 2 sits between the two models, offering 100W per channel and HDAM-SA2 amplification. The Cinema 50 Series 2 provides more power and 11.4-channel processing, while the Cinema 70s Series 2 prioritizes a compact slimline design.

Who is the Cinema 60 Series 2 best suited for?

It is ideal for living rooms and dedicated media rooms using 5.1.2 or 7.1 speaker systems. It is a strong choice for users who want Marantz HDAM amplification and optional Dirac Live without requiring 11.4-channel processing.

What streaming services does the Cinema 60 Series 2 support?

HEOS provides access to services including Spotify Connect, TIDAL Connect, Qobuz Connect, Amazon Music HD and Deezer. The receiver also supports AirPlay 2, Roon Ready integration and Bluetooth headphone retransmission.
