Marantz

Marantz AV10 Reference 15.4 Channel Home Theater Pre-Amplifier/Processor

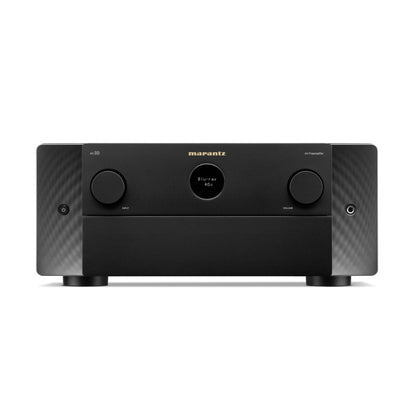

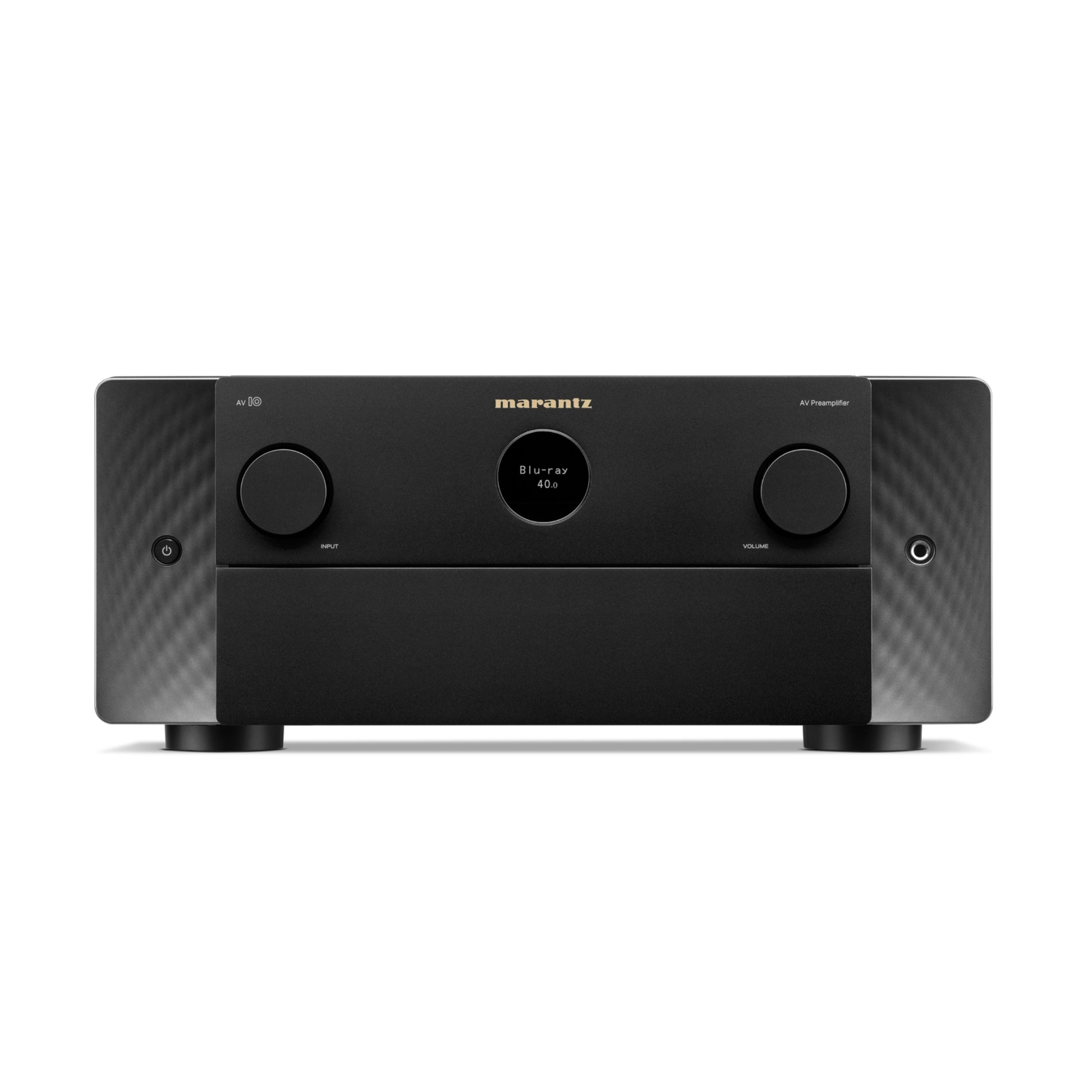

  • front view of marantz av 10 preamp

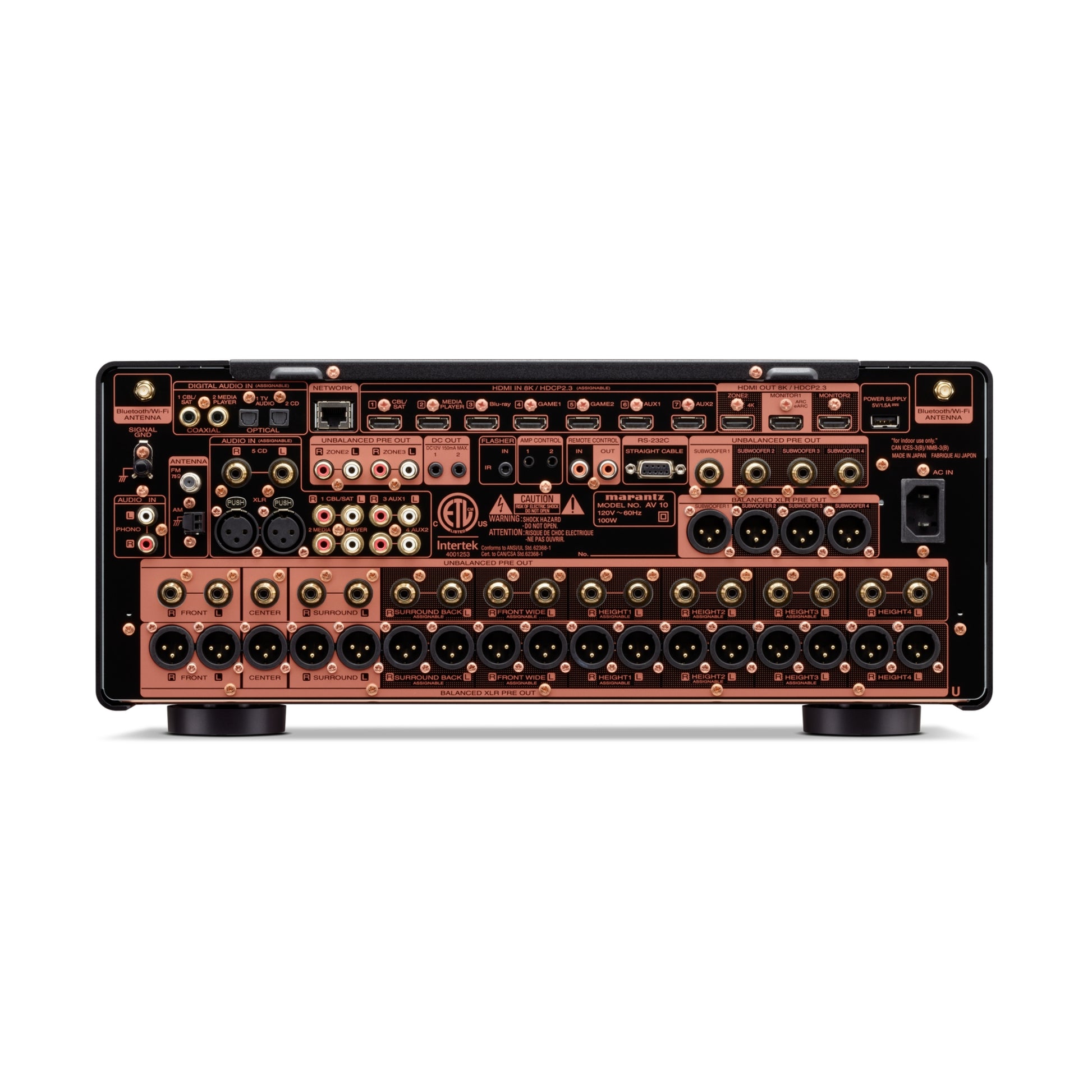

  • marantz av 10 preamp back view

Marantz

AV10

$11,000.00
$11,000.00

Free Shipping

  • In Stock

For store pickups, please call for availability.

Reference 15.4 Channel Home Theater Pre-Amplifier/Processor​

Reference 15.4 Channel Balanced Processor with Dolby Atmos, DTS:X Pro Auro 3D, IMAX Enhanced and 8K Ultra HD, and HEOS® Built-in streaming. AV 10 is a reference-level AV processor.

Achieve the Best Sound Possible

Dirac Live is an advanced room calibration solution that enables you to optimize the sound quality of your system. This world-class software is now available as an upgrade for AV 10.

Features

  • Peerless Performance: Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of Marantz sound.
  • Technology Leader: AV 10 comes packed with the latest immersive audio formats, 8K video, room optimization, streaming, and more technology to simplify and elevate your enjoyment.
  • Exquisite Design: A modern expression of timeless design principles, AV 10 features the iconic Marantz porthole, premium materials, and subtle sidelights that illuminate the front panel.

Performance

Our Marantz Sound Master meticulously tuned AV 10 for amazing performance with careful parts selection to create the Most Musical Sound in your home.

Style

Excellence is heard and seen. AV 10 is meticulously crafted with authentic materials in a modern style befitting its rich heritage and stunning performance

Customizability

Thoughtfully curated connectivity options and fine tuning ability allow you to make AV 10 your own.

Effortless

Included aluminum remote, accessible front-panel controls, and an intuitive on-screen setup process make you feel like an expert user right away.

Specifications

Surround & Processing

  • Amplifier / Processing Channels: 15.4
  • Max Processing (Preamp) Channels: 15.4
  • DTS HD Master / DTS:X / DTS:X Pro: Yes / Yes / Yes
  • DTS Neo:X / DTS Neural:X: No / Yes (15 ch)
  • DTS Virtual:X: Yes
  • IMAX Enhanced: Yes
  • Dolby TrueHD / Dolby Atmos: Yes / Yes
  • Dolby Atmos Height Virtualization / Atmos Music: Yes / Yes
  • Dolby ProLogic IIz / Dolby Surround: No / Yes
  • Auro 3D: Yes
  • 360 Reality Audio / MPEG-H: Yes / Yes
  • Multichannel Stereo: Yes

Sound Enhancements

  • Copper Plated Chassis: Yes
  • Power Transformer: Toroidal (Yes) / EI (No)
  • Current Feedback Topology: Yes
  • HDAM (Hyper Dynamic Amplifier Modules): Yes
  • Pure Direct: Yes
  • Gold-plated RCA Terminals: Yes
  • Clock Jitter Reducer: Yes
  • Audyssey MultEQ XT32: Yes
  • Audyssey Dynamic EQ / Dynamic Volume: Yes / Yes
  • Audyssey LFC: Yes
  • Dirac Live Upgradability: Yes
  • Compressed Audio Enhancer (MDAX2): Yes

Multi-Room / CI

  • HEOS Multi-Room Integrated: Yes
  • HEOS Link Compatibility (IR / IP): Yes / Yes
  • Multi-Room Zones: 3
  • Zone Audio Source: HDMI (2 ch) / Optical+Coax (2 ch) / Network+USB / Analog
  • Zone Audio Output: Speaker (No) / Preout (Yes)
  • Zone HDMI Output from HDMI Source: Yes
  • IP / RS232 / Web / App Control: Yes / Yes / Yes / Yes
  • IR Flasher In: Yes
  • Marantz Remote Bus: Yes
  • DC Trigger Output: 2
  • HDMI Diagnostics: Yes

Network & Streaming

  • HEOS Multi-room & Streaming: Yes
  • Bluetooth Re-transmit (to Bluetooth headphones): Yes
  • Voice Assistants: Alexa / Google / Apple HomePod
  • AirPlay: AirPlay 2
  • Internet Radio: TuneIn
  • Spotify: Spotify Connect
  • Streaming Services Supported: Pandora, SiriusXM, Amazon Music HD, Amazon Music, TIDAL, Deezer, iHeartRadio, Napster, SoundCloud, Mood Mix
  • Roon Tested: Yes
  • Network Audio Sharing: Yes
  • Gapless Playback: Yes (FLAC, WAV, ALAC, DSD)
  • DSD Streaming: Yes (2.8 / 5.6 MHz)
  • Ethernet / Wi-Fi / Bluetooth: Yes / Yes / Yes
  • Remote Apps: Marantz AVR Remote (Phones), Android / iOS / Amazon Kindle (Tablets)

HDMI & Video

  • HDMI Inputs (Rear / Front): 7 / No
  • HDMI Outputs: 3
  • HDCP 2.3 Support: Yes
  • HDMI Scaling: 1080p/4K to 8K
  • HDMI 2.1: 8K/60 Hz AB / 4K/120 Hz AB: Yes / Yes
  • HDMI 2.1 Pass-through In/Out: 7 / 2 (up to 40 Gbps)
  • ARC / eARC: Yes / Yes
  • HDR Formats: HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR
  • ALLM / VRR / QFT: Yes / Yes / Yes
  • Auto Lip Sync: Yes
  • HDMI Pass-through (Standby): Yes
  • DSD Audio Capability: Yes

Inputs & Outputs

  • HDMI In / Out: 7 / 3
  • Analog In: 5 (including 1 × XLR)
  • Phono Input: MM
  • Digital In (Optical / Coaxial): 2 / 2
  • Multichannel Pre Out: 17.4 RCA and 17.4 XLR
  • Subwoofer Outputs: 4 (independent)
  • Multi-Room Out (Analog / Digital): 2 / No
  • Front USB: Yes
  • AM/FM Tuner: Yes

General

  • Metal Front Panel: Yes
  • System Remote Control: RC047SR
  • Remote: Pre-programmed / Learnable / LCD display: Yes / Yes / Yes
  • Power Consumption: 100 W
  • Standby Consumption: 0.2 W
  • CEC Standby Consumption: 0.5 W
  • Network Standby Consumption: <2.0 W
  • Dimensions (W × D × H, without antenna): 17.4 × 19.0 × 7.4 in
  • Dimensions (W × D × H, antenna vertical): 17.4 × 19.8 × 9.9 in
  • Weight: 37.0 lbs

What’s in the Box

  • Main unit
  • Remote control and batteries
  • AM/FM antennas
  • Wire labels
  • Quick start guide
  • Audyssey microphone
  • Cardboard microphone stand
  • 2 external detachable antennas
  • AC cord
