Marantz AV 30 | 11.4-Channel AV Preamplifier

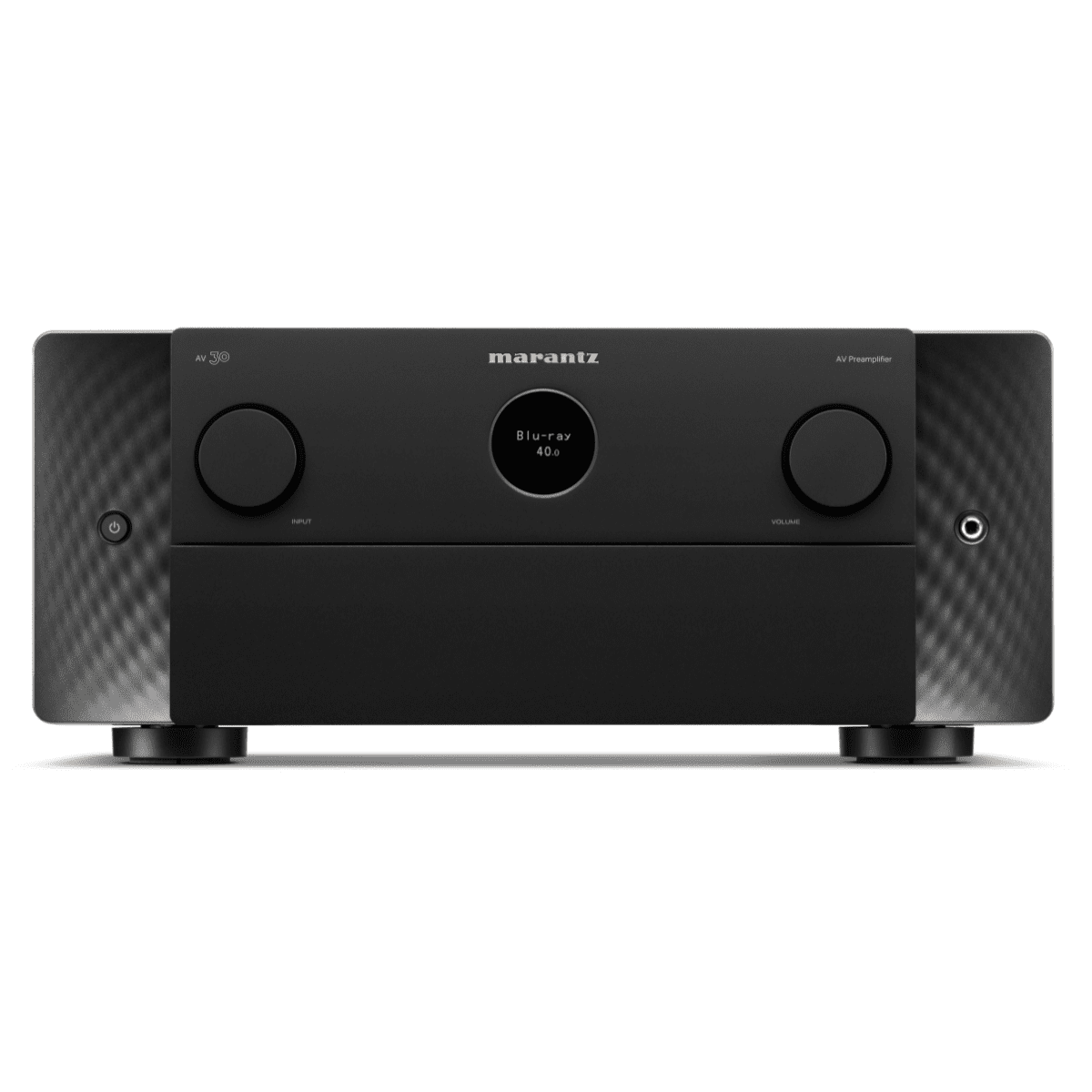

  • front panel of av30 preamp

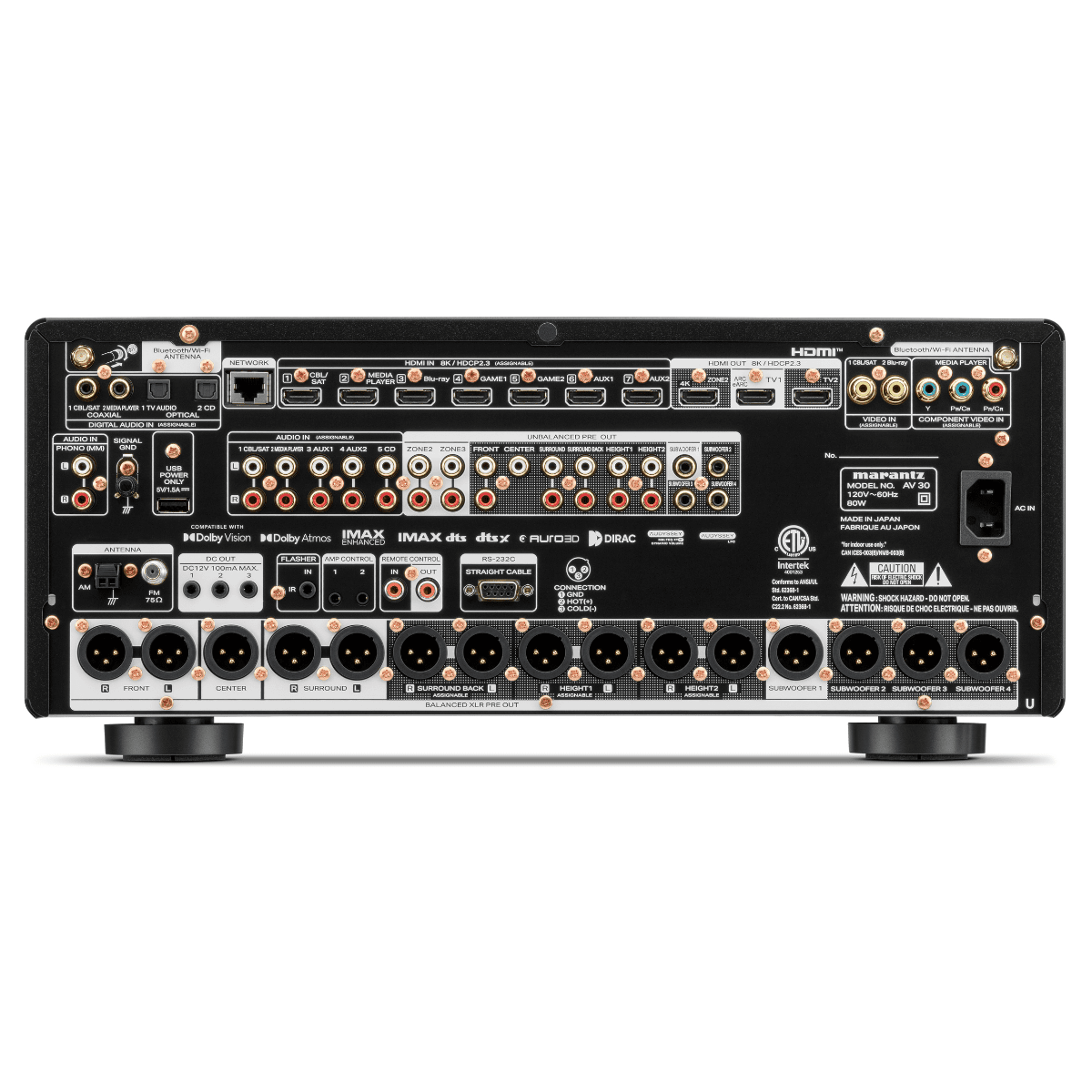

  • Back Panel of Marantz AV 30 AV Preamp

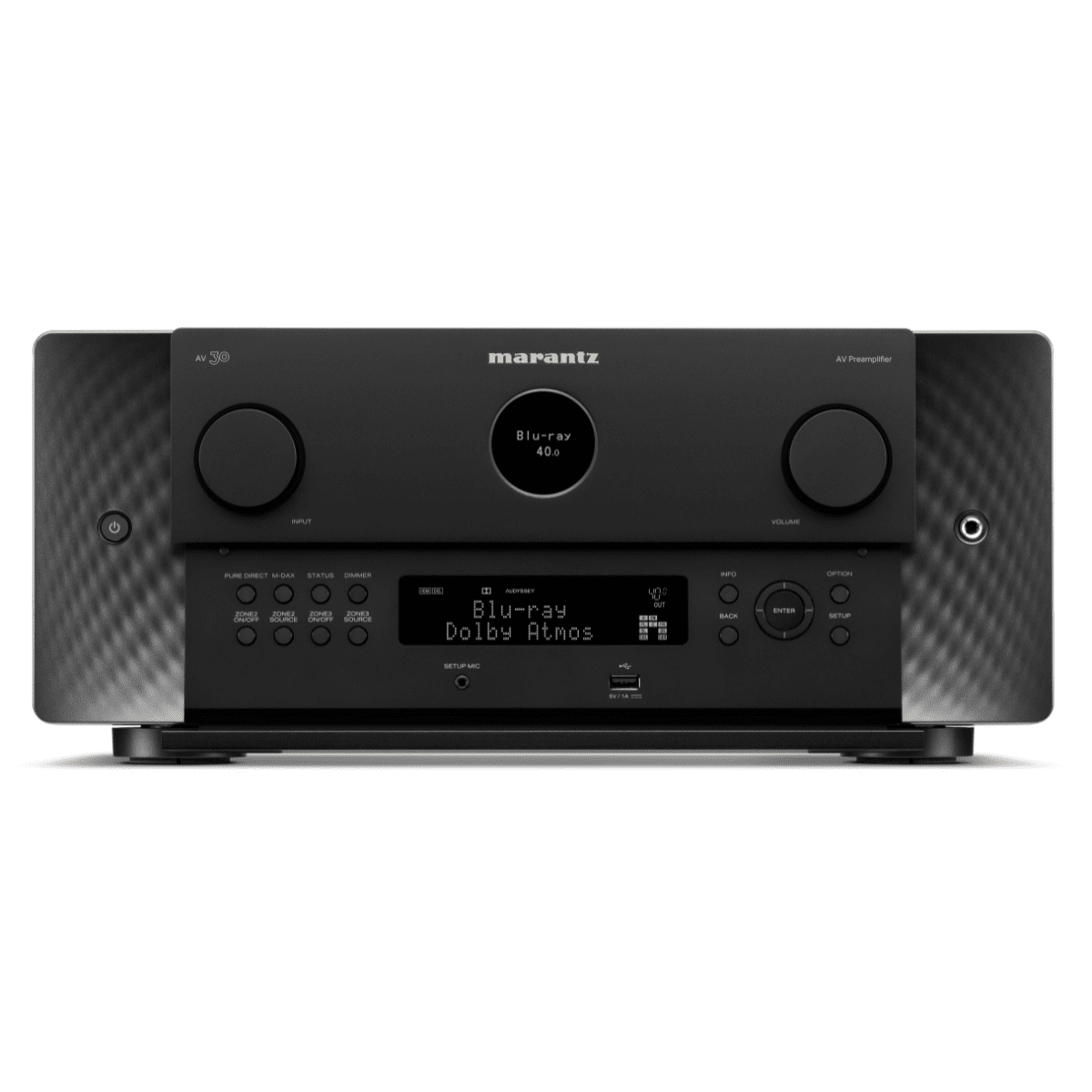

  • Front Panel of AV30 AV Preamp

AV 30

$5,000.00
$5,000.00

Free Shipping

For store pickups, please call for availability.

Overview

The new AV 30 deploys the latest and most powerful Analog Devices SHARC dual-core DSP chipset coupled to high-quality 32-bit DACs.
The result is a powerful digital platform able to precisely decode and accurately process all forms of incoming audio, from high-resolution stereo to the latest forms of immersive sound, including Dolby Atmos™, IMAX Enhanced™, DTS:X™ and AURO-3D™.

To ensure the best possible results with a broad range of speakers in various listening
environments, AV 30 combines that powerful processing capability with Audyssey MultEQ XT32 advanced room optimization, based on automatic calibration of speaker sizes, speaker distances, level adjustment and more, all enabled by an included microphone.

AV 30 also features optionally available Dirac Live, Dirac Bass Control and Dirac Active Room
Treatment (ART), allowing for a fully  optimized listening experience with multiple speakers and up to four independent subwoofers.

Specifications

Multichannel Surround Technologies

  • DTS: DTS-HD Master Audio, DTS:X, DTS Virtual:X, DTS Neural:X
  • Dolby: Dolby TrueHD, Dolby Atmos, Dolby Height Virtualization
  • IMAX Enhanced: Yes
  • Auro-3D / 360 Reality Audio / MPEG-H: Yes / Yes / Yes

Sound Enhancements & Processing

  • Maximum Number of Processing Channels: 11.4
  • Current Feedback Topology / Hyper Dynamic Amplifier Modules (HDAM): Yes / Yes (HDAM-SA2
  • Pure Direct / Gold-Plated RCA Terminals: Yes / Yes
  • Clock Jitter Reduction: Yes
  • D/A Converter: AKM 32-bit
  • Compressed Audio Enhancer: MDAX
  • Audyssey Room Correction: MultEQ XT32, Dynamic EQ, Dynamic Volume, Audyssey LFC

Network & Streaming

  • HEOS Built-In: Yes
  • Wi-Fi / Bluetooth / Ethernet: Yes / Yes / Yes
  • Bluetooth Transmission for Headphones: Yes
  • Apple AirPlay: Yes
  • Streaming Services: Amazon Music, Spotify, TIDAL, Deezer, Napster, SoundCloud
  • Voice Control Compatibility: Amazon Alexa, Google Assistant, Apple Siri

Audio Formats Supported

  • Lossy Formats: MP3, WMA, AAC
  • Lossless Formats: FLAC, ALAC, WAV (up to 24-bit/192kHz), DSD

DMI & Video Support

  • Total HDMI Inputs: 7
  • HDMI Outputs (Main / Zone): 2 / 1
  • HDMI Version: HDMI 2.1 (supports 8K)
  • HDCP Support: HDCP 2.3
  • HDR Formats: HDR10, HDR10+, Dolby Vision, HLG
  • Gaming Features: ALLM, VRR, QFT, QMS
  • Enhanced ARC (eARC): Yes

Inputs & Outputs

  • Analog Audio Inputs: 6 (1 XLR)
  • Phono Input (MM): Yes
  • Digital Inputs: 2 Optical / 2 Coaxial
  • Multichannel Pre-Out: Yes (11.4 RCA, 11.4 XLR)
  • Subwoofer Outputs: 4 (independent)
  • Speaker A / B: Assignable Pre-Out

Multi-Room & Zone Control

  • HEOS Multi-Room Integration: Yes
  • Zone Audio Outputs: HDMI / Optical / Network / USB / AnaloG
  • Zone HDMI Output: Yes
  • IP Control / RS-232 / IR: Yes / Yes / Yes

User Interface & Control

  • On-Screen Display: Yes (GUI HD & Web Control)
  • Setup Assistant: Yes
  • Mobile App Control: Android / iOS
  • System Remote Control: RC053SR

General

  • Chassis: Metal Front Panel
  • Auto Power Off / Sleep Timer: Yes / Yes
  • Power Consumption: 80 W
  • Standby Power Consumption: 0.2 W
  • Dimensions (W × D × H): 17.4 × 16.3 × 7.5 in
  • Weight: 24.5 lbs

What’s in the Box

  • Included Accessories: Remote control, batteries, AM/FM antennas, Audyssey microphone, cardboard mic stand, quick start guide, detachable antenna, AC power cord

Warranty & UPC

  • Warranty: 5-Year Limited (USA & Canada)
  • UPC Code: 747192148317

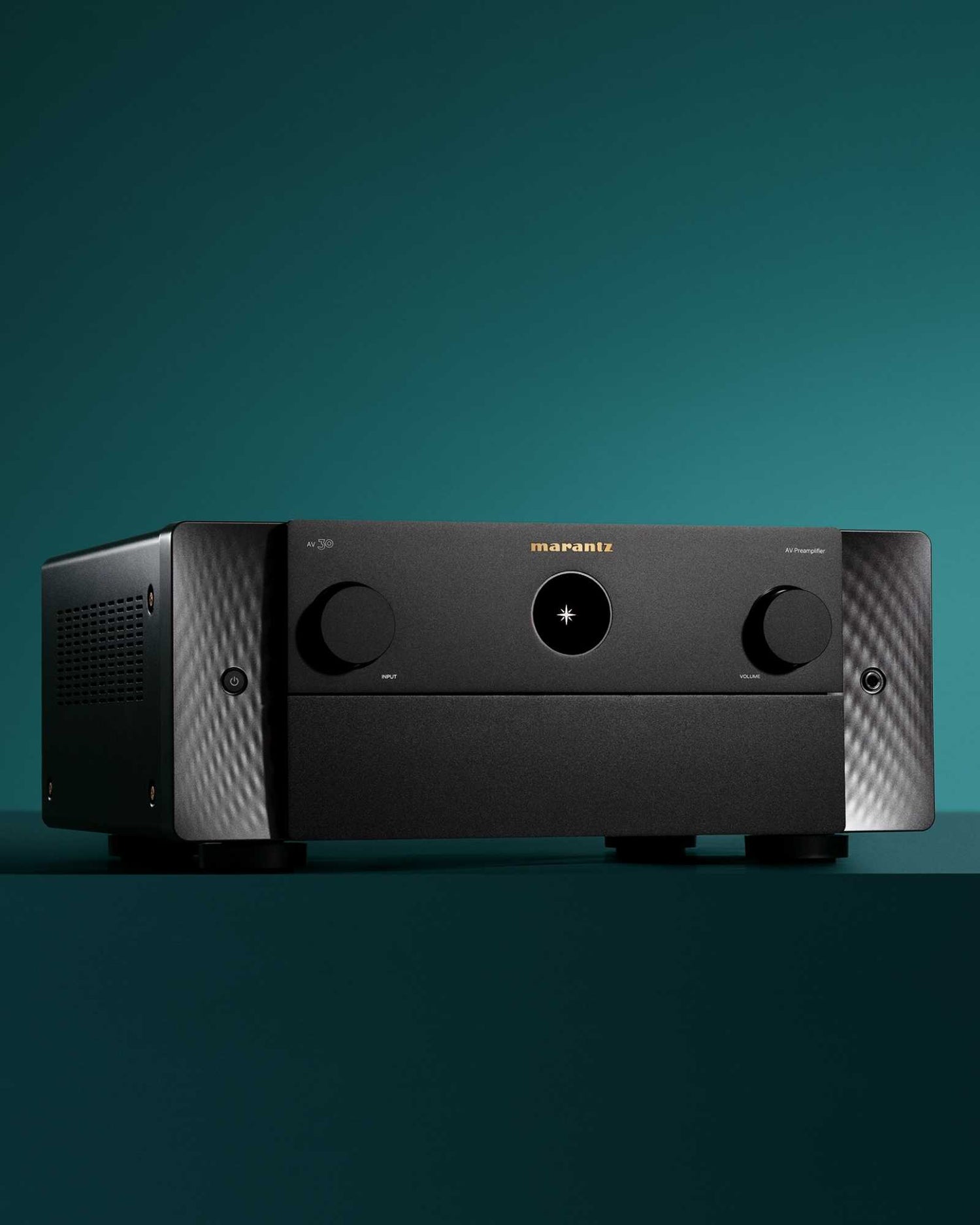

Marantz AV30 Preamp beauty shot

Features

  • Detailed and immersive sound transforms your home theater
  • 11.4-channel output allows a variety of speaker layouts
    up to 7.4.4
  • Decodes Dolby Atmos, DTS:X, IMAX Enhanced audio,
    and AURO-3D
  • Acoustic room tuning with Audyssey MultEQ XT32 and optional Dirac Live, including Bass Control and Active Room Treatment
  • Seven HDMI inputs (all 8K) and three outputs for the highest
    resolution video
  • Sound Master tuned for warm, rich and detailed Marantz sound
  • High-quality HD on-screen interface makes setup intuitive
  • Balanced and RCA outputs for external power amplifiers
  • Elegant design matches beautiful sound
  • Optimized HDAM-SA2 for fast response and low distortion

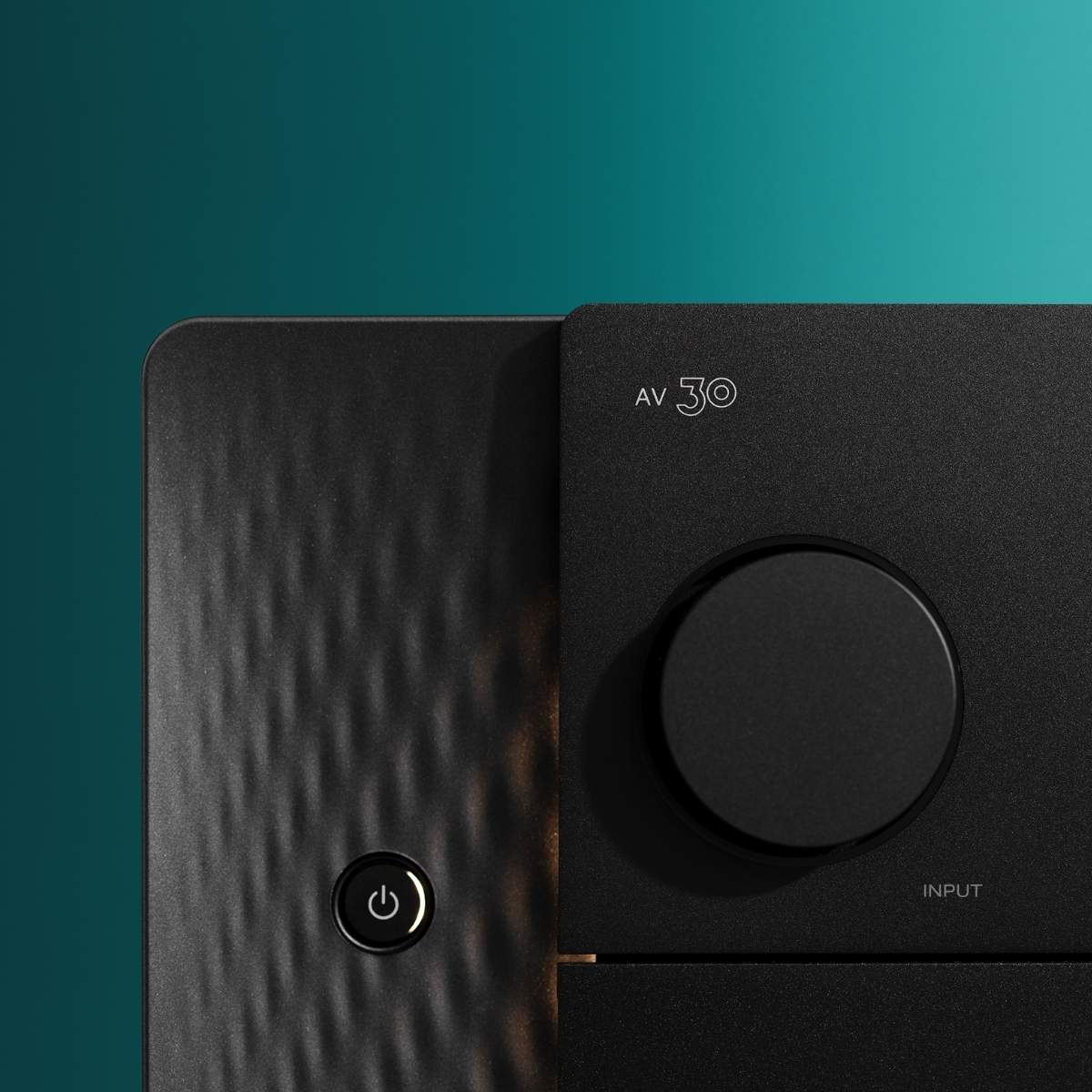

  • Marantz AV30 Preamp Close Up

    Exceptional Performance

    Enjoy every movie moment with immersive realism and lifelike detail. AV 30 delivers an outstanding theater experience—in your home.

  • Lifestyle image of Marantz AMP 30 and AV 30

    Ultimate Flexibility

    The 11.4-channel onboard processing supports a wide range of speaker configurations. Perfect for all forms of immersive audio suitable for even large home theater systems.

  • lifestyle image of Marantz AMP 30 and AV 30

    Technology Leader

    AV 30 comes packed with support for the latest high-resolution movie formats, plus 8K video compatibility, room optimization, and Powered by HEOS™ technology to simplify and elevate your listening.
Person holding a phone using HEOS App

For the Soundtrack of Your Life

  • HEOS® has a search feature that lets you find and stream from the world’s leading music platforms, including TIDAL, Pandora, and Amazon Music HD.
  • Devices Powered by HEOS™ allow you to control multiple rooms, all with the HEOS app.
  • Use your HEOS-enabled Marantz devices to access high-resolution music streaming and discover a whole new way to love your favorites.



Frequently Asked Questions

What is the Marantz AV 30?

The AV 30 is a high-performance AV pre-amplifier and processor designed for premium home theatre systems, providing audio/video processing without built-in amplification.

Does the AV 30 have built-in power amplifiers?

No — the AV 30 is a processor only. It must be paired with external power amplifiers to drive speakers.

How many channels does the AV 30 support?

It supports up to 11.4 channels of audio processing, providing flexibility for immersive speaker layouts.

What immersive audio formats does the AV 30 decode?

It supports major formats including Dolby Atmos, DTS:X, and Auro-3D, delivering expansive soundtracks for modern home theatres.

Does the AV 30 support 8K video?

Yes — it features 8K HDMI inputs and outputs with full support for the latest video standards.

What room calibration technology does it use?

The AV 30 uses Audyssey MultEQ XT32 for precise room correction and speaker measurement.

Can the AV 30 stream music?

Yes — it includes HEOS built-in for wireless streaming, multi-room audio, and access to services like Spotify, TIDAL, and more.

Is the AV 30 compatible with smart home systems?

Yes — it supports major control systems and voice assistants via HEOS integration, making it suitable for connected home setups.

What makes the AV 30 different from an AV receiver?

Unlike AV receivers that have built-in amplifiers, the AV 30 focuses on processing and offers greater flexibility with external amps for high-end systems.

Can the AV 30 be expanded with other Marantz amplifiers?

Yes — it pairs seamlessly with external Marantz power amplifiers like the AMP 30, AMP 10, or AMP 20 to build larger, high-power systems.
