Marantz AMP 30 | 6-Channel Power Amplifier

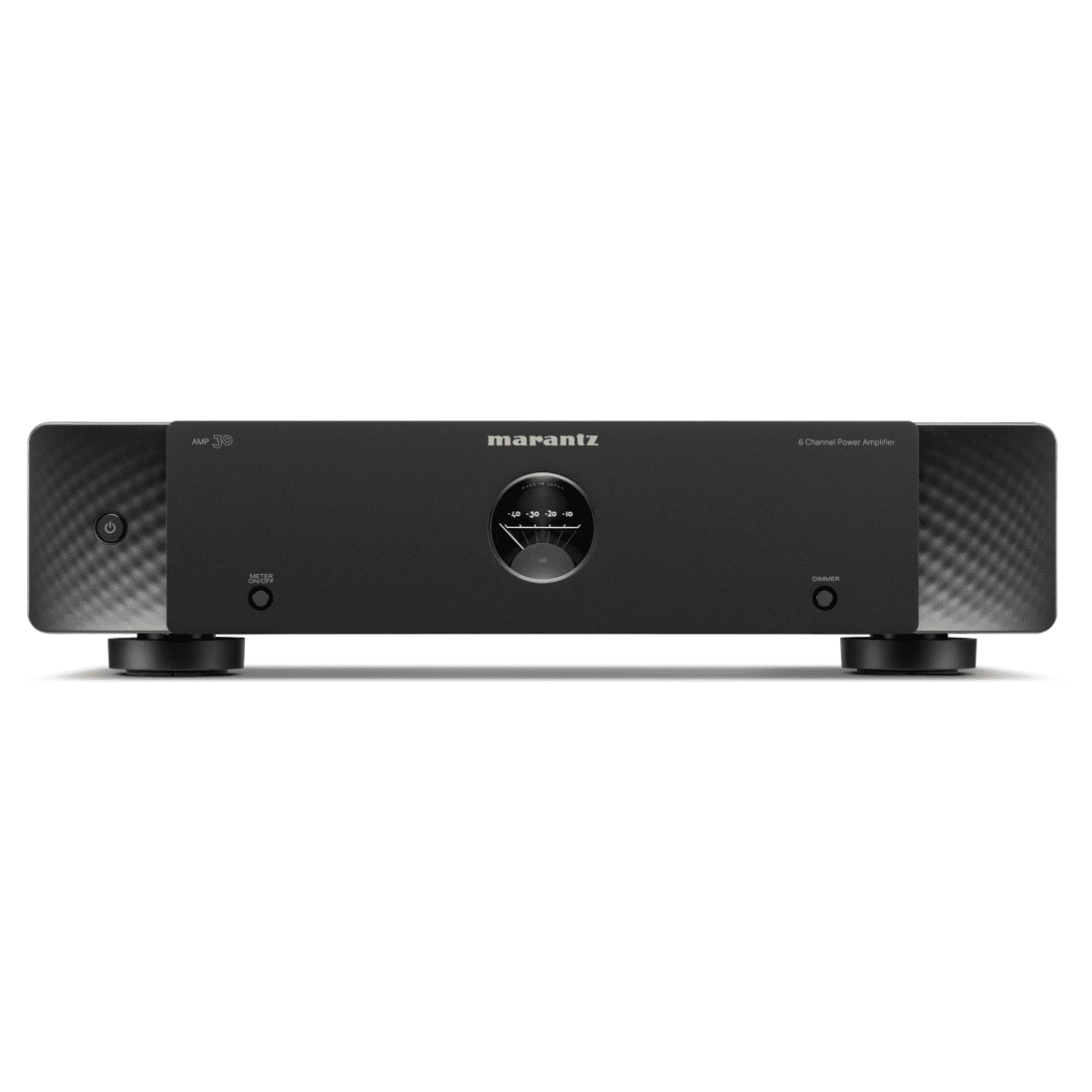

  • front panel of Marantz AMP 30 Power Amp

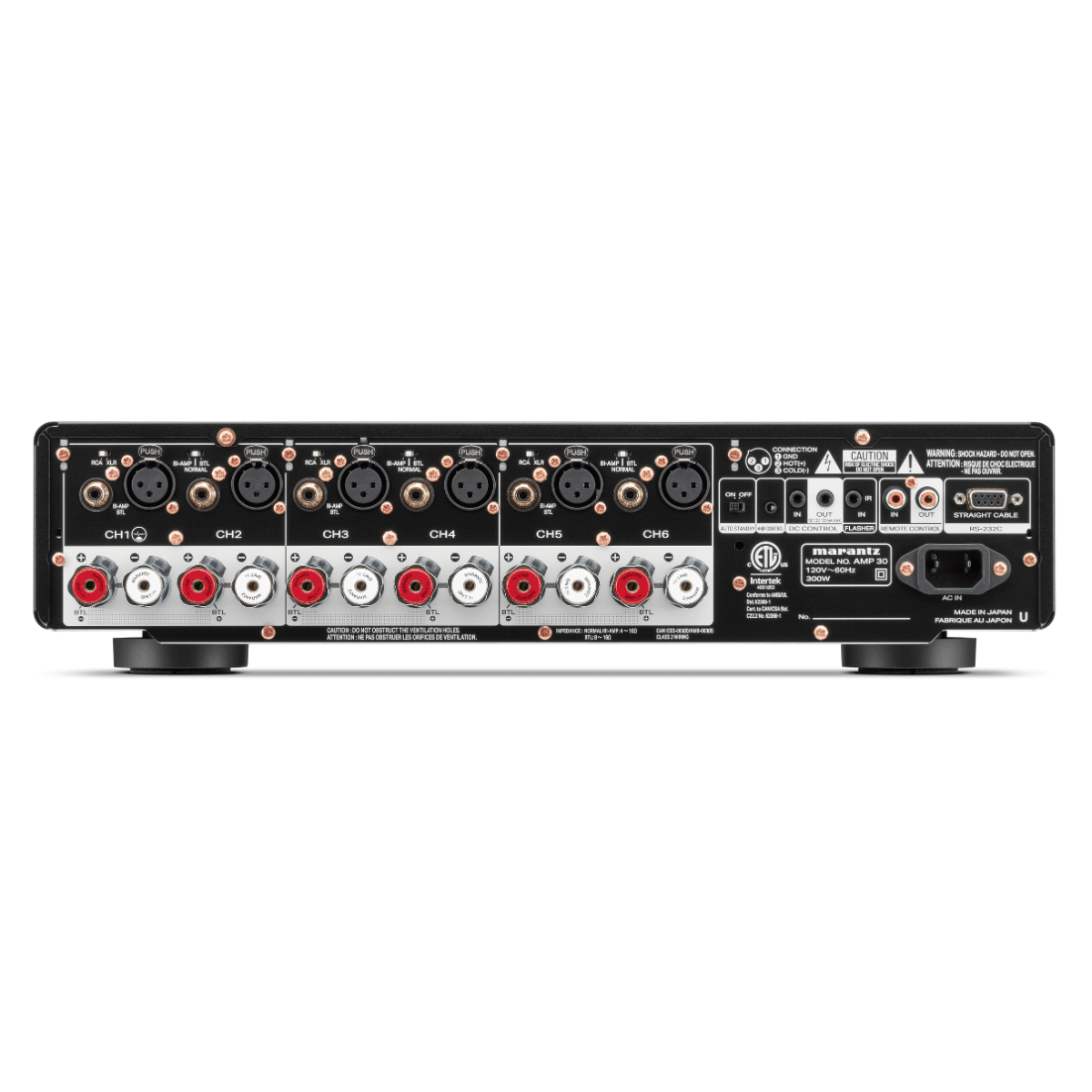

  • back panel of Marantz AMP 30 power amp

AMP30

$5,000.00
$5,000.00

Free Shipping

For store pickups, please call for availability.

Overview

The AMP 30 is a slimline, cool-running 6-channel power amplifier delivering 200 watts per channel into 8 ohms, providing ample power for a wide range of speaker configurations and system layouts. Designed for flexibility, it can also be configured in bridged-tied-load (BTL) mode, combining pairs of channels to deliver up to three channels of 400 watts when higher output is required.

This adaptable design makes the AMP 30 well suited for multi-speaker audio systems and custom home theatre installations where performance and efficiency are equally important.

Specifications

Inputs/Outputs

Main Amplifier In: Balanced & Unbalanced: 6ch (Exclusive use by a selector switch)
Speaker Terminal SPKT-1+
Number of Speaker Terminals: 6
Bi-Amp Drive / BTL Drive: Yes / Yes
Level Meter: Yes

Multi Room

RS232 Control: Yes
IR Flasher In: Yes
Marantz Remote Bus: Yes
DC Trigger Input / Output: 1 / 1

Specifications

Number of Power Amps: 6
Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL: 200W / 400W
Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal: 400W
Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal: 200W

General

Front Display Level: Meter
Auto Power Off: Yes
Metal Front Panel: Yes
Power Consumption: 300W
Power Consumption, No-Sound (ECO On / Off(): 70W
Standby Consumption: 0.2W
Maximum Dimensions (W × D × H): 17.4 × 17.4 × 4.4 in.
Weight: 22.0 lbs
What's in the Box: Main unit, quick start guide,
AC cord, Amp control cable,
Remote control cable
UPC Code: 747192145699
Limited Warranty (United States and Canada): 5-year

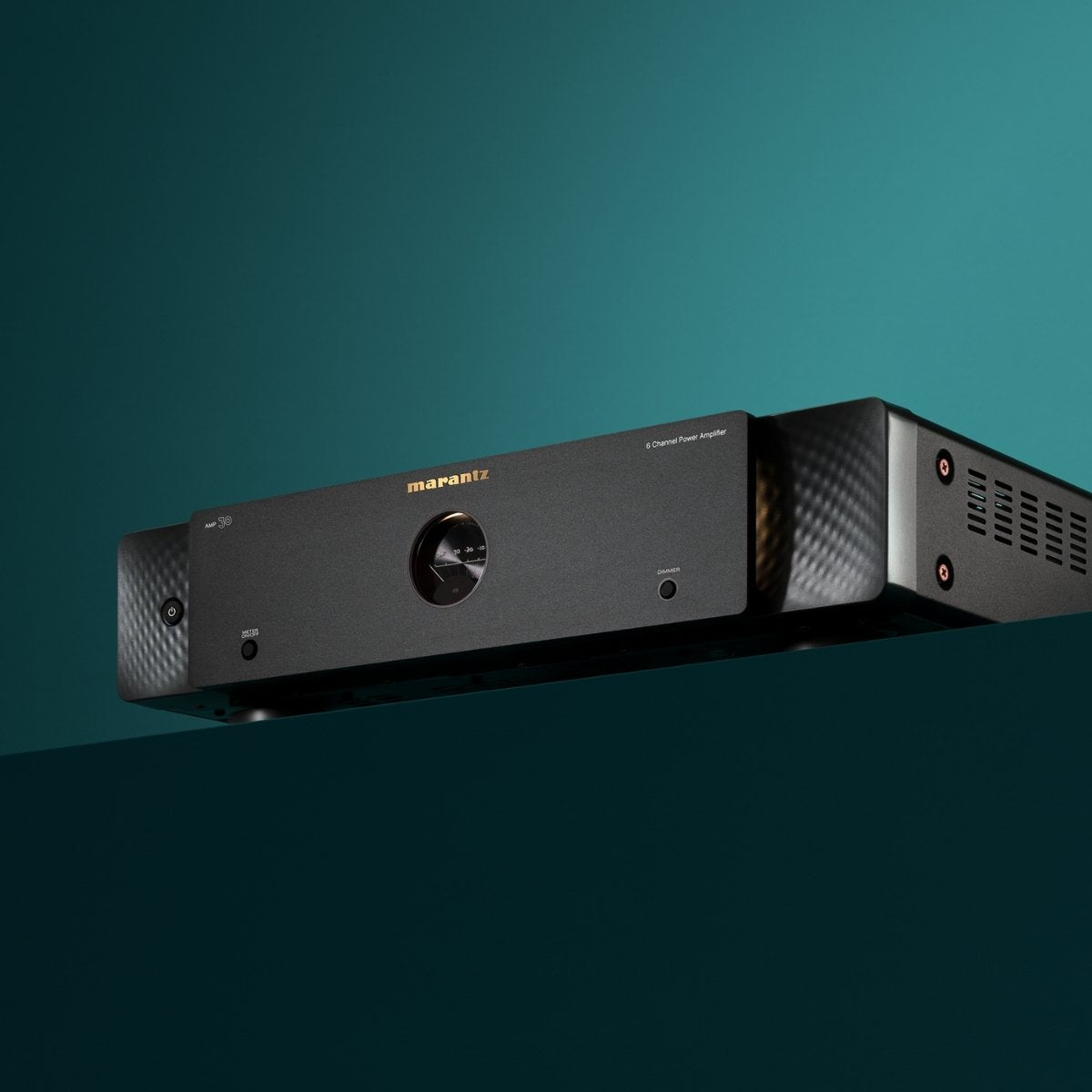

Marantz AMP 30 power amp beauty shot

Features

  • Detailed and immersive sound transforms your home theater
  • 200 watts per channel into 8Ω / 400 watts per channel into 4Ω
  • Six slimline channels power dedicated home theaters
  • Bi-amp mode drives high- and low-frequency sections of loudspeakers independently
  • BTL Mode: Three channels of 400W or six channels of 200W
  • Balanced XLR input is ideal for reducing input noise
  • Porthole with analog meter measures output
  • Soft side lights cast a warm glow on the amplifier front panel
  • Elegant slimline design matches rich, warm sound

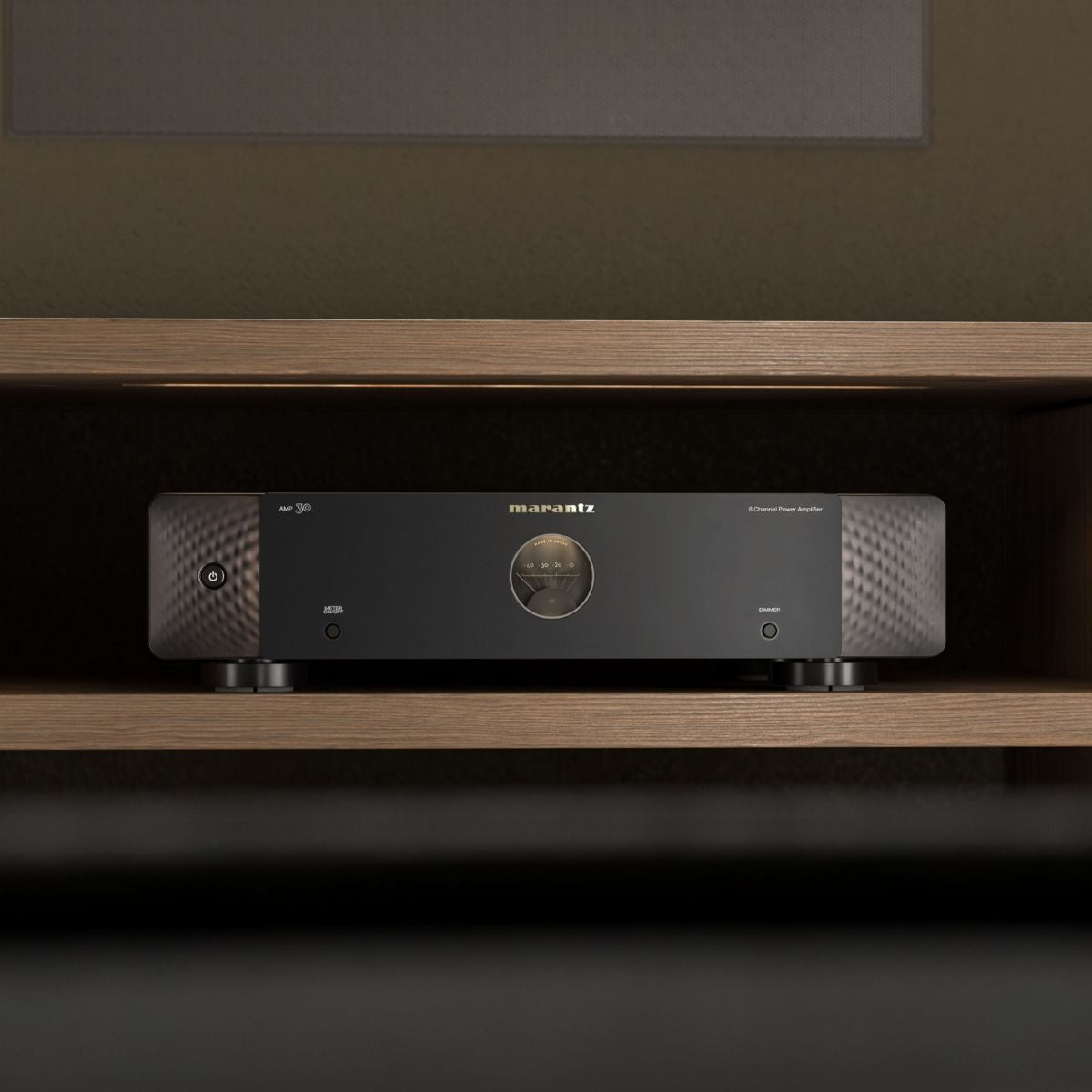

  • Marantz AMP 30 Power Amp on shelf

    Exceptional Performance

    AMP 30 delivers a thrilling movie experience, with immersive spaciousness, extraordinary detail, and lifelike dynamics.

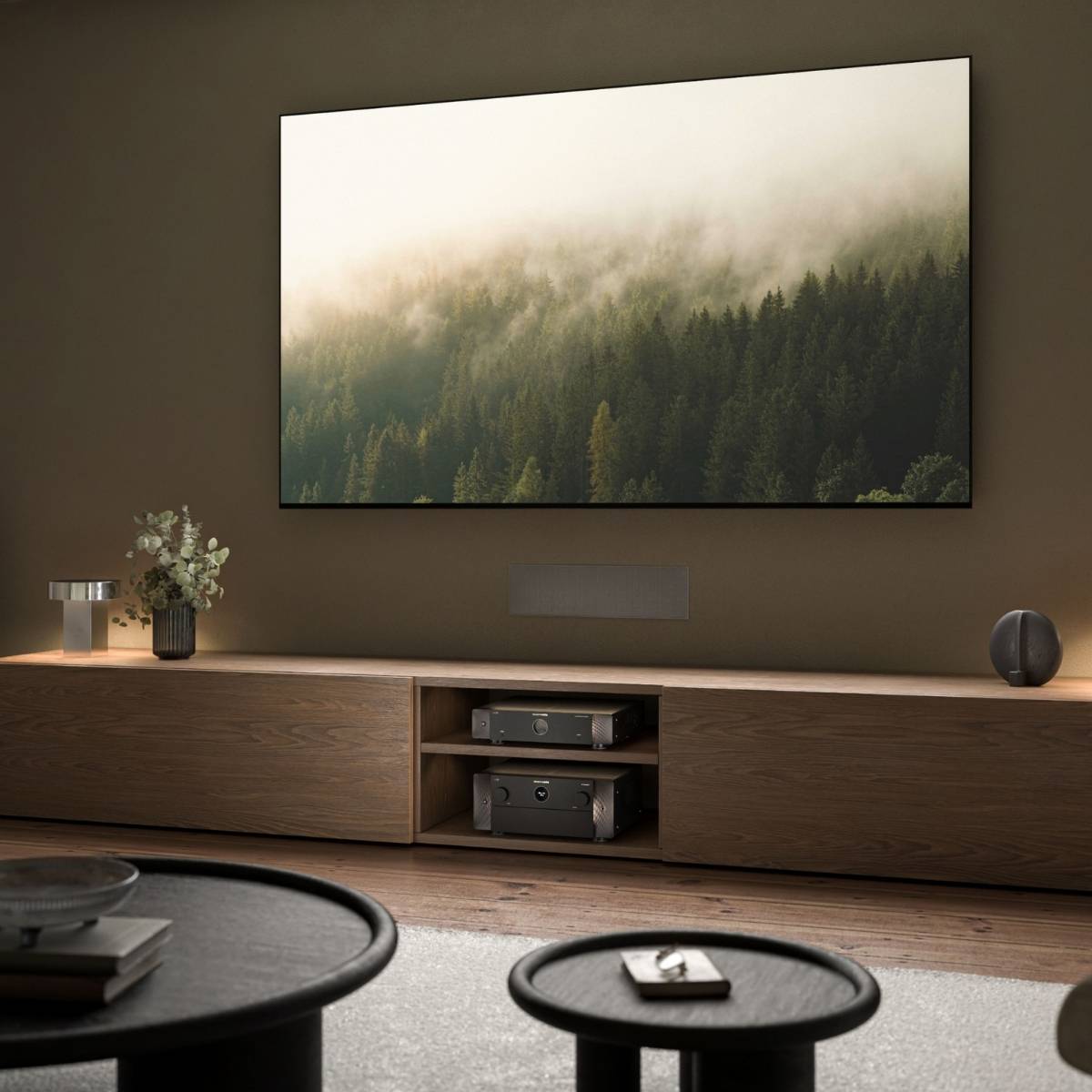

  • Lifestyle image of Marantz AMP 30 and AV 30

    Seamless System Integration

    The AMP 30 pairs seamlessly with other Marantz components, serving as a powerful upgrade for front speakers in CINEMA 30 systems or as a complement to AV 10 and AV 20 setups. It can also be combined with AMP 10 or AMP 20 amplifiers to deliver high-output, well-integrated performance in large home theatre systems.

  • lifestyle image of Marantz AMP 30 and AV 30

    Technology Leader

    AMP 30 is engineered using best-in-class technologies to enable extraordinary power output, slimline form factor, and the dynamic, rich, warm sound for which Marantz is renowned.

Frequently Asked Questions

What type of amplifier is the Marantz AMP 30?

The AMP 30 is a six-channel power amplifier designed for high-performance home theatre and audio systems, delivering consistent power and control.

How much power does the AMP 30 deliver?

It delivers 200 watts per channel into 8Ω, and up to 400 watts in bridged mode at 4Ω, providing plenty of power for demanding speaker configurations.

What technologies are used in the AMP 30?

The AMP 30 uses Marantz’s exclusive HDAM circuitry and efficient Class D amplification for low distortion and dynamic performance.

Can the AMP 30 drive multiple speakers?

Yes — with its six channels and flexible output modes, it can power a variety of speaker layouts in a home theatre or multi-room setup.

What does BTL mode mean?

BTL (Bridged-Tied-Load) mode lets you combine two amp channels into one, effectively doubling output for demanding speaker loads.

Can the AMP 30 be used with Marantz AV preamps or receivers?

Yes. It pairs seamlessly with Marantz AV preamplifiers or receivers like the AV 30 to expand power in larger home theatre systems.

Is the AMP 30 suitable for large home theatre systems?

Absolutely — its multi-channel design and flexibility make it ideal for immersive audio systems with complex speaker layouts.

What kind of performance can I expect?

With high current capability and robust amplification, the AMP 30 delivers clean, powerful sound with excellent control across all channels.

How does the AMP 30 handle system expansion?

You can combine the AMP 30 with other Marantz amplifiers like AMP 10 or AMP 20 to scale up power and channels in larger installations.

Where is the AMP 30 made?

The AMP 30 is crafted in Shirakawa, Japan, reflecting Marantz’s heritage of high-quality audio engineering.
