Magnetar UDP900 MKII 4K UHD Blu-Ray Player

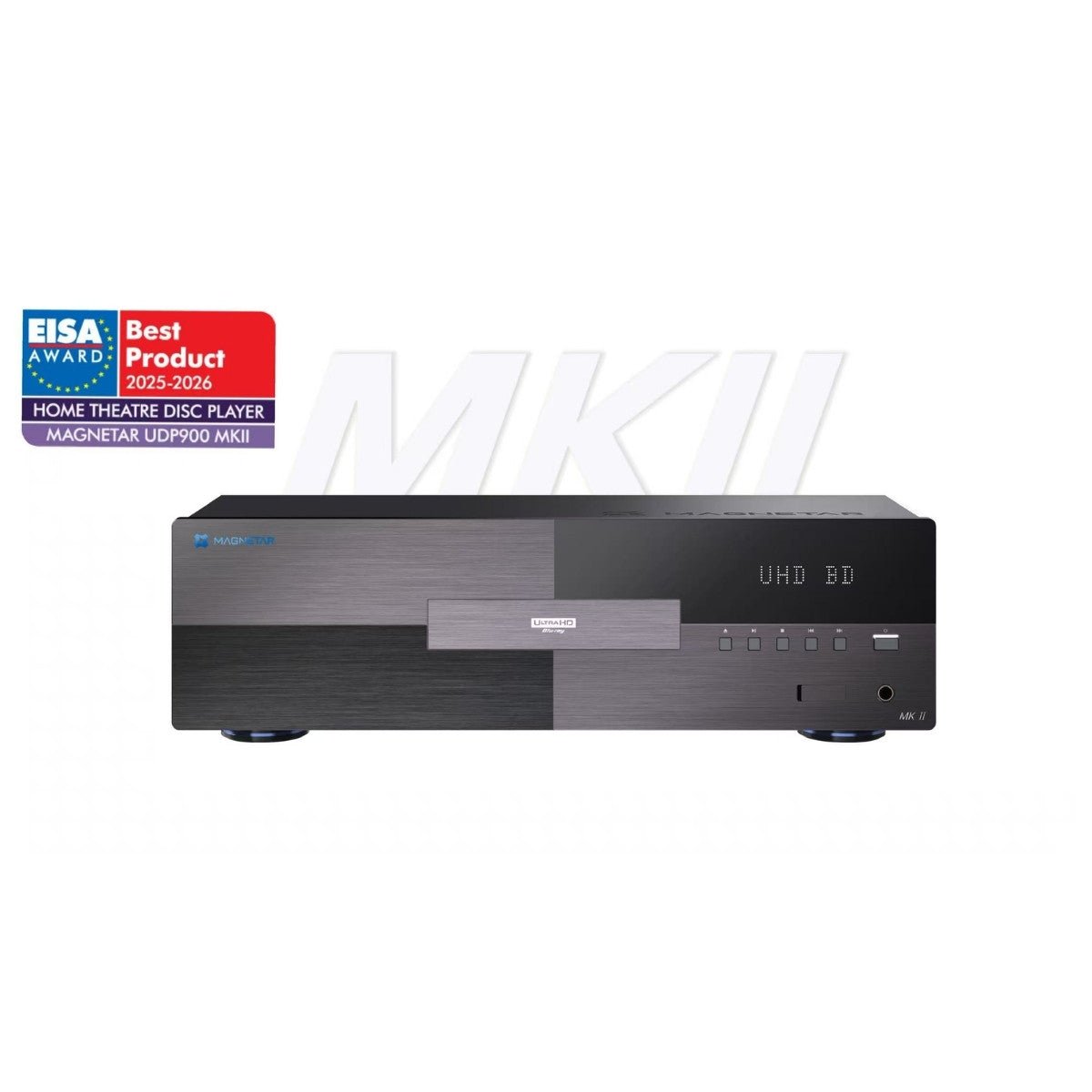

  • front panel of magnetar udp900 mkii bluray player

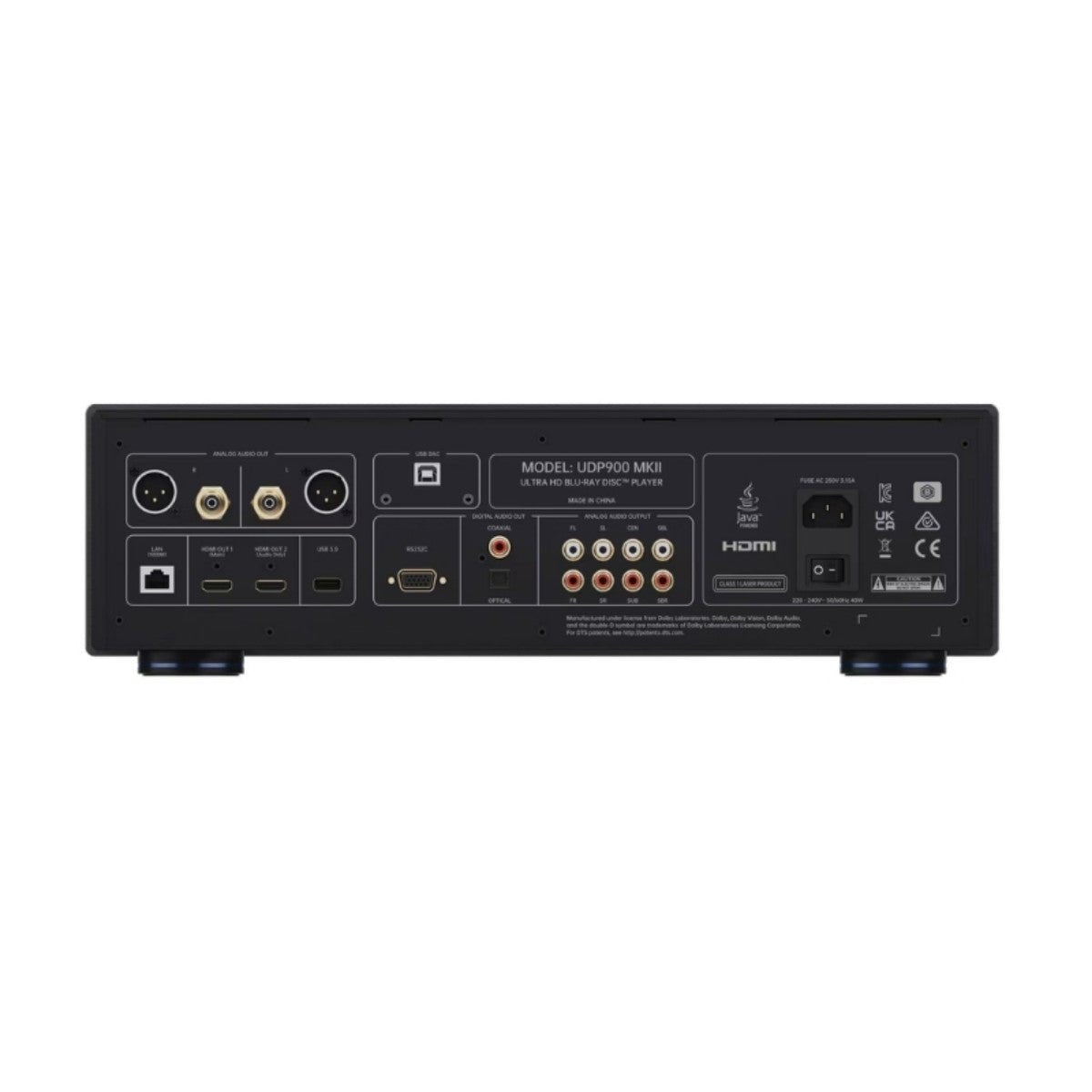

  • back panel of magnetar udp900 mkii bluray player

$4,850.00
$4,850.00

Free Shipping

  • In Stock

For store pickups, please call for availability.

Product Overview

The Magnetar UDP900 MKII is a flagship universal 4K Blu-ray player delivering reference-grade video and audiophile-quality sound. With robust construction, full HDR support, and high-resolution audio playback including SACD and DVD-Audio, it’s the ultimate source component for elite home theatre and two-channel systems.

Features

  • Flagship universal disc playback: 4K UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, DVD-Audio, SACD (stereo & multichannel), CD and USB/Network-based media.
  • Full HDR support: HDR10, HDR10+ and Dolby Vision – ensuring rich contrast, vivid color, and compatibility with the latest HDR displays.
  • Roon Ready in certification
  • Newly redesigned 2.0 audio boards with seven OPA1602 op-amps
  • TMDS retiming on HDMI audio port
  • Enhanced USB 3.0 system with isolated power
  • Upgraded copper wiring and Amphenol/JST connectors
  • Control 4 Support
  • Crestron Support

Specifications

Disc Formats

  • UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD，SACD, CD, Kodak Picture CD, CD-R/RW, DVD±R/RW, DVD±R DL, BD-R/RE

Outputs

  • Analog Audio Output: 7.1 channel RCA, 2 channel RCA and Balanced XLR
  • Digital Audio Output: Optical, Coaxial, HDMI
  • HDMI audio: up to 7.1 channel /192kHz PCM, up to 5.1 channel DSD, Bitstream
  • HDMI video: UHD 23.976/25/30/50/59.94/60hz, 1080 I/P, 720P, 576I/P, 480I/P, source direct.

Analog Audio Characteristics (2-channel)

  • Frequency Range: 20Hz ~ 50kHz (±0.01dB)
  • Signal – to – noise ratio: ≥120dB (RCA); ≥130dB (XLR)
  • Total Harmonic Distortion + Noise: ≤ 0.0005%
  • Output Level: (RCA) ≤3Vrms; (XLR) ≤6Vrms
  • Dynamic Range: ≥120dB (RCA); ≥130dB (XLR)
  • Channel Separation: ≥110dB (RCA); ≥130dB (XLR)

Analog Audio Characteristics (7.1 Channel)

  •  Frequency Range: 20Hz ~ 50kHz (±0.01dB)
  •  Signal – to – noise ratio: ≥120dB
  •  Total Harmonic Distortion + Noise: ≤ 0.0005%
  • Output Level: ≤3Vrms
  • Dynamic Range: ≥120dB
  • Channel Separation: ≥110dB

General Specification

  • Power supply: AC 110-120V ~ 50/60Hz / AC 220-240V ~ 50/60Hz
  • Power consumption: <40W, Standby<0.5W
  • Dimensions: 445 x 321 x 133 mm
  • Weight: 15.4kg
  • Operating Temperature: 5°C~ 35°C (41°F ~ 95°F)
  • Operating Humidity: 15% ~ 75%

  • Advanced Image/Audio Processing Technology

     High-quality copper-core wires are used throughout the device, the in-machine PCB connectors have been upgraded to JST and Amphenol brands, enhancing the stability and reliability of the connections.

  • Exceptional Audio - Visual Experience

    The ESS9038PRO D/A decoder offers stereo and multi-channel outputs. With XMOS USB Audio input capable of handling PCM768 and DSD512, UDP900 MKII offers premium audio output. The TMDS retiming function on the HDMI AUDIO port also refines audio quality.

  • Versatile Compatibility

    Adding a USB3.0 HUB chip and redesign the USB3.0 power supply to improve the compatibility and stability of the USB3.0 port, so as to better adapt to USB flash drives and hard drives. Also enhances the stability of data transmission and increases the transmission speed, thus achieving better sound and picture effects.

USB Audio

Upgrade USB AUDIO to PCM768 and DSD512, greatly improve the audio data transmission and processing capabilities, and provide higher-quality audio output.
