Magnetar UDP800 MKII 4K UHD Blu-Ray Player

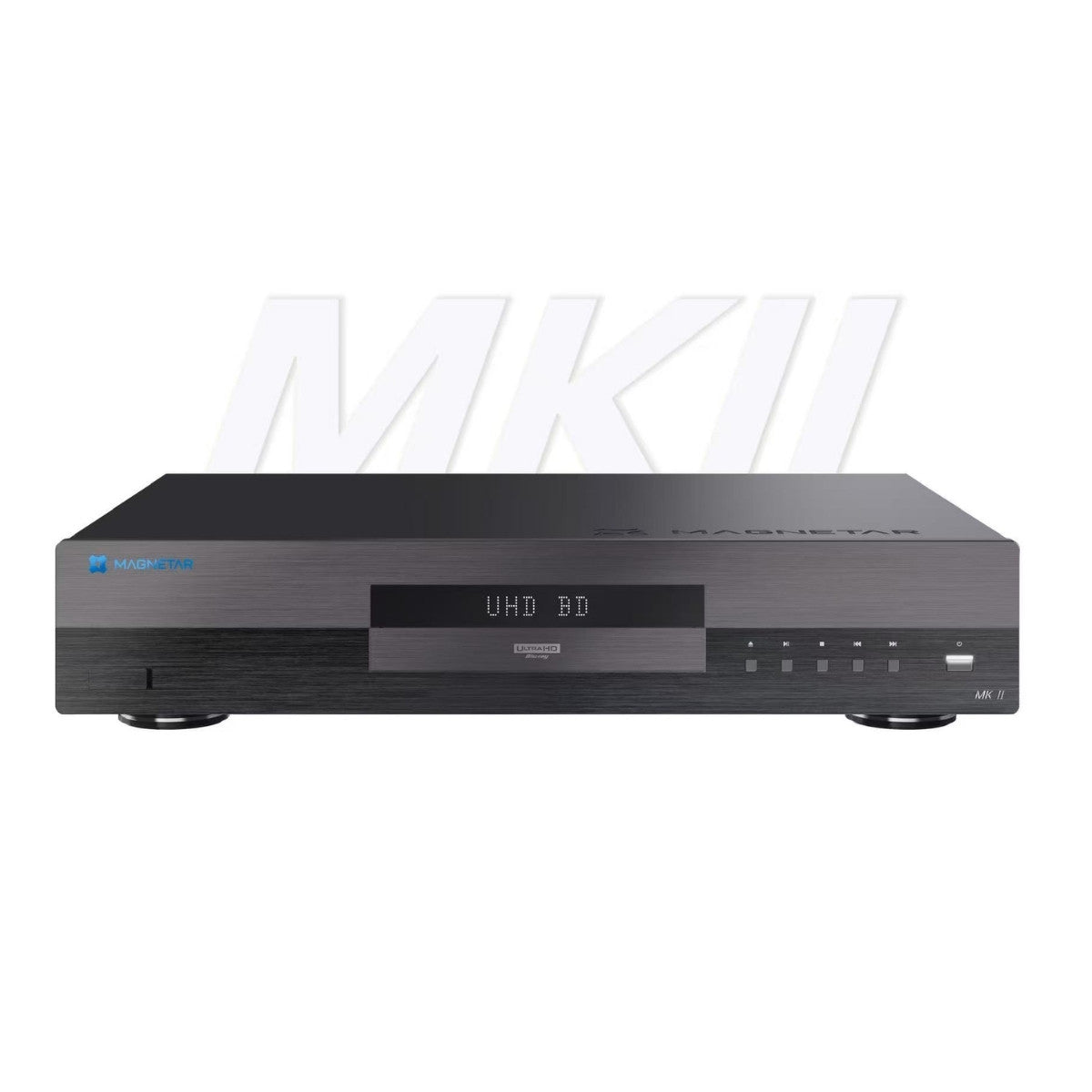

  • front panel of magnetar udp800 bluray player

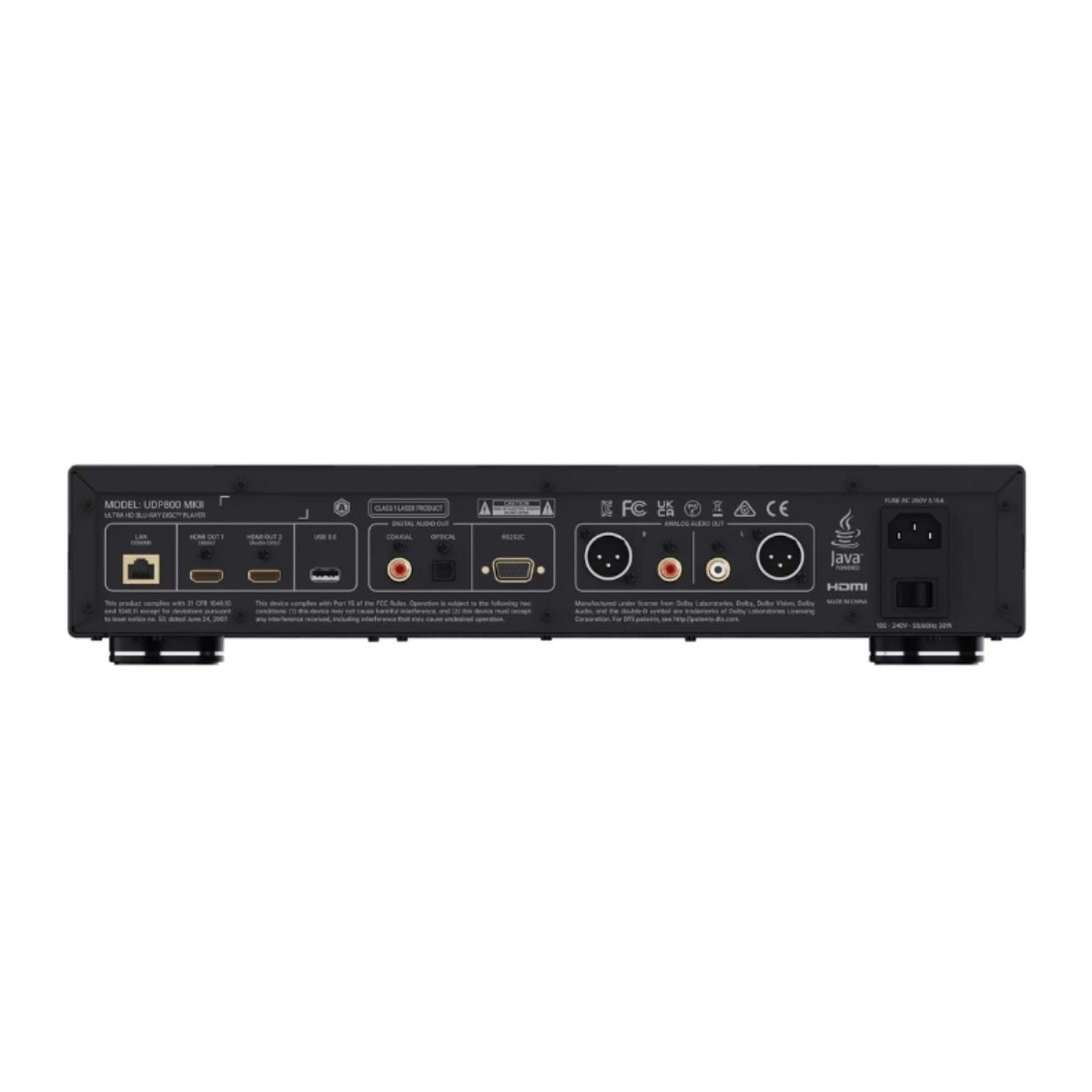

  • back panel of magnetar udp800 mkii bluray player

UDP800 MKII

$2,700.00
$2,700.00

Free Shipping

  • In Stock

(For store pickups, please call for availability.)

Product Overview

The Magnetar UDP800 MKII is a high-end 4K Blu-ray and universal disc player designed for serious home theatre and audiophile systems. Featuring heavy-duty construction, dual-HDMI outputs, Dolby Vision/HDR10+ support, and playback for SACD, DVD-Audio, and high-resolution music files, it delivers reference-level video and exceptional sonic purity.

Features

  • 4K UHD Blu-ray playback with HDR10+ and Dolby Vision
  • Universal media compatibility: Blu-ray, SACD, DVD-Audio, CD, and hi-res audio formats
  • Roon Ready in certification
  • Newly redesigned 2.0 audio boards with seven OPA1602 op-amps
  • TMDS retiming on HDMI audio port
  • Enhanced USB 3.0 system with isolated power
  • Upgraded copper wiring and Amphenol/JST connectors
  • Control 4 Support
  • Crestron Support

Specifications

Disc Formats

  • UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD, SACD, CD, Kodak Picture CD, CD-R/RW, DVD±R/RW, DVD±R DL, BD-R/RE

Outputs

  • Analog audio: stereo
  • Independent stereo analog audio: XLR balanced output, RCA output
  • Optical/coaxial audio: up to 2 channels /192kHz PCM, Dolby Digital, DTS
  • HDMI audio: up to 7.1 channel /192kHz PCM, up to 5.1 channel DSD, Bitstream
  • HDMI video: UHD 23.976/25/30/50/59.94/60hz, 1080 I/P, 720P, 576I/P, 480I/P, source direct.

Analog Audio Characteristics

  • Frequency range: 20Hz-20kHz (±0.05dB)
  • Signal-to-noise ratio: ≥120dB
  • Total harmonic distortion + Noise: ≤0.01%
  • Output level: (RCA) 2. 1±0.2Vrms; (XLR) 4.2±0.4Vrms
  • Dynamic range: AGT: ≥120dB
  • Channel separation:  ＞100dB (RCA); ＞120dB (XLR)

General Specification

  • Power supply: AC 100-240V ~, 50/60Hz
  • Power consumption: <30W, Standby<0.5W
  • Size: 430 mm x 300 mm x 90 mm
  • Weight: 6.8kg
  • Operating temperature:  5° C ~ 35° C （41° F ~ 95° F）
  • Operating humidity: 15% ~ 75%

  • Advanced Image/Audio Processing Technology

     High-quality copper-core wires are used throughout the device, the in-machine PCB connectors have been upgraded to JST and Amphenol brands, enhancing the stability and reliability of the connections.

  • Stunning Audio - Visual Quality

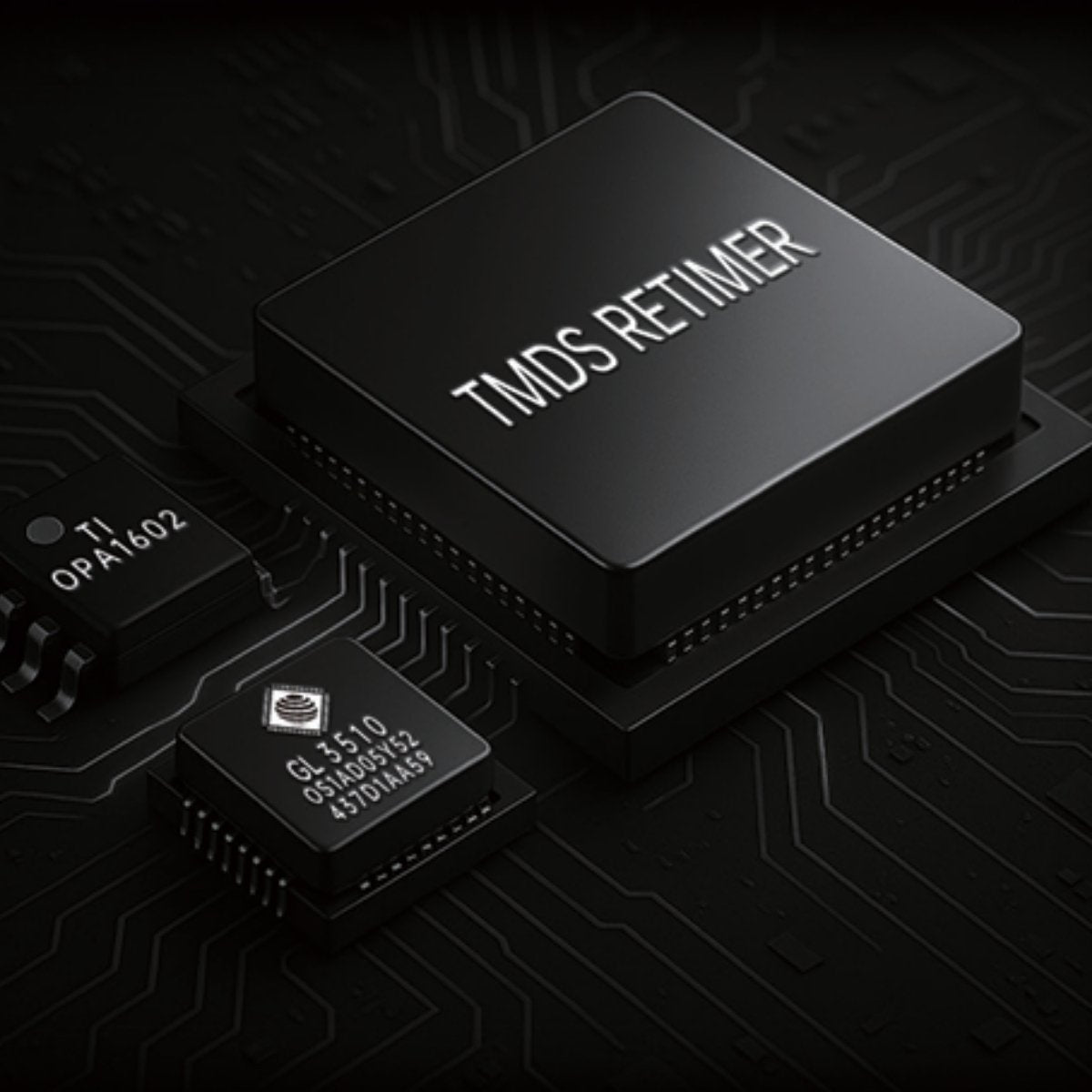

    Adding the TMDS retiming function to the mainboard’s HDMI AUDIO port, which can effectively compensate for random jitter, provide better signal quality and load-carrying capacity, and further improve the HDMI audio quality, making the sound details richer.

  • Versatile Compatibility

    Adding a USB3.0 HUB chip and redesign the USB3.0 power supply to improve the compatibility and stability of the USB3.0 port, so as to better adapt to USB flash drives and hard drives. The optimization also enhances the stability of data transmission and increases the transmission speed, thus achieving better sound and picture effects.
