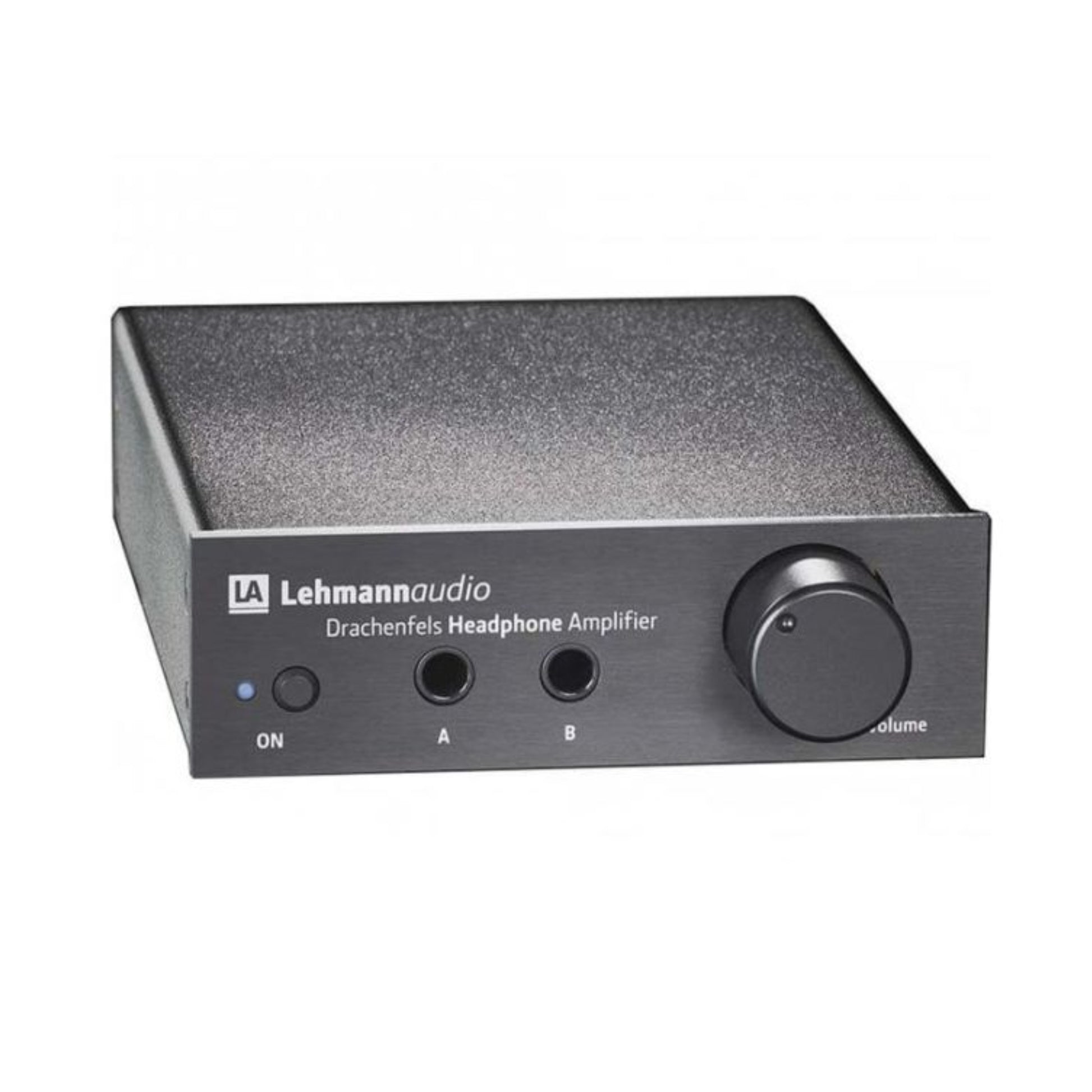

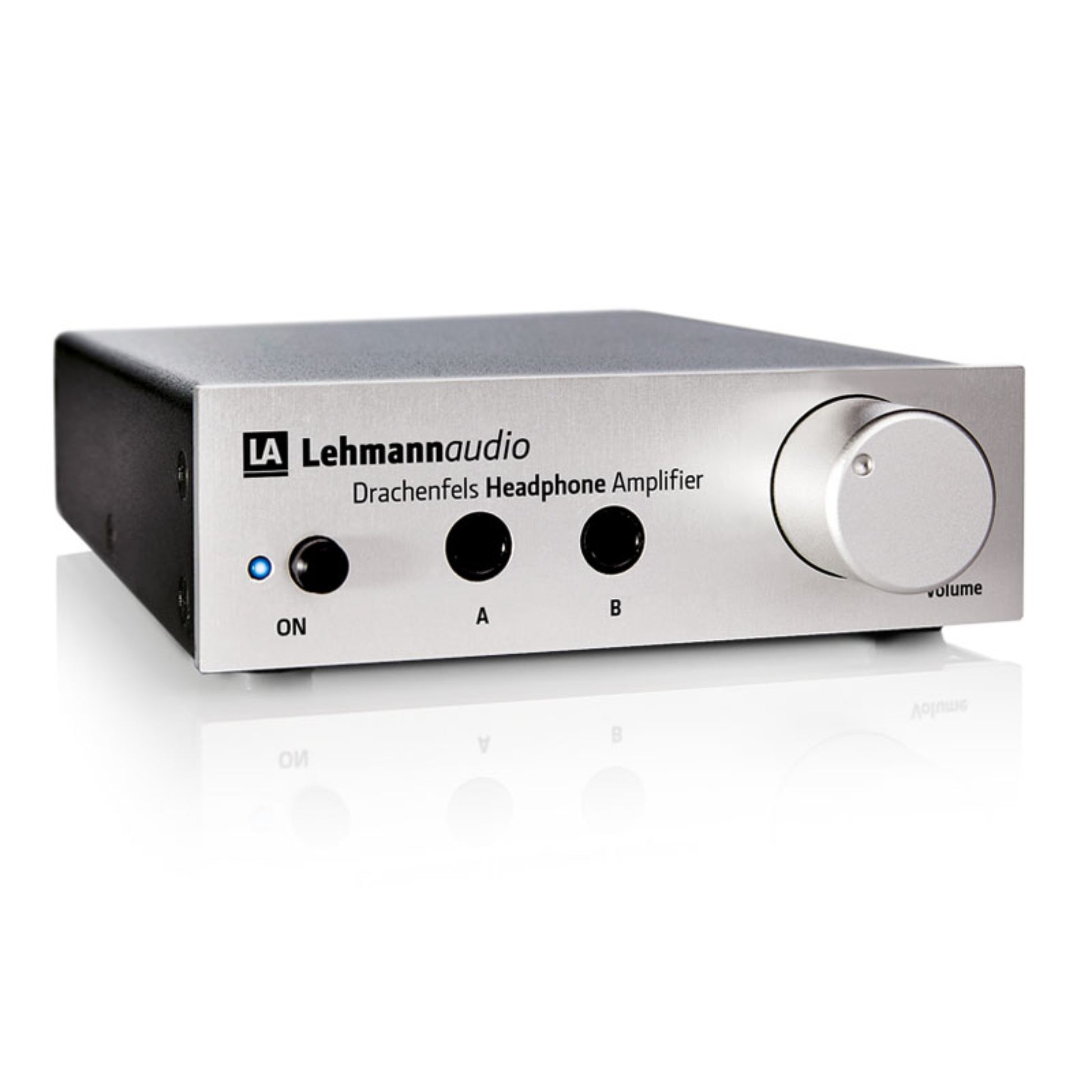

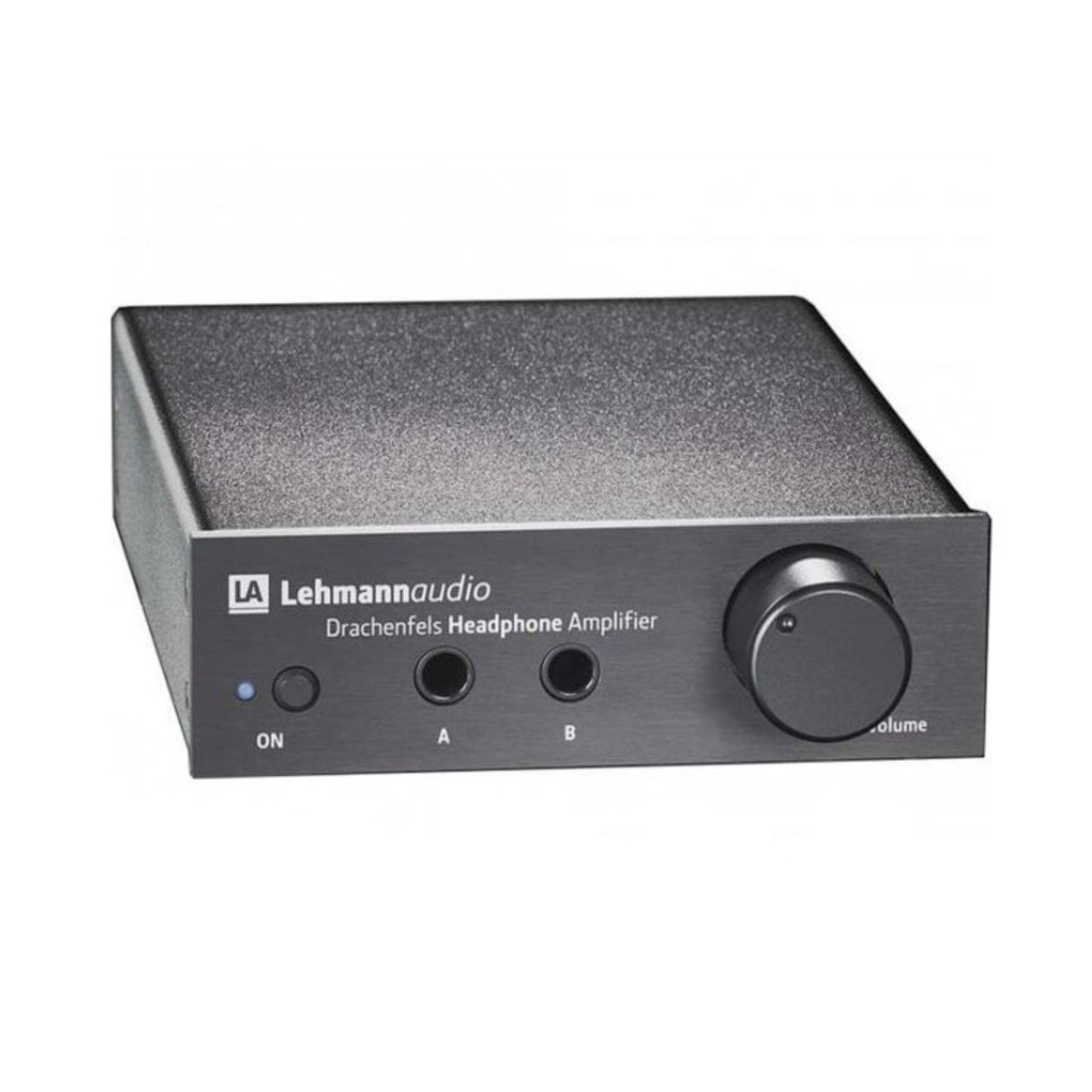

Lehmann Audio DRACHENFELS Headphone Amplifier

Skip to product information
1 of 2

Lehmann Audio

DRACHENFELS BLACK

Regular price $876.00
Sale price $876.00 Regular price

Free Shipping

Color
  • In Stock

(For store pickups, please call for availability.)



With the introduction of the Linear in 2004, Lehmannaudio raised the sound quality of headphone amplifiers to a new level. The Drachenfels now represents a new generation of headphone amps: our champion with an entry-level price tag scores with leading-edge technology and, owing to its modular options, can be matched to ever new situations. With regard to sound it’s particularly the tremendous wealth of detail that strikes the ear, together with a perfect control of what’s going on. Even in the thickest musical hurly-burly the structure remains discernible at any time and every detail clear-cut.

Analogue? Digital? Drachenfels!

The modular design with cutting-edge components opens long-term perspectives for quality-minded music lovers who have demands on sustainability. No matter if streaming via WLAN or ethernet, linking Bluetooth sources or conventional digital players – owing to modular pc boards, which are available at short notice, the Drachenfels gives the right answer to all of these requirements. Even with the advent of new digital standards, a simple swapping of both module and rear panel will enable an upgrade!

The Drachenfels offers 12dB of practice-oriented gain which, due to the smooth running ALPS Blue Velvet potentiometer with excellent synchronism and the ultra low-noise circuit, dispenses with the need for a gain switch. The power switch located on the front reduces the power consumption in standby mode to an eco-friendly value of less than 1 W. Moreover, its space-saving dimensions offer you plenty of placing options for the Drachenfels. Use it as a headphone amplifier or preamp and discover the happiness of intense music listening.

Specifications

Overview

  • High-end quality at an affordable price
  • Modular concept to adjust to ever-changing configurations
  • ALPS Blue Velvet potentiometer
  • Neutrik headphone socket with gold-plated contacts
  • Low-loss MKP precision capacitors in audio path
  • Configurable as single source preamplifier or dual-input headphone amplifier
  • Aluminium face plate available in silver or black

Audio Performance

  • Frequency Response: 10 Hz (-0.3 dB) – 35 kHz (-1 dB)
  • Signal-to-Noise Ratio: >85 dB (@ 0 dB gain)
  • THD: <0.006% (@ 18 mW / 330 Ω)
  • Channel Separation: >80 dB / 10 kHz
  • Maximum Gain: 12 dB (at maximum volume setting)

Connectivity & Output

  • Input Impedance: 47 kΩ
  • Output Power: 180 mW (33 Ω) | 110 mW (330 Ω)
  • Output Impedance: Line Out 105 Ω | Headphone Out 5 Ω
  • Audio Connectors: Headphone Out (Neutrik gold-plated socket)
  • Line In / Line Out: RCA
  • Switching Line Out and Non-Switching Line Out

Power

  • Power Consumption: Approx. 4 W (standard version, using supplied PSU)

Physical Specifications

  • Dimensions (W x D x H): 160 x 120 x 43 mm
  • Weight: 500 g (net, standard version)
  • Face Plate Finish: Black or Silver
