JVC

JVC DLA-RS2200 4K Laser Home-Theatre Projector

  • front view of jvc dla rs2200 projector in black color

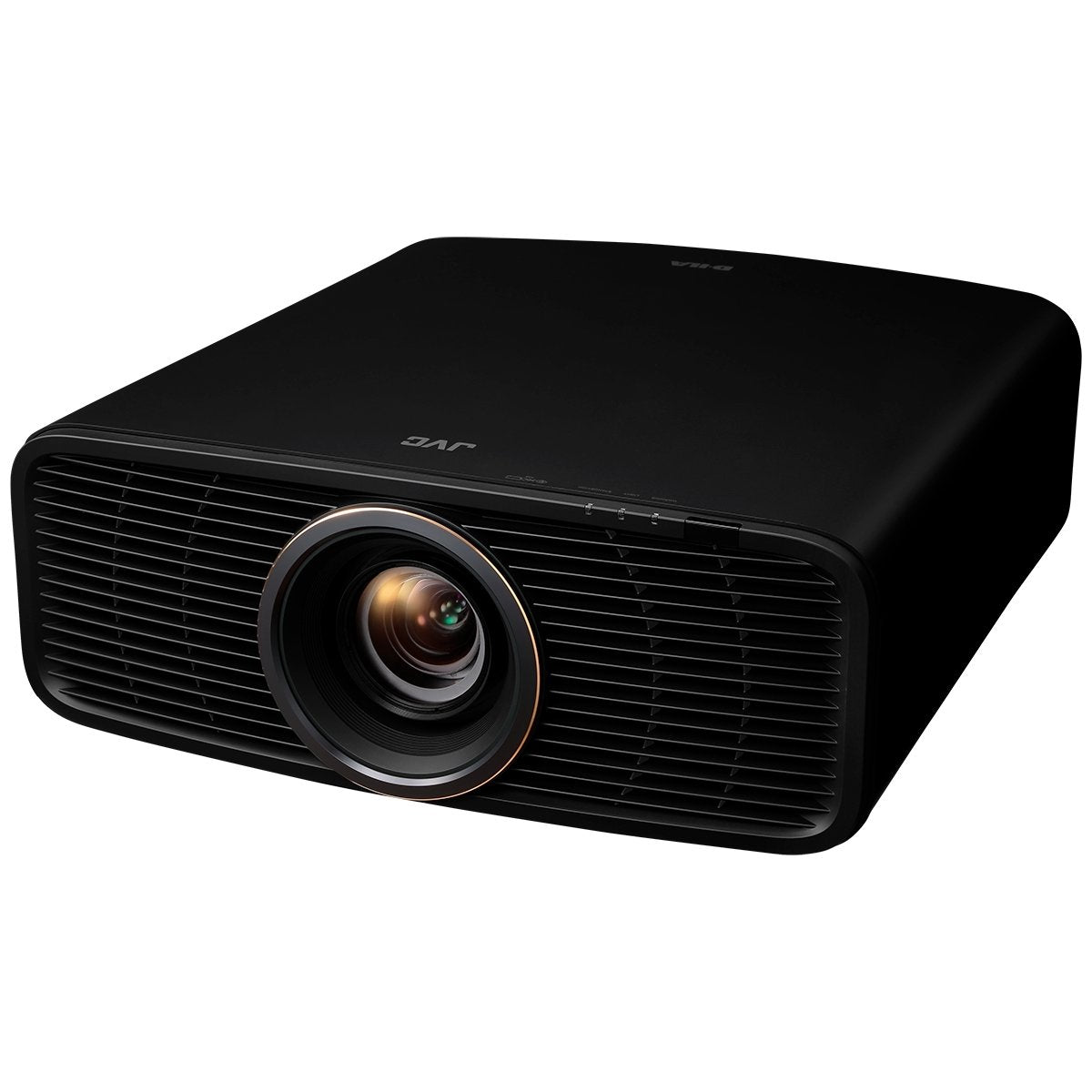

  • angled view of jvc dla rs2200 projector in black color

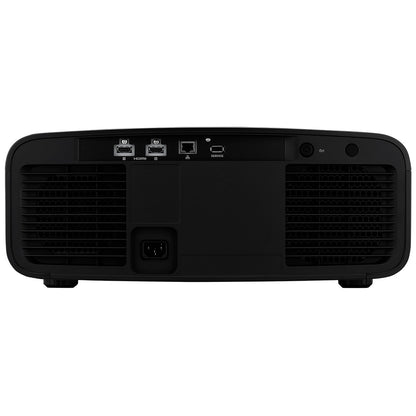

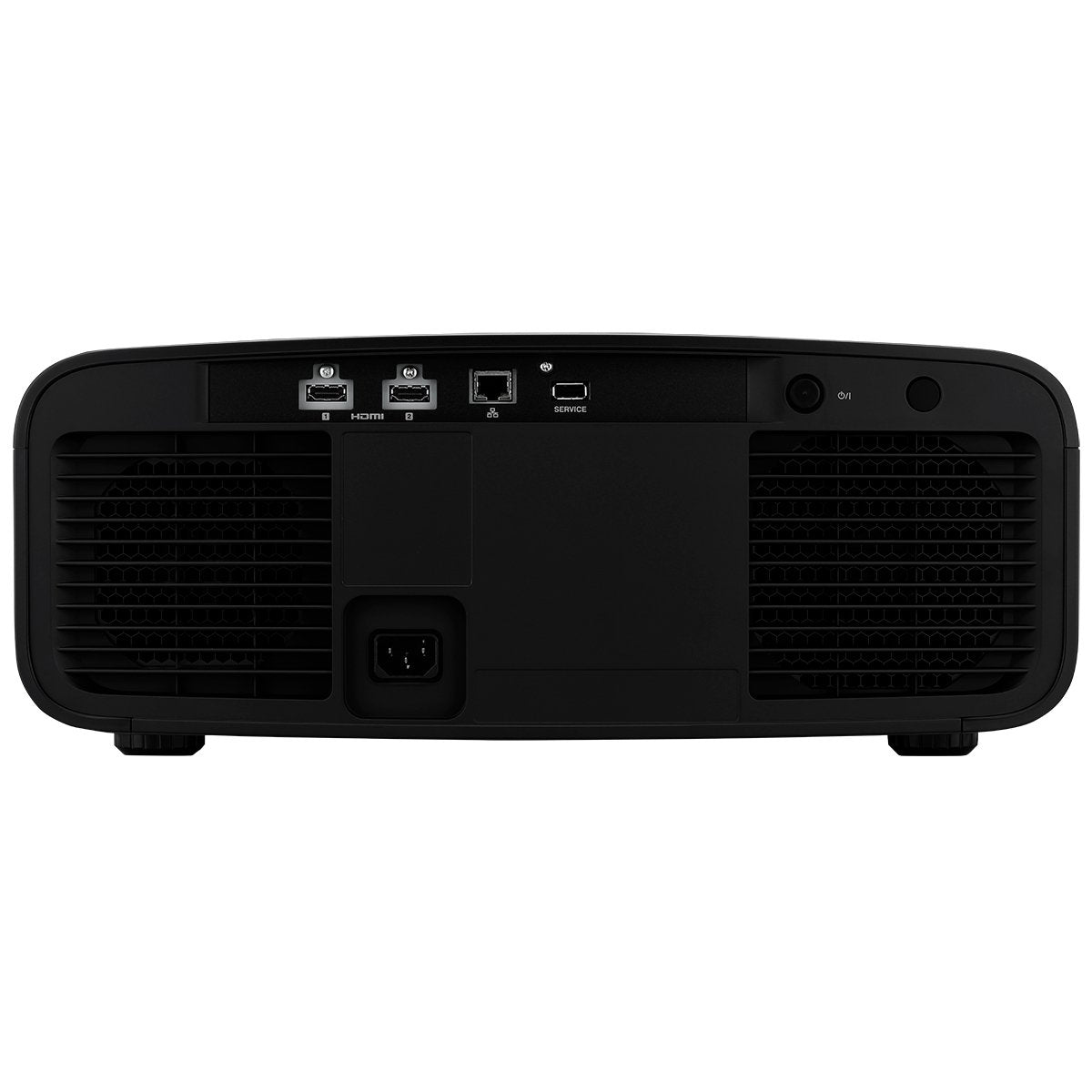

  • back view of jvc dla rs2200 projector in black color

DLA-RS2200

$12,498.00
$12,498.00

In-Store Only

Contact Us

Please call us at 1-905-270-3440 or simply fill out the form below for ordering & more info.

Product Overview

The JVC DLA-RS2200 is a premium native 4K D-ILA laser projector engineered for the ultimate home-theatre experience. With a 2,300-lumen BLU-Escent laser light source, remarkable 80,000:1 native contrast ratio, full HDR10+, HLG and Gen2 Frame Adapt HDR support, and a 1.6× large-aperture 80 mm motorised lens with ±70% vertical and ±28% horizontal shift — it brings cinematic detail, deep blacks and installation flexibility to dedicated home theatres.

Features

  • Native 4K resolution (4096 × 2160) with 0.69" D-ILA devices (3-chip system)
  • BLU-Escent laser light source delivering 2,300 lumens brightness
  • 80,000 : 1 native contrast and infinite dynamic contrast for deep blacks and vivid detail
  • Full HDR support including HDR10, HDR10+, HLG, and Frame Adapt HDR (dynamic tone-mapping)
  • Large-aperture 80 mm all-glass motorized lens with 1.6× zoom and ±70% vertical / ±28% horizontal lens shift
  • Advanced color reproduction with 12-bit processing and full 100% Rec. 709 coverage
  • Low fan noise (approx. 23 dB) for quiet theatre environments
  • Dual HDMI inputs supporting 4K60p and HDCP 2.3
  • Built-in LAN and USB connections for control and firmware updates
  • Auto Calibration and 6-Axis Color Management for precise image tuning
  • Compact body with rear-exhaust design for flexible installation
  • Compatible with Control4 SDDP home automation systems

Specifications

• Device
• D-ILA Technology: Yes
• Chip Type: 3rd Generation 0.69-inch 4K D-ILA device
• Native Resolution: 4096 × 2160
• Number of Chips: 3
• Display Resolution: 4096 × 2160

• Light Source
• Laser: Yes
• Type: BLU-Escent Laser Diode
• Life Time (Standard Mode): 20,000 hours

• Picture
• Brightness: 2,300 lumens
• Dynamic Contrast: ∞ : 1
• Native Contrast: 80,000 : 1
• Dynamic Light Power Control: Yes
• Modes: Low, High, Balance, Off
• Manual Aperture: Yes (range -15 to 0)
• DCI-P3 Color Gamut: Yes
• 100% Rec. 709: Yes
• Color Bit Depth: 12-bit
• ISFccc Certification: Yes

• HDR
• HDR10: Yes
• HDR10+: Yes
• Frame Adapt HDR: Yes
• HLG: Yes
• Mastering Info Display: Yes (MaxCLL, MaxFALL, DML)
• Deep Black Tone Control: Yes

• Lens
• Zoom: 1.6×
• Throw Ratio: 1.34–2.14 (16:9) / 1.26–2.01 (17:9)
• Diameter: 80 mm
• Build: 15-element, 11-group
• Lens Shift: ±28% horizontal / ±70% vertical
• Motorized Zoom / Shift / Focus: Yes
• Projection Display Size (Diagonal): 60–200 inches
• Memory Function: Yes (5 user presets)
• Lens Cover: Yes

• HDMI
• HDMI: Yes
• Number of Inputs: 2
• Data Rate: 32 Gbps
• HDCP Version: 2.3
• 4K60P Signal Input: Yes
• Video Signal Range: 480p, 576p, 720p 50/60, 1080p 24–60, 3840×2160p 24–60, 4096×2160p 24–60
• PC Signal Range: 640×480 to 2560×1440
• Input Level Adjustment: Auto / Standard (16–235) / Enhanced (0–255) / Super White (16–255)
• Color Space Range: Auto / YCbCr444 / YCbCr422 / RGB
• EDID Modes: Standard, Option1, Option2

• Connections
• LAN: Yes (RJ45)
• Service Port: USB Type-A for firmware update or backup

• Picture Settings
• Picture Modes: Natural, Cinema, Filmmaker, Vivid, Frame Adapt HDR1, Frame Adapt HDR2, HDR10+, HLG, 4 User Modes
• Color Temperatures: Xenon 1, Xenon 2, 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2
• Gamma Processing Depth: 12-bit
• Gamma Adjust: HDR (Auto/PQ/HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Vivid, 3 Custom Modes
• Color Management: 6-Axis Adjustable CMS
• MPC: Yes
• Filmmaker Mode: Yes
• Auto Calibration: Yes

• Installation
• Installation Modes: 5
• Included Settings: Lens Control, Pixel Adjustment, Mask, Anamorphic On/Off, Screen Adjust, Installation Style, Keystone, Aspect
• Anamorphic Modes: 4 (A, B, C, D)
• Control4 SDDP: Yes

• Power & Environment
• Power Requirement: AC 100–240V, 50/60Hz
• Power Consumption: 280W (in use)
• Standby Power: 0.3W (Eco) / 1.5W (LAN)
• Fan Noise: 23 dB
• Eco Mode: Yes
• Standby Timer: Yes
• Operating Temperature: 5°C–35°C
• Operating Humidity: 20%–80%
• Installation Angle: Horizontal ±10° / Vertical ±10°
• Installation Height: Below 2,000 m

• In the Box
• Remote Control: Yes (RM-MH27)
• Quick Guide: Yes
• Power Cord: Yes
• Batteries: Yes (2 × AAA)

• Dimensions & Weight
• Product Dimensions (W×H×D): 450 × 181 × 479 mm
• Product Weight: 14.8 kg
• Package Dimensions (W×H×D): 585 × 361 × 600 mm
• Package Weight: 18.9 kg
