JVC

JVC DLA-RS1200 4K Laser Home Theatre Projector

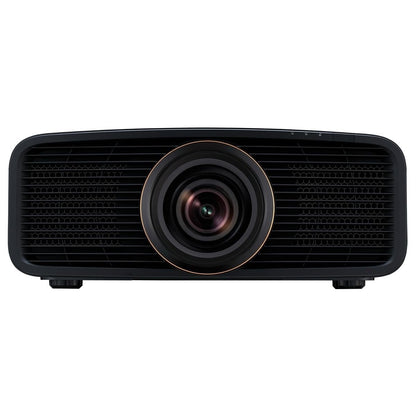

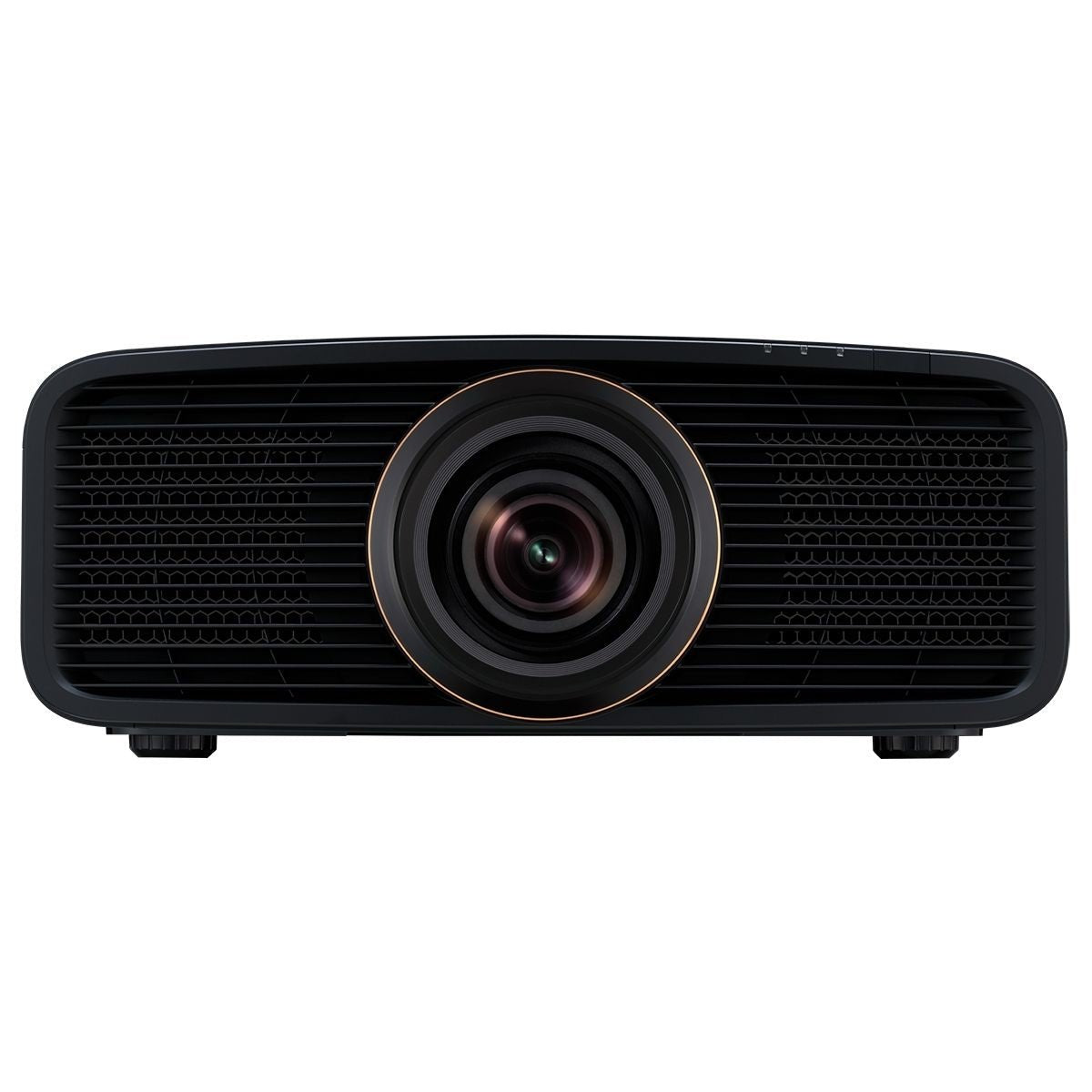

  • front view of jvc dla rs1200 projector in black

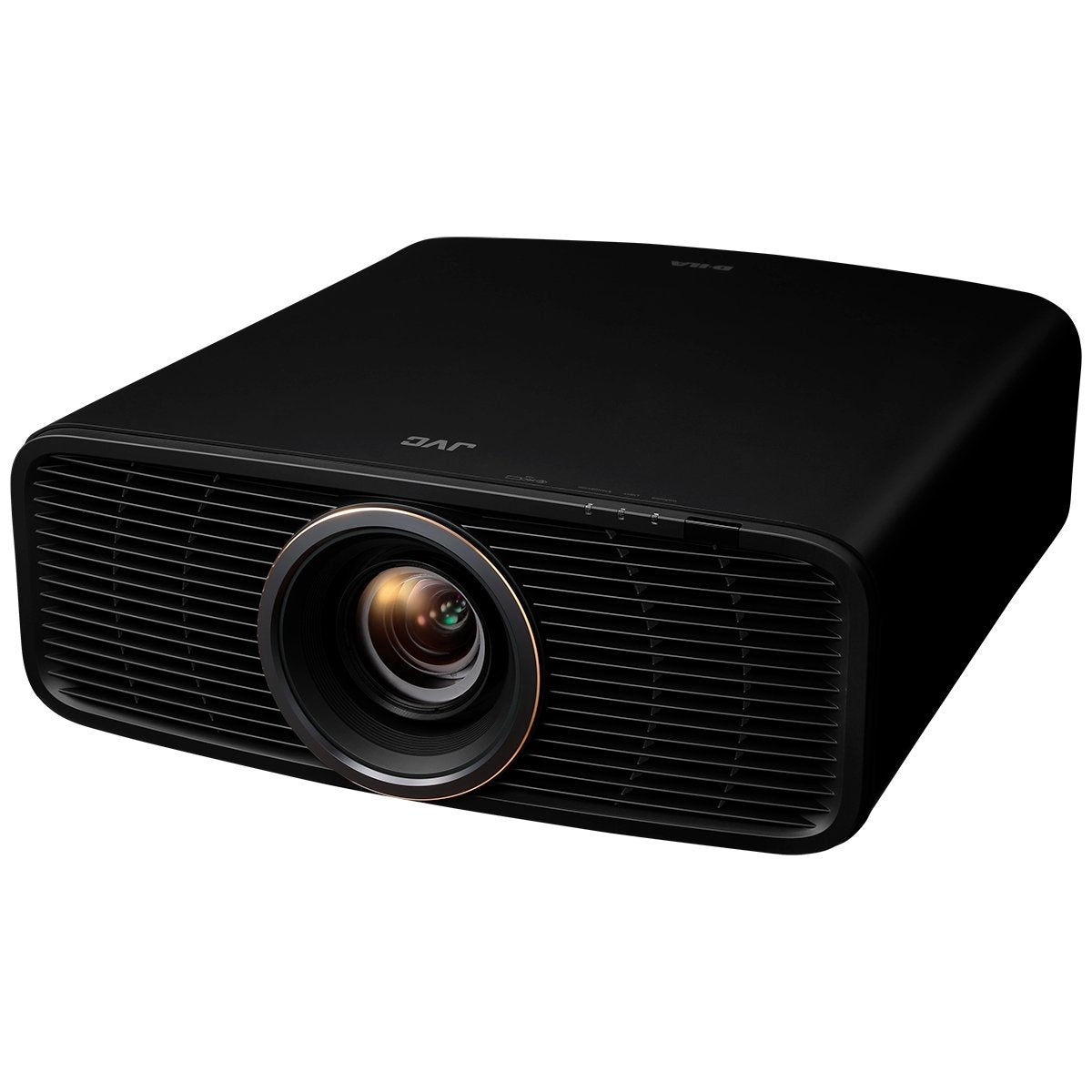

  • angled front view of jvc dla rs1200 projector in black

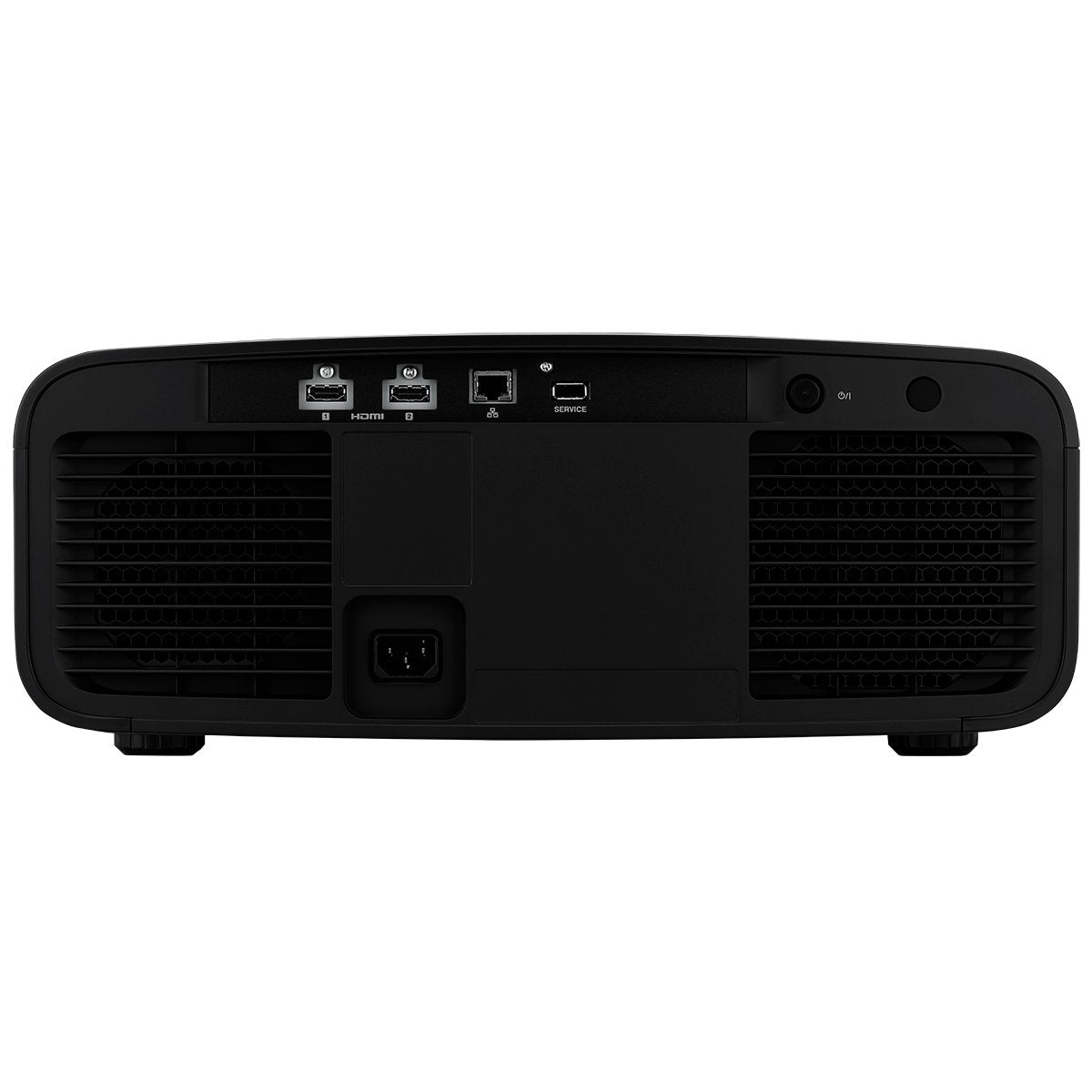

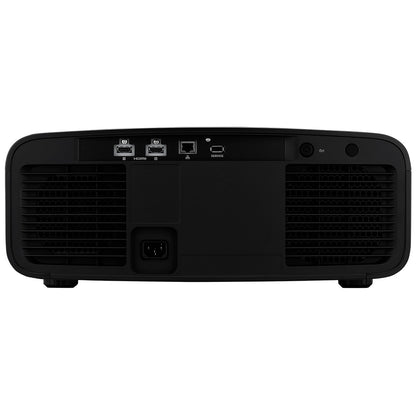

  • back view of jvc dla rs1200 projector in black

DLA-RS1200

$8,498.00
$8,498.00

In-Store Only

Contact Us

Please call us at 1-905-270-3440 or simply fill out the form below for ordering & more info.

Product Overview

The JVC DLA-RS1200 is a native 4K home-theatre projector built for serious cinema performance. Featuring JVC’s 0.69-inch D-ILA devices, a BLU-Escent laser light source delivering 2,000 lumens, and advanced HDR tone-mapping (Gen2 Frame Adapt HDR) to reproduce deep blacks and vibrant colour, this projector delivers immersive visuals with professional-grade precision. With full motorised lens control and broad installation flexibility, it’s perfect for custom home theatres where image quality and automation matter.

Key Features

  • Native 4096 × 2160 (4K) resolution via three 0.69-inch D-ILA devices
  • 2,000 lumens brightness with BLU-Escent laser light source rated ~20,000 hours
  • Native contrast of 40,000 : 1 with extremely deep blacks via “Deep Black Tone Control”
  • Full HDR support including HDR10, HDR10+, HLG and dynamic tone-mapping through Gen2 Frame Adapt HDR
  • Large aperture 80 mm, 15-element / 11-group motorised lens with zoom (1.6×), focus and lens shift (±70 % vertical, ±28 % horizontal)
  • Installation-friendly: compact redesigned body, rear exhaust, USB backup, anamorphic and keystone support, Control4 driver ready

Specifications

• Device
• D-ILA Technology: Yes
• Chip Type: 0.69-inch 4K D-ILA device
• Native Resolution: 4096 × 2160
• Number of Chips: 3
• Display Resolution: 4096 × 2160

• Light Source
• Laser: Yes
• Type: BLU-Escent Laser Diode
• Life Time (Standard Mode): 20,000 hours

• Picture
• Brightness: 2,000 lumens
• Dynamic Contrast: ∞ : 1
• Native Contrast: 40,000 : 1
• Dynamic Light Power Control: Yes
• Modes: Low, High, Balance, Off
• Manual Aperture: Yes (range -15 to 0)
• 100% Rec. 709: Yes
• Color Bit Depth: 12-bit
• ISFccc Certification: Yes

• HDR
• HDR10: Yes
• HDR10+: Yes
• Frame Adapt HDR: Yes
• HLG: Yes
• Mastering Info Display: Yes (MaxCLL, MaxFALL, DML)
• Deep Black Tone Control: Yes

• Lens
• Zoom: 1.6×
• Throw Ratio: 1.34–2.14 (16:9) / 1.26–2.01 (17:9)
• Diameter: 80 mm
• Build: 15-element, 11-group
• Lens Shift: ±28% horizontal / ±70% vertical
• Motorized Zoom / Shift / Focus: Yes
• Projection Display Size (Diagonal): 60–200 inches
• Memory Function: Yes (5 user presets)
• Lens Cover: Yes

• HDMI
• HDMI: Yes
• Number of Inputs: 2
• Data Rate: 32 Gbps
• HDCP Version: 2.3
• 4K60P Signal Input: Yes
• Video Signal Range: 480p, 576p, 720p 50/60, 1080p 24–60, 3840×2160p 24–60, 4096×2160p 24–60
• PC Signal Range: 640×480 to 2560×1440
• Input Level Adjustment: Auto / Standard (16–235) / Enhanced (0–255) / Super White (16–255)
• Color Space Range: Auto / YCbCr444 / YCbCr422 / RGB
• EDID Modes: Standard, Option1, Option2

• Connections
• LAN: Yes (RJ45)
• Service Port: USB Type-A for firmware update or backup

• Picture Settings
• Picture Modes: Natural, Cinema, Filmmaker, Vivid, Frame Adapt HDR1, Frame Adapt HDR2, HDR10+, HLG, 4 User Modes
• Color Temperatures: 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2
• Gamma Processing Depth: 12-bit
• Gamma Adjust: HDR (Auto/PQ/HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Vivid, 3 Custom Modes
• Color Management: 6-Axis Adjustable CMS
• MPC: Yes
• Filmmaker Mode: Yes
• Auto Calibration: Yes

• Installation
• Installation Modes: 5
• Included Settings: Lens Control, Pixel Adjustment, Mask, Anamorphic On/Off, Screen Adjust, Installation Style, Keystone, Aspect
• Anamorphic Modes: 4 (A, B, C, D)
• Control4 SDDP: Yes

• Power & Environment
• Power Requirement: AC 100–240V, 50/60Hz
• Power Consumption: 280W (in use)
• Standby Power: 0.3W (Eco) / 1.5W (LAN)
• Fan Noise: 23 dB
• Eco Mode: Yes
• Standby Timer: Yes
• Operating Temperature: 5°C–35°C
• Operating Humidity: 20%–80%
• Installation Angle: Horizontal ±10° / Vertical ±10°
• Installation Height: Below 2,000 m

• In the Box
• Remote Control: Yes (RM-MH27)
• Quick Guide: Yes
• Power Cord: Yes
• Batteries: Yes (2 × AAA)

• Dimensions & Weight
• Product Dimensions (W×H×D): 450 × 181 × 479 mm
• Product Weight: 14.6 kg
• Package Dimensions (W×H×D): 585 × 361 × 600 mm
• Package Weight: 18.9 kg
