iFi Audio iDSD Phantom | Flagship DAC, Ultra-Res Streamer & Headphone Amp

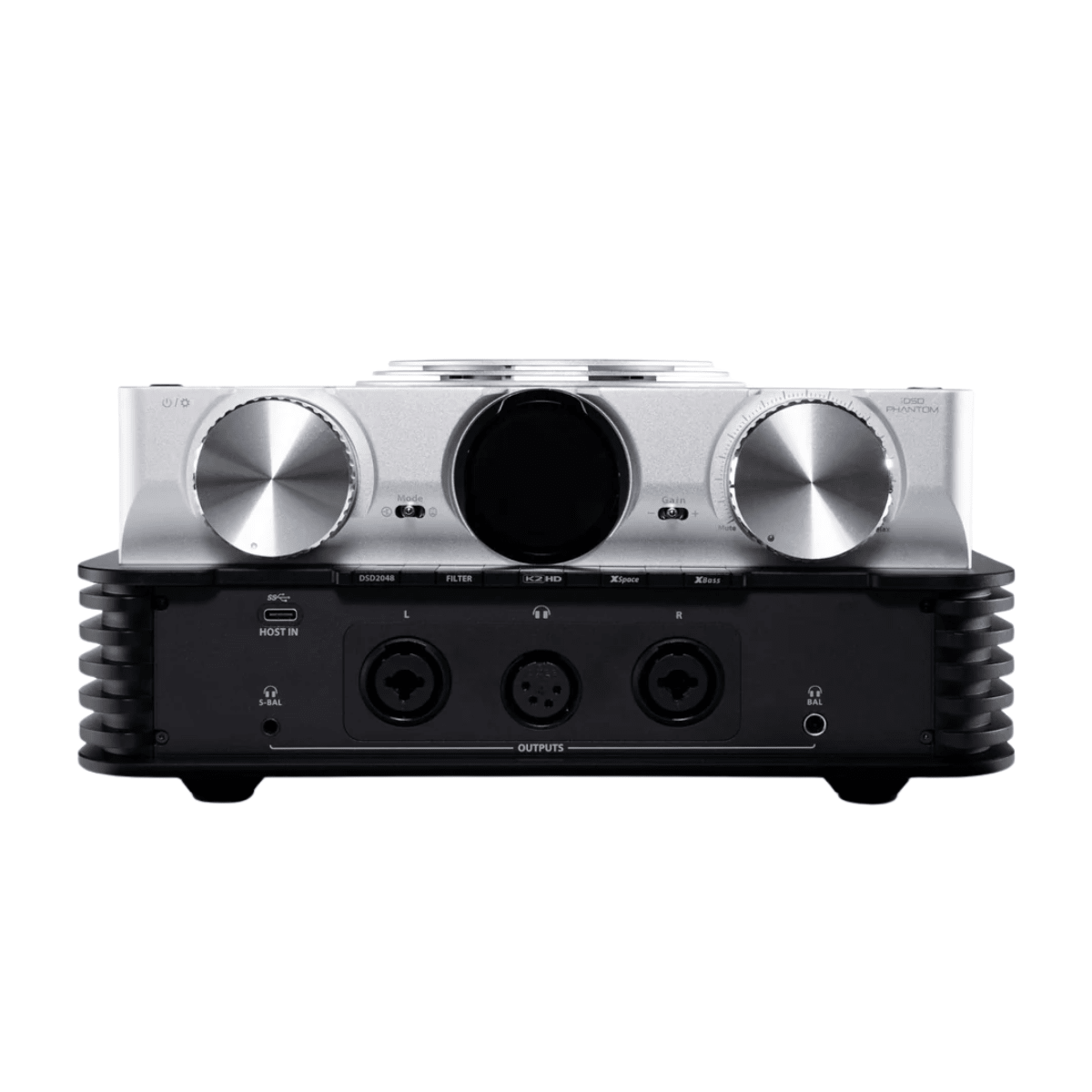

  • ifi audio idsd phantom front view

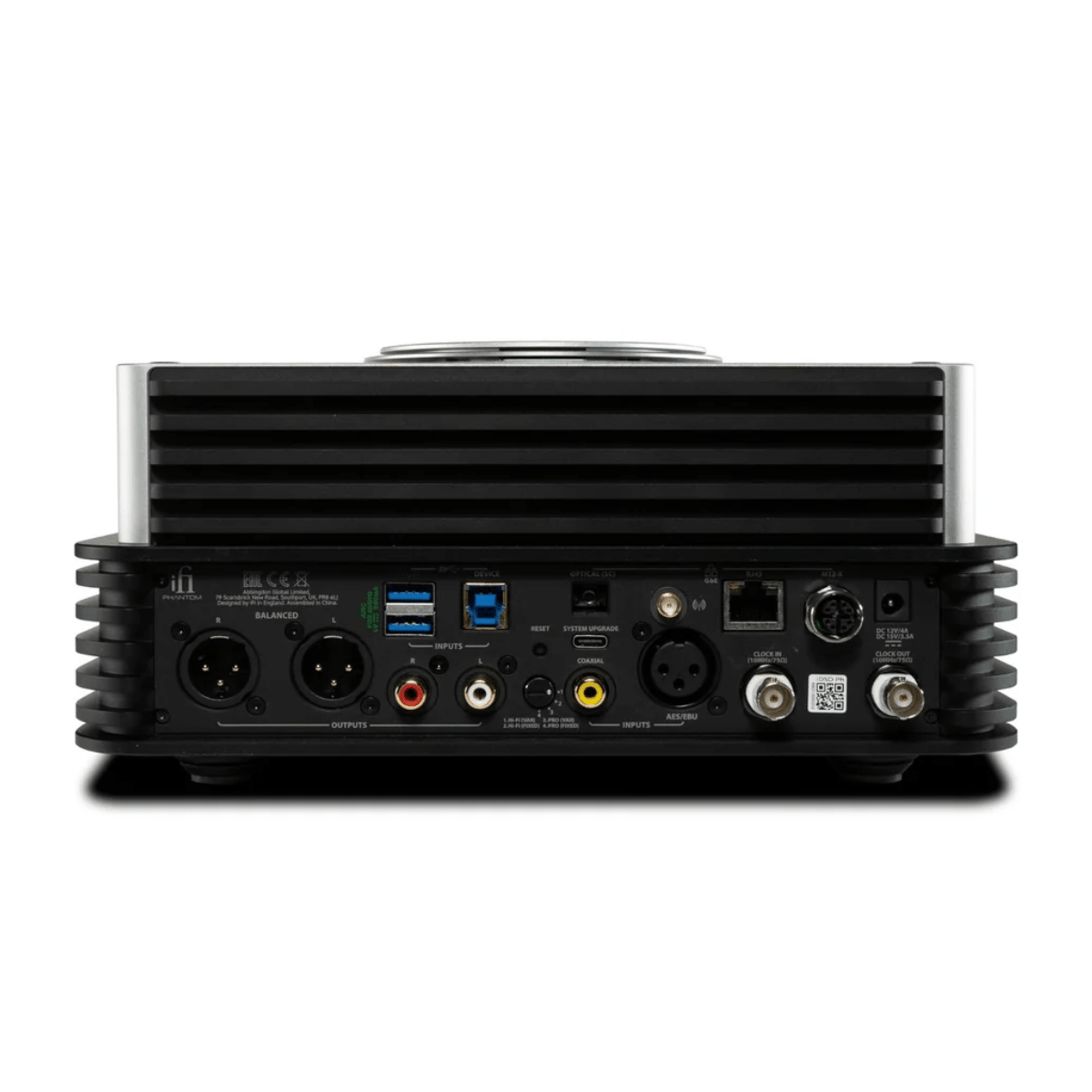

  • ifi idsd phantom streamer back view

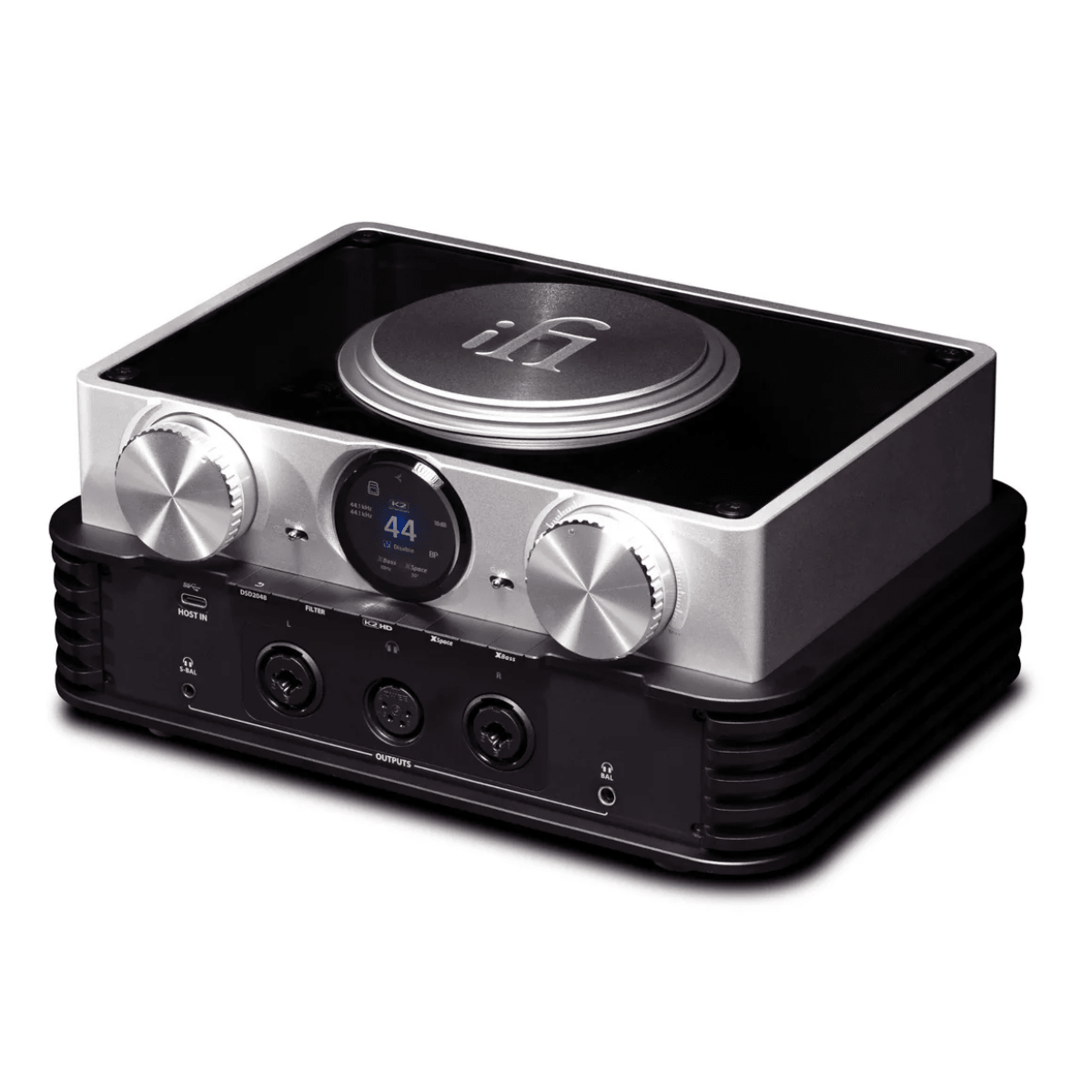

  • ifi idsd phantom streamer angled view

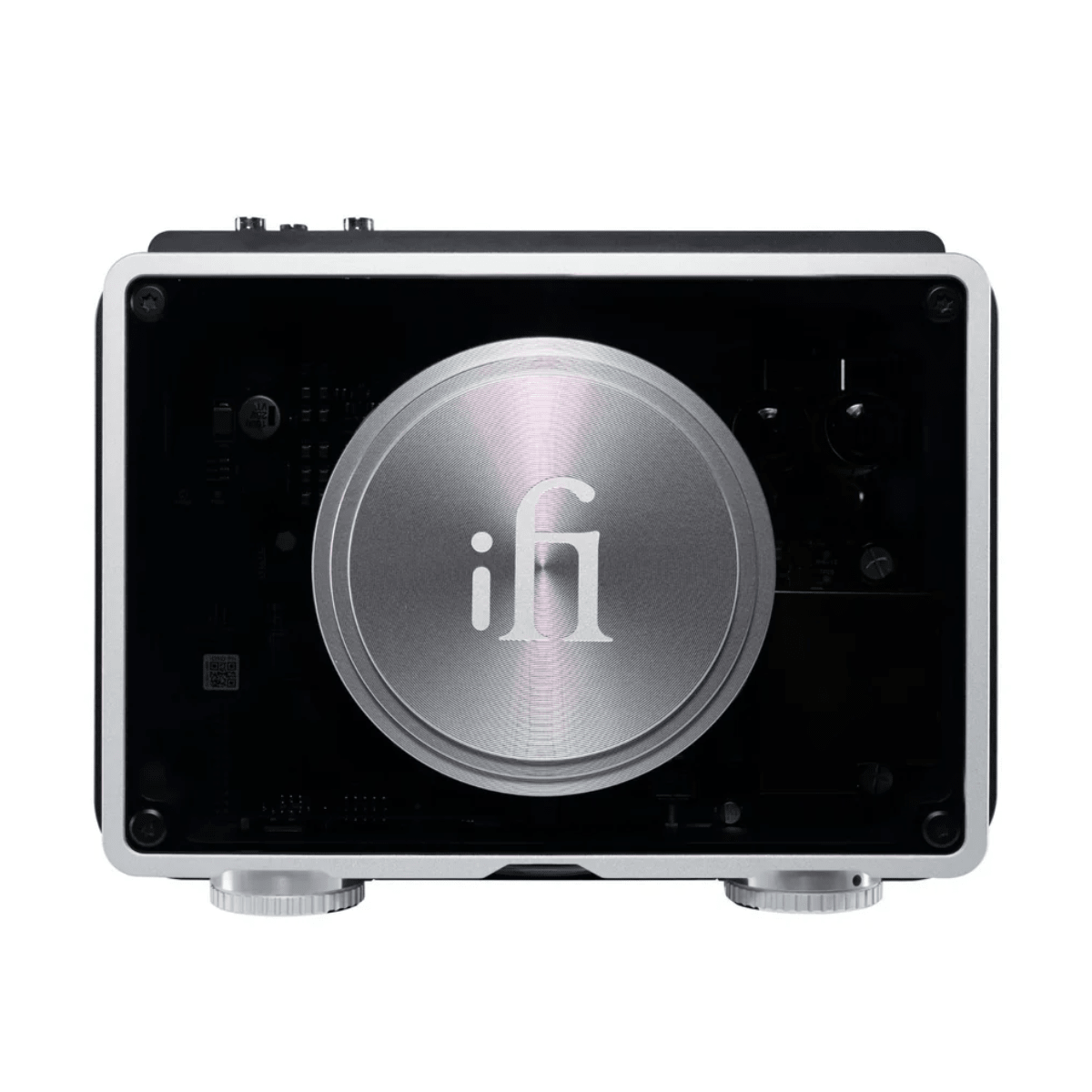

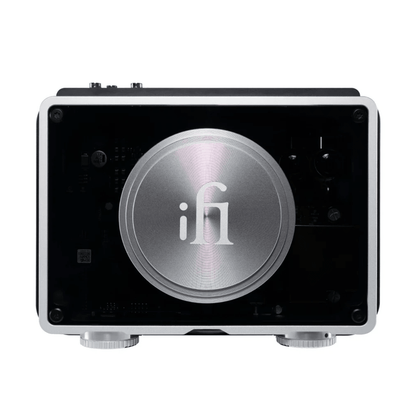

  • ifi idsd phantom streamer top view

IDSD PHANTOM

$6,750.00
$6,750.00

Free Shipping

  • Lead time: 2-3 weeks.

For store pickups, please call for availability.

Product Overview

The iFi Audio iDSD Phantom is a flagship all-in-one digital audio system that combines a reference-grade DAC, high-resolution network streamer, and powerful headphone amplifier in a single chassis. Designed for ultimate sound quality, it supports ultra-high-resolution formats up to DSD2048 and offers multiple output modes to tailor the sound to your personal listening preferences. With advanced digital processing, robust amplification, and exceptional build quality, the iDSD Phantom delivers a truly reference-class listening experience for demanding audiophiles.

Specifications

Analogue Inputs

– None

Digital Inputs

– 1 × USB-B 3.0

– 2 × USB-A (Host)

– 1 × USB-C (Host)

– 1 × S/PDIF (Coaxial)

– 1 × AES3 (XLR)

– 1 × RJ45 (Ethernet)

– 1 × M12

– 1 × Optical (SC)

– 1 × BNC (Sync In)

Headphone Outputs

– 1 × 3.5 mm S-Balanced

– 1 × 4.4 mm Balanced

– 1 × 4-pin XLR

– 1 × 3-pin XLR (L/R)

– 1 × 6.3 mm (Positive Phase)

– 1 × 6.3 mm (Inverted Phase)

Line Outputs

– 1 × Balanced XLR (L/R)

– 1 × RCA (L/R)

Balanced Headphone Output Power (RMS)

– ≥ 4,676 mW / 17.3 V @ 64 Ω

– ≥ 564 mW / 18.4 V @ 600 Ω

Single-Ended Headphone Output Power (RMS)

– ≥ 2,311 mW / 8.6 V @ 32 Ω

– ≥ 144 mW / 9.3 V @ 600 Ω

Balanced Line Output Level (VRMS)

– 0 to 4.5 V (Hi-Fi)

– 0 to 18 V (Pro)

Single-Ended Line Output Level (VRMS)

– 0 to 2.2 V (Hi-Fi)

– 0 to 9 V (Pro)

High-Resolution Audio Support

– PCM up to 768 kHz

– DSD512 (DSD2048 with Remastering)

Dynamic Range (20 Hz – 20 kHz)

– ≥ 116 dBA @ 600 Ω Balanced

– ≥ 115 dBA @ 600 Ω Single-Ended

Signal-to-Noise Ratio (Max Output, 20 Hz – 20 kHz)

– ≥ 116 dBA @ 600 Ω Balanced

– ≥ 114 dBA @ 600 Ω Single-Ended

Output Noise (Max Output, 20 Hz – 20 kHz)

– < 30 µV(A) @ 600 Ω Balanced

– < 20 µV(A) @ 600 Ω Single-Ended

Total Harmonic Distortion + Noise (THD+N)

– < 0.005% @ 16 Ω Balanced (2.4 V, 20–20 kHz)

– < 0.01% @ 16 Ω Single-Ended (1.27 V, 20–20 kHz)

Streaming Platforms

– Tidal Connect

– Spotify Connect

– Qobuz Connect

– Roon

– AirPlay

– DLNA

– UPnP

Power Consumption

– < 27 W (Idle)

– 75 W (Maximum)

Dimensions (W × D × H)

– 256 × 185 × 120 mm

Net Weight

– 3.6 kg (7.93 lbs)

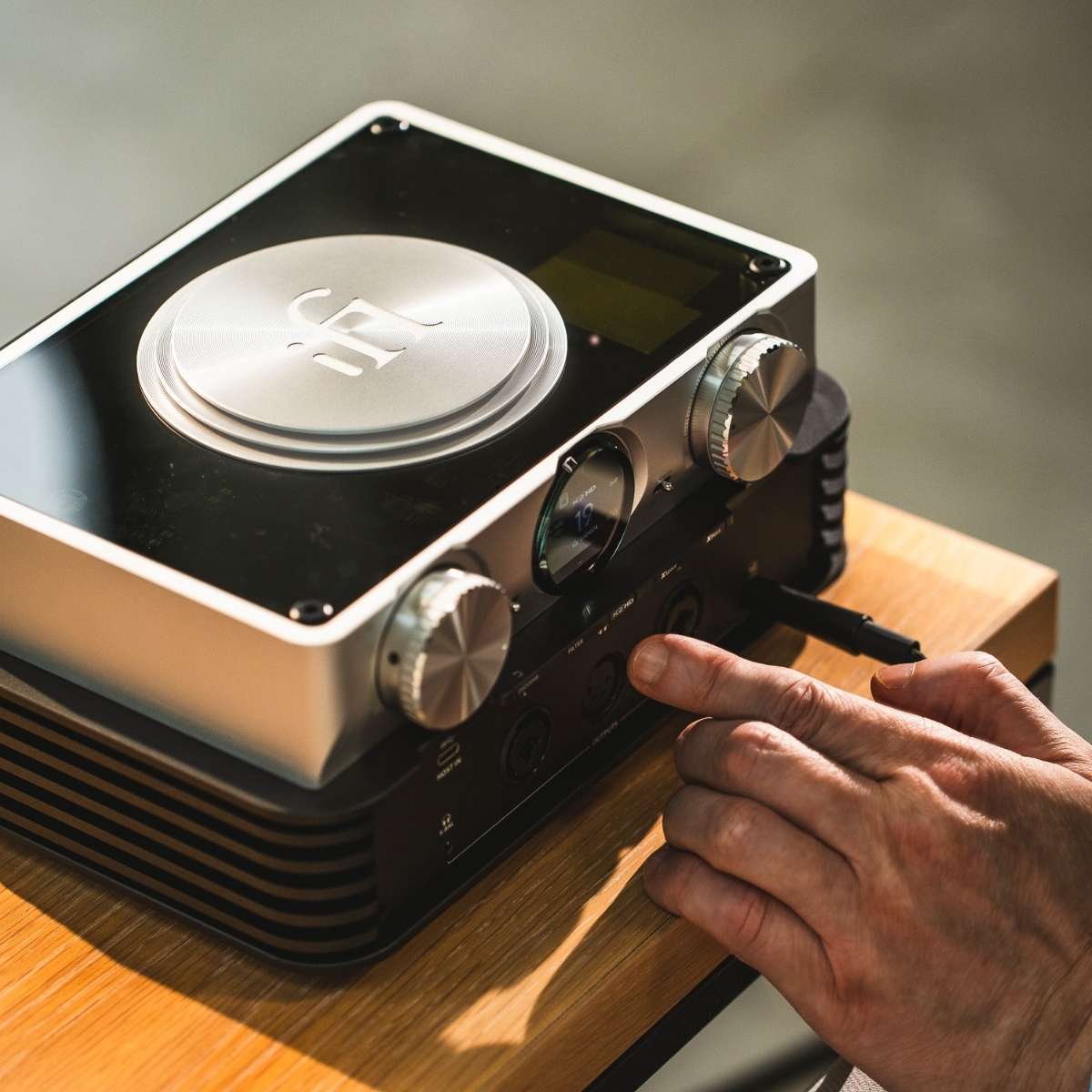

ifi audio idsd phantom lifestyle

Features

  • Reference-class DAC, network streamer, and headphone amplifier in one unit
  • Proprietary FPGA engine with DSD2048 remastering technology
  • Supports ultra-high-resolution playback up to 768 kHz PCM and DSD512
  • Three selectable output modes: solid-state, tube, and tube+
  • Native streaming with Tidal Connect, Qobuz Connect, Spotify Connect, and AirPlay 2
  • High-power Class A headphone amplifier for demanding headphones
  • K2HD harmonic restoration for enhanced realism

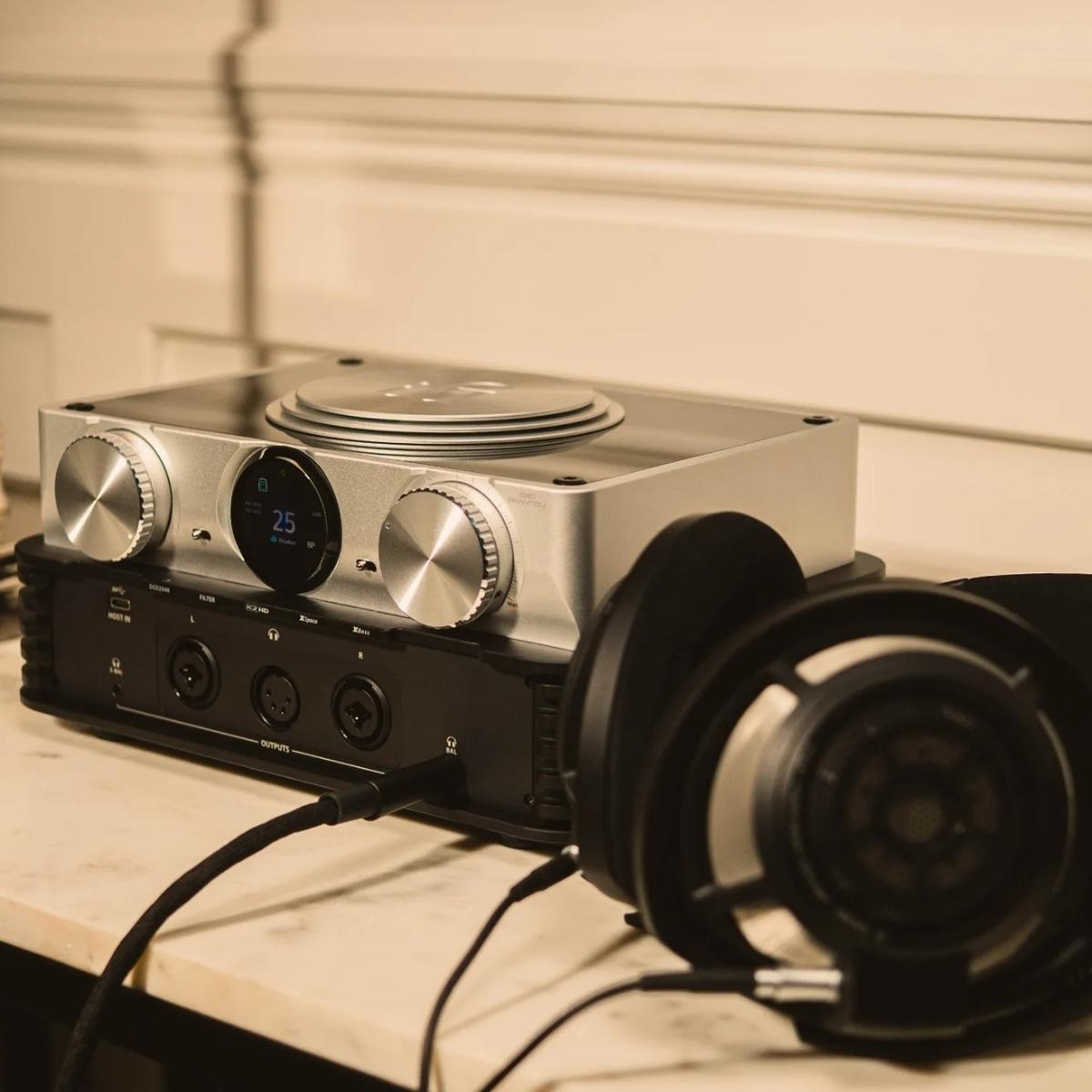

  • ifi audio idsd phantom with headphones

    Introducing DSD2048

    For the first time, the Chrysopoeia FPGA engine brings DSD2048 remastering into the home. Four Burr-Brown DSD1793 DACs decode signals up to DSD2048 for exceptional low-level detail and studio-grade playback.

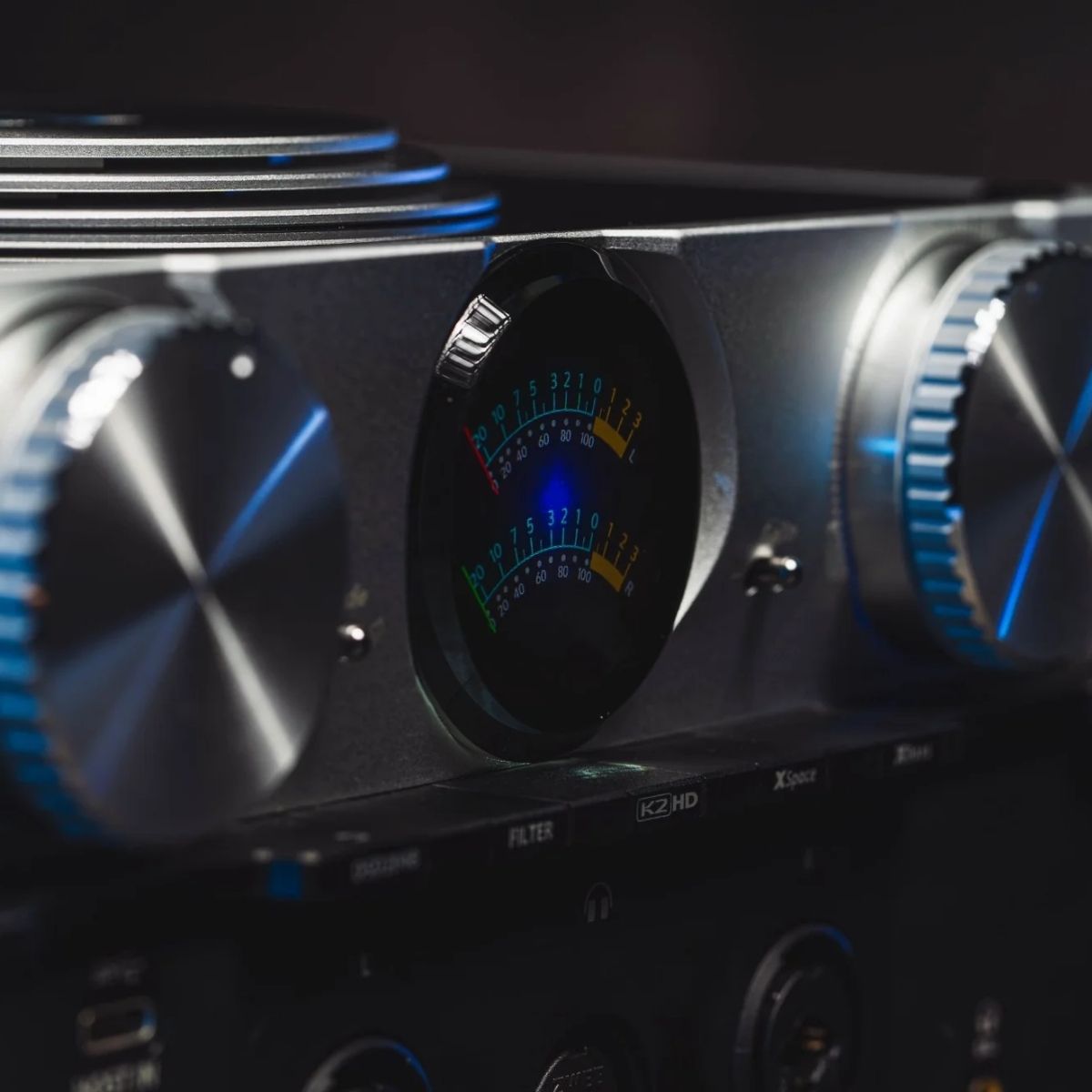

  • ifi audio idsd phantom close up

    Three Voices. One PHANTOM.

    The PHANTOM combines three devices in one, with Solid-State, Tube, and Tube+ modes to tailor speed, smoothness, or warmth. Its powerful 7,747 mW peak output ensures perfect synergy with any headphone.

  • ifi audio idsd phantom listening session

    Queue up Qobuz.

    The iDSD PHANTOM introduces an ultra-resolution streaming engine with support for Qobuz Connect, Tidal Connect, Spotify Connect, and AirPlay 2. Enhanced stability, smoother playback, and the updated Nexis app make music control simple from anywhere in the home.

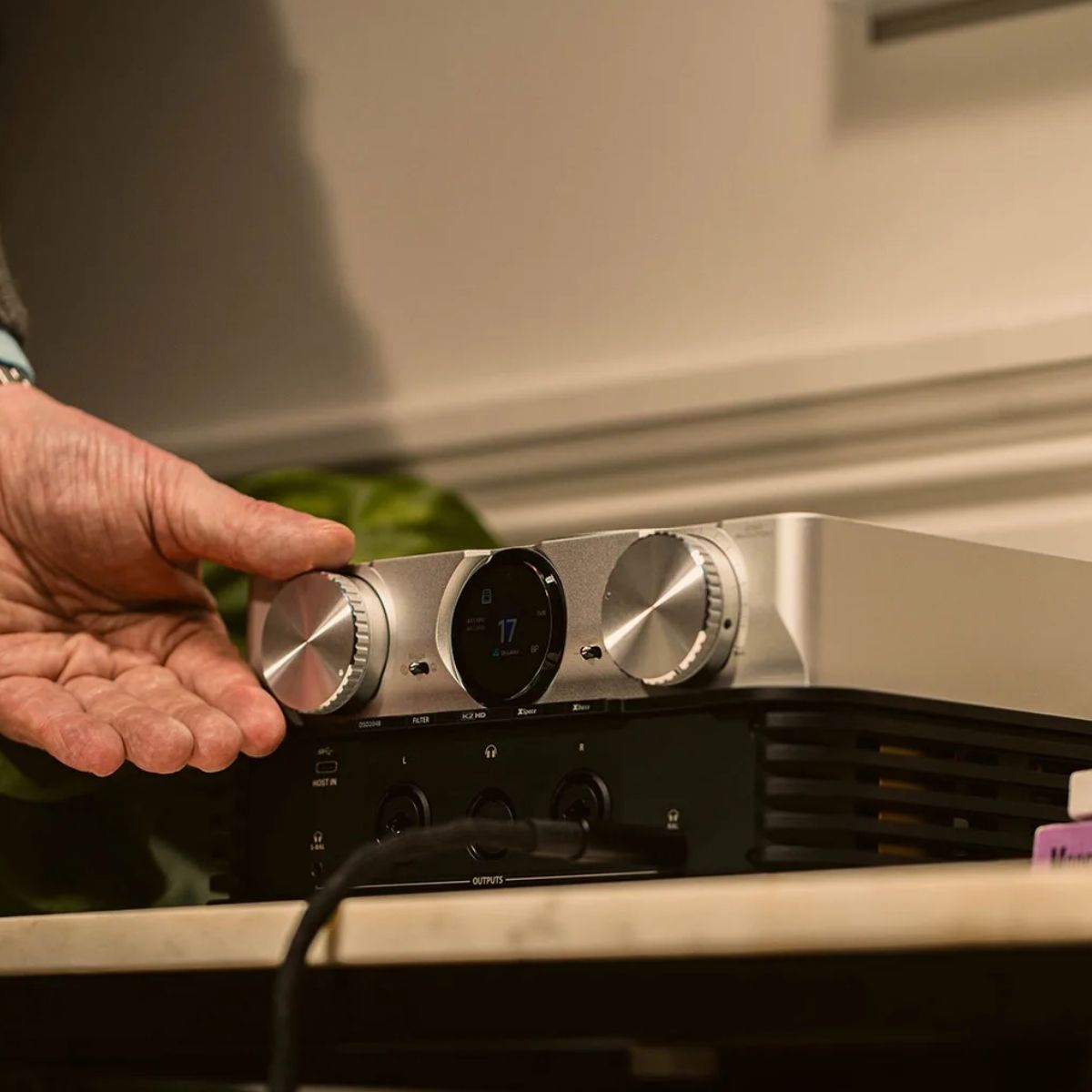

ifi idsd phantom streamer volume knob

Studio-Inspired Restoration.

In collaboration with JVCKENWOOD, the PHANTOM incorporates K2 and K2HD technology to restore harmonic content lost during production or digital encoding, reviving the musicality of the original performance.

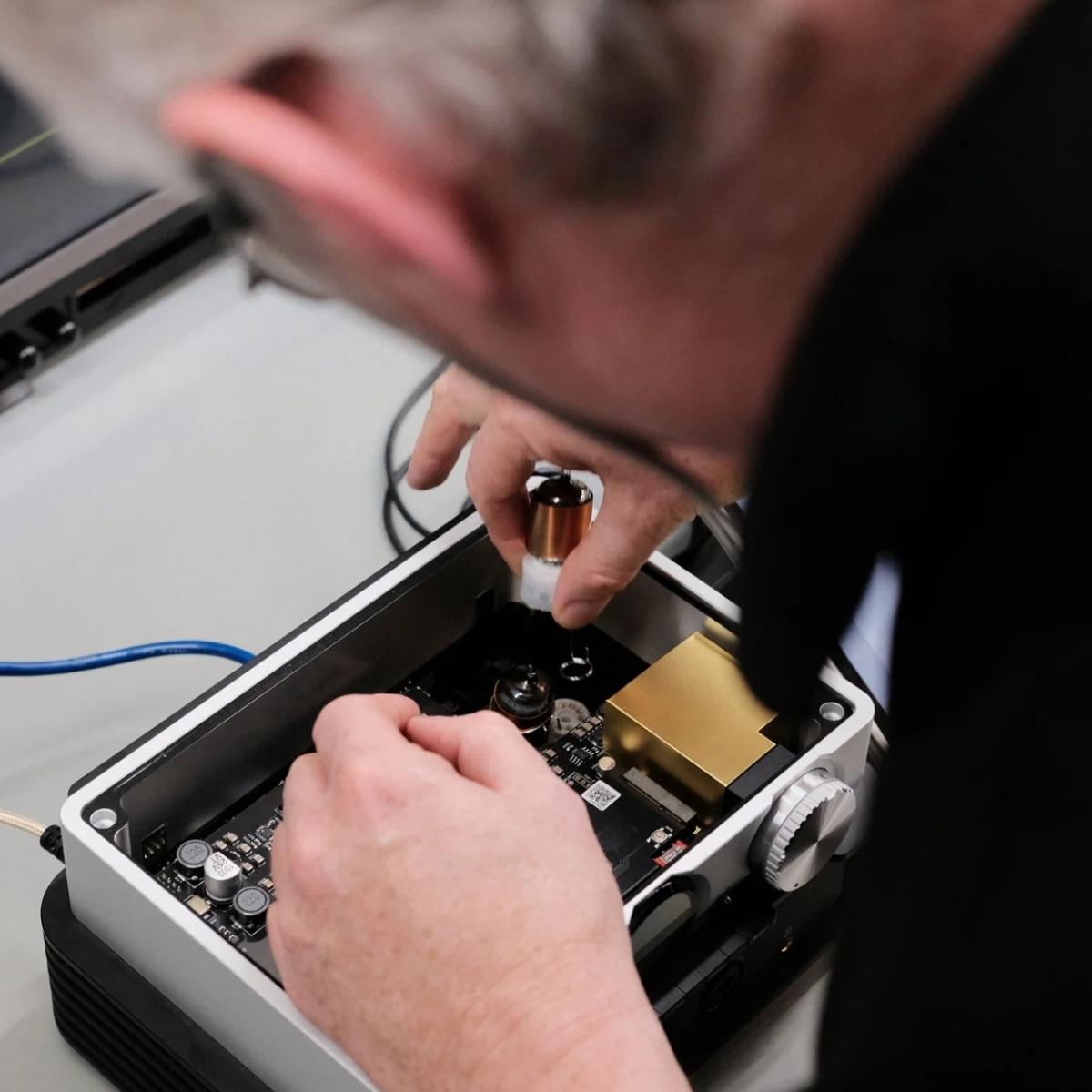

ifi idsd phantom manufacturing moment

Mastered from the Ground Up

A re-designed, constant impedance negative feedback system ensures XBass Pro, XSpace Pro, and DSD Remastering operate in perfect harmony. A dedicated common-mode servo smooths XBass’ on/off transitions and maintains LF consistency at high levels. We also fine-tuned the tubes’ supply voltage to enhance overall linearity in the audio output.

Frequently Asked Questions

What is the iFi iDSD Phantom?

The iDSD Phantom is a flagship all-in-one digital audio system that combines a reference DAC, network streamer, and high-power headphone amplifier in a single unit.

What audio formats does the iDSD Phantom support?

It supports ultra-high-resolution audio up to 768 kHz PCM and DSD512, with advanced DSD2048 remastering through its FPGA engine.

Can the iDSD Phantom stream music over Wi-Fi?

Yes. It supports network streaming over Wi-Fi and Ethernet with Tidal Connect, Qobuz Connect, Spotify Connect, and AirPlay 2.

Does the iDSD Phantom work with both headphones and speakers?

Yes. It features both headphone outputs and balanced line outputs, allowing it to drive headphones directly or feed an external amplifier or active speakers.

What are the different output modes on the iDSD Phantom?

It offers three selectable modes: Solid-State, Tube, and Tube+, allowing users to choose between precision, smoothness, or enhanced tube warmth.

How powerful is the headphone amplifier?

The built-in Class A headphone amplifier delivers up to 7,747 mW peak output, making it suitable for even the most demanding headphones.

Does the iDSD Phantom use tubes?

Yes. It uses hand-selected NOS GE5670 vacuum tubes for its Tube and Tube+ output modes.

What inputs and connections are available?

It includes USB, coaxial, optical, network, balanced analog inputs, and both balanced and single-ended headphone and line outputs.

What is K2HD technology and what does it do?

K2HD technology restores harmonic detail lost during recording and digital encoding, improving realism and musicality.

Is the iDSD Phantom easy to control from a phone or tablet?

Yes. The updated Nexis app allows simple setup, music browsing, and queue control from anywhere in the home.
