Denon

Denon PMA-3000NE 2-Channel 160W Integrated Amplifier with MM/MC Phono Stage

Skip to product information
1 of 3

PMA3000NEBKE3

Regular price $4,699.00
Sale price $4,699.00 Regular price
Color: Black


Contact Us

Please call us at 1-905-270-3440 or simply fill out the form below for ordering & more info.

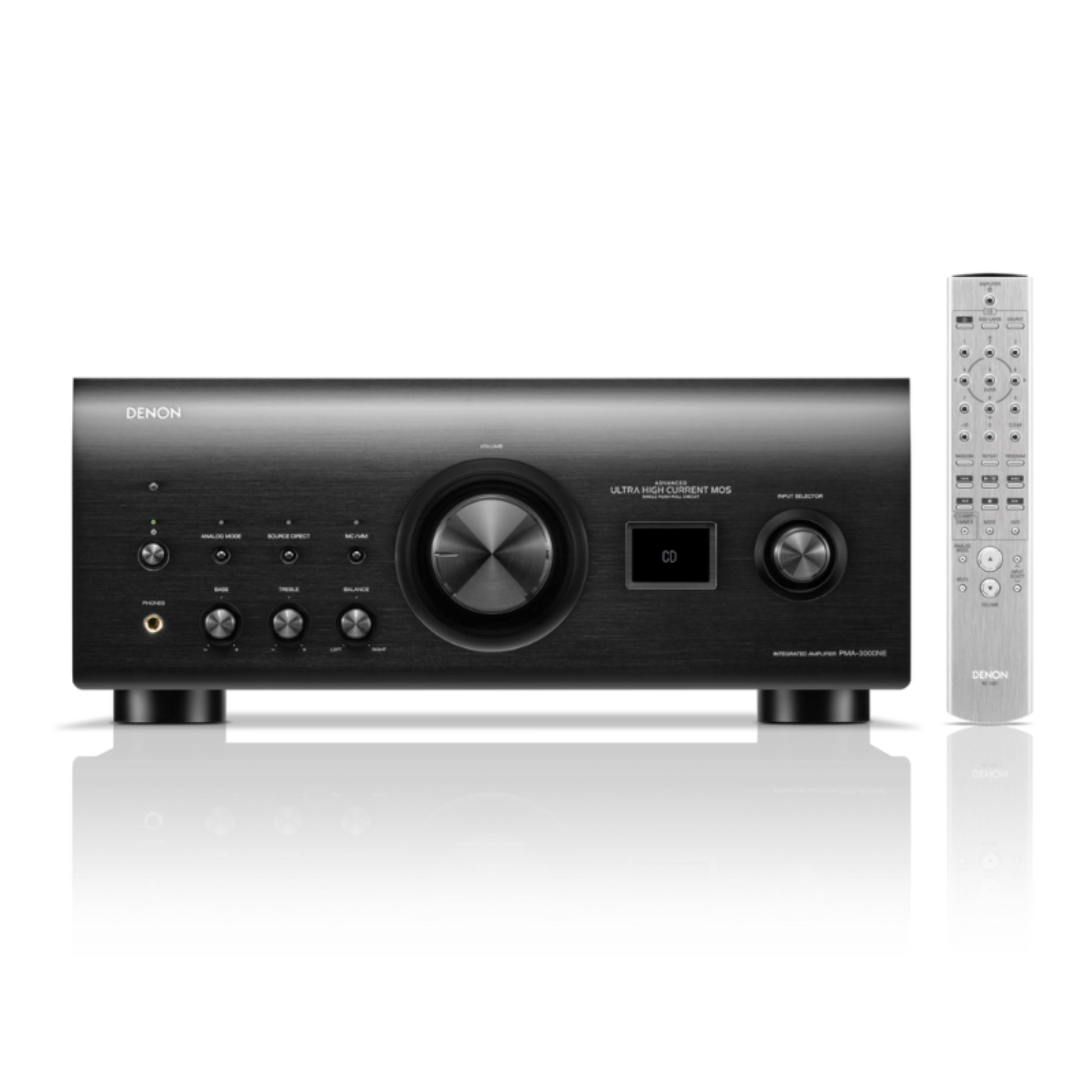

Denon PMA-3000NE 2-Channel 160W Integrated Amplifier with MM/MC Phono Stage

The Denon PMA-3000NE delivers 160W per channel at 4 ohms and 80W per channel at 8 ohms, driving even the most demanding speaker to deliver superior sound in any scenario. Designed and manufactured at Denon facilities in Shirakawa, Japan.

  • 2 channels
  • 160 watts per channel
  • MM/MC phono stage
  • Ultra AL32 Processing
  • Optical, coaxial, and USB digital connections
  • Pure Analog mode

Highlights

  • Drives even the most demanding speakers: A push-pull amplifier, delivering 160W/channel into 4 ohms and 80W/channel into 8 ohms, effortlessly accommodates a range of speaker types and impedances.
  • Seamlessly integrate high-resolution digital audio: Digital connections, including optical, coaxial, and USB-B, support up to 384kHz/32-bit. Ultra AL32 Processing waveform interpolation produces smooth, high-resolution sound
  • Unlock your vinyl collection’s full potential: The PMA-3000NE's phono stage supports both MM and MC cartridges, for the most faithful sonic reproduction regardless of cartridge type.
  • Pure Analog mode: Pure Analog mode bypasses digital circuitry for a pure, all-analog sound. A Source Direct function bypasses the tone controls so that the signal path is as short and clean as possible, for enhanced clarity.
  • Precision control: Thanks to clever engineering, microcontroller-managed volume, balance, and tone controls offer precise, linear digital adjustments with the familiar, tactile feel of analog knobs. It’s the ultimate blend of modern digital functionality and old-school charm.

Specifications

Power Output

  • Rated Output Power (8 Ω, 20 Hz–20 kHz, THD 0.07%): 80 W + 80 W
  • Rated Output Power (4 Ω, 1 kHz, THD 0.7%): 160 W + 160 W

Audio Performance

  • Total Harmonic Distortion: 0.01% (Rated output −3 dB, 8 Ω @ 1 kHz)

Input Sensitivity & Impedance

  • Phono Input (MM): 2.5 mV / 47 kΩ
  • Phono Input (MC): 200 µV / 100 Ω
  • CD / Line / Recorder Input: 135 mV / 19 kΩ
  • Power Amplifier Input (EXT. PRE): 1.0 V / 15 kΩ

Signal-to-Noise Ratio

  • Phono (MM): 89 dB
  • Phono (MC): 74 dB
  • CD: 107 dB

Power Consumption

  • Power Consumption (Maximum): 400 W
  • Standby Power Consumption (TV Autoplay Off): 0.2 W
  • Standby Power Consumption (TV Autoplay On): 0.4 W
