Bowers & Wilkins HTM81 D5 Reference Centre-Channel Speaker

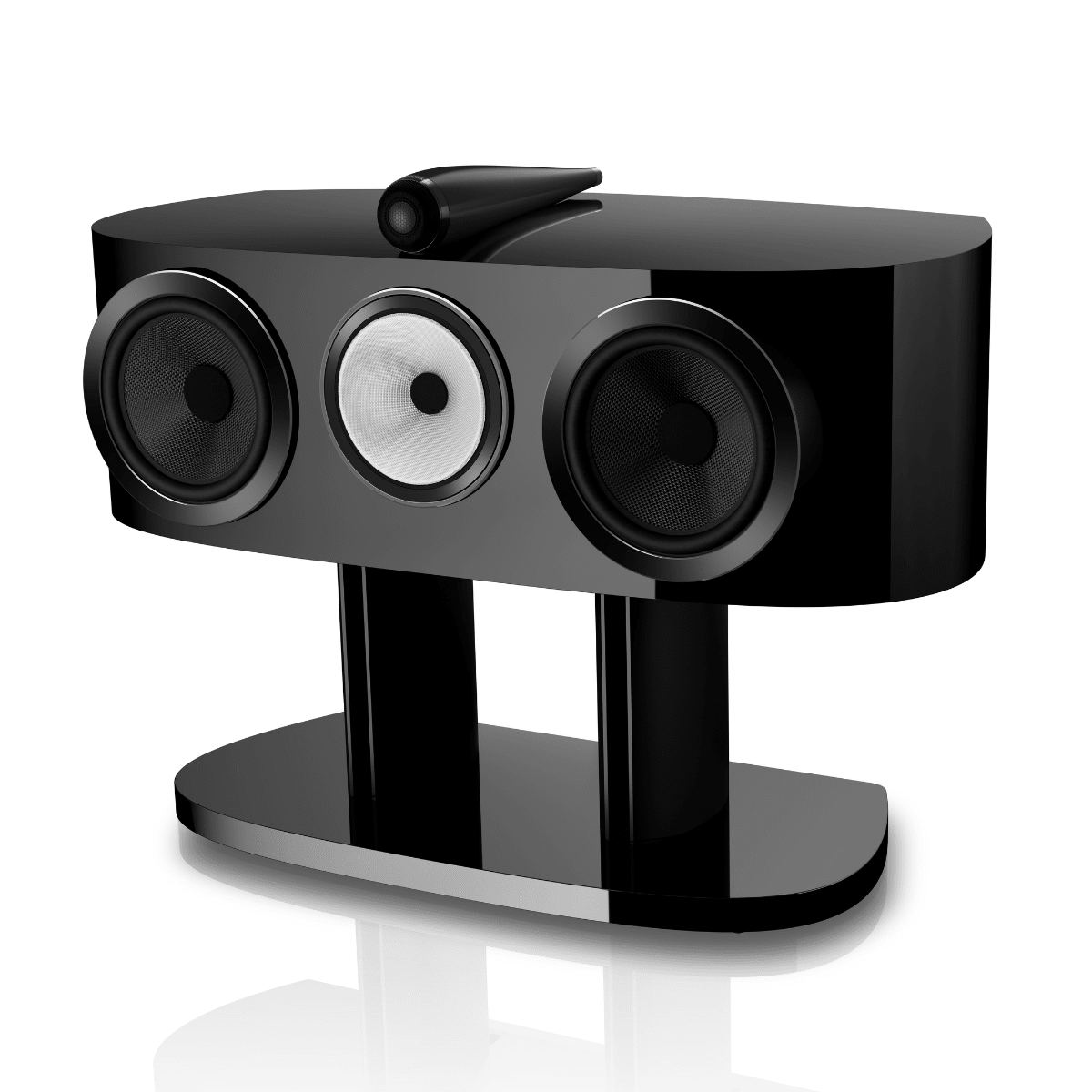

  • black bowers wilkins htm81 d5 center speaker

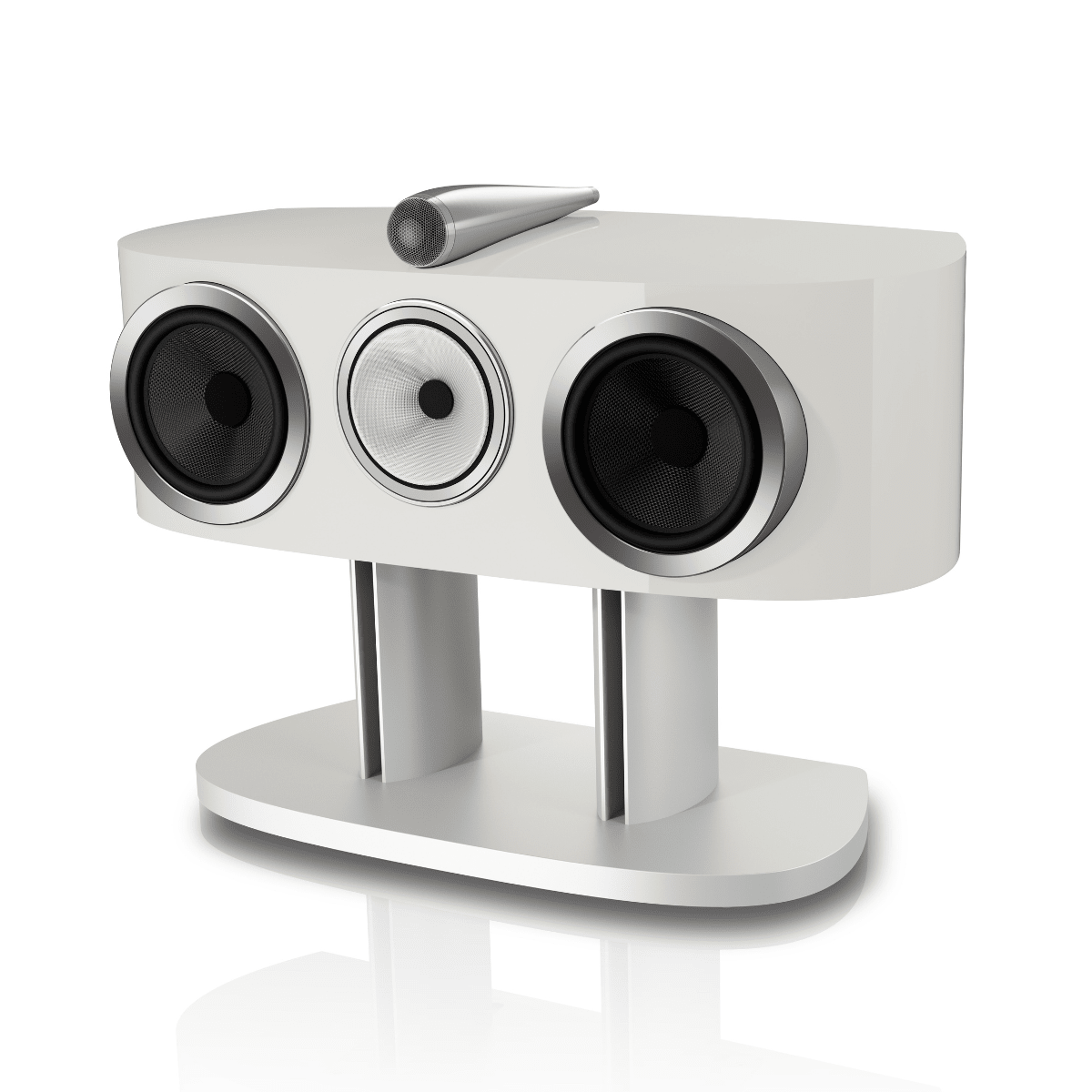

  • white bowers wilkins htm81 d5 center speaker

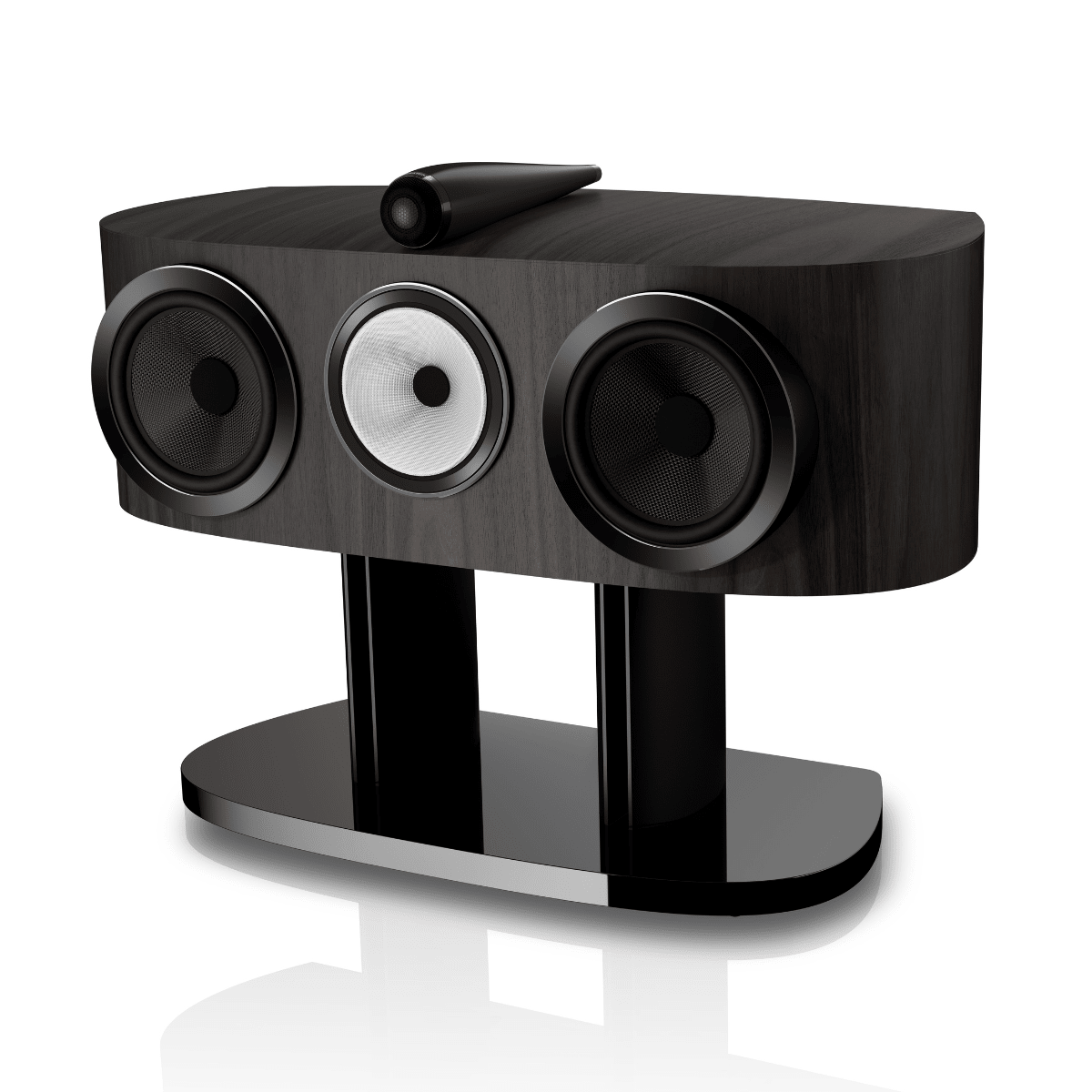

  • bowers wilkins htm81 d5 center speaker in dark walnut

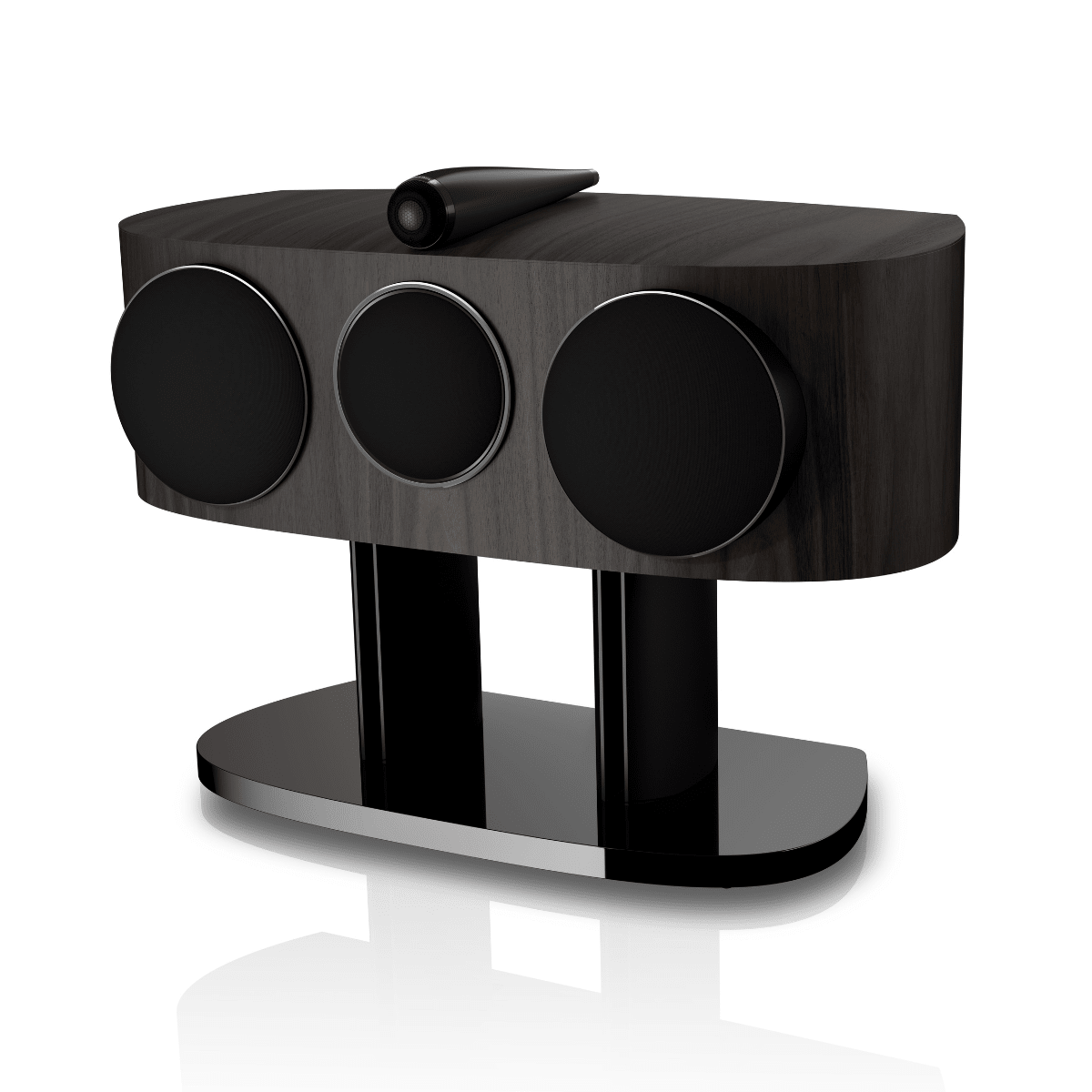

  • bowers wilkins htm81 d5 center speaker with grille on in dark walnut

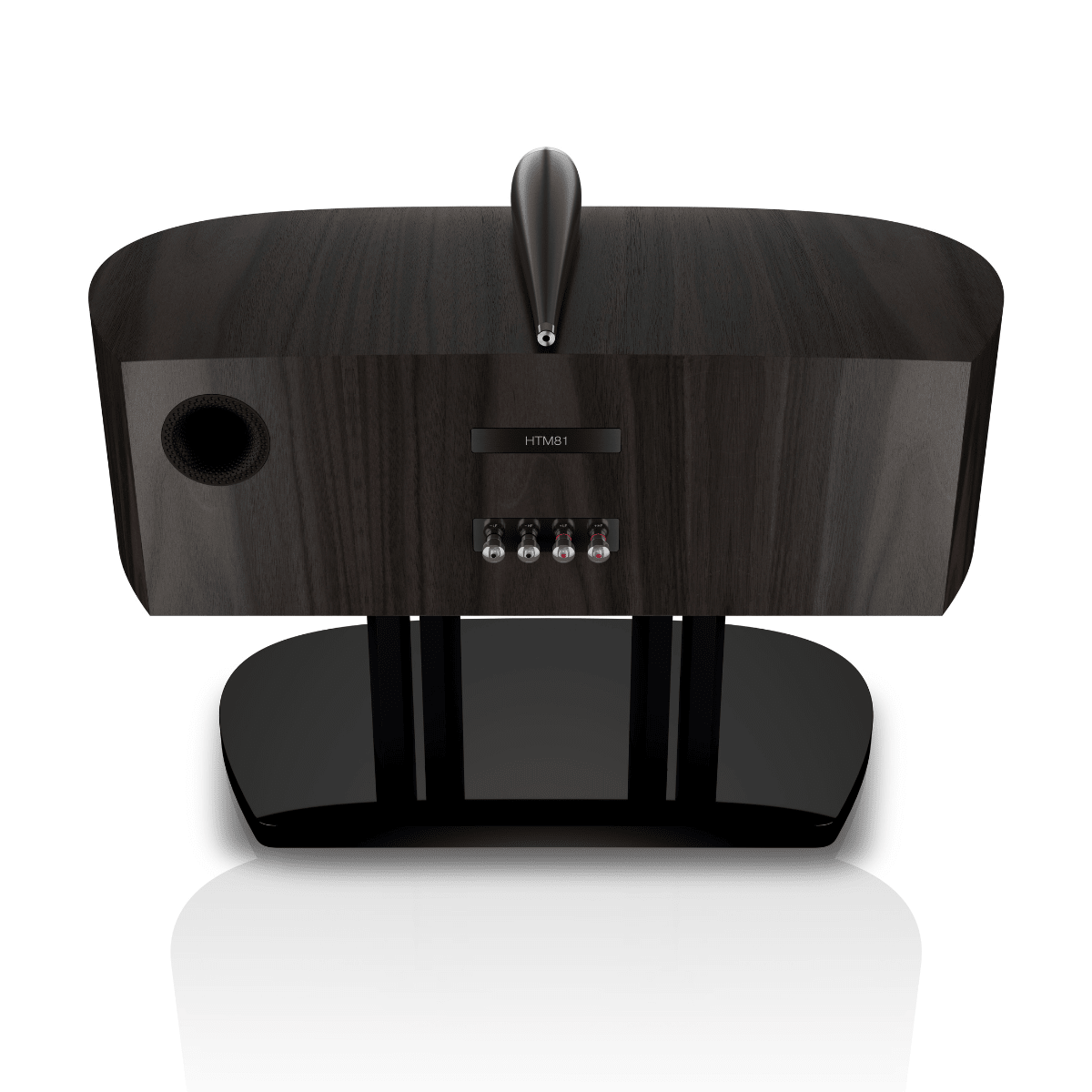

  • rear of dark walnut bowers wilkins htm81 d5 center speaker

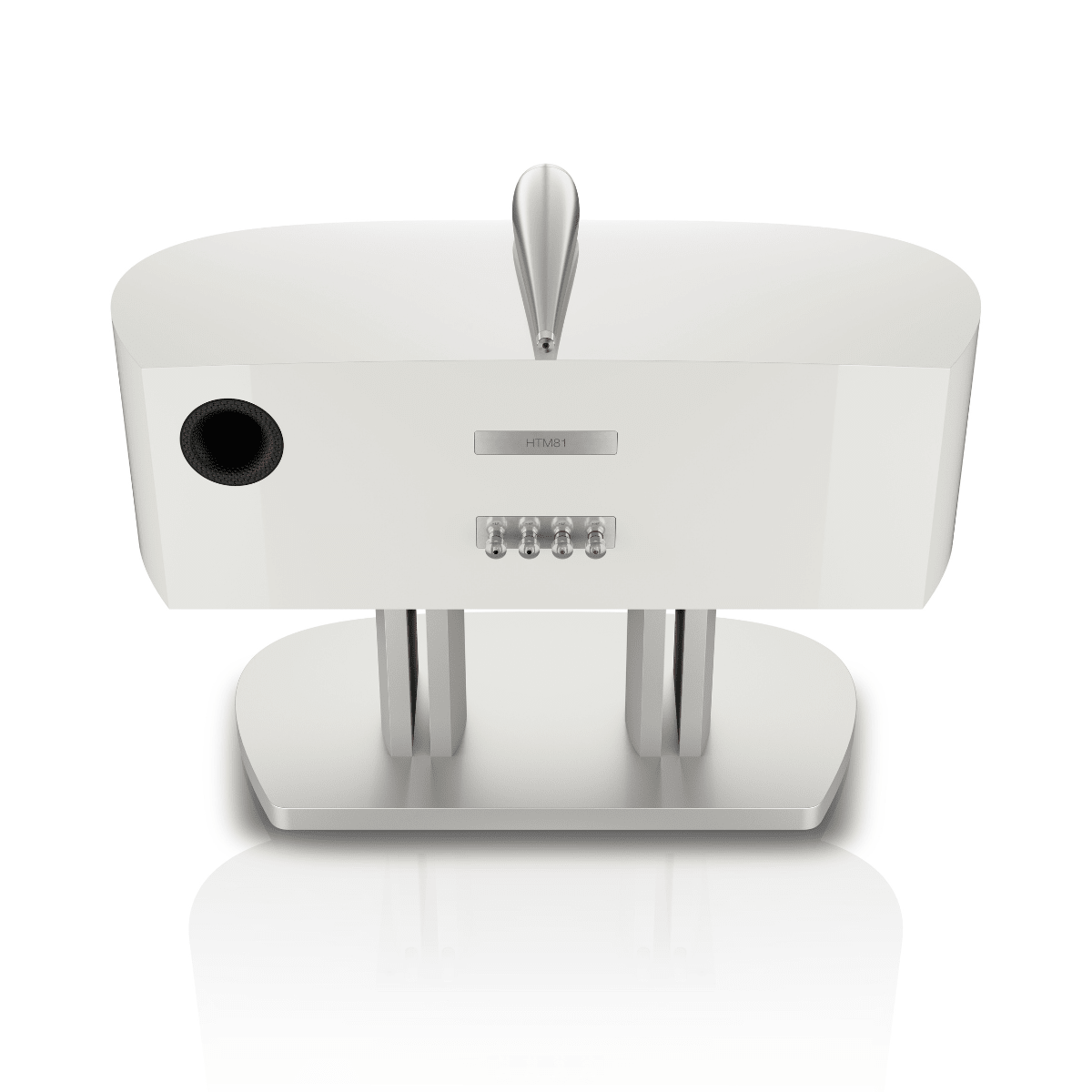

  • rear of white bowers wilkins htm81 d5 center speaker

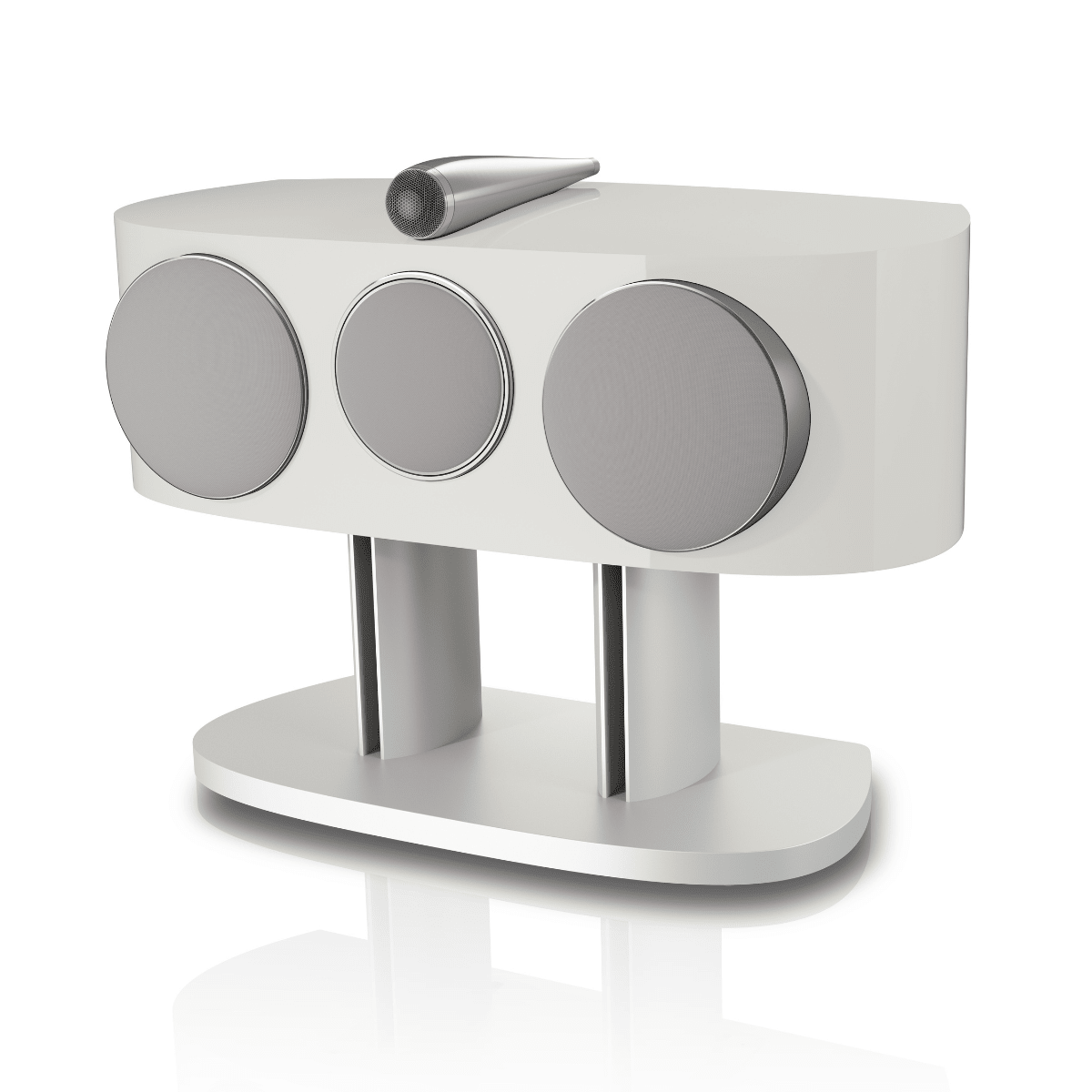

  • white bowers wilkins htm81 d5 center speaker with grille

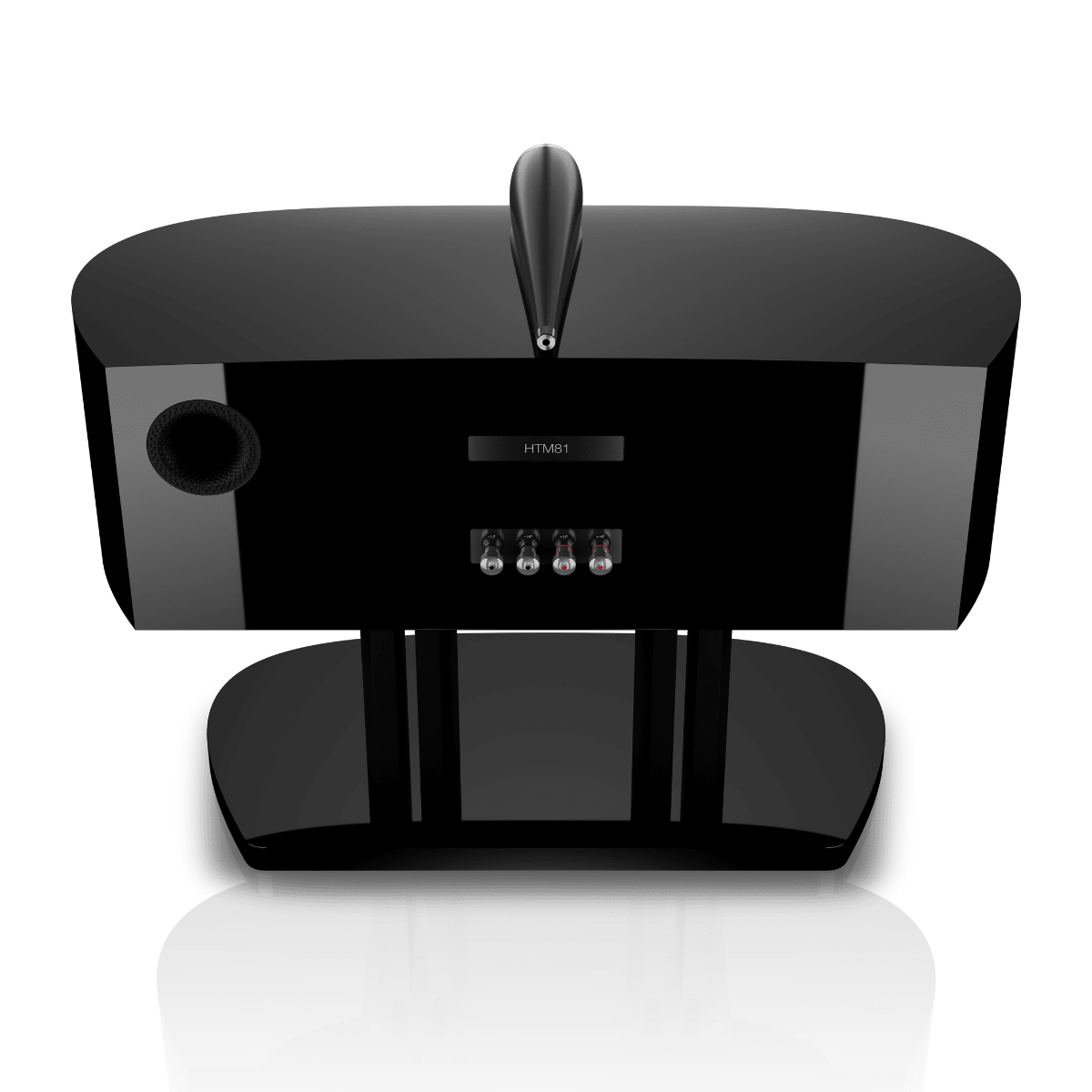

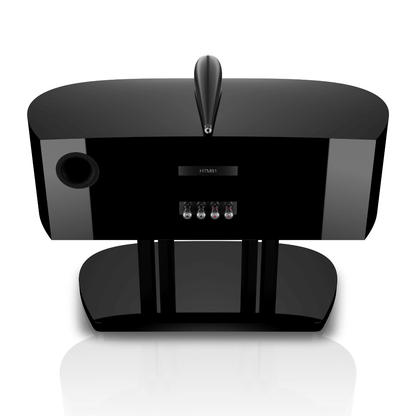

  • rear of black bowers wilkins htm81 d5 center speaker

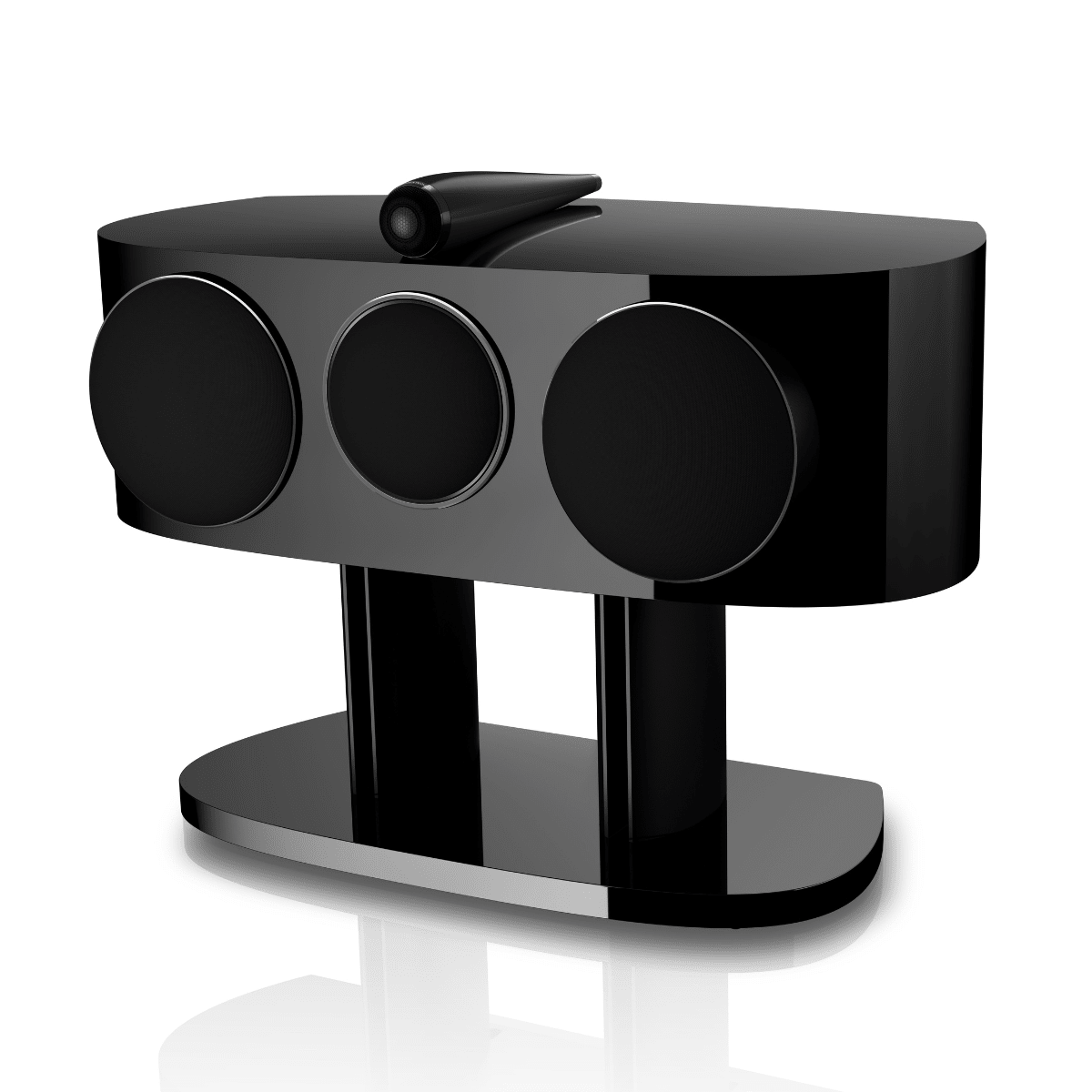

  • black bowers wilkins htm81 d5 center speaker with grille

HTM81 D5 STEALTH BLACK

$20,000.00
$20,000.00

In-Store Only

Color: Stealth Black

Contact Us

Please call us at 1-905-270-3440 or simply fill out the form below for ordering & more info.

Product Overview

The Bowers & Wilkins HTM81 D5 delivers pinnacle centre channel performance and can be paired with either the 801 D5 or the 802 D5 for truly powerful and immersive home theatre experiences.

Engineered with the same advanced technologies as the rest of the flagship 800 Series Diamond range, it features a Diamond dome tweeter, Solid Body Tweeter-on-Top, a decoupled Continuum cone midrange drive unit, and twin Aerofoil bass cones. The HTM81 D5 brings even more depth, clarity and life to any home theatre system.

Specifications

Size & Weight

Dimensions

Height: 334mm (13.2in) including tweeter

Width: 846mm (33.3in) cabinet only

Depth: 363mm (14.3in) including grille and terminals

Net weight — 33.4kg (73.5lbs)

Technical Details

Technical features — Diamond dome tweeter, Solid body Tweeter-on-Top, Continuum cone FST midrange, Anti-Resonance plug, Biomimetic Suspension, Matrix, Aerofoil base cones, Flowport

Description — 3-way vented-box system

Drive units — 1x ø25mm (1in) Diamond dome high-frequency / 1x ø150mm (6in) Continuum cone FST midrange / 2x ø200mm (8in) Aerofoil bass

Frequency range — -6dB 20Hz to 35kHz

Frequency response — 28Hz to 28kHz (+/-3dB)

Sensitivity — 90dB

Harmonic distortion — <1% 90Hz–20kHz / <0.3% 100Hz–8kHz (90dB, 1m on axis)

Nominal impedance — 8Ω (minimum 3.0Ω)

Recommended amplifier power — 50W–1000W into 8Ω on unclipped programme

Max recommended cable impedance — 0.1Ω

Finishes

Cabinet finishes — Stealth Black, Warm White, Dark Walnut

Grille finishes — Black (Stealth Black and Dark Walnut) / Grey (Warm White)

Accessories — FS-HTM Stand in Black or Titanium

Compare products

bowers wilkins htm82 d5 center speaker in black color

Bowers & Wilkins HTM82 D5 Centre-Channel Speaker
black bowers wilkins htm81 d5 center speaker

Bowers & Wilkins HTM81 D5 Reference Centre-Channel Speaker
Price $17,000 $20,000
Speaker type 3-way horizontal centre channel 3-way horizontal centre channel
Driver configuration 1x tweeter + 1x midrange + 2x bass 1x tweeter + 1x midrange + 2x bass
Tweeter 25mm Diamond dome, Solid Body Tweeter-on-Top 25mm Diamond dome, Solid Body Tweeter-on-Top
Midrange driver 130mm (5in) Continuum FST, Biomimetic Suspension 150mm (6in) Continuum FST, Biomimetic Suspension
Bass driver(s) 2x 165mm (6.5in) Aerofoil cone 2x 200mm (8in) Aerofoil cone
Frequency range (-6dB) 33Hz to 35kHz 20Hz to 35kHz
Frequency response (+/-3dB) 45Hz to 28kHz 28Hz to 28kHz
Sensitivity 89dB (2.83Vrms, 1m) 90dB (2.83Vrms, 1m)
Nominal impedance 8Ω (minimum 3.0Ω) 8Ω (minimum 3.0Ω)
Recommended amplifier power 50W to 1000W into 8Ω 50W to 1000W into 8Ω
Bass loading Ported — Flowport Ported — Flowport
Dimensions (H x W x D) 289 x 715 x 363mm (11.4 x 28.1 x 14.3in) 334 x 846 x 363mm (13.2 x 33.3 x 14.3in)
Weight 26.1kg (57.5lbs) 33.4kg (73.5lbs)
Matching floorstanding models 803 D5 and 804 D5 801 D5 and 802 D5
Finishes Stealth Black, Warm White, Dark Walnut Stealth Black, Warm White, Dark Walnut
Optional stand FS-HTM D5 — Black or Titanium FS-HTM D5 — Black or Titanium

Frequently Asked Questions

What is the Bowers & Wilkins HTM81 D5?

The Bowers & Wilkins HTM81 D5 is a three-way centre channel speaker in B&W's fifth-generation 800 Series Diamond range, delivering flagship centre channel performance in a horizontal cabinet. It uses a 25mm Diamond dome tweeter, a 6-inch Continuum cone FST midrange, and two 8-inch Aerofoil cone bass drivers. The Bowers & Wilkins HTM81 D5 is available at Trutone Electronics in Mississauga, Ontario.

Which speakers does the Bowers & Wilkins HTM81 D5 pair with?

The Bowers & Wilkins HTM81 D5 is designed to pair with the 801 D5 or 802 D5 as the centre channel in a home theatre system. It shares the same 6-inch Continuum FST midrange, Diamond dome tweeter, and 8-inch Aerofoil bass drivers as those models, ensuring dialogue and on-screen effects match the tonal character of the front left and right speakers. This timbre-matching creates a seamless soundstage across the front of the room.

What drivers does the Bowers & Wilkins HTM81 D5 use?

The Bowers & Wilkins HTM81 D5 is a three-way design using a 25mm Diamond dome tweeter, a 150mm (6in) Continuum cone FST midrange, and two 200mm (8in) Aerofoil cone bass drivers arranged horizontally. It also includes B&W's Anti-Resonance plug, Biomimetic Suspension, Matrix bracing, and Flowport. This gives the HTM81 D5 a frequency response of 28Hz to 28kHz (+/-3dB) and a sensitivity of 90dB.

How does the Bowers & Wilkins HTM81 D5 sound?

The Bowers & Wilkins HTM81 D5 delivers flagship-level centre channel performance using the same Diamond dome tweeter and 6-inch Continuum FST midrange found in the 801 D5 and 802 D5. This ensures dialogue clarity and on-screen effects are tonally matched to the front left and right speakers. Its dual 8-inch Aerofoil bass drivers also provide substantial output, helping it keep pace with larger floorstanders during dynamic movie soundtracks.

What amplifier power does the Bowers & Wilkins HTM81 D5 need?

Bowers & Wilkins recommends 50 to 1000 watts into 8 ohms for the HTM81 D5, with a nominal impedance of 8 ohms and a sensitivity of 90dB. This matches the 801 D5 and 802 D5 it is designed to pair with, meaning any AV receiver or amplifier capable of driving those floorstanders comfortably will also be well-matched to the HTM81 D5. Speaker cable should be kept under 0.1 ohms impedance.

Will the Bowers & Wilkins HTM81 D5 fit on a typical TV stand?

Buyers should check furniture dimensions carefully before choosing the HTM81 D5, as it measures 846mm (33.3in) wide and weighs 33.4kg. Its size reflects its three-way design with dual 8-inch bass drivers, which is larger than most centre channel speakers. For setups where furniture space is limited, B&W offers the optional FS-HTM D5 floorstand as an alternative placement solution.

How does the Bowers & Wilkins HTM81 D5 compare to the HTM82 D5?

The Bowers & Wilkins HTM81 D5 is the larger of B&W's two D5 centre channels, using a 6-inch midrange and dual 8-inch bass drivers compared to the HTM82 D5's 5-inch midrange and dual 6.5-inch bass drivers. The HTM81 D5 pairs with the 801 D5 or 802 D5, while the HTM82 D5 is intended for the 803 D5 or 804 D5. Buyers should choose the centre channel that matches the driver sizes of their front floorstanders for the best timbre match.
