Audio
Supported Audio File Formats
MP3, AAC, WMA, WMA-L, OGG, OPUS
Supported High-Quality Audio File Formats
FLAC, MQA, ALAC, WAV, AIFF, MPEG-4 SLS
DSD Support
DSD256
Supported Multi-Channel Audio Formats
Dolby® Digital, Dolby Atmos®, Dolby Digital Plus™, Dolby® TrueHD, *LPCM
Native Sampling Rates
up to 192 KHz
Bit Depth
16-24
Audio Controls & EQ

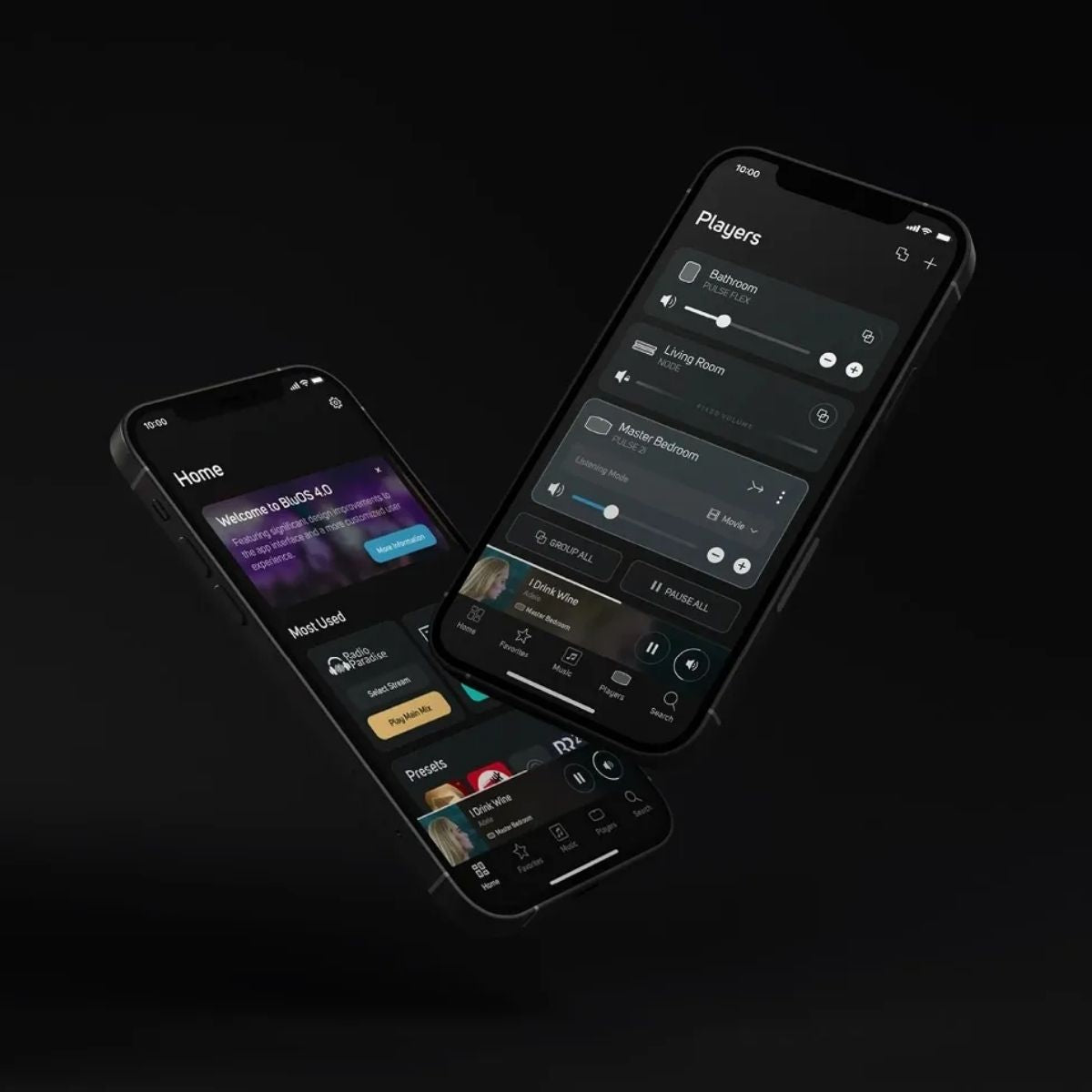

BluOS Control App
Distortion
THD+N, 0.030%
Frequency Response
N/A
Amplification
Smart DSP Amplifier
Rated Power Output
500W total system power
38W x 5 Tweeter. 38W x 5 Mid-Range, 65W x 2 Woofer
Speakers
0.75" (21mm) Tweeter x 5; 1.5"x3" (44mm x 75mm) Mid-Range x 5;
4" (102mm) Woofer x 2; 4" (102mm) Passive Radiator x 4
Speaker Configuration
3.2.2
Software & Integrations
Operating System
BluOS
App Controller Operating System
iOS, Android, Windows, macOS
Processor
ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
Supported Network File Sharing
Server Messsage Block (SMB) up to 200,000 files
Album Art Supported
JPG, PNG
Music Services & Internet Radio
23+
3rd-Party Integrations
AirPlay 2, Spotify Connect (also support for Spotify Lossless), Tidal Connect, Qobuz Connect, Roon Ready
Control System Integrations
Creston, Control4, RTI, Nice, URC, Lutron
Voice Control Integrations
Amazon Alexa Skills

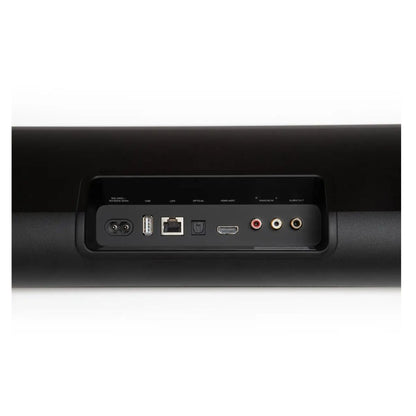

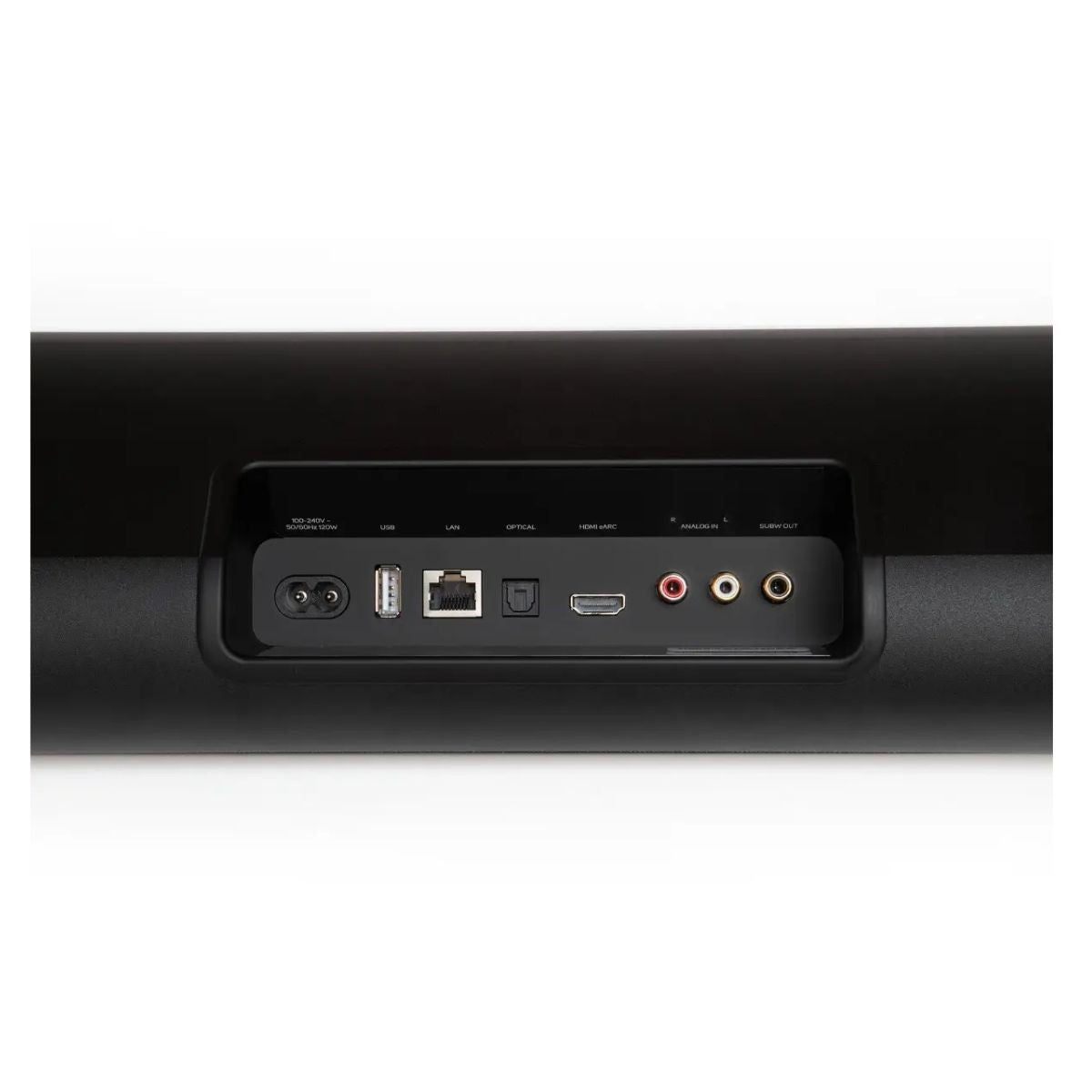

Connections
Power Supply
Universal 2-pin AC cord input (100-240AC)
Ethernet/LAN
Ethernet RJ45, Gigabit 1000Mbps
Wi-Fi Built In
2x WiFi 5 (802.11ac), dual-band
Bluetooth Quality
Bluetooth 5.2 aptX Adaptive
Bluetooth Connectivity
Two-Way (transmit & receive)
IR Optical Built In
IR Sensor Built in - front panel with IR learning
Optical/Analog Input
Toslink Optical, RCA Analog
HDMI Input
HDMI eARC
USB In
Type A (Fat32, NTFS Formatted) - External Storage Only
Local Server Mode
Headphone Output
Bluetooth
Subwoofer Output
RCA x 1; Wireless to PULSE SUB+
User Interface & Control
Status Indicator
LED
Play/Pause Button
Touch LED
Volume Control Buttons
Touch LED
Previous/Next Track Buttons
In-App
Preset Buttons
Touch LED x2
Proximity Sensor
Yes
General
Finish
Black
Max Power Consumption
N/A
Storage Environment
-10°C to 50°C, 20% to 80% relative humidity
Operating Environment
0°C to 40°C
SKU/Version
P530
Product Dimensions
Table
1200 x 74 x 140mm (W x H x D)
47.12 x 2.91 x 5.51 in (W x H x D)
Wall Mounted
1200 x 140 x 84.5 mm (W x H x D)
47.12 x 5.51 x 3.33 in (W x H x D)
Weight
6.69 kg / 14.75 lbs
Included Accessories
120V AC Power Cord
230V AC Power Cord
Ethernet Cable
HDMI Cable
Wall Mount Bracket
Wall Mount Template
Wall Mount M6 Bolt x2
Wall Mount Hex Tool
Safety/Warranty Guide
Quick Setup Guide
