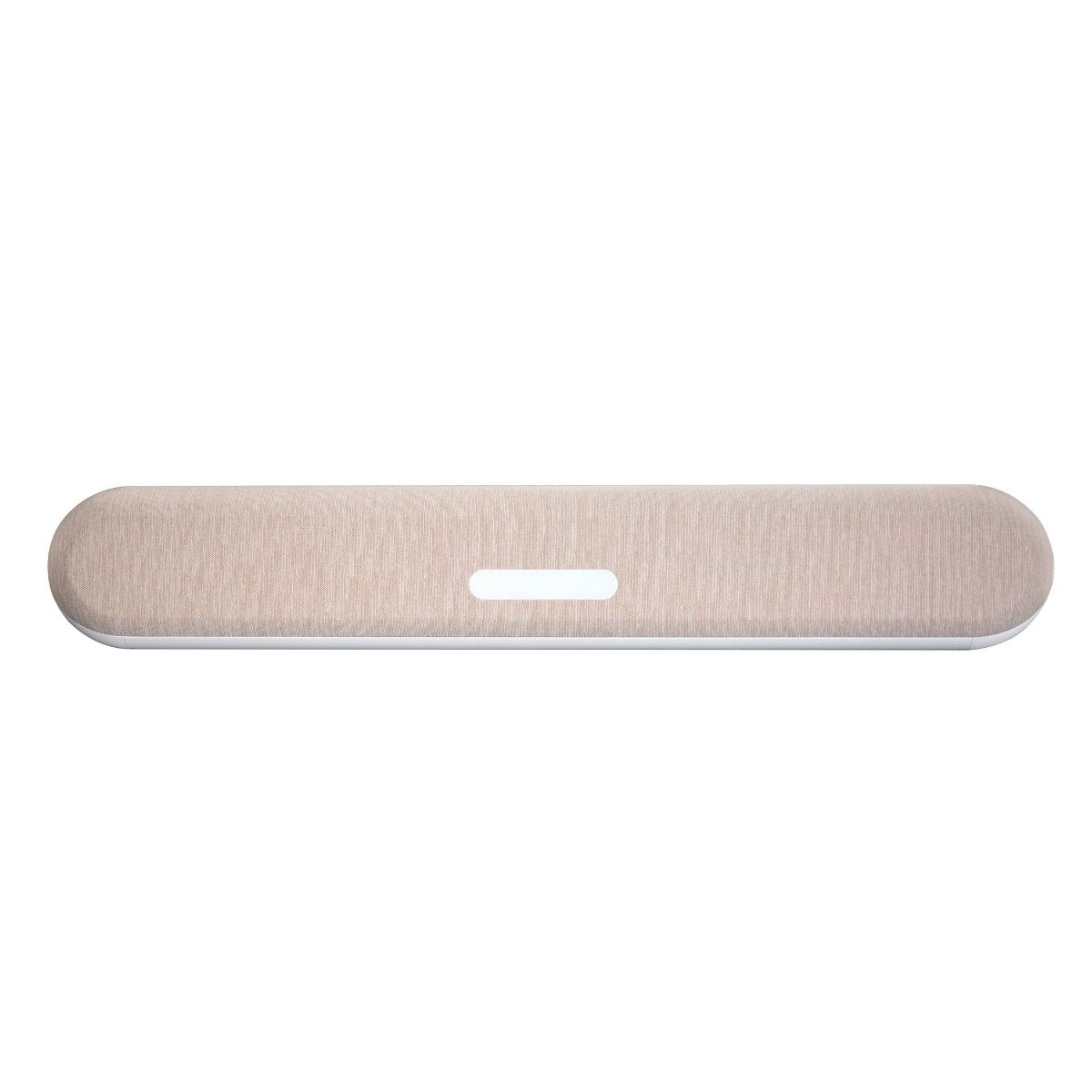

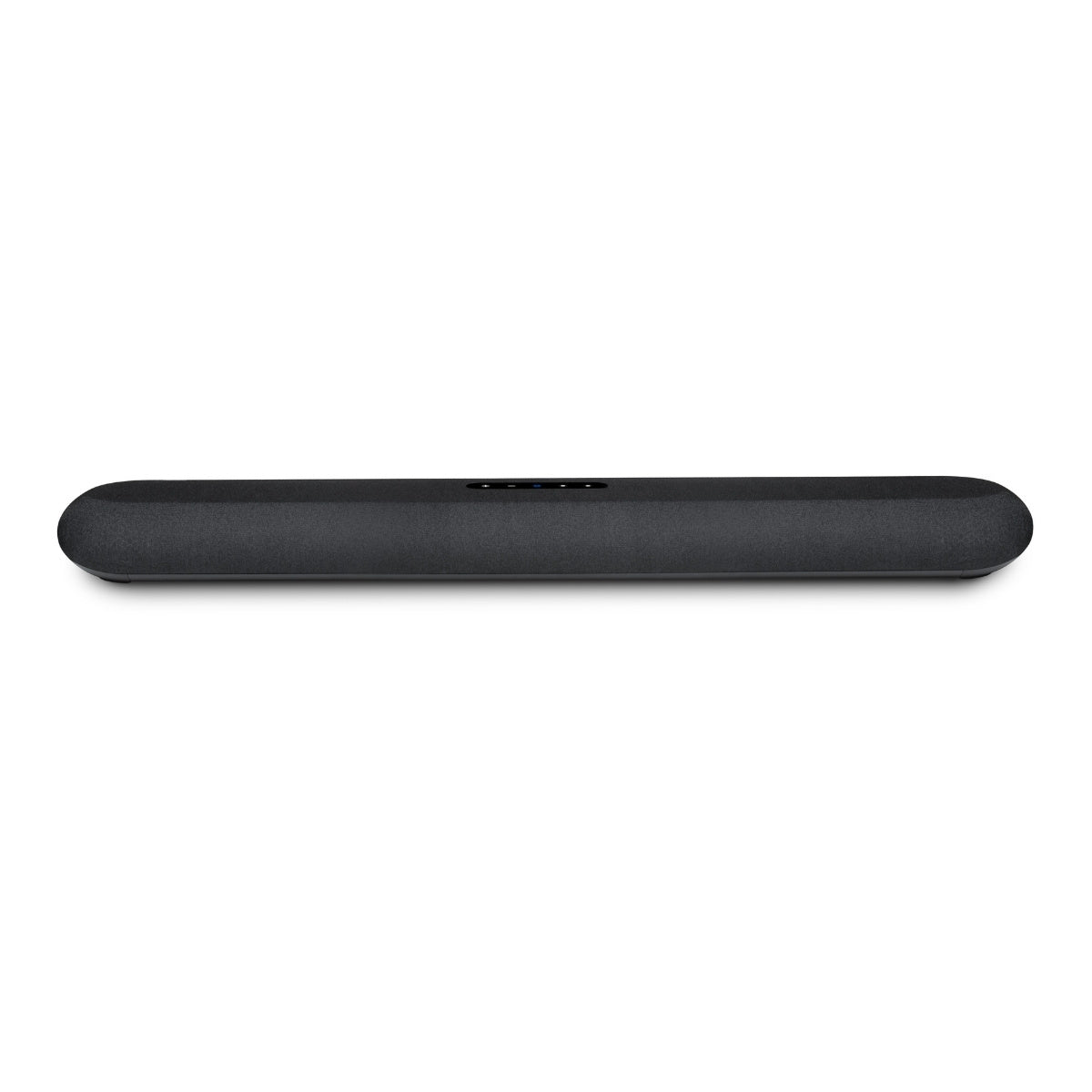

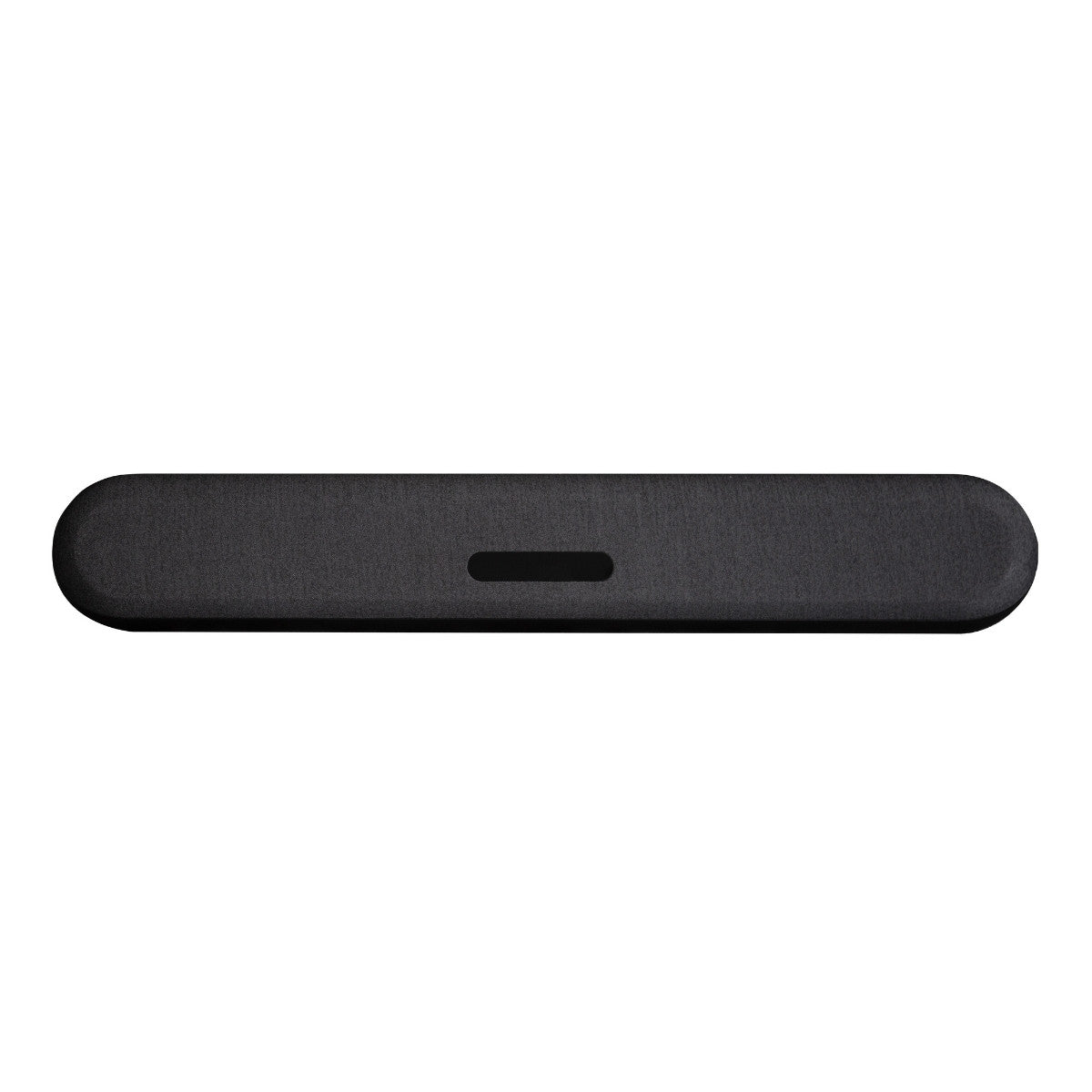

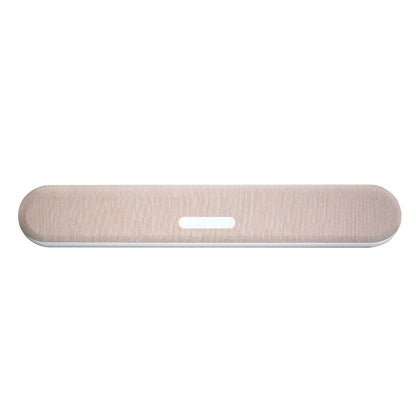

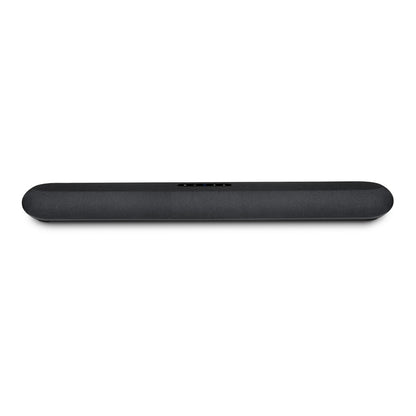

Bluesound Pulse Cinema Mini 2.1 Wireless Streaming Soundbar with Dolby Atmos

Audio

Supported Audio File Formats:
• MP3
• AAC
• WMA
• WMA-L
• OGG
• OPUS

Supported High-Quality Audio File Formats:
• FLAC
• MQA
• ALAC
• WAV
• AIFF
• MPEG-4 SLS

DSD Support:
• DSD256

Supported Multi-Channel Audio Formats:
• Dolby® Digital
• Dolby Atmos®
• Dolby Digital Plus™
• Dolby® TrueHD
• *LPCM

Native Sampling Rates:
• Up to 192 kHz

Bit Depth:
• 16–24 bit

Audio Controls & EQ:
• BluOS Control App

Distortion:
• THD+N: 0.030%

Frequency Response:
• N/A

Amplification:
• Smart DSP Amplifier

Rated Power Output:
• 280W total system power
• 38W × 2 Tweeter
• 38W × 2 Mid-Range
• 65W × 2 Woofer

Speakers:
• 0.75" (21mm) Tweeter × 2
• 1.5" (45mm) Mid-Range × 2
• 4" (102mm) Woofer × 2
• 4" (102mm) Passive Radiator × 2

Speaker Configuration:
• 2.1

Software & Integrations

Operating System:
• BluOS

App Controller Operating System:
• iOS
• Android
• Windows
• macOS

Processor:
• ARM® Cortex™-A53, Quad-Core, 1.8GHz per core

Supported Network File Sharing:
• Server Message Block (SMB) up to 200,000 files

Album Art Supported:
• JPG
• PNG

Music Services & Internet Radio:
• 23+

3rd-Party Integrations:
• AirPlay 2
• Spotify Connect (including Spotify Lossless)
• Tidal Connect
• Qobuz Connect
• Roon Ready

Control System Integrations:
• Crestron
• Control4
• RTI
• Nice
• URC
• Lutron

Voice Control Integrations:
• Amazon Alexa Skills

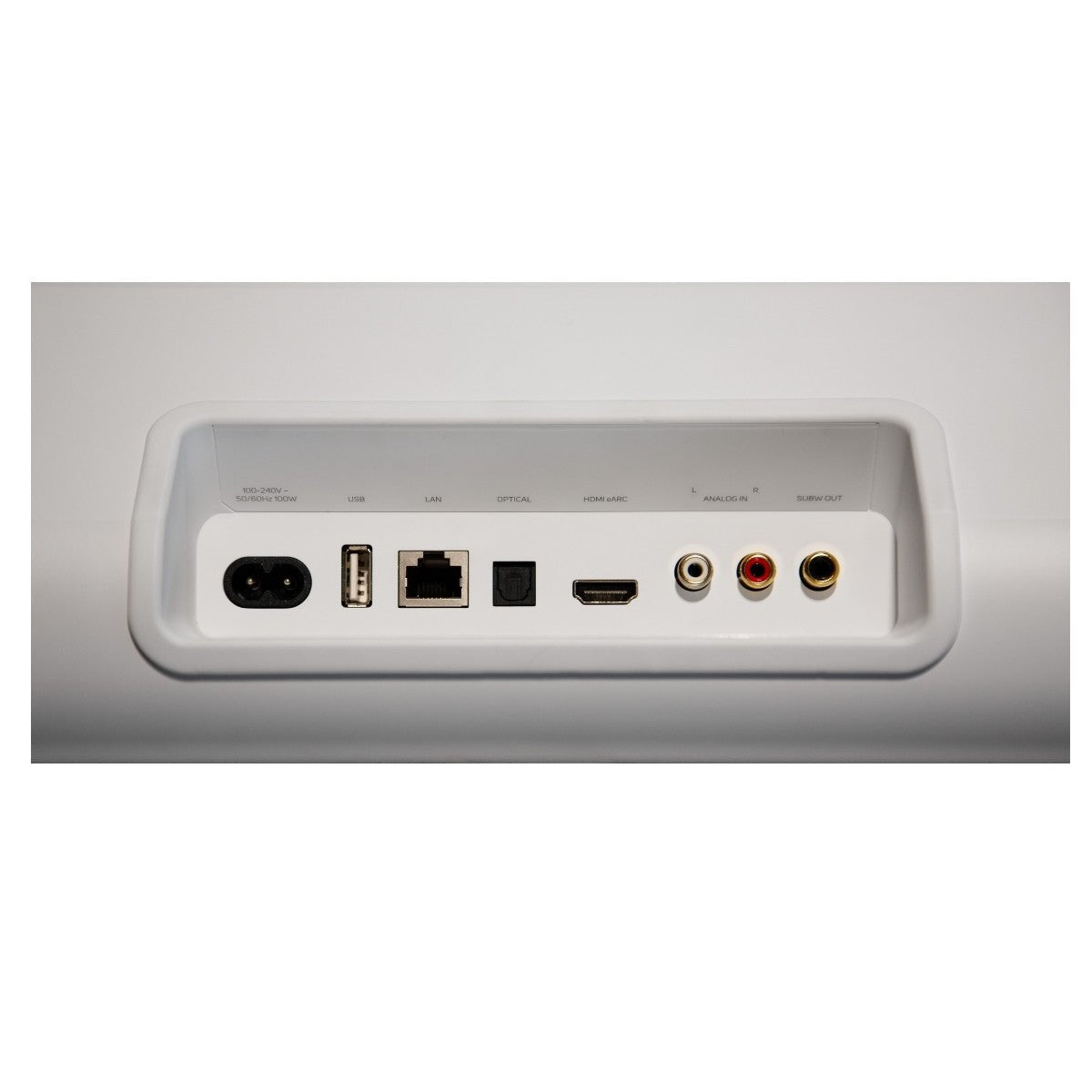

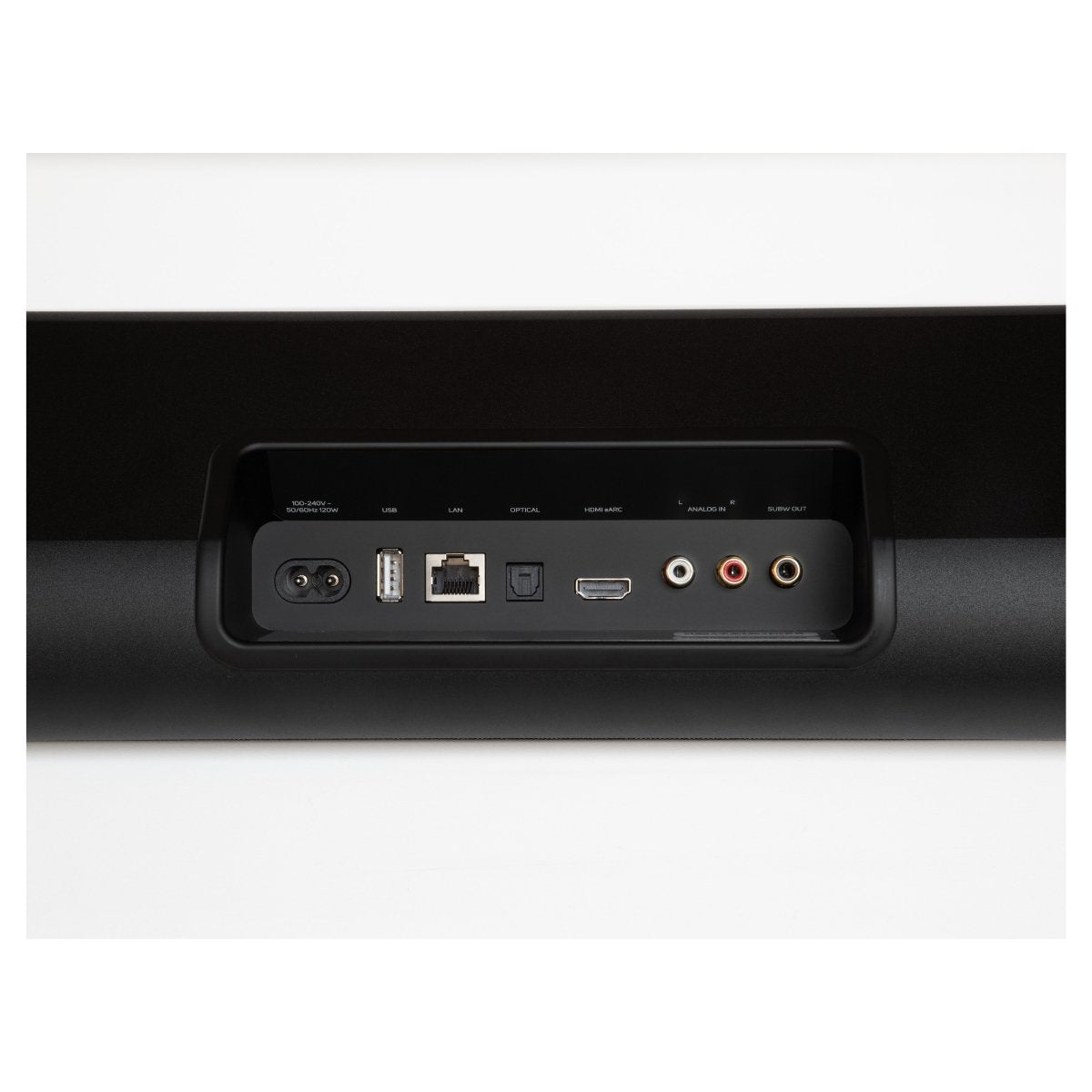

Connections

Power Supply:
• Universal 2-pin AC cord input (100–240V AC)

Ethernet/LAN:
• Ethernet RJ45, Gigabit 1000Mbps

Wi-Fi Built In:
• 2× WiFi 5 (802.11ac), dual-band

Bluetooth Quality:
• Bluetooth 5.2 aptX Adaptive

Bluetooth Connectivity:
• Two-Way (transmit & receive)

IR Optical Built In:
• IR Sensor built into front panel with IR learning

Optical/Analog Input:
• Toslink Optical
• RCA Analog

HDMI Input:
• HDMI eARC

USB In:
• Type A (FAT32, NTFS formatted) — external storage only

Local Server Mode:
• (Not specified)

Headphone Output:
• Bluetooth

Subwoofer Output:
• RCA × 1
• Wireless to PULSE SUB+

User Interface & Control

Status Indicator:
• LED

Play/Pause Button:
• Touch LED

Volume Control Buttons:
• Touch LED

Previous/Next Track Buttons:
• In-App

Preset Buttons:
• Touch LED × 2

Proximity Sensor:
• Yes

General

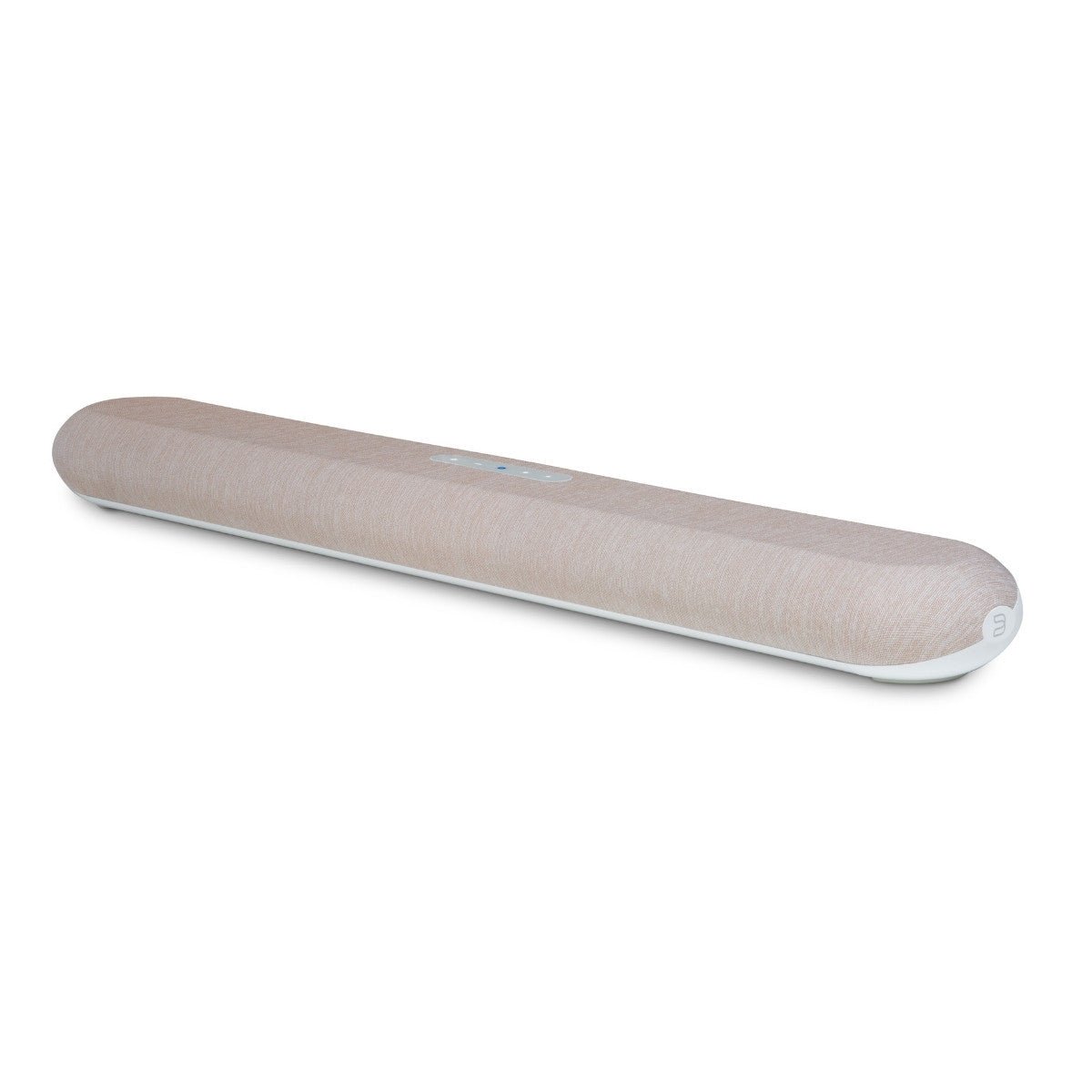

Finish:
• Black
• Tan

Max Power Consumption:
• N/A

Storage Environment:
• -10°C to 50°C
• 20% to 80% relative humidity

Operating Environment:
• 0°C to 40°C

SKU/Version:
• P431

Product Dimensions:

• Table:
- 850 × 74 × 140 mm (W × H × D)
- 33.34 × 2.91 × 5.51 in (W × H × D)

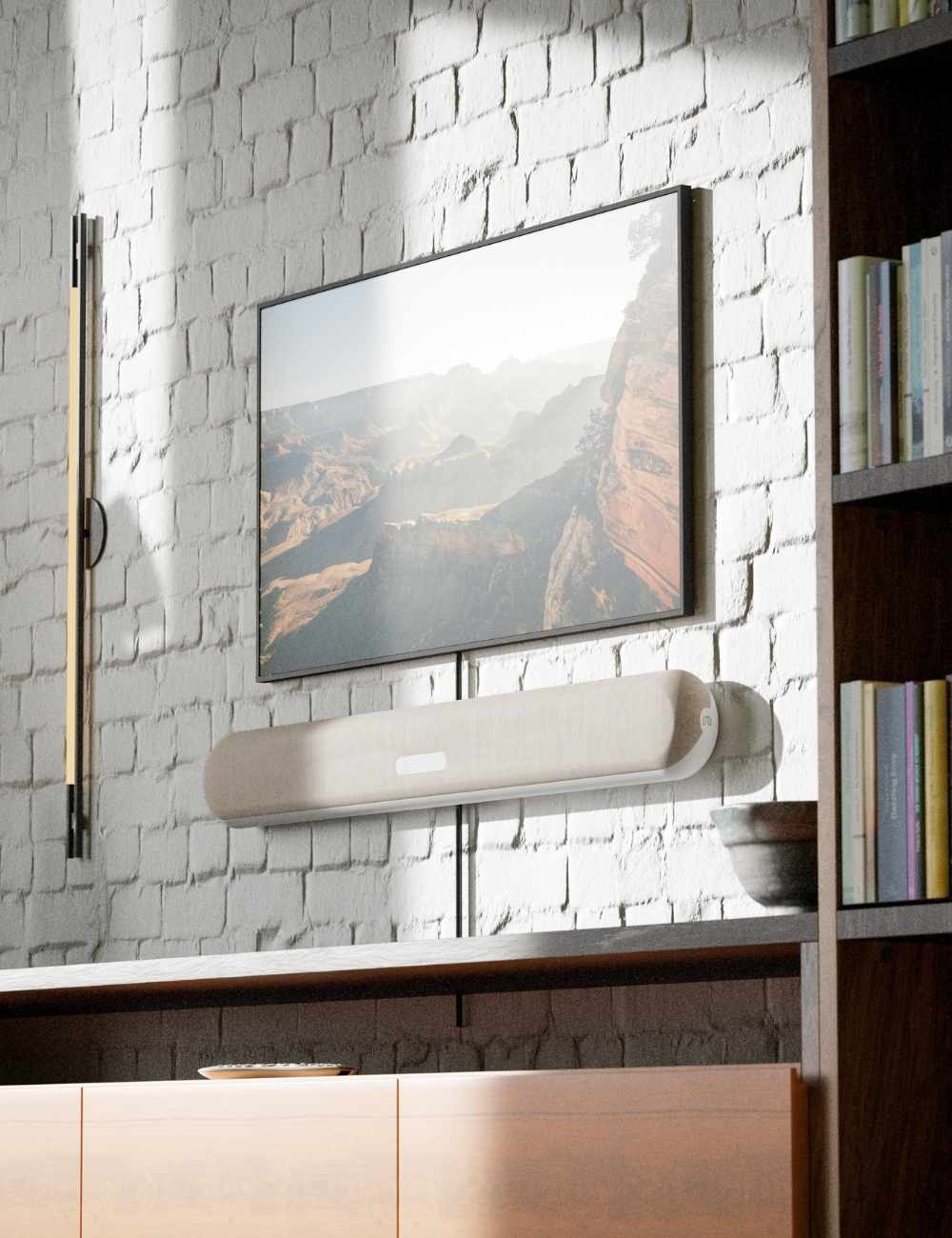

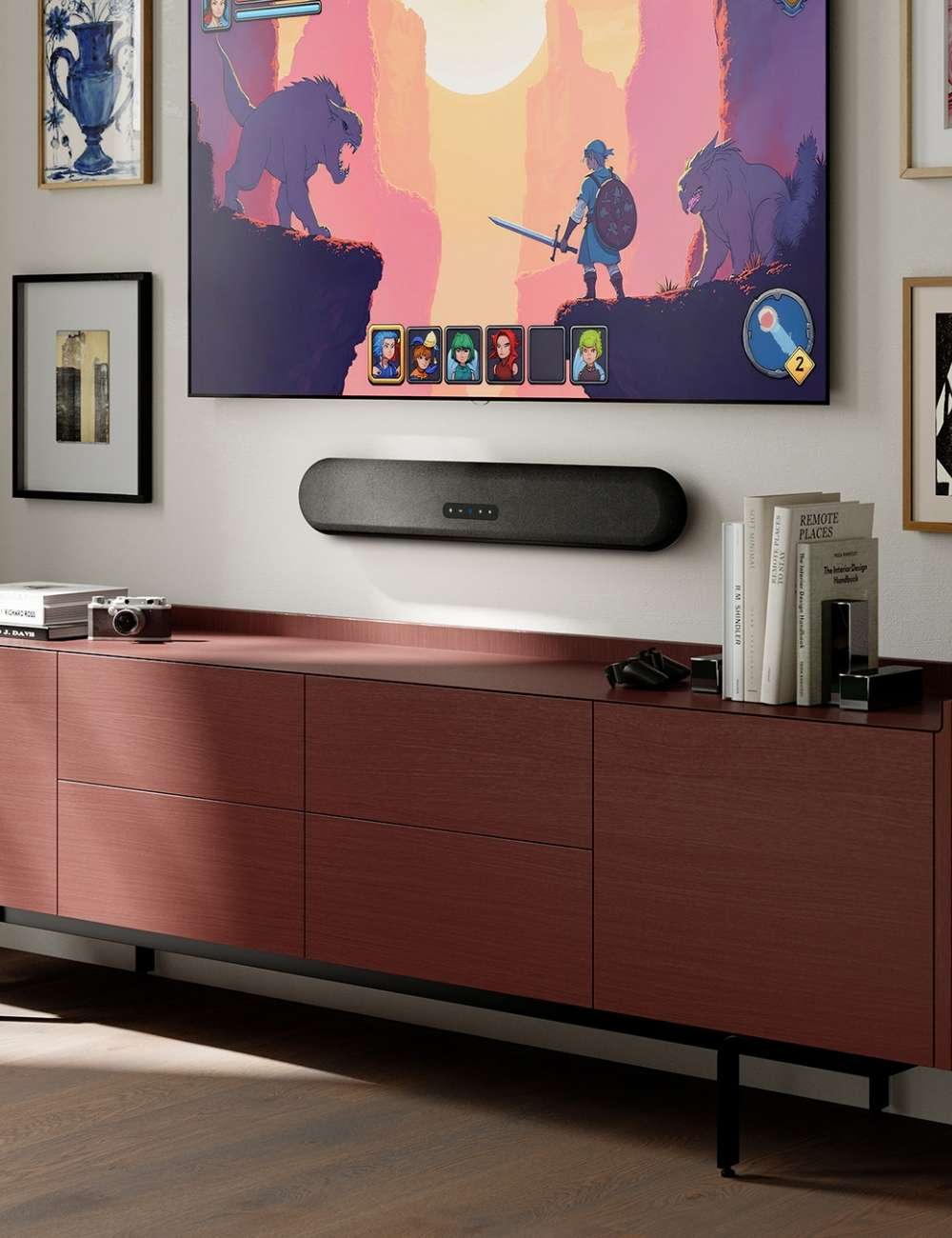

• Wall Mounted:
- 850 × 140 × 84.5 mm (W × H × D)
- 33.34 × 5.51 × 3.33 in (W × H × D)

Weight:
• 5.20 kg / 11.46 lbs

Included Accessories:
• 120V AC Power Cord
• 230V AC Power Cord
• Ethernet Cable
• HDMI Cable
• Wall Mount Bracket
• Wall Mount Template
• Wall Mount M6 Bolt × 2
• Wall Mount Hex Tool
• Safety/Warranty Guide
• Quick Setup Guide
