Anthem

Anthem STR Power Amplifier

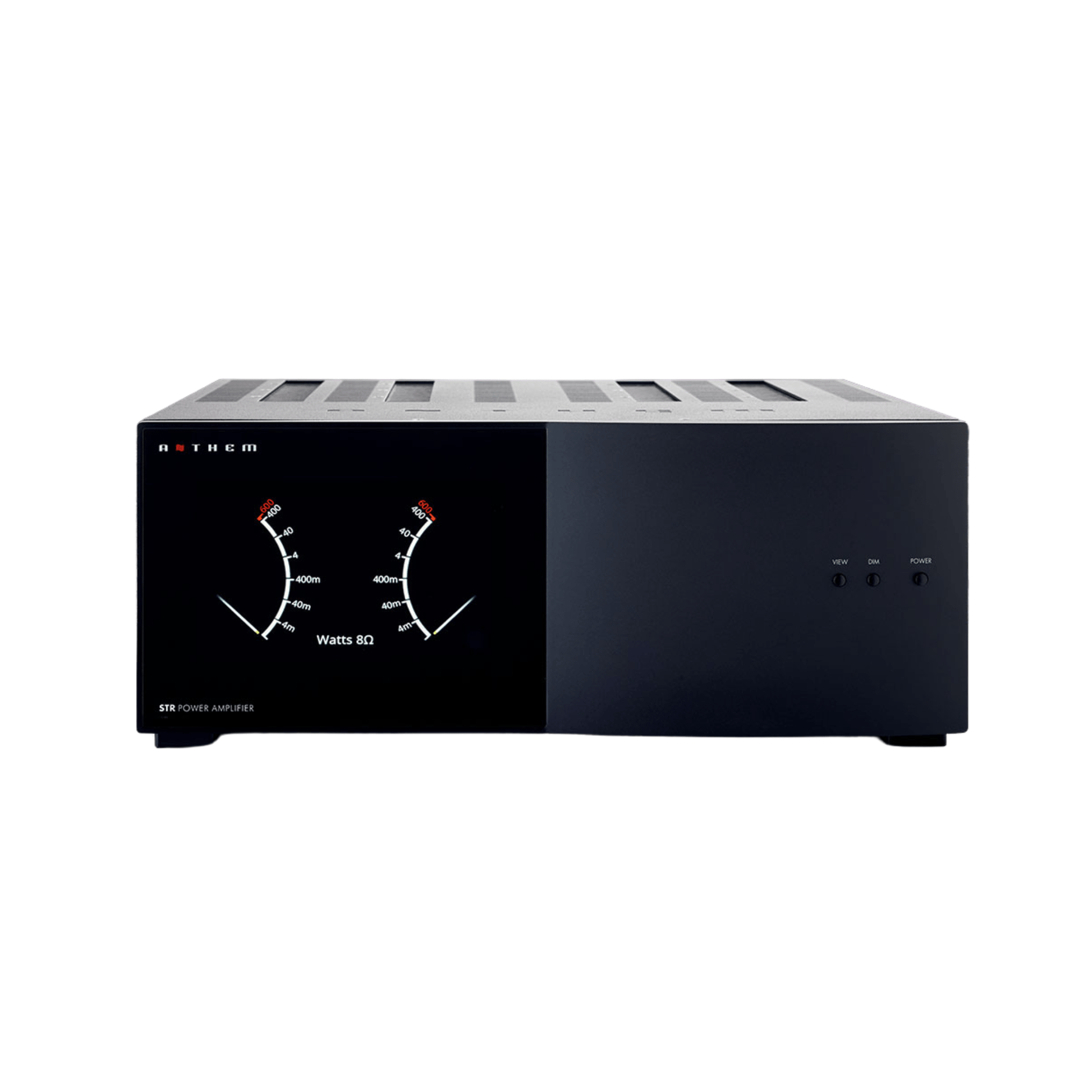

  • Black Anthem_str_power_Amplifier front view

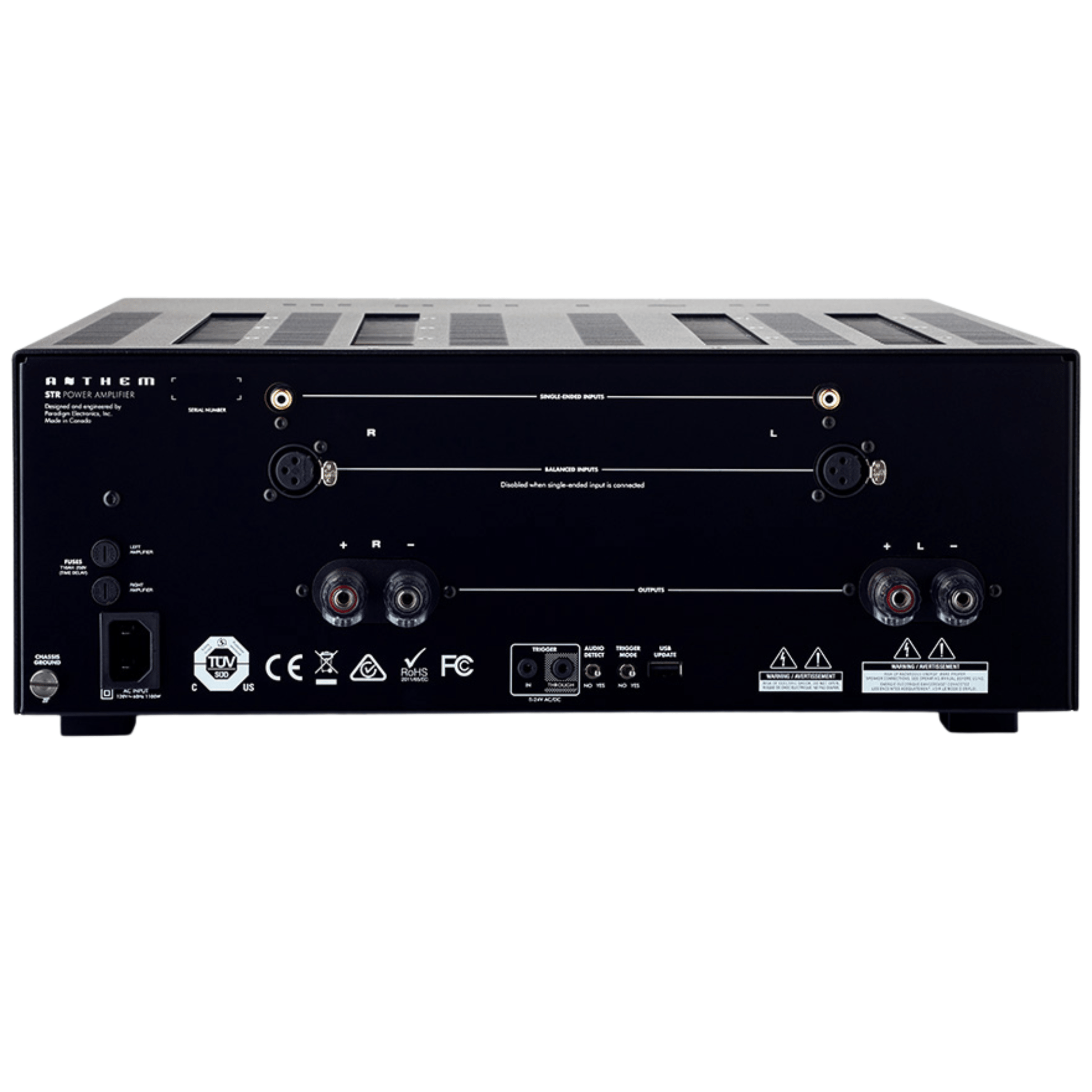

  • Black Anthem_str_power_Amplifier back view

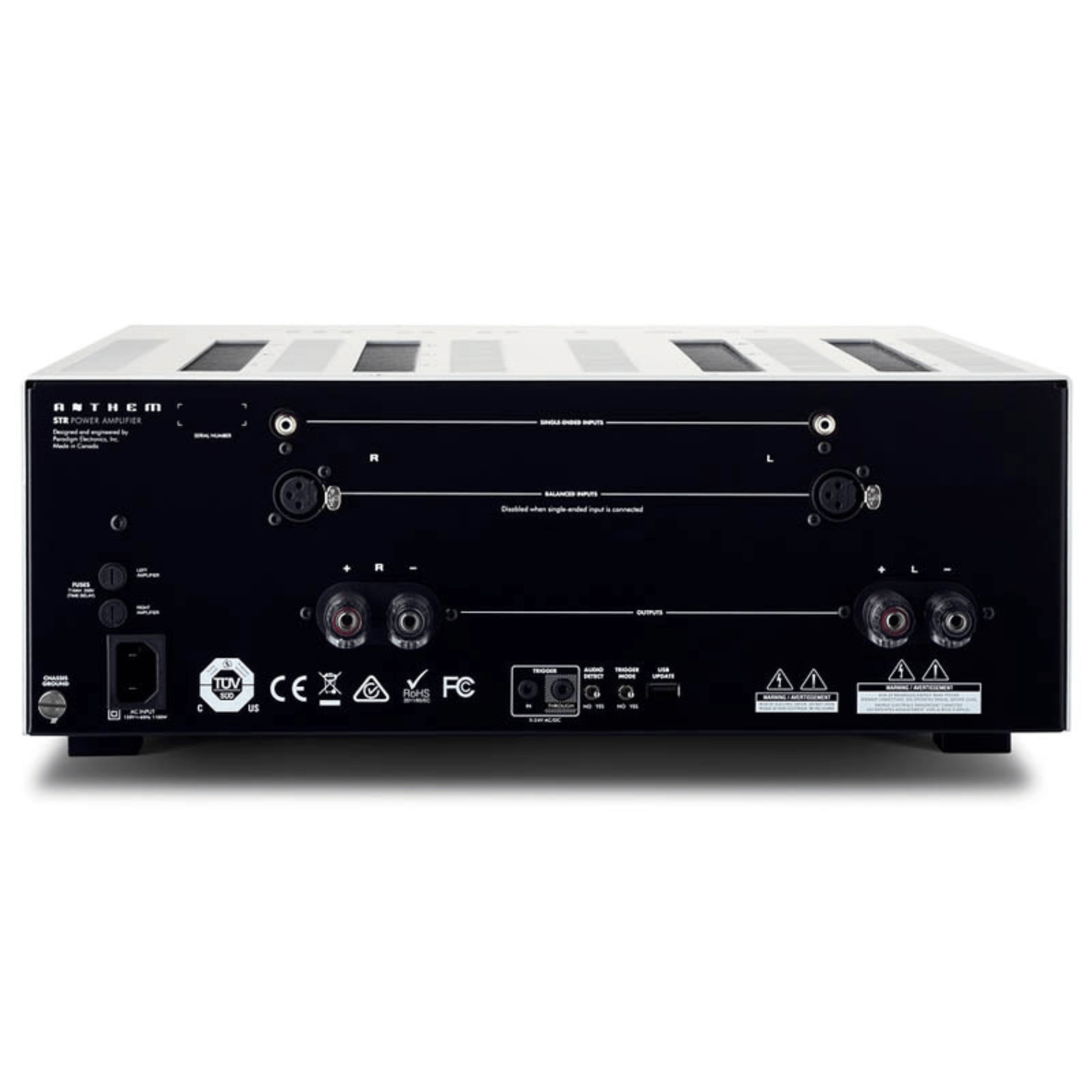

  • Silver Anthem_str_power_Amplifier back view

STR-POWER-AMP-BLK

$7,799.99
$7,799.99
Color: Black

In-Store Only

Contact Us

Please call us at 1-905-270-3440 or simply fill out the form below for ordering & more info.
STR POWER AMPLIFIER Two-Channel Revolution

The STR Power Amplifier is the beating heart of a world-class 2-channel sound system. It delivers massive power generation, with audiophile-quality output in a smartly designed component.

The All New STR Power Amplifier

Doling out 400 Watts/channel into 8 Ohms with both channels driven (450W single channel), a massive 600 Watts/channel into 4 Ohms (both channels driven) and 800W in 2 Ohms. The STR delivers true no-holds-barred performance.

Innovative Electronics

Inside, the STR Power Amplifier uses two colossal transformers and multiple high-current output devices so the most subtle details and dynamic peaks are handled equally well. Outside, its beautifully designed cosmetics, including a 7-inch graphic control display and secure, conductive audiophile connectors provide a perfect match to the STR Preamplifier.

Features & Functions
  • 400W/600W/800W continuous into 8 /4 /2 ohms, both channels driven
  • Cascoded complementary feedback input stage
  • Sixteen bipolar output devices per channel
  • Multi-Mono Design
  • Massive toroidal transformers
  • Soft turn-on
  • Four power on/off options
  • No rail fuses
  • Advanced Load Monitoring™ Technology
  • Graphic front panel display for the power meter, status, and easy setup navigation

Specifications

Anthem STR Preamplifier

Design

  • 2-channel audio preamplifier with DSP and bass management

Frequency Response

  • Analog Direct In: 10 Hz - 80 kHz (+0.00, -0.10 dB)
  • Analog In, DSP Mode: 10 Hz - 40 kHz (+0.00, -0.20 dB)
  • Digital In, 192 kHz: 10 Hz - 50 kHz (+0, -0.5 dB)
  • Digital In, 96 kHz: 10 Hz - 45 kHz (+0, -0.5 dB)
  • Digital In, 44.1 kHz: 10 Hz - 20 kHz (±0 dB)

Audio Performance

  • THD+N @ 1 kHz (DSP Mode): 0.001% (Digital In), 0.0016% (Analog In)
  • THD+N @ 1 kHz (Analog Direct Mode): 0.0016%
  • SNR (DSP Mode): 113 dB (Digital In), 108 dB (Analog In)
  • SNR (Analog Direct Mode): 120 dB (1 kHz, IEC-A, 2 Vrms output)
  • Maximum Output (RCA): 3.3 Vrms (<0.1% THD)
  • Maximum Output (XLR): 6.6 Vrms (<0.1% THD)

Phono Stage

  • Phono Input Impedance: 100 Ω (MC), 47 kΩ and 270 pF (MM)
  • RIAA Response: ±0.1 dB (20 Hz - 20 kHz)
  • Gain: 61 dB (MC), 41 dB (MM)
  • Phono SNR (DSP Mode): 84 dB (MC), 102 dB (MM)
  • Phono SNR (Analog Direct Mode): 92 dB (MC), 110 dB (MM)
  • Phono THD (DSP Mode): 0.002% (MC), 0.0015% (MM)
  • Phono THD (Analog Direct Mode): 0.002% (MC), 0.0015% (MM)

Anthem STR Power Amplifier

Design

  • 2-channel Class AB power amplifier

Power Output

  • 400 W per channel @ 8 Ω (Continuous, 20 Hz - 20 kHz, <1% THD)
  • 600 W per channel @ 4 Ω (Continuous, 20 Hz - 20 kHz, <1% THD)
  • 800 W per channel @ 2 Ω (3 seconds max.)

Audio Performance

  • Frequency Response: 20 Hz - 20 kHz (±0.1 dB)
  • THD (400 W): 0.0007% (1 kHz), 0.004% (20 kHz)
  • Signal-to-Noise Ratio (A-weighted, ref. 400 W): 121 dB
  • Slew Rate: 30 V/μs
  • Damping Factor (20 Hz - 1 kHz): 360
  • Channel Separation: 101 dB (100 Hz), 98 dB (10 kHz)

Input & Gain

  • Input Impedance: 10 kΩ (RCA), 15 kΩ (XLR)
  • Input Sensitivity (for 400 W into 8 Ω): 2.1 Vrms
  • Voltage Gain: 29 dB

Physical Specifications

  • Dimensions (H x W x D): 6-3/4" x 17" x 18-1/2"
  • Weight: 60 lbs
  • Finish: Silver or Black

Accessories (Preamplifier)

  • Measurement microphone
  • Mic stand
  • USB cable
  • Remote control
  • Power cord
