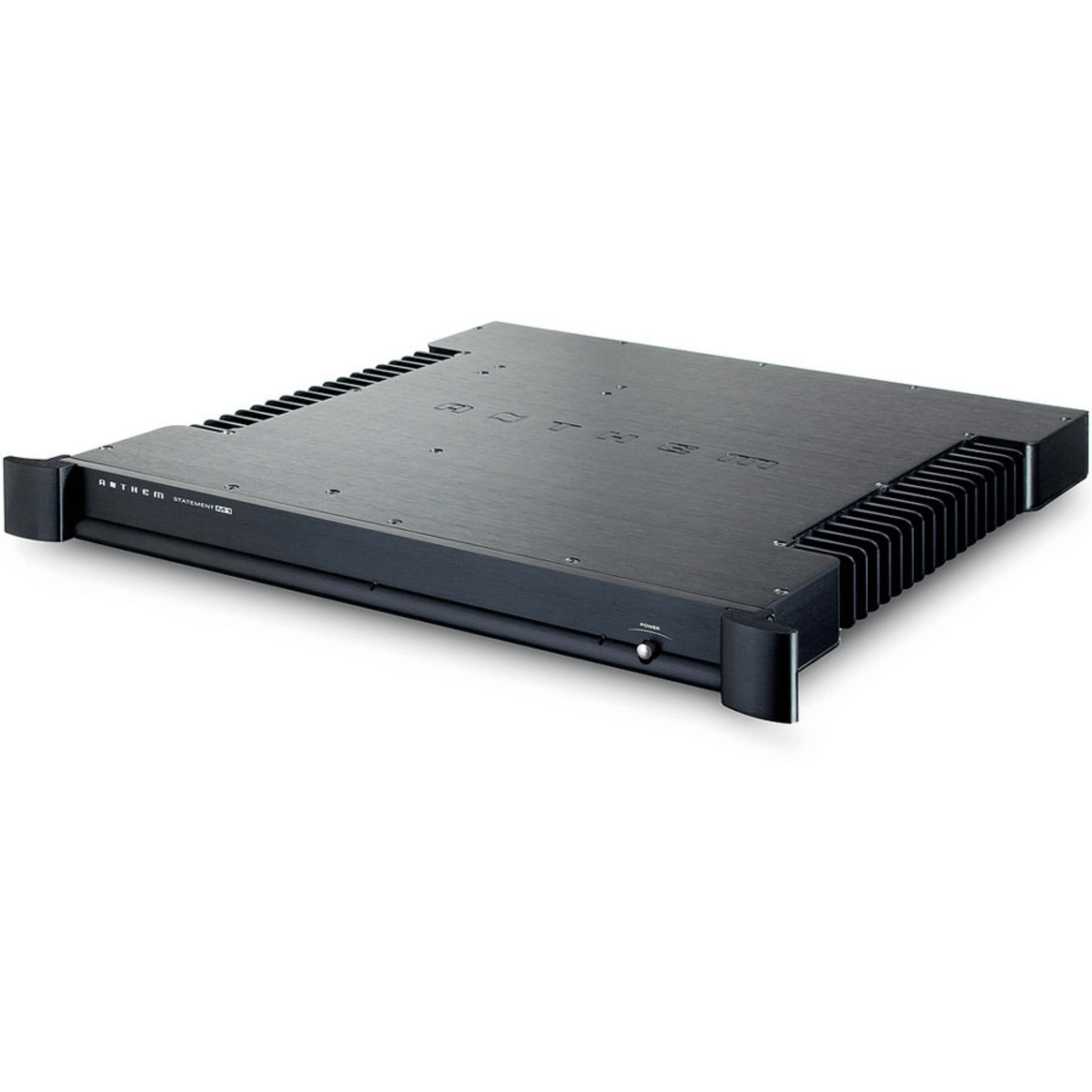

Anthem M1 State-of-the-Art Monaural Amplifier

Skip to product information
1 of 2

M1

Regular price $4,799.00
Sale price $4,799.00 Regular price


Contact Us

Please call us at 1-905-270-3440 or simply fill out the form below for ordering & more info.


p>State-of-the-Art Monaural Amplifier

The highest sound quality at all volume levels, flat frequency response into any load, and stable into the most difficult loads. The Statement M1 is a state-of-the-art monaural amplifier delivering 1,000 watts into 8 ohms and 2,000 watts into 4 ohms or less with THD remaining under 0.1% from 20 Hz to 20 kHz. Designed and engineered in our advanced research center in Ottawa, Canada, the M1 is manufactured in our Toronto facility.

More than just a slim, technologically advanced monaural design, the M1 demonstrates that Class D architecture isn't fundamentally flawed, it simply hasn't been implemented well in the past, mainly because it required such a heavy commitment to R&D. We’re fortunate to have the in-house resources to create such a groundbreaking product and one listen will reveal the truly extraordinary nature of this amplifier.

  • Full resolution of all of the sonic subtleties and complexities in the input signal.
  • Accurate reproduction of the full dynamic range of the signal.
  • Output stage is never allowed to clip.
  • No compression as output increases.
  • Flat frequency response into any load, without having to resort to digital conversion or equalization to compensate.
  • Stable into all loads including open circuit and short circuit.
  • A low noise floor.
  • Exceptional efficiency with low heat output.
  • An amp so mechanically silent it will suit even the quietest listening room.
  • A design that allows multiple units to be stacked with no danger of overheating.
  • All of the above delivered at a price point that while not inexpensive, delivers virtually limitless dynamic fidelity.

Specifications

Amplifier Performance

  • Channels: 1
  • Power Output RMS (8 Ω): 1,000 W
  • Power Output RMS (4 Ω): 2,000 W
  • Power Output RMS (2 Ω): 2,400 W
  • Power Bandwidth: 5 Hz - 45 kHz (-3 dB at 1,000 W into 8 Ω)
  • Frequency Response: 20 Hz - 20 kHz ±0.1 dB (8 Ω, 4 Ω)
  • Frequency Response: 20 Hz - 20 kHz ±0.2 dB (2 Ω)
  • Voltage Gain: 29 dB
  • Signal-to-Noise Ratio: 113 dB (IEC-A, ref. 1,000 W)
  • Total Harmonic Distortion + Noise: <0.06% (1 kHz @ 1,000 W)
  • Intermodulation Distortion: CCIF (19 kHz + 20 kHz) 0.003% @ 1,000 W
  • Damping Factor: >1400 at 20 Hz, 800 at 1 kHz

Input & Output

  • Input Sensitivity: 100 mV (1 W output, 8 Ω), 3.2 Vrms (1,000 W output, 8 Ω)
  • Input Impedance: 10 kΩ (RCA), 20 kΩ (XLR)

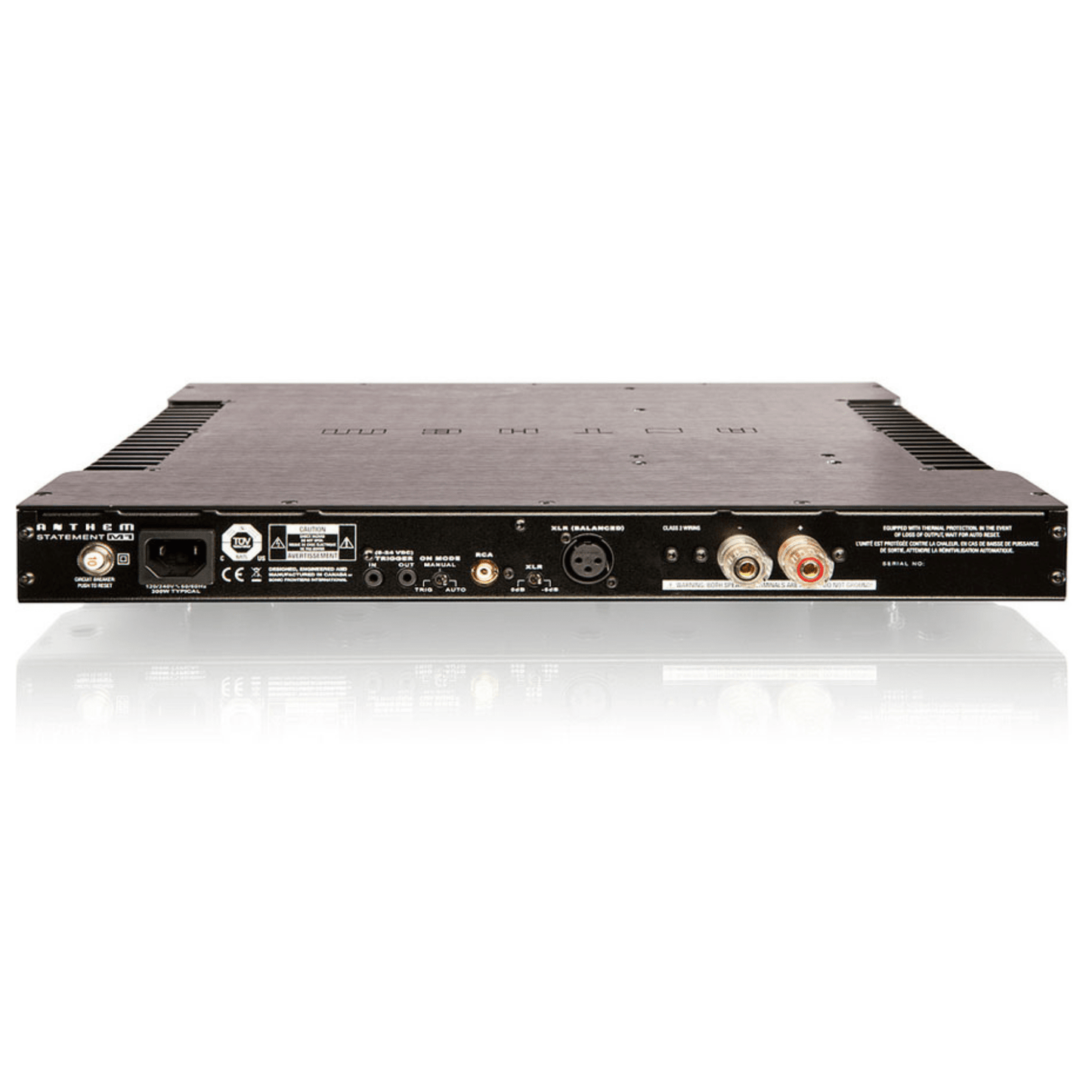

  • Inputs: Single-ended, Balanced, Relay Trigger (3.5 mm mono jack)
  • Outputs: Speaker Binding Posts, Relay Trigger (3.5 mm mono jack)

Construction & Controls

  • Front Display: LED status indicator
  • Construction: Anodized aluminum faceplate with aluminum chassis
  • Front Panel Switch: Power On / Off
  • Rear Panel Switches: XLR / RCA On-Off modes
  • Operating Modes: Trigger, Manual, Auto
  • Rack Height: 1U with rackmount kit

Power Consumption

  • Idle: 33 W
  • Typical Playback Levels: 300 W
  • Low Power Standby: <1.0 W (120 V), <2.0 W (240 V)

Dimensions & Weight

  • Width: 19-1/4" (49 cm)
  • Height (with feet): 2-1/4" (5.7 cm)
  • Depth (excluding power cord): 18-3/4" (47.6 cm)
  • Weight: 20 lb (9 kg)

Power Requirements

  • Operating Voltage: 108V - 264V AC, 50 / 60 Hz, single phase
  • Recommended Circuit (120 V): Dedicated 15A per amplifier depending on speaker load
  • 20A circuit adequate for two amplifiers at 8 Ω speaker loads
